How to choose the right size water curtain for your chicken coop ventilation？

Choosing the right size for your evaporative cooling pad system has a direct effect on how well your business can keep temperatures and air quality at the right levels. A appropriately sized Chicken Coop Ventilation Water Curtain maximizes cooling efficiency through controlled drainage while ensuring adequate airflow. To figure out the right size, you need to carefully look at your building's cubic volume, the number of birds that live there, the capacity of the exhaust fan, and the weather in your area. When these factors match up with the curtain sizes, you get a balanced negative-pressure system that lowers the temperature consistently without building up too much humidity or wasting energy.

Defining the Decision Scenario: Why Size Matters in Water Curtain Ventilation?

Getting the right size evaporative cooling system has a big impact on how well your farm can control the environment and how much money it makes. If your facility gets the right air speed through the wetted media—usually between 1.5 and 2.0 meters per second for best performance—it depends on how the curtain area and exhaust fan capacity are related.

The Consequences of Undersized Systems

When the curtain area isn't enough for your building, it causes a number of practical issues at the same time. Because the wetted media doesn't have enough surface area, air moves through it at too high of speeds, often faster than 2.5 meters per second. This fast movement keeps air and water from contacting for long enough, which lowers the efficiency of evaporation and limits the temperature drop. Even though the system is going at full capacity, the heat stress is making your birds sick, which means that fewer of them are eating and more are dying during the summer peak. Not having enough curtains also makes the air flow unevenly, so some areas don't get enough cooling while others stay dangerously warm.

The Hidden Costs of Oversized Equipment

Putting up curtains that are too big for your windows causes different but still problematic problems. Systems that are too big need more water pumps, transport pipes, and structural support than they need, which raises the starting cost of the system. The extra wet area needs higher water flow rates to keep it properly saturated, which raises the cost of utilities and the number of times that upkeep needs to be done. When the temperature is reasonable and only some cooling is needed, curtains that are too big can't work well at low capacity, so you have to turn the system on and off many times instead of keeping it in a steady state.

Climate and Density Variables

The surroundings in your area is very important when figuring out the right size. In dry areas with low humidity, operations get bigger temperature drops per square meter of curtain area, which could mean smaller setups. On the other hand, farms in wet areas need bigger curtain surfaces to make up for the fact that water can't evaporate as easily. These things become even more important when you think about how many birds are in a facility. A facility with 100,000 broilers makes a lot more metabolic heat than one with 50,000 layers, so it needs a lot more cooling capacity and curtains that are the same size.

Establishing Core Metrics for Selecting the Right Water Curtain Size

To do an accurate sizing, you must first do a mathematical study of your building's thermal and ventilation needs. This is done by turning working factors into specific equipment measurements, such as integrating a Chicken Coop Ventilation Water Curtain to ensure precise environmental control.

Calculating Airflow Requirements

Finding out your total airflow rate in cubic meters per minute is the first step in getting the right size. In hot weather, the standard practice in the business is 4 to 7 cubic meters per hour per kilogram of bird body weight. This should be changed for the stage of production and the weather. At high ventilation rates, a 15,000-bird broiler house with an average weight of 2 kilograms needs about 2,000 cubic meters of air flow per minute.

This airflow goal is directly related to the size of your exhaust fan and needs to match the whole curtain area to keep the right face velocity. With its 7-millimeter wave height and 45-degree corrugation angle, the Model 7090 system offers about 420 square meters of wetted area per cubic meter of media, making the most of air-water contact in a small space.

Understanding Humidity Control Through Evaporation

Because evaporative cooling systems naturally add water to the air, controlling the humidity is an important part of choosing the right size system. The cooling potential is based on the wet-bulb depression, which is the change in temperature between the dry bulb and the wet bulb. When the relative humidity outside is already higher than 70%, evaporation systems don't work as well, and curtains that are too big can raise the humidity inside to dangerous levels above 80%.

At the best face speeds, good cellulose media gets saturation efficiencies of between 80% and 85%. This means that you can guess how much the temperature will drop by looking at the curtain size and the area wet-bulb readings. Our high-molecular-weight cross-linked polyethylene media keeps its shape even when it's fully wet for a long time. This stops the drooping and channeling that happen with lower-quality materials and make cooling less effective.

Energy Efficiency and Operational Costs

The size of the system has a direct effect on both how much power it uses and how much it costs to maintain over time. When curtain-to-fan ratios are right, exhaust fans can work at their design point on the performance curve, which means they can move the most air per kilowatt-hour. When curtains are too small, they cause too much static electricity, which makes fans work harder against more resistance, which uses a lot more power while lowering airflow.

In high-temperature, dry environments, our installations usually lower the temperature by 5 to 8 degrees Celsius. When they are the right size, they do this job with 40% less work than standard ways. The 15-centimeter and 20-centimeter thickness choices let you combine the original cost with the cost of operation. Thicker pads allow more water to evaporate, but they need stronger support and framing structures.

Comparing Solutions: Water Curtain Size versus Other Ventilation Systems

Figuring out how the dimensions of evaporative cooling stack up against other temperature control technologies can help make the value proposition clearer for various operating scales.

Efficiency Analysis Against Mechanical Cooling

Refrigerated air conditioning systems can precisely control the temperature no matter how wet it is outside, but they use 10 to 15 times more electricity per ton of cooling capacity than evaporation systems. A 1,000-square-meter chicken coop might need 50 kilowatts of cooling power, which would mean big monthly energy bills.

A similar evaporation system with the right-sized curtains and negative-pressure fans usually only needs 5 to 8 kilowatts for the water pumps and fan motors. When it comes to controlling humidity, mechanical systems take away water while evaporation methods add it. This means that curtain-based cooling works best in dry or semi-dry areas but not so well in tropical areas with high humidity all the time.

Cost Comparison Across Installation Scales

Different technologies have different scaling of installation costs. A simple tunnel ventilation system that doesn't cool might cost $15 to $20 per square meter of floor space. Adding evaporation curtains could make it $25 to $35 per square meter, but this depends on the quality of the media and the frame materials. Our aluminum alloy frames are very resistant to corrosion and don't cost too much. On the other hand, our 304 stainless steel frames are the most durable and can handle tough settings that get washed often. Most mechanical cooling systems need between $80 and $120 per square meter of conditioned space, which means that most large-scale chicken companies can't afford to use them.

Operational Flexibility and Scalability

Curtain-based systems are very flexible because they are made up of separate modules. A Chicken Coop Ventilation Water Curtain is a perfect example of this modular design. Our combination and splicing method is very flexible, so you can start with a base system that is the right size for normal conditions and then add parts to increase capacity as production grows or as climate needs change. When operations go from 20,000 to 50,000 or 100,000 birds over a few years, this portability comes in very handy.

The customizable length and width choices let you fit exactly to the dimensions of your current building without having to make expensive changes to the structure. The amount of maintenance that needs to be done is still manageable—replacing old curtain parts only takes hours, not days like major mechanical system overhauls do.

Matching Water Curtain Size to Specific User Needs and Conditions

Customizing the size of the system to the specifics of your business will ensure peak performance in a range of production types and environmental conditions.

Small-Scale versus Industrial Operations

A family farm with two houses and 10,000 birds in each has different size concerns than an integrated business with 500,000 birds in various facilities. Standardized curtain sizes that fit common building widths (12 to 15 meters) are helpful for smaller businesses because they make fitting faster and don't have to wait for custom manufacturing. These farms usually choose curtains that are 15 centimeters thick because they are a good compromise between performance and cost

They keep the farms cool in milder temperatures without spending a lot of money at first. For large-scale factories that use high-density tunnel ventilation, the media needs to be 20 centimeters thick to handle the steady flow of fast air from the exhaust fan arrays. Thick media have more evaporation surface area, which stops dry spots from forming, which can happen when processing tens of thousands of cubic meters per minute.

Environmental Customization

Because of differences in regional temperature, certain materials and designs need to be changed. With the right-sized curtains, operations in the southwestern United States, where summer temps regularly reach over 40 degrees Celsius and relative humidity falls below 20 percent, can drop the temperature by 12 to 15 degrees. Since evaporation potential is still high, these conditions allow curtain areas to be a little smaller compared to the volume of the building.

On the other hand, farms in the southeastern states have to deal with 60–80% humidity in the summer. This means they need bigger curtain surfaces and careful control algorithms that stop water flow when it would make birds uncomfortable. While our frames don't rust, they are very important in coastal areas where salty air speeds up the breakdown of metals. Also, our cellulose media keep working well even when the water quality is bad.

Maintenance Implications of Size

Larger curtain setups need bigger water distribution systems, which means there are more places where things could go wrong and need to be fixed. To make sure that the whole 200-square-meter curtain wall is evenly saturated, it needs more than one distribution line with its own flow controls. The low airflow resistance design of our Model 7090 media makes these distribution systems less stressed because water moves easily through capillary action without needing too much pressure.

As the curtain area grows, so do the jobs that go along with it, like checking for scale building, algae growth, and media degradation on a regular basis. With proper upkeep, our longer service life means that you have to do these checks less often than with lower-quality options, and the one-year warranty protects you during the most vulnerable break-in time.

Best Practices and Design Principles for Optimal Water Curtain Sizing

Using tried-and-true engineering methods will make sure that your evaporative cooling system works well for as long as it's supposed to.

Balancing Thermal and Airflow Requirements

To get the right size, you need to think about both the heat load removal and the air exchange rates at the same time. Figure out how much heat your home makes by adding up the heat losses from birds, the sun's rays hitting the roof and walls, and the use of machinery. A normal 2-kilogram broiler makes about 10 watts of metabolic heat, which means that 50,000 birds make 500 kilowatts of heat all the time.

Your Chicken Coop Ventilation Water Curtain system needs to cool enough to balance out this load while still keeping the 4 to 7 air changes an hour that are good for your lungs. If you want to reach a face velocity of 2 meters per second, the relationship should be based on the idea that curtain area in square meters should equal total airflow in cubic meters per minute split by 120. This method is a good place to start, and it has been improved based on real wet-bulb depression data for your area.

Material Selection for Industrial Durability

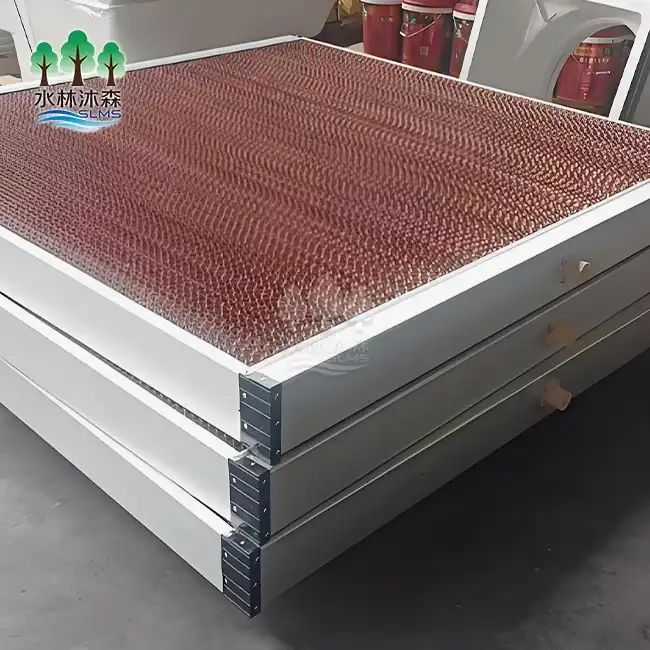

Our evaporative cooling system is made up of three fully combined parts that are designed to last a long time. The cross-linked high-molecular-weight polyethylene curtain paper has better structural stability than normal kraft pulp alternatives. It doesn't sag or peel, which lowers the efficiency of cooling. This material keeps its wavy shape even after months of being wet and dry over and over again.

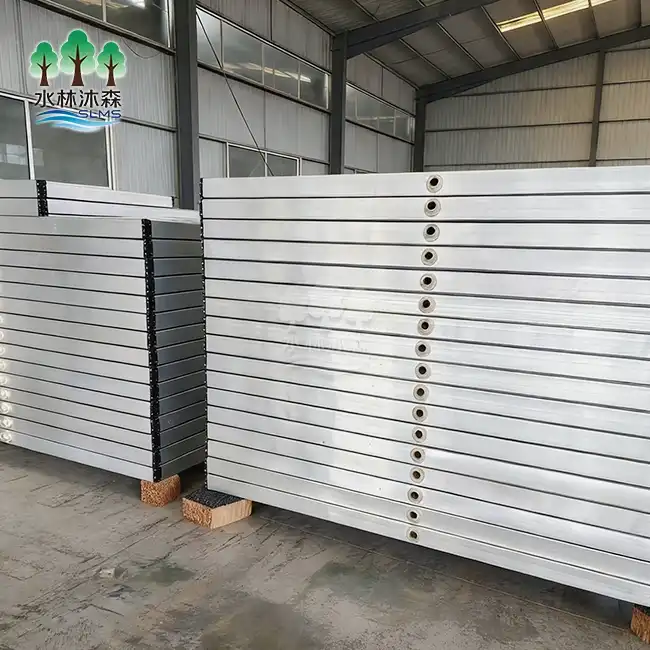

Corrosion-resistant frames made of aluminum alloy or stainless steel keep cheaper galvanized steel setups from breaking down due to rust. This is especially important in chicken houses that are full of ammonia. The water movement system uses UV-resistant distribution pipes that stop algae growth in the supply lines, so the flow rates stay the same across the whole curtain area.

Installation Positioning and Configuration

When placed correctly, the system works more reliably and cools more effectively. When you can, hang curtains on the side of the building that faces the direction of the main wind. This will make the exhaust fans work less hard when the weather is nice. Make sure the bottom edge is at least 30 centimeters above the floor to keep dust and other dirt from getting on it. The top edge should reach close to the ceiling to catch hot air as it rises.

Our installation videos go into great depth about how to mount the frame, set up the water distribution, and connect it to your current ventilation controls. When negative-pressure fans are placed on the opposite side, the system cools the building very effectively as the fans pull fresh air through the wet curtain, distributing cool, filtered air all over the building. For buildings with non-standard shapes, the flexible combination design lets you place in corners and set up multiple walls in different ways.

Our professional service team offers technical help that goes beyond the initial installation. We help with the whole process, from the original measurements of size to installation and ongoing optimization. With on-site installation services, you can be sure that everything is set up correctly, which is important for getting the results you want.

Conclusion

To choose the right evaporative cooling system sizes, you need to carefully look at your building's size, the number of birds that live there, its output capacity, and the weather in the area. When installations are the right size, they balance how well they cool against how much energy they use and how much they cost to build. This way, temperatures drop by 5 to 8 degrees Celsius while costs drop by 40 percent compared to standard ways. You can choose between a 15-centimeter or 20-centimeter thickness for the Chicken Coop Ventilation Water Curtain (Model 7090 system), which gives you choices for a wide range of operating scales and weather conditions.

High-molecular-weight cross-linked polyethylene media and corrosion-resistant frame are examples of high-quality materials that make sure the product works well and lasts a long time. When it works, the screen area is matched to the airflow needs. This keeps the face speeds and humidity levels at the best levels to keep birds healthy and productive during busy production cycles.

FAQ

What curtain area do I need for a 1,500-square-meter broiler house?

Depending on the number of birds and the size of the exhaust fan, a building this size usually needs 80 to 100 square meters of screen space. With 50,000 birds at full weight, you need about 2,000 cubic meters of airflow per minute, which is about 16 to 17 square meters of curtain at a face speed of 2 meters per second. This estimate is affected by the humidity of the area. Drier climates may be able to handle slightly smaller areas, while wet areas need bigger ones to make up for the lower evaporative potential.

How do thickness options affect performance?

The 15-centimeter layer gives enough surface area for evaporation for buildings with modest airflow rates of up to 1,500 cubic meters per minute, which is good for working with 30,000 to 40,000 birds. For high-density activities with more than 50,000 birds and steady airflow of 2,000 cubic meters per minute or more, the 20-centimeter option provides better cooling. It also takes longer for the media to become saturated between water circulation cycles, and it holds up better against compression over years of use.

Can I expand my system after initial installation?

Our flexible design makes it easy for phased growth to happen. You can add curtain pieces either horizontally or vertically as your business grows thanks to the flexible combination and splicing setup. Standard frame parts stay compatible across installation dates, and custom length and width choices make sure that new pieces fit in perfectly with the current infrastructure without having to replace the whole system.
