Eight-tier Layer Cage

Eight-tier Layer Cage - Advanced Poultry Equipment for Modern Farms

The Eight-tier Layer Cage is an H-frame commercial egg-laying system built for farms that need the highest bird density their building height allows. Constructed from Q235 steel with a hot-dip galvanized coating of 275g/㎡ or above, the frame is rated for 15+ years of continuous use under full flock load. Each cage compartment measures 45cm (L) × 45cm (W), with the eight tiers stacked to a total structure height of roughly 450cm, and a 10° sloped bottom mesh that lets eggs roll gently onto the collection belt.

The system integrates directly with automatic feeding, nipple drinking, and belt-type manure removal — the three subsystems required to run an eight-tier house without a large labor team. Compared with three- or four-tier cages, this configuration is intended specifically for operations that are constrained by land, not by capital, and that already run (or plan to run) closed-house automation across the whole farm.

This eight-tier H-frame cage is our standard high-density configuration. If your site instead needs a modular commercial system with adjustable tier count, see our Eight-layer Commercial Layer Cage System; for A-frame or budget-tier 8-level options, see 8-Level Egg Chicken Cage.

Why Choose Eight-Tier Configuration for Your Farm?

Land and building cost, not equipment cost, is usually the constraint that pushes farms toward taller cage systems. An eight-tier H-frame layout houses significantly more birds per square meter of floor space than a three- or four-tier system on the same footprint, which matters most where land or shed construction cost is high relative to equipment cost.

The H-frame structure is what makes eight tiers practical. Unlike A-frame designs, which lose stability and floor efficiency as tier count increases, the H-frame distributes vertical load straight down through the frame legs, so the structure stays stable at full height without the footprint penalty of an A-frame's sloped sides.

Technical Specifications

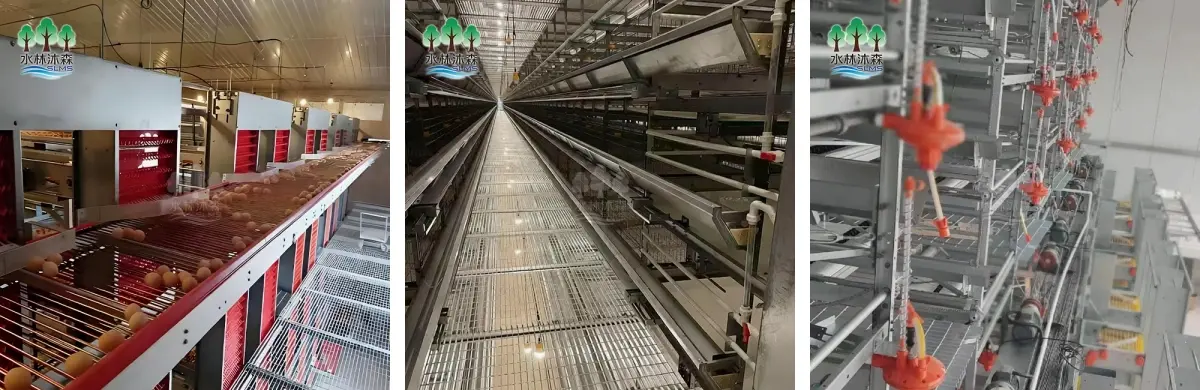

Automation at Eight Tiers

Manual feeding, watering, or egg collection is not practical once cages reach eight levels — the labor cost and time required would erase the density advantage. For that reason, this system is sold as a complete automated package rather than a bare cage frame:

Feeding: A chain or pan feeding line runs the full length of each tier, delivering feed simultaneously across all eight levels.

Watering: Nipple drinkers connect to a pressure-regulated water line at every tier, reducing spillage compared with trough systems.

Manure removal: A belt runs beneath each tier; droppings are carried off the belt to a central cross-conveyor, keeping manure separated from birds and eggs below.

Egg collection: The 10° sloped bottom mesh rolls eggs onto a collection belt continuously through the laying period, reducing the handling that causes cracks.

How Eight-Tier Systems Solve Ventilation Challenges

Temperature stratification poses the primary technical challenge in ultra-high vertical systems. Heat naturally rises, creating dangerous temperature gaps between ground and top tiers.

Our engineering solution employs negative pressure ventilation calculated at 3.5-4.0 m/s airflow. Strategic air inlet positioning directs cool air to upper tiers first, maintaining temperature deltas under 2°C across all eight levels.

Deflector plates guide airflow horizontally through each tier before extraction. This prevents dead zones where stagnant air compromises bird health and egg production rates.

You benefit from uniform environmental conditions regardless of tier position. Consistent temperatures support optimal feed conversion ratios and sustained laying cycles.

Foundation and Installation Requirements

Eight-tier systems concentrate significant point loads through each frame leg, so the foundation needs to be specified for the actual loaded weight of the system, not assumed from a standard poultry house slab. Our technical team reviews your building drawings before installation and provides:

Foundation and channeling layout aligned to frame leg positions

On-site installation supervision

Installation videos and setup documentation

Guidance on elevated walkway or gantry access for upper-tier inspection and vaccination

Maximizing Profitability Through Space Efficiency

Initial capital investment for the Eight-tier Layer Cage exceeds four-tier alternatives by 40-60% due to advanced automation and heavy-duty materials. However, operational economics favor vertical density.

Your farm operates 300% more birds per square meter without expanding building footprint. Labor requirements drop dramatically—one technician manages 50,000+ birds versus multiple workers in traditional systems.

Reduced ammonia exposure lowers veterinary costs and mortality rates. The egg collection design minimizes breakage, directly improving saleable output.

ROI typically breaks even within 2.5-3.5 years at 95%+ production rates. Land savings become even more critical in urban-adjacent zones where property costs exceed rural benchmarks.

Customization and Quality Assurance

For an 8-tier layer cage project, poultry house layout design is very important. Before production, we recommend customers provide the following information:

• Poultry house length
• Poultry house width
• Poultry house height
• Target bird capacity
• Number of cage rows required
• Local climate conditions
• Automation level required
• Power supply information
• Manure handling method
• Egg collection method

Based on these details, our team can help design a suitable cage layout and recommend the appropriate feeding, drinking, manure removal, and egg collection systems.

FAQ

Q: How does an eight-tier system compare to a four-tier system on cost?

A: Per-cage cost is higher due to the additional automation and structural steel required to support eight levels safely. The trade-off is housing more birds on the same floor area, which is why this configuration suits land-constrained sites rather than farms with spare floor space.

Q: What access do workers need for the upper tiers?

A: A walkway or gantry trolley system along each row, since upper tiers can't be reached from ground level for daily inspection or vaccination.

Q: Can an existing poultry house be converted to eight tiers?

A: It depends on ceiling height and floor load capacity — both need to be checked against your building before we can confirm feasibility. Send us your house dimensions and we'll assess this as part of the quotation.

Q: How is manure kept from contaminating lower tiers?

A: Each tier has its own belt beneath it with deflector plates, so droppings from upper tiers don't fall onto birds or feed below.

Q: What's included in the after-sales warranty?

A: Structural components (frame and mesh) are covered for 1 year against manufacturing defects under normal operating conditions. Wear items such as drinker nipples are covered separately — ask our team for details specific to your order.

Contact Us

Ready to plan an eight-tier layout for your farm? Send us your house dimensions and target flock size, and our team will provide a layout recommendation and quotation.
