Chicken Farm Drinking Water Regulation Module: Advanced Water Management for Modern Poultry Operations

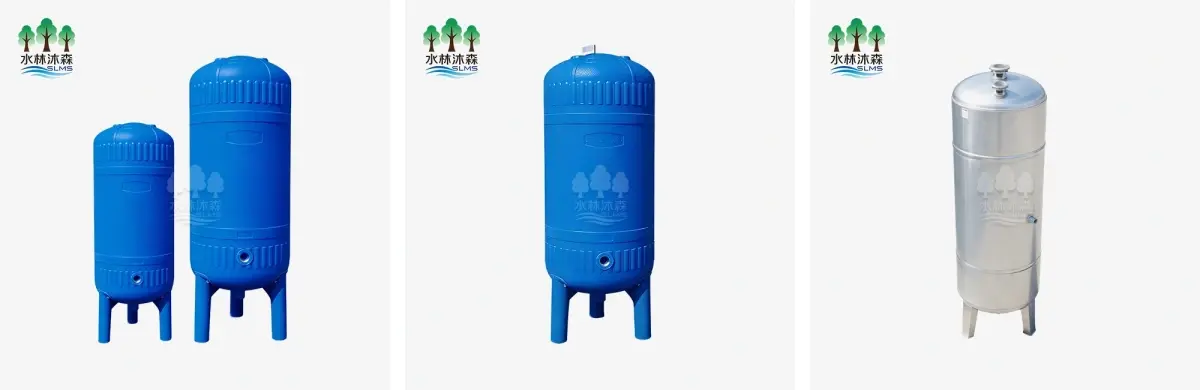

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. presents the Chicken Farm Drinking Water Regulation Module, an enterprise-grade precision hydraulic assembly engineered for intensive poultry production systems. This module converts high-pressure mains supply (0.1-0.4 MPa) into stable, regulated output with outlet pressure adjustable between 10cm to 60cm water column height, ensuring optimal nipple drinker activation. Built with food-grade PE or 304 stainless steel construction and equipped with automatic booster pump systems, the module reduces labor costs by over 40% while maintaining chemical resistance against acidifiers and chlorine sanitizers. With water storage capacity ranging from 500L to 5000L and filtration accuracy designed to prevent nipple blockage, this system significantly decreases intestinal disease rates in flocks.

Our company brings 8 years of agricultural machinery expertise and a dedicated 5-engineer R&D team to deliver this critical hydration infrastructure. The product addresses wet litter syndrome, hydration consistency, and biofilm management in commercial poultry facilities.

Why Your Poultry Operation Needs Precision Water Regulation

Traditional water supply systems expose your flock to inconsistent pressure that damages bird health and facility conditions. Excessive pressure causes nipple leakage, creating wet litter that generates ammonia and footpad dermatitis in broilers. Insufficient pressure at line endpoints leads to dehydration-induced growth stunting.

The regulation module eliminates these challenges through automatic pressure stabilization. Your birds receive uniform water availability from first to last nipple, regardless of line length or flock size. The integrated booster pump automatically starts and stops, meeting water pressure requirements for long-distance, multi-layered cage systems without manual supervision.

Advanced filtration components effectively remove sediment and impurities, reducing water pollution and protecting sensitive nipple mechanisms. This extends equipment lifespan and minimizes maintenance frequency across your operation.

Technical Specifications

Core Performance Advantages

Prevents Equipment Damage and Disease

High filtration accuracy blocks sediment from reaching nipple drinkers, preventing costly blockages and uneven water distribution. Cleaner water directly correlates with reduced intestinal disease incidence in your flock.

Automated Pressure Management

The booster pump system responds to demand fluctuations automatically. Whether your facility houses 5,000 birds or 50,000, the module adjusts output to maintain consistent pressure at every drinking point without operator intervention.

Multi-Environment Adaptability

Suitable for floor rearing systems, multi-tier layer cages, and duck coops. The customizable storage capacity scales with your operation size. Installation modifications accommodate different house layouts and equipment configurations.

Chemical Compatibility

Daily exposure to sanitizers, acidifiers, and medication additives doesn't degrade performance. The chemical-resistant materials withstand aggressive cleaning protocols required in biosecure facilities.

Quality Assurance Through Rigorous Testing

Your investment receives protection through comprehensive quality control measures. Each module undergoes hydrostatic pressure stability testing with fluctuating inlet pressures to verify outlet deviation remains within ±5%. This ensures your birds never experience pressure bursts that cause drinking hesitation.

Diaphragm components complete 100,000+ cycle fatigue testing before approval. This identifies potential micro-cracks that lead to pressure creep over time. Chemical immersion testing involves 72-hour exposure to common poultry cleaning agents, ensuring zero seal swelling or housing degradation.

Flush valve integrity receives verification through repeated switching between regulate and flush modes. This confirms internal bypass seals maintain separation, preventing uncontrolled high-pressure water from entering nipple lines during normal operation.

Installation and Technical Support

Your purchase includes comprehensive implementation assistance. Installation video tutorials guide your maintenance team through proper setup procedures. Our technical support staff provides additional remote assistance for configuration optimization.

Field installation service is available upon request. Our engineers assess your facility layout, recommend optimal module placement, and supervise initial commissioning. This ensures maximum performance from day one of operation.

The equipment design prioritizes maintenance accessibility. Simple disassembly procedures allow quick replacement of wear components like diaphragms and seals. Cleaning and routine maintenance require minimal downtime, protecting your production schedule.

Application Across Poultry Production Systems

High-Density Broiler Houses

In expansive facilities exceeding 150 meters length, the module manages slope pressure variations. Gradient-compensating configurations prevent water logging in litter areas while maintaining consistent activation force throughout the line.

Layer Cage Operations

Vertical battery systems face gravity-induced pressure differences between tiers. The regulation module provides tier-specific adjustment, ensuring bottom cages with highest gravity pressure and top cages with lowest pressure deliver identical flow rates. This prevents manure belt leakage critical for egg hygiene.

Medicated Water Programs

During vaccination or treatment courses, the module functions as the controlled entry point. Advanced designs accommodate viscosity changes from water-soluble supplements without diaphragm clogging, ensuring accurate dosage delivery to your flock.

The Chicken Farm Drinking Water Regulation Module adapts to various farm configurations, supporting your operational flexibility as production demands evolve.

Frequently Asked Questions

Q: What causes water level fluctuations in the sight tube?

A: Fluctuations typically indicate trapped air in the line or failing diaphragm spring. Activate the high-pressure flush mechanism to purge air pockets. If instability continues, the diaphragm may require replacement due to age or chemical exposure.

Q: What is the recommended flushing schedule?

A: Professional operations should switch to flush mode daily or every other day for 1-2 minutes, especially in warm climates. This disrupts biofilm formation. Immediate flushing after administering vitamins or vaccines prevents residue clogging.

Q: Can the module handle hot water sanitizing?

A: Most standard modules accommodate water temperatures up to 40-50°C. Using boiling water or steam will likely warp housing components and damage internal O-rings. Always verify thermal ratings before thermal remediation procedures.

Q: Why are my nipple drinkers leaking?

A: This usually indicates misadjustment rather than equipment failure. If water column height exceeds 30cm for young chicks or specific nipple brands, hydrostatic pressure overcomes the nipple's internal spring. Lower the pressure setting to match age-appropriate specifications.

Q: What factors affect module lifespan?

A: With proper inlet filtration and standard water pH (6.5-8), quality modules last 5-7 years. Highly acidic water sources (pH < 5) or excessive iron/sediment can shorten diaphragm and seal lifespan to 2-3 years.
