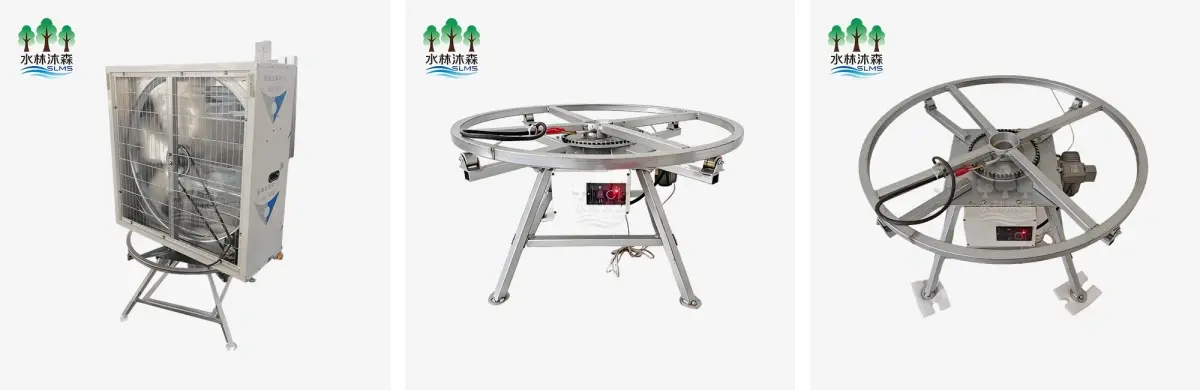

Poultry Shed Floor Farming Rotating Fan Stand

Poultry Shed Floor Farming Rotating Fan Stand

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. presents an industrial-grade Poultry Shed Floor Farming Rotating Fan Stand engineered specifically for intensive floor-raised poultry systems. Built from high-zinc galvanized steel with superior corrosion resistance, this equipment delivers 360-degree rotation capability to eliminate thermal stratification and dead air zones at bird level.

This stand lowers labor expenses by more than 40% and offers a 7–10 year service life because to its sturdy load capacity that supports fans up to 80cm in diameter, operational voltage flexibility of 220V–380V, and lightweight yet stable 25kg construction at 48cm height. In order to ensure the best possible flock health and productivity in chicken coops, duck sheds, and other similar livestock facilities, the design tackles three major issues in floor farming environments: ammonia accumulation, heat stress control, and wet litter remediation.

Technical Specifications

Superior Construction for Harsh Farming Environments

With its minimum 275g/m² zinc coating and hot-dip galvanization, the stand offers remarkable resistance to the ammonia and manure acids that are common in chicken buildings. Compared to conventional painted steel substitutes, this corrosion protection lasts much longer.

Structural stability comes from a wide-stance base design engineered to prevent tipping under high-RPM fan operation. Anti-vibration rubber footings maintain position on uneven litter surfaces, while nylon bushings in telescopic sections dampen vibration noise that could stress flocks.

The universal mounting system accommodates motors of different models and sizes. Adjustable brackets ensure compatibility with various fan brands, giving you operational flexibility across your facilities.

Solving Critical Ventilation Challenges

Your floor-raised poultry face unique micro-climatic challenges that ceiling-mounted systems cannot adequately address. Heat buildup concentrates at bird level, particularly in high-density operations exceeding 30kg/m².

This Poultry Shed Floor Farming Rotating Fan Stand positions airflow precisely where your birds reside. The 360-degree rotation breaks thermal boundary layers around flocks, creating a wind chill effect that lowers perceived temperature by 5-8°C during summer heat stress periods.

Wet litter areas from water line leaks or manure accumulation breed disease-causing pathogens. The stand's portability allows you to target specific problem zones with concentrated airflow. This accelerated drying inhibits coccidiosis oocyst sporulation and reduces ammonia generation—protecting both bird health and breeder fertility.

During brooding phases, gentle air mixing prevents drafts while ensuring uniform temperature distribution. This promotes consistent feed and water intake across your entire flock, improving growth uniformity and reducing mortality.

Installation and Operational Advantages

Setup requires minimal technical expertise. The simple assembly design allows your team to deploy units quickly without specialized tools or extensive training. We provide comprehensive installation videos and ongoing technical support to ensure smooth integration.

Low energy consumption design reduces operational costs while maintaining powerful air circulation. The geared motor system delivers reliable performance with minimal power draw compared to traditional ventilation approaches.

Maintenance demands remain minimal throughout the 7-10 year service life. Monthly bolt inspections, quarterly lubrication of adjustment threads, and annual coating checks comprise the complete maintenance protocol. Disassembly and part replacement proceed quickly, minimizing downtime during busy production cycles.

Customization Capabilities for Diverse Operations

Every poultry operation presents unique layout constraints and ventilation requirements. We offer full customization services to match your specific facility dimensions, electrical systems, and airflow needs.

Height adjustments, base configurations, mounting bracket modifications, and voltage specifications can all be tailored. Our R&D team of 5 professional engineers works directly with you to develop optimized solutions for your operation.

Whether you manage broiler houses, breeder facilities, or mixed-age production buildings, we engineer Poultry Shed Floor Farming Rotating Fan Stand units that integrate seamlessly with your existing infrastructure and management practices.

Quality Assurance and Testing Standards

Each unit undergoes rigorous quality control before shipment. Salt spray corrosion testing per ASTM B117 standards verifies galvanization integrity through 96-hour exposure simulating accelerated aging in high-ammonia environments.

Static load testing applies three times the standard industrial fan weight (approximately 150kg) to mounting heads, confirming zero deformation under operational stress. Tipping angle tests ensure stability even when positioned 15 degrees off-center on deep litter.

Weld penetration receives both visual and ultrasonic inspection. This prevents structural fatigue from continuous fan vibration that could compromise safety or operational reliability. Vibration dampening analysis measures transfer from mount to floor, ensuring livestock comfort and fastener integrity.

Frequently Asked Questions

Q: How does the fan stand hold up under high-pressure washing and disinfection work?

A: Made via hot-dip galvanizing overall treatment, the stand can endure high-pressure rinsing up to 2000 PSI. It will not corrode or degrade after prolonged contact with glutaraldehyde, quaternary ammonium salts and other conventional disinfectants widely used in poultry farms.

Q: Which fan sizes fit this supporting stand?

A: The universal fixed base plate is applicable to exhaust fans with diameters ranging from 20 inches to 36 inches. The maximum adaptable size of 80 cm covers nearly all mainstream commercial ventilation fans for poultry houses on the market.

Q: Will the stand produce noise and disturb the poultry?

A: The stand itself generates no running noise. Premium workmanship paired with nylon shaft sleeves and rubber shock-absorbing gaskets can eradicate shaking, rattling and vibration noise, keeping a quiet breeding environment for flocks.

Q: Is it stable when placed on loose bedding such as wood shavings?

A: It adopts a wide bottom frame design specially optimized for soft ground stability. The sled-type support feet evenly disperse the overall weight, so the stand will not sink down into wood shavings, rice husks and other loose litter bedding.

Q: What maintenance cycle is recommended for this stand?

A: Tighten all bolts once a month, as long-term fan vibration will loosen fasteners gradually. Grease the height adjustment screw threads every three months. Carry out a full annual check for damaged galvanized coating; apply cold galvanizing spray to any worn areas to prevent rusting.

Q: Can this stand be connected to automatic environmental control systems?

A: Absolutely. This rotary floor fan stand for poultry houses is fully compatible with programmable controllers and whole-house climate management systems. Fans can be turned on and off automatically according to signals from temperature, humidity and ammonia sensors.
