How do air diversion panels improve breeding house ventilation?

By directing incoming air away from the birds and toward the ceiling, air diversion panels make breeding houses more airy. A Breeding House Air Diversion Panel brings in fresh air along the roof, which helps lower the cold-drop effect. This lets the air coming in mix with the warmer air inside before it gets to the animal zone. Properly distributing airflow helps keep temperatures more stable, cuts down on drafts, stops ammonia from building up in certain areas, and supports healthier conditions while keeping modern farming facilities from using too much energy.

Understanding Breeding House Air Diversion Panels

Ventilation problems in modern breeding houses can hurt the health of the birds, the quality of the eggs produced, and the cost of running the business. In buildings with managed ventilation systems, air redirection panels are a useful way to manage the flow of air moving in.

Core Functions and Design Principles

Air redirection screens decide where incoming air goes and how it is distributed in negative pressure ventilation systems. These parts are put in near air intakes to move fresh air along the roof instead of letting it fall into the animal zone. The plan uses the Coanda effect, which says that air that is moving tends to follow a surface that is close by. Panels help move incoming air along roof surfaces when they are put in the right place. This lets colder air from outside mix with warmer air inside before it reaches the birds.

Types and Configurations

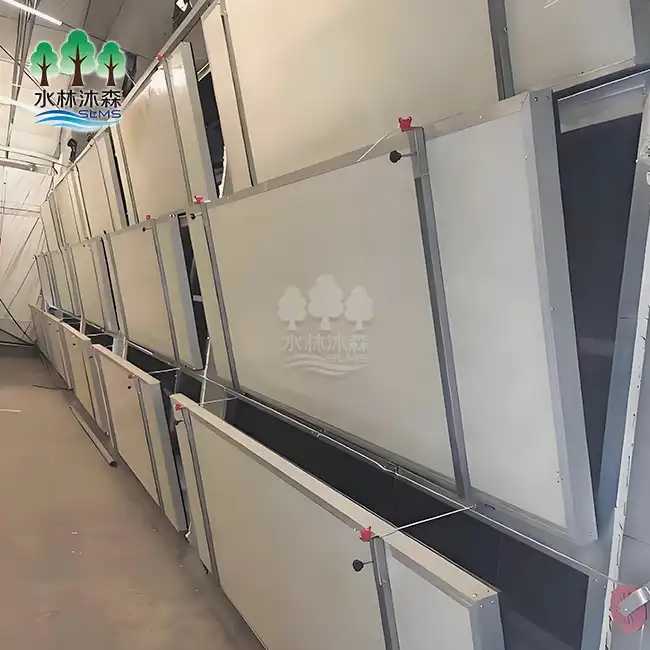

Static diversion panels can direct incoming air at a fixed angle and are good for buildings that need consistent ventilation. These panels stay in place and don't need to be adjusted much when they're working normally. Adjustable louvre systems give you more options because they let you change the direction of airflow based on the time of year, the age of the birds, or the stage of production. When combined with climate controls, changeable systems can help keep the temperature and humidity more stable.

Material Specifications and Durability Features

Good air redirection panels are made of light materials that are made to last in farm buildings where they will be exposed to water, ammonia, and regular cleaning. If the construction and core material of a 5 cm thick panel are chosen correctly, it can provide useful structural rigidity and thermal resistance. Frames made of aluminium or stainless steel don't rust when they're in places that get a lot of ammonia and water. The lightweight design also makes installation and regular checks easier without lowering the trustworthiness of the service.

Key Benefits of Using Air Diversion Panels in Breeding Houses

When air redirection systems are built correctly, they can improve a number of factors that affect how comfortable animals are, how well airflow works, and how much energy is used.

Enhanced Air Quality Management

By making air flow more consistently, Breeding House Air Diversion Panel systems can help get rid of areas where air doesn't move and ammonia and carbon dioxide can build up. Better air flow throughout the building is supported by proper wind distribution, which also makes the environment better for people and animals. Controlled air flow can also help even out ventilation and stop dust from building up in certain areas. It's possible that better air flow could help lower natural stress and support more regular flock performance during production cycles.

Energy Efficiency and Cost Reduction

If the airflow is spread out properly, it can lower the need for extra heating and cooling compared to ventilation air that isn't mixed well. By directing air toward the roof, warmer air from inside can mix with colder air from outside before it gets to the animal zone. This method can help keep airflow rates at the right level while lowering heat loss in cold weather. How much energy a building saves depends on its insulation, temperature, how the fans work, and how the airflow is set up. Passive diversion panels can direct wind continuously while they are in normal operation because they don't need any special power.

Temperature Uniformity and Environmental Control

Controlling the direction of wind can cut down on temperature changes in certain areas that can stress birds and hurt production. When panels are placed correctly, they spread incoming air more evenly throughout the building and help keep the temperature and humidity stable. During times of low circulation, it is especially important to keep cold air from falling straight into the animal zone. Birds can be more comfortable while still getting the fresh air they need for good environmental control if the wind plan is well thought out.

Choosing the Best Air Diversion Panel for Your Breeding House by Comparing Different Types

When choosing the right Breeding House Air Diversion Panel, you need to think about the size of the building, the ventilation equipment, the working conditions, and the long-term upkeep that will be needed.

Performance Metrics and Operational Efficiency

At the right inlet openings, air velocity is usually set to give enough throw distance for warmer air inside to mix effectively. The needed speed is based on the shape of the inlet, the size of the building, the fan's capacity, and the static pressure. Finding the right panel placement and size can be helped by measuring static pressure and watching how air flows. Buildings that are properly protected usually work in a controlled static pressure range. However, the goal number shouldn't be used as a general rule; it should be set based on the airflow design.

Cost-Effectiveness Analysis

Good air redirection systems can be useful because they can improve the spread of airflow and maybe even lower the need for warmth during cold weather ventilation. The actual payback depends on how much the panels cost, how they are installed, how much energy costs in the area, the weather, and how the building is used. Because they don't have many or any moving parts, passive panels usually don't need much regular maintenance. Their service life is also affected by the type of material used, how well it is cleaned, how much ammonia it is exposed to, and how well it was installed.

Selection Criteria and Evaluation of Suppliers

When evaluating a supplier, you should think about the panel's material, thickness, structural strength, thermal performance, and ability to work with existing ventilation equipment. Instead of assuming thermal resistance from panel width alone, it should be backed up by product specs or test data. Supplier dependability also includes expert support, guarantee coverage, the ability to make changes, and help with installation. Manufacturers with a lot of experience should give customers measurement plans and advice on how to use the panels so they can choose the right ones for their buildings.

Procurement Guide for Breeding House Air Diversion Panels

Effective procurement combines purchase cost with installation requirements, expected service life, technical compatibility, and supplier support.

Sourcing Reliable Manufacturers and Suppliers

Reliable Breeding House Air Diversion Panel suppliers should have relevant agricultural ventilation experience and documented applications in similar facilities. Manufacturers with established engineering teams can provide more useful recommendations for different building layouts and ventilation conditions. Product documentation should include material specifications, dimensions, installation requirements, and available customization options. These details allow facility managers to compare suppliers and determine whether a proposed panel can work with their existing ventilation system.

Customization Services and Installation Support

Professional suppliers should be able to adjust panel dimensions and configurations to suit different building layouts and air inlet arrangements. Standard dimensions can often be modified when the required airflow direction and structural support are clearly defined. Installation support helps ensure that panels are positioned correctly and securely integrated with existing ventilation equipment. Experienced installation teams should pay particular attention to alignment, sealing, mounting strength, and clearance around the air inlet.

Cost Analysis and Value Proposition

A complete cost assessment should include equipment, installation, transportation, maintenance, and expected energy savings. Payback periods vary according to building size, climate, heating costs, ventilation settings, and panel configuration, so fixed ROI claims should be avoided without project data. Bulk purchasing may reduce unit costs for farms with multiple buildings or planned expansion projects. International shipping and manufacturing lead times should also be included in project planning to avoid installation delays.

Maintaining and Optimizing Breeding House Air Diversion Panels

Regular maintenance helps maintain airflow performance, protect the equipment, and reduce unexpected ventilation problems during production.

Routine Maintenance Procedures

Regular inspections can identify problems before they affect airflow or animal comfort. Monthly visual checks should confirm that panels remain correctly positioned, mounting points are secure, seals remain intact, and surfaces are free from excessive contamination. Cleaning should follow the supplier's material recommendations and use compatible farm-approved detergents and disinfectants. Properly selected panels can withstand routine washing, but excessive pressure or unsuitable chemicals may damage coatings, seals, or frame surfaces.

Integration with Climate Control Systems

Air diversion panels can work with automated climate control systems that monitor temperature, humidity, static pressure, and other environmental conditions. Adjustable panels may be connected to control equipment when their mechanical design supports automated positioning. Climate controllers can use sensor data to adjust ventilation stages while the panels guide incoming air through the desired path. Monitoring temperature differences between inlet and animal zones can also help operators identify airflow problems and optimize ventilation settings.

System Upgrades and Retrofitting

Breeding House Air Diversion Panel systems can be included in ventilation upgrades and retrofit projects where improved airflow distribution is required. Before retrofitting, engineers should review the existing building structure, air inlets, fan capacity, and ventilation control strategy. Professional assessment can help determine suitable panel dimensions and installation positions. The evaluation should also consider building orientation, inlet location, ceiling geometry, and available mounting space to ensure that the upgraded system operates as intended.

Conclusion

Breeding House Air Diversion Panel systems can support modern breeding house ventilation by improving airflow distribution, reducing drafts, and helping maintain more consistent environmental conditions. By directing incoming air along the ceiling, these panels allow outdoor air to mix with warmer indoor air before reaching the animal zone. Properly selected systems may also help reduce heating demand and simplify airflow management. Facility managers should evaluate panel dimensions, materials, building conditions, ventilation capacity, and supplier support before purchasing to achieve reliable long-term performance.

FAQ

Q1: What maintenance schedule should I follow for air diversion panels?

A: Monthly visual inspections are suitable for most systems, with additional cleaning during routine facility changeovers. Checks should confirm panel position, mounting condition, surface cleanliness, and seal integrity. The panel material should determine the appropriate cleaning method and chemicals. An annual professional inspection can identify structural or airflow issues and provide recommendations for improving system performance.

Q2: Can air diversion panels integrate with existing automated ventilation systems?

A: Yes, air diversion panels can be used with many existing ventilation systems when the building layout and inlet configuration are suitable. Adjustable models may work with compatible actuators and control equipment. Proper integration depends on static pressure, inlet size, fan capacity, and control settings. A technical assessment is recommended for retrofit projects and new breeding house construction.

Q3: How do I determine the correct panel size for my facility?

A: Panel selection should consider building dimensions, inlet size, ventilation rate, fan capacity, ceiling geometry, and the required airflow direction. Professional evaluation can determine suitable panel dimensions and mounting positions for specific buildings. Suppliers should review these operating conditions before recommending a configuration. Providing building drawings and ventilation specifications can make the selection process more accurate.

Q4: What warranty coverage should I expect from quality suppliers?

A: Reputable manufacturers commonly provide warranty coverage for material and manufacturing defects, with terms depending on the product and supplier. Buyers should confirm warranty duration, exclusions, installation requirements, and after-sales support before ordering. For large projects, extended warranty or technical service packages may also be available. Clear warranty terms help reduce procurement risk and simplify future service arrangements.

Q5: How quickly can I expect return on investment from panel installation?

A: Payback depends on building size, local energy prices, climate, installation cost, and the condition of the existing ventilation system. Proper airflow distribution can reduce unnecessary heating demand and improve environmental consistency, but savings should be calculated from project-specific data. Suppliers can estimate potential savings using building dimensions, operating conditions, and ventilation requirements before installation.

Ready to Optimize Your Breeding House Ventilation with Shuilin Musen?

Shuilin Musen Aquaculture Equipment Co., Ltd. provides ventilation components for modern agricultural buildings, supported by eight years of industry experience. Our Breeding House Air Diversion Panel systems can be customized according to building dimensions, inlet layouts, material requirements, and installation conditions. We provide technical guidance, product specifications, installation support, and after-sales service for different project requirements. Contact our engineering team at wangshuaislms@gmail.com with your building dimensions and ventilation specifications to receive a suitable panel recommendation. As a Breeding House Air Diversion Panel manufacturer, we support projects from product selection through installation and ongoing technical service.
