How do evaporative cooling pads improve poultry house ventilation?

Using water evaporation to lower air temperature and improve movement, Poultry House Evaporative Cooling Pad systems change the way farms ventilate. These specialized cooling solutions work with negative pressure fans to make sure that chicken farms have the best conditions possible. When hot external air goes through saturated cellulose pads, the evaporation process automatically lowers temperatures by 5-8°C, even during peak summer heat. This technology solves important problems caused by heat stress that can hurt flock performance, make feed processing less efficient, and raise the death rate in commercial chicken businesses.









Understanding the Role of Evaporative Cooling Pads in Poultry House Ventilation

The Science Behind Evaporative Cooling Technology

The basic rules of thermodynamics and heat movement govern how evaporative cooling systems work. When warm air hits cellulose media that is full of water, adiabatic cooling starts. This is when thermal energy changes water from a liquid to a vapor. This natural process takes a lot of heat out of the incoming airstream without adding more water than the process of evaporation needs.

Modern cooling pad systems are made up of corrugated cellulose sheets that are organized in cross-fluted patterns, usually at 45-degree angles to make the most surface area for air and water to touch. The special paper design lets water soak in quickly while keeping the structure strong even when it's being used all the time. High-quality pads are treated with resins that keep them from breaking down when they are exposed to water over and over again and stop germs from growing that could make the air quality worse.

Integration with Ventilation Systems

For adoption to go smoothly, cooling pads and current exhaust fans need to work together in a planned way. Fans that create negative pressure pull air from outside through the wet pads, making sure that the building stays cool all the way through. When figuring out the right size, you need to take into account the speed of the airflow, the static pressure, and the cooling load needs that are unique to each operation.

Modern cooling pad systems are made up of separate modules that can be put together in a number of different ways to fit different building layouts and circulation plans. Installation teams can change the order of pads to fit particular doorways, wall openings, and structure limitations while still getting the best cooling results. This flexibility means that the technology can be used to improve current buildings or to build new ones.

Comparison of Evaporative Cooling Pads with Conventional Poultry Ventilation Methods

Traditional Ventilation Limitations

With traditional mechanical ventilation, temperature and humidity levels in chicken homes are mostly controlled by moving air around. Natural airflow systems are based on changing wind patterns and temperature differences that happen throughout the day, making the environment less stable. Mechanical fans can't lower the temperature of entering air below the temperature of the surrounding air, which makes them less useful during times of high heat.

Misting and fogging systems try to cool things down by evaporating water droplets, but they often make it too wet, which makes it hard for birds to keep their body temperature stable. These systems can also help pathogens grow and make trash more wet, which can cause ammonia to be released and lung health problems. Additionally, foggers need a lot of water pressure and energy, and they cool different parts of a building unevenly.

Advantages of Evaporative Cooling Systems

Poultry House Evaporative Cooling Pad technology is better than old ways of doing things in a number of ways. The following benefits show why top businesses are using this cooling approach more and more:

• Temperature Control: Consistent cooling lowers the temperature by 10 to 15°F during the hottest times of the day, keeping birds in their thermoneutral zone for the best comfort and productivity.
• Energy Efficiency: Lower electrical consumption compared to mechanical cooling systems and spending up to 75% less on running costs than regular air conditioning.
• Uniform Distribution: Even cooling throughout the building gets rid of hot spots and makes sure that all the birds have the same weather conditions.
• Humidity Management: Controlled addition of wetness stops too much humidity from building up and provides enough cooling without affecting air quality.

These benefits directly lead to better flock performance measures, such as higher feed conversion rates, lower death rates, and stable output levels even when the weather is inclement. When businesses use evaporative cooling, they usually see measurable gains in both bird welfare measures and money-making opportunities.

Installation and Maintenance Guide for Poultry House Evaporative Cooling Pads

Proper Installation Procedures

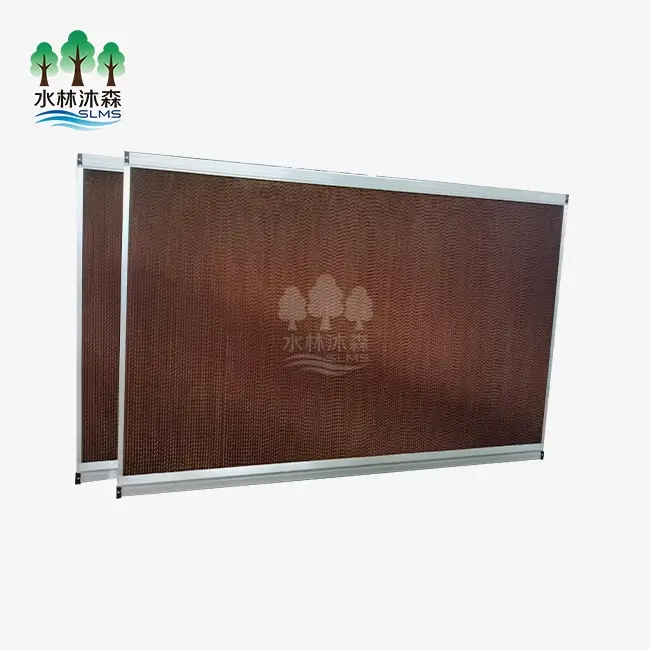

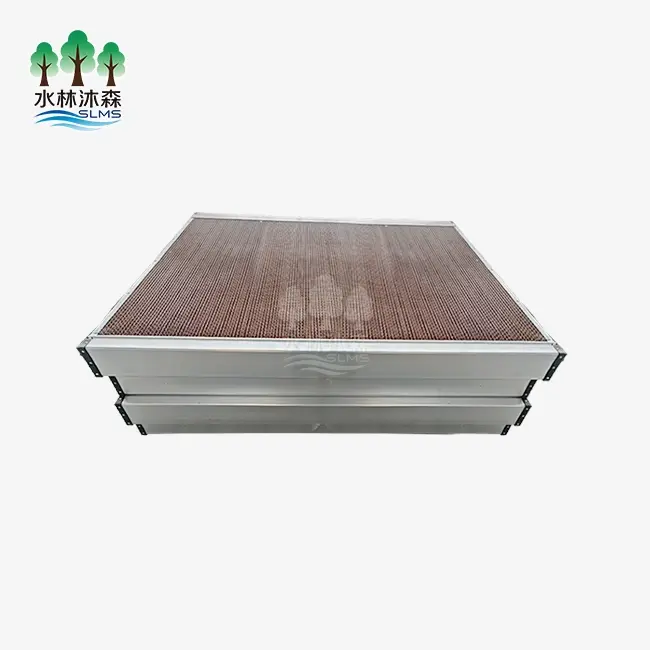

A successful installation starts with the right system size, which is based on the size of the building, the number of birds that will be using it, and the weather in the area. Our Model 7090 cooling pads come in two different thicknesses—15 cm and 20 cm—so that they can meet a variety of cooling and breathing needs. The choice is based on the fan's size, the maximum standing pressure, and the cooling efficiency goals that are wanted.

Installation teams need to make sure that the water is spread out evenly across the pad's surface so that it is fully saturated without being too wet, which could cause water to leak into the building. To keep the moisture level the same across the whole pad area, distribution lines need to be spaced out perfectly and their flow rates need to be calibrated. Frames made of aluminum alloy or stainless steel prevent corrosion and provide solid support for long-term use.

Maintenance Requirements and Best Practices

Maintaining equipment on a regular basis keeps it running efficiently and greatly increases its usefulness. Visual checks done once a week find problems like uneven water distribution, algae growth, or physical damage before they get worse and stop the system from working properly. Cleaning once a month gets rid of mineral layers and waste buildup that can make it harder for air to flow and make the cooling less effective.

Managing water quality is an important part of keeping things running at their best. Minerals build up faster in hard water, which means pads may need to be cleaned more often and possibly last less long. Putting in water treatment systems or using acid wash cycles on a regular basis can help keep the pad's surface clean and avoid scale buildup.

The ability of good cooling pads to fight corrosion and soak up a lot of liquid means they will work reliably even in tough circumstances. If you follow the maintenance instructions carefully, these systems should work well for three to five years and keep their low ventilation resistance the whole time.

Procurement Considerations: Choosing the Right Evaporative Cooling Pads for Poultry Houses

Material Quality and Specifications

To choose the right materials for a Poultry House Evaporative Cooling Pad, you need to carefully evaluate their performance, environmental stability, and build quality. Premium cellulose pads feature uniform fiber density and a specialized glue treatment that prevents degradation under constant water exposure. The paper structure must withstand repeated wetting and drying cycles without losing its structural integrity or cooling efficiency.

Technical details like water absorption rates, wind resistance, and cooling efficiency scores let you compare different products in a measured way. Changes in thickness have an effect on both how well cooling works and how much static pressure is needed. This has an effect on how the system is designed and how much energy it uses. When buying teams understand these connections, they can make smart choices that balance short-term costs with long-term business efficiency.

Supplier Evaluation and Support Services

Reliable source relationships make sure that the quality of the products is always the same and that the equipment gets full support throughout its lifecycle. With eight years of experience in farming and livestock equipment, we have a deep knowledge of operational difficulties and client needs. We have strict quality control standards that we follow from choosing the raw materials to delivering the finished product. This makes sure that all packages work the same way.

As part of technical support services, training films and detailed instructions are provided to make sure the system is set up and running correctly. For complicated jobs or when there may not be a lot of local knowledge, on-site installation services are available. Our skilled R&D team of five engineers is always coming up with new ideas and customizing product configurations to meet the needs of different operations.

The one-year warranty shows that we trust the quality of the product and gives operating capital peace of mind. This all-around method to support helps lower the risk of downtime and makes sure that the equipment works reliably throughout its entire lifecycle.

Optimizing Poultry Health and Farm Productivity with Evaporative Cooling Pads

Impact on Bird Health and Performance

One of the biggest problems that modern chicken farms have to deal with is heat stress, which is especially bad in the summer when temperatures are above what birds can handle. Poultry House Evaporative Cooling Pad systems directly deal with this problem by keeping the environment fixed in a way that supports birds' best physical and behavioral habits.

Birds that are less stressed by heat use less energy to keep their body temperature normal, which means they can convert more food into energy. Maintaining stable temps stops the lung alkalosis that comes from panting too much, which lowers metabolic stress and helps healthy growth patterns. Stable conditions that keep shell quality and output levels steady during bad weather are especially helpful for layer operations.

Economic Benefits and Return on Investment

Savings on operational costs go beyond saving energy. They also include lower death rates, better output measures, and lower veterinary costs. Our clients say that automatic temperature control systems have cut their labor costs by more than 40% while improving the quality of their work. These changes help to speed up the return on investment and raise the profit rates.

At times when air conditioning systems need to use the most power, like during the summer, energy savings are especially noticeable. Usually, evaporative cooling systems only need 25% of the energy that mechanical refrigerator systems do. This saves a lot of money on electricity costs. When connected to smart farm management systems, operation can be managed based on current temperature and humidity levels. This increases efficiency while reducing the need for human supervision.

Conclusion

The evaporative cooling method has been shown to be effective for keeping chicken coops cool during bad weather. These Poultry House Evaporative Cooling Pad systems are necessary for modern businesses because they keep temperatures under control, use little energy, and work reliably. Installation, upkeep, and help from the provider must be done correctly for farming investments to work well and be worth money in the long run. New materials and control systems are being added all the time to keep the technology fresh and improve both the safety of the birds and the speed of operations.

FAQ

Q1: What is the expected lifespan of evaporative cooling pads?

A: High-quality cooling pads typically provide 3-5 years of reliable service with proper maintenance and water quality management. Regular cleaning schedules and appropriate water treatment help maximize equipment lifespan while maintaining consistent cooling performance.

Q2: How do I prevent mineral buildup on cooling pad surfaces?

A: Installing water softening systems or implementing periodic acid wash cycles effectively prevents scale accumulation. Regular monitoring of water pH levels and mineral content helps establish appropriate maintenance intervals for optimal performance.

Q3: Can evaporative cooling systems operate effectively in high-humidity environments?

A: When there is a lot of humidity, cooling systems work less efficiently, but systems that are properly built will still help lower the temperature. Using both traditional ventilation methods and evaporative cooling together improves performance in a range of weather situations.

Q4: What maintenance indicators suggest pad replacement is needed?

A: If there is uneven water distribution, obvious damage to the cellulose fibers, chronic algae growth, or a drop in how well the cooling works, it may be time to replace the insulation. Monitoring performance on a regular basis helps find signs of decreasing efficiency before they have a big effect on the happiness of the flock.

Q5: How do I integrate cooling pads with existing ventilation systems?

A: A professional fitting review makes sure that the right size is chosen and that it fits in with the current fan capacity and building layout. Our technical support team gives personalized integration advice based on the needs and goals of each location.

Partner with Shuilin Musen for Superior Cooling Solutions

When it comes to Poultry House Evaporative Cooling Pad solutions, Shuilin Musen Aquaculture Equipment Co., Ltd. has everything you need for large-scale business activities. Our Model 7090 cooling pads are made of improved cellulose and have frames that won't rust. They also come with a full warranty. As a manufacturer with eight years of experience in the field, we offer full installation support, professional advice, and customization choices to meet the needs of each operation. Email our engineering team at wangshuaislms@gmail.com to talk about what kind of cooling system you need and to find out about the big order discounts that are available for certain projects.

References

1. Midwest Plan Service. "Mechanical Ventilating Systems for Livestock Housing." Iowa State University Press, 2019.

2. American Society of Agricultural and Biological Engineers. "Design of Ventilation Systems for Poultry and Livestock Shelters." ASABE Standards, 2020.

3. Liang, Y., Tabler, G.T., and Dridi, S. "Heat Stress and Poultry Production: A Comprehensive Review." Poultry Science Journal, 2018.

4. National Institute for Food and Agriculture. "Energy Efficiency in Agricultural Buildings: Cooling System Technologies." USDA Technical Bulletin, 2021.

5. International Commission of Agricultural and Biosystems Engineering. "Evaporative Cooling in Livestock Production Systems." CIGR Handbook, 2019.

6. Purswell, J.L., and Dozier, W.A. "Evaluation of Evaporative Cooling Systems in Commercial Broiler Houses." Applied Engineering in Agriculture, 2020.
