How do evaporative cooling pads work in poultry houses?

Keeping the temperature in chicken coops at a comfortable level in the summer is very hard for farm owners all over the United States. Heat stress lowers the number of eggs laid, slows the growth rates of broilers, and threatens the well-being of birds, all of which have a direct effect on your bottom line. Evaporative cooling is a tried-and-true way to solve these issues that uses little energy. A Chicken House Evaporative Ventilation Curtain works as a heat absorber by using the natural process of water evaporation to cool the air coming in by 5 to 12°C while also cleaning out dust and other particles in the air. This method uses about 80–90% less power than regular cooling systems that use refrigerants. This makes it a good choice for businesses of all sizes, from small family farms to big commercial sites with over 100,000 birds.







Understanding Evaporative Cooling Pads in Poultry Houses

The Science Behind Water Evaporation Cooling

The change from liquid to gas state in water takes a lot of energy—about 540 calories per gram at normal air pressure. When air from outside hits the wet surfaces of a Chicken House Evaporative Ventilation Curtain, water molecules take in heat from the air to help them evaporate. The air is naturally cooled by this energy transfer device, which doesn't need any fans, refrigerants, or complicated mechanical systems.

The cooling effect is directly related to how long air stays in touch with wet objects. Structured cooling media have ribbed designs that increase the surface area per cubic meter. In Model 7090 setups, this usually means 420m² per m³. These corrugations make the wind turbulent, which increases the touch time and improves the efficiency of heat transfer.

Core Components of an Effective System

An entire evaporative cooling system is made up of three interconnected parts that work together. The main place where heat exchange happens is at the contact formed by the cooling pad unit. These pads are made of high-molecular-weight cross-linked cellulose or polyethylene materials that are designed to last and keep as much water as possible. The curved structure, which is usually given the number 7090 (which means 7mm wave height at 45-degree angles), strikes the best balance between wind resistance and cooling efficiency.

The water delivery network makes sure that all pad surfaces stay damp all the time. There is a recirculation pump, a distribution manifold, and a gathering container in this device. The right water flow rates keep the area from getting dry, which would let hot air skip the evaporation process, and also keep the area from becoming too saturated, which raises static pressure and makes the fan work less well.

The air from outside is pulled through the wet pads by negative pressure exhaust fans. Putting a fan at the opposite end of the building from the cooling pads creates tunnel ventilation, which moves air at speeds of 1.5 to 2.5 meters per second through the bird area. Through wind-chill effects, this fast air movement adds to the cooling, which is especially helpful in high-density building designs.

Advantages Over Conventional Mechanical Cooling

Compressors in traditional air conditioning systems need a lot of electricity to run because they use vapor-compression processes. These devices are very good at getting rid of humidity, but they have high running costs. A 40,000-CFM refrigerator cooling system could use 50–75 kW of power when it's running all the time, which would mean high energy costs over the course of a production cycle.

Evaporative cooling systems lower temperatures just as much as mechanical refrigeration systems, but they only use the electricity needed to power water pumps and vent fans. This is usually only 10–20% of the energy needed for mechanical refrigeration systems. This huge drop in running costs gives investors a quick return on their money, especially in places where the warm seasons last for a long time.

In addition to saving money, evaporative devices provide better air for consumption. Particulate matter gets stuck in the water film as air from outside moves through wet media. This natural filter lowers the amount of dust in the chicken coop, which is good for their lung health and keeps ammonia-related problems to a minimum. Fresh air is constantly being exchanged, which also keeps carbon dioxide and other biological gases from building up in closed, cold spaces.

Chicken House Evaporative Ventilation Curtains: An Overview

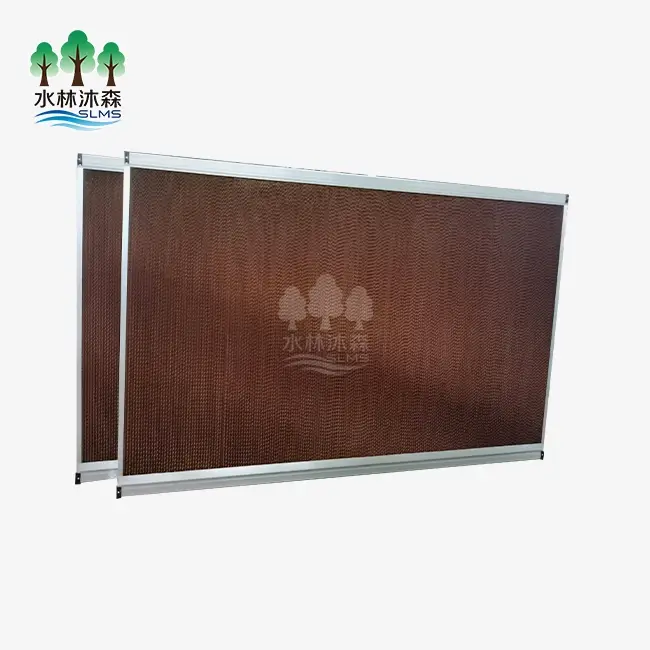

By using Chicken House Evaporative Ventilation Curtain units, adiabatic cooling principles can be used in a way that is perfect for farming settings. These systems are different from home swamp coolers or industrial spot coolers because they are part of ventilation plans for the whole building. Instead of making cool spots in certain areas, properly built systems make sure that the temperature is the same all over the chicken house.

Material Composition and Engineering

Premium cooling curtains are made from kraft paper pulp that has been treated in special ways. Phenolic resin impregnation protects against bacterial breakdown and structure collapse when it stays wet for a long time. This chemical process links cellulose fibers together, making a stiff structure that stays the same size even when it's under a lot of stress. During the making process, the resin must cure all the way. If it doesn't, it can cause problems with smell and shorten the product's useful life.

The cooling efficiency and wind resistance are directly affected by the thickness of the material. It is recommended to leave a space of 15cm (6 inches) for mild temperatures and 20cm (8 inches) for extremely hot climates. Thicker media gives air and wet surfaces more time to touch each other, which improves the efficiency of evaporation but also raises the static pressure that fans have to fight. The right way to build a system balances these different factors based on the needs of the business.

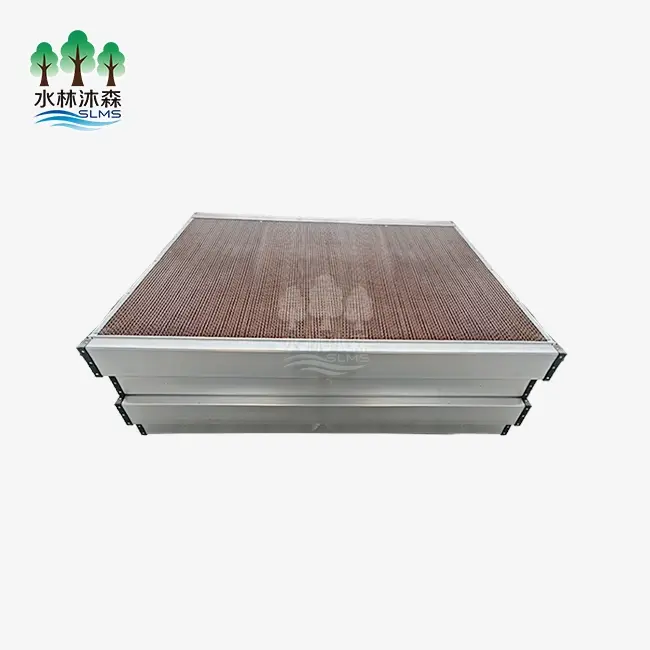

Frame building materials decide how long a system lasts and how often it needs to be maintained. For supporting wet pad weights, aluminum alloy frames are very resistant to corrosion and still have the structural strength needed. Frames made of stainless steel (usually 304 grade) last longer in places where there is a lot of ammonia or where things need to be cleaned often. Both materials are much more durable than galvanized steel options when it comes to warping and breaking down.

Functional Differences from Alternative Ventilation Methods

In the past, sidewall curtains made of vinyl or knitted synthetic materials that could be adjusted were used to let air into chicken houses. By changing the size of the hole, these systems control the amount of wind, but they don't cool the air themselves. During summer peak times, the widest curtain opening lets in fresh air but can't lower the temperature of the air coming in below room temperature. When temperatures outside rise above the birds' thermoneutral zone, this restriction becomes very important.

Tunnel ventilation with solid endwall inlets speeds up the air flow across the bird area, which, along with wind-chill effects, makes the temperature seem cooler. This method works well in warm areas, but it's not enough when the temperature outside goes above 85–90°F. High air speeds are needed for cooling, but they can add to stress and use more energy because fans need to run for longer periods of time.

The best parts of both methods are brought together in evaporative curtain systems like the Chicken House Evaporative Ventilation Curtain. They keep the fast air exchange rates needed to control ammonia while actively lowering the temperature of the air coming in through phase-change cooling. Because they can both ventilate and lower the temperature, they are especially useful in places where it stays hot for long amounts of time while still being comfortable.

Integration with Negative Pressure Ventilation Systems

By making a small vacuum inside the building, negative pressure ventilation sets up controlled airflow patterns. Exhaust fans at one end of the building take air from inside, letting outside air in through openings on the other end. This one-way flow design keeps the bird area free of dead zones and makes sure that air moves freely throughout the whole area.

When evaporative cooling curtains are the main air intake, all make-up air goes through the wetted media first, then it enters the filled zone. This setup makes sure that birds only breathe cold, filtered air and not a mix of treated and raw air from the outside. Maintaining the right static pressure differentials—usually between 0.05 and 0.08 inches of water column—is important for system performance because it makes sure that air moves quickly through the pads without putting too much stress on the exhaust fans.

Adding a controller lets the water flow rates and fan speeds be changed automatically based on real-time temperature readings. Modern climate control systems keep an eye on both the inside and outside temperatures and gradually turn on cooling steps as the temperature rises. This quick operation makes the best use of energy while keeping goal temperature ranges even when the weather outside changes.

Installation and Maintenance of Evaporative Ventilation Curtains in Poultry Houses

Site Assessment and System Sizing

A thorough review of the building is the first step in making an accurate system specification. The size, direction, insulation value, and bird population of a building all affect how much cooling it needs. A 400-foot tunnel-ventilated broiler house needs a lot more pad space and fan power than a 200-foot breeder house, even though both are the same wide. Different types of chickens make a lot of different amounts of heat. For example, grown broilers make a lot more metabolic heat per square foot than smaller birds or layers.

The temperature drops that are possible and the best pad width for a Chicken House Evaporative Ventilation Curtain will depend on the weather where you live. In the dry Southwest, where operations take place, the highest pad width (20cm) helps take advantage of the low humidity. Facilities along the humid Gulf Coast might have better results with 15cm-thin pads that provide gentle cooling while limiting increases in extreme humidity that could harm the quality of the litter.

To figure out the pad area, engineers use standard methods based on the speed of the wind. The target face moves at a speed of 250 to 350 feet per minute through cooling media. Higher speeds make the pad cooler per square foot, but they also make it more resistant to static electricity, which can let water into the house. Lower speeds make evaporation more efficient, but they need bigger pad areas to handle the necessary airflow amounts.

Professional Installation Protocols

Installing a mounting frame must make sure that it is perfectly level and securely attached to the structure. Pad surfaces that aren't level make air flow more easily through areas with low resistance. This creates dry areas that don't cool through evaporation. Frame fixing points need enough structural support to hold the weight of the frames, the wet pads, and the wind loads that happen when the fan is running. Most setups use through-bolts or 3/16-inch lag bolts spaced 24 inches apart in structural columns or strengthened wall framing.

To make sure that the whole surface is evenly wet, the water distribution pipes need to be carefully placed on top of the pad sections. The height of the manifold affects how water flows; if it is placed too close, it creates channels, and if it is too high, wind can redirect the water before it hits the pad surface. As a general rule, the distribution tubes should be 6 to 8 inches above the top edge of the pad, and the spray nozzles or holes should be 6 to 12 inches apart, based on the water pressure and flow rate requirements.

Parts of a recirculation system include a tank with enough space for the pump to run for 15 to 20 minutes, which is usually estimated at 0.50 to 0.75 gallons per square foot of pad area. If you put the reservoir below the pad piece in the right way, it will drain naturally while still having enough pump pressure head. Installation must include a way for the whole system to drain so that bacteria don't grow when it's not being used. This also helps avoid freezes in places where it gets below freezing.

Routine Maintenance Requirements

Cleaning practices have a direct effect on how long a Chicken House Evaporative Ventilation Curtain lasts and how consistently it works. Minerals from drained water build up on pad surfaces, making them less porous and limiting airflow. Having a lot of calcium and magnesium in the water makes scale buildup a big problem in places where the water is hard. Cleaning every three months with diluted acidic solutions like vinegar or commercial descaling products gets rid of mineral layers without hurting pad materials or resin treatments.

Biological growth is another problem that needs to be taken care of, especially when it's warm and wet outside. Algae colonies grow on surfaces that stay wet for a long time, making sticky layers that stop water from absorbing and air from moving. Green or brown spots mean that algae is growing and needs to be stopped. There are different ways to treat the problem, such as using UV light, drying processes that leave the pads completely dry between production cycles, or approved algaecides that can be used in poultry settings. Changing the pH of the water to keep it between 6.0 and 8.0 stops both algae growth and mineral scaling.

Seasonal maintenance gets systems ready to be stored for longer periods of time during cool months when cooling isn't needed. In cold places, full water system draining keeps harm from freezing and gets rid of standing water that helps bacteria grow. Taking off the pads and storing the materials inside keeps them safe from UV damage and the weather, which could extend their useful life from the usual 3–5 years to up to 7-8 years with proper care.

How to Choose the Right Evaporative Cooling and Ventilation System for Your Poultry Operation?

To choose the right evaporative cooling equipment, you need to carefully look at the technical specs, the supplier's skills, and the overall cost of ownership. Long-term choices about purchases affect how well operations run, how much upkeep is needed, and the results of production. A planned choice process helps find options that give you the best performance within your budget and meet the unique needs of your facility's integration.

Critical Evaluation Criteria

Differences in material quality have a huge effect on how well and how long a system lasts. When premium cooling pads are made from brand-new kraft paper pulp that is fully saturated with phenolic resin, they keep their structural integrity for years of constant use. Lower-quality goods made from recyclable paper or resin that hasn't been fully treated may be cheaper at first, but they break down quickly and need to be replaced after one to two seasons. The difference in cost per year often favors better products, even if they cost more up front.

More than just material specs, frame building needs careful attention. Welded frames made of 6061-T6 or a similar high-strength aluminum alloy are very rigid and don't weigh much. Quality production is shown by corner strengthening, proper drain holes, and precision-fit pad retention systems. Frames should make it possible to take off and put on pads without tools, which will make normal repair easier. Stainless steel frame choices work well in places that need to be cleaned very thoroughly or that have a lot of ammonia, which can cause metal to rust over time.

It's important to look closely at the adjustability, clog resistance, and covering consistency of water delivery parts. Systems that use drilled PVC pipes with 1/8-inch holes 8 to 10 inches apart work reliably and require little upkeep. Spray nozzles spread water out more finely, but they need to be cleaned often to keep minerals from building up and blocking the flow. Distribution manifolds should have isolation valves that let you change each part separately to account for changes in water flow or pad absorption.

Supplier Assessment Factors

Technical help is what sets suppliers who really care about their customers' success apart from those who just sell tools. Manufacturers with a good reputation give detailed installation instructions for their Chicken House Evaporative Ventilation Curtain that include measurements, fitting instructions, and diagrams of the water system. Having access to installation guides shows you how to do things right and helps you avoid making common mistakes that hurt performance. Technical advisors who can deal with problems that are unique to each spot are very helpful, especially for businesses that are putting in evaporative cooling for the first time.

Service promises after the sale protect your investment against problems that you didn't expect. A basic one-year warranty that covers material defects and poor workmanship is a good starting point for peace of mind, but choices for longer warranties should also be considered. Having clear guarantee coverage—specifically, what parts are covered and what normal wear and tear versus defect means—avoids future arguments. Suppliers who give on-site installation help or testing services lower the risk of installation and make sure systems work as planned from the start.

When building sizes or practical needs don't match up with standard product options, the ability to customize becomes important. Suppliers with their own engineering teams can change the frame's measurements, ask for custom pad thicknesses, or create water distribution systems that work with the supply pressure and flow rates that are available. This adaptability comes in handy for retrofitting old buildings where limited choices are caused by structural issues.

Shuilin Musen Product Advantages

The Model 7090 cooling curtain systems that our company makes use of high-molecular-weight cross-linked polyethylene pad media that was designed to work well in harsh farming conditions. The curved structure strikes the perfect balance between evaporation efficiency and wind resistance, lowering temperatures by 5 to 8°C over time in dry, hot places. Different climates and cooling needs can be met by choices with thicknesses of 15cm or 20cm, and special sizes can be made to fit any building layout.

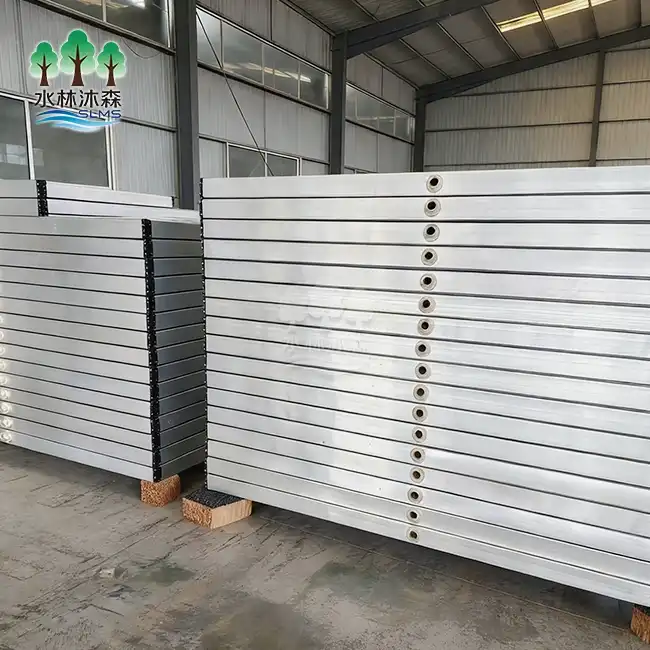

Frame building can be done with either high-quality aluminum alloy or stainless steel, depending on the customer's taste and the operating area. Precision production makes sure that the pads and frames fit perfectly, so there is no air leakage that lowers the cooling efficiency. The modular design lets you set up the system in a way that works best for you. It can be used for anything from a small family business to a big commercial facility with more than 100,000 birds. Each unit works perfectly with the others, so the system can be expanded in the future without having to be redone.

As part of our full support package, we offer thorough installation films that show how to mount the equipment, set up the water system, and do the initial commissioning. During the installation process, technical experts are still available to answer questions about the specifics of the spot. For businesses that want skilled installation or have complicated retrofit situations, on-site installation services can be set up. Every system comes with a one-year guarantee that covers both the parts and the work. You can also get service agreements that cover longer periods of time. These promises show that we believe our products will last and are committed to making sure our customers are happy.

Conclusion

Evaporative cooling technology, such as the Chicken House Evaporative Ventilation Curtain, is a safe and energy-efficient way to keep chicken farms cool in a wide range of weather situations. The devices lower temperatures by a large amount—usually 5 to 12°C—while using a small amount of energy compared to traditional mechanical cooling. The best performance is guaranteed by choosing the right method based on the building's features, the weather, and the number of birds that live there. Quality tools made from long-lasting materials, carefully thought-out design, and full support gives years of reliable service with little upkeep needed. Integration with tunnel ventilation and automatic controls in the tube improves both the comfort of the birds and the speed of operations, leading to higher production results while keeping costs low.

FAQ

Q1: What temperature reduction can I expect from evaporative cooling pads?

A: The main thing that determines temperature drop is the amount of humidity in the air. When the relative humidity is below 30% and the temperature is dry, devices can usually cool the air by 15-20°F. In places with moderate humidity (40 to 60% RH), temperatures usually drop by 8 to 12°F. Even in places with more than 70% relative humidity, evaporation systems can still cool things by 5 to 8 degrees Fahrenheit, which is usually enough to keep people from getting too hot if they have enough air flow.

Q2: How long do cooling pads typically last?

A: If you take care of good pads, they should last between 3 and 5 years. With the right care, high-quality products that have been fully treated with phenolic resin can last longer than 5 years. Service life varies a lot on the quality of the water, how often it is cleaned, and how it is stored during different seasons. If you use hard water for your operations without descaling methods or let algae grow all the time, the pads may fail within one to two years.

Q3: Can evaporative cooling work in humid climates?

A: When the humidity level is low, evaporative cooling still works, but it works less well when the humidity level is high. When the relative humidity outside stays below 70%, the technology works best. In places that are always wet, evaporative cooling may be used as an extra system instead of the main one. It can be used with tunnel ventilation and high air speeds to keep birds comfortable by reducing the effects of wind chill.

Q4: What maintenance does an evaporative cooling system require?

A: As part of regular upkeep, the pads are cleaned every three months to get rid of mineral deposits, algae is treated every six months, the even spread of water is checked, and the pump filter is cleaned. Seasonal jobs include draining the whole water system and storing pads during the cooler months when they don't need to be cooled. During operation, daily checks make sure that the water flows properly and find problems before they affect performance. Keeping the pH of water between 6.0 and 8.0 stops both scale formation and bacterial growth.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Your Cooling System Needs

At Shuilin Musen Aquaculture Equipment Co., Ltd., we know how hard it is to keep your chicken houses in good shape. Our Model 7090 evaporative cooling systems have been used in agriculture for eight years and have been shown to work well. Each installation comes with full technical help, installation videos, on-site installation services if needed, and a guarantee that protects your investment for one year.

Our engineering team can make solutions that fit the needs of your building exactly. Frames can be made of aluminum alloy or stainless steel. As a dependable company that makes Chicken House Evaporative Ventilation Curtain products, we work with businesses all over the United States, from small family farms to big industrial buildings. Visit slms-equipment.com or email us at wangshuaislms@gmail.com to talk about how our solutions can help your business be more productive and make more money.
