How to choose a rotary fan with adjustable speed for a chicken house

There are a lot of important things to think about when picking the right rotary fan with changeable speed for your chicken house. These include how stable the base is and how much air it can move. When it comes to placement, a Floor-raised Chicken House Rotary Fan Pedestal is more flexible than set wall mounts. You can direct airflow exactly where your flock needs it most. These pedestals can hold fans with a width of up to 80 cm that work on 220V to 380V systems. They can also rotate 360° to spread air evenly throughout your building. When choosing equipment, make sure it is made of corrosion-resistant materials like galvanized steel or stainless steel, has speed controls that can be changed for different seasons, and comes with a strong warranty that will protect your investment for a long time.

Understanding the Role of Rotary Fans in Chicken House Ventilation

Good airflow is one of the most important parts of raising chickens. If your chicken house doesn't have enough air flow, it can become a breeding ground for lung diseases, too much ammonia buildup, and temperature-related stress, all of which hurt the health and efficiency of your birds.

Why Floor-Raised Positioning Matters

Rotating fan systems that are raised off the floor move air at bird level instead of above them. This positioning approach solves one of the most important problems in chicken ventilation: getting rid of thermal stratification and the pockets of stale air that form near the litter. When you put fans at floor level, they move air horizontally across the bedding, speeding up the drying process and lowering humidity levels that can cause footpad dermatitis and breathing problems. Floor-raised circulation fans actively mix the air throughout your facility, making sure that every bird has the same natural conditions no matter where they are in the house. Ceiling-mounted exhaust systems only pull air vertically.

Adjustable Speed Control Benefits

A simple air fan can be turned into a precise climate control tool by adding variable speed. During the winter, you can slow down the fan to keep the air moving slowly without making drafts that could bother your birds or waste heating energy. When it gets really hot in the summer, turning up the fan speed creates the strong airflow that is needed to keep feed consumption rates steady and avoid heat stress.

This flexibility saves you a lot of money on electricity—studies of business broiler operations have shown that optimized variable-speed ventilation systems use 30–40% less energy than constant-speed options while still keeping the environment better. Being able to fine-tune airflow also means lower noise levels during sensitive times, like early nursing, when too much noise can make young chicks anxious.

Impact on Flock Performance

Key Criteria for Choosing a Rotary Fan with Adjustable Speed

When choosing air equipment, you need to think carefully about how it will be used and how reliable you want it to be in the long run.

Assessing Your Facility Requirements

First, figure out how big your chicken coop is and how many people will be living in it. A normal broiler operation with 20,000 birds in a 400-foot house needs a lot more airflow than a layer operation with the same number of birds but different room allocation. Your climate zone also makes a difference—for example, southern U.S. operations that have to deal with long periods of heat stress need higher maximum fan speeds than northern sites that have to deal with winter air management. Before you talk to equipment providers, write down the size of your building, the average size of your group, and the temperature ranges for each season.

Performance Specifications That Matter

Pay attention to these technical details when judging rotating fan pedestals:

• Motor Power and Speed Range: Good units have more than one speed setting or constant changeable control. A normal fan with an 80 cm circle should have speeds between 200 and 1,400 RPM and move between 3,000 and 18,000 cubic meters of air per hour. This range lets you precisely match your air needs during the whole production process.
• Construction Materials: The acidic climate inside chicken coops, which includes high humidity, ammonia exposure, and organic dust, breaks down cheap materials quickly. Hot-dip-coated galvanized steel frames with a zinc layer of at least 275g/m² offer basic corrosion resistance. Premium choices use 304 stainless steel parts that can last for 7 to 10 years of constant use without breaking down. The platform base should have a wide stance design that lowers the center of gravity and keeps it from tipping over when it's running at high speeds.
• Electrical Compatibility: Make sure that the power needs of the fans are compatible with the electrical system in your building. In the U.S., most businesses use either 208-240V single-phase or 480V three-phase circuits. Equipment that works with 220V to 380V can handle both setups, which gives you options for how to put it. For safety, make sure that motors have UL or ETL approval.
• Adjustability and Positioning: The base should be able to tilt up and down and rotate horizontally (to cover a full 360°) and up and down (usually -15° to +45°). This adaptability is very important because you need to change the airflow patterns for different group sizes and times of the year. Quick-release devices for adjusting the angle cut down on the time it takes to set up when switching groups in and out of a house.

Energy Efficiency Considerations

Find the total cost of ownership, which is different from the buying price. A fan that uses 550 watts and runs for 20 hours a day, 365 days a year uses 1,980 kWh per output cycle. At $0.12 per kWh, that's $237 worth of power per unit. When you multiply this by the 8–12 fans in a normal house, you can see that differences in how energy efficient models are have big long-term effects on your finances. Floor-raised Chicken House Rotary Fan Pedestal systems that include variable frequency drives (VFDs) can save 35% of the energy that multi-speed motors with fixed settings use by exactly controlling motor speed based on temperature monitors.

Comparing Floor-Raised Rotary Fan Pedestals with Other Mounting Options

When you know the pros and cons of each installation method, you can make choices that are in line with your operational goals.

Floor-Raised vs. Wall-Mounted Systems

Floor-raised pedestals work great in places that need to be able to change how air is distributed. You can move these units around between production runs to fit different flock patterns or test housing arrangements. This portability is especially helpful for contract growers who are trying different stocking rates or for broiler integrators who are switching between standard and slow-growth genetics, which need different ways of managing the environment. The low mounting height guides airflow horizontally across the litter area, which cools it down the most and keeps it from getting wet, which is a good place for bacteria to grow.

Fixed vs. Portable Pedestal Designs

Heavy-duty fiberglass cone fans or high-velocity circulation units are most stable when they are permanently installed on concrete footings or floor-bolted pedestals. These sets ups work well for businesses that are open all year and have continuous production cycles where the equipment stays in the same place. The fixed mounting better absorbs shaking, which lowers noise transfer and increases the life of the motor bearings.

Manual vs. Automated Control Systems

Simple manual speed settings with rotary switches or multi-position options work well and don't cost much. These methods work best in smaller businesses where managers can check on things often and make changes as needed. Electronic devices are hard to understand and have many places where they can go wrong. Manual controls are easier to use in situations where mechanical ease is important.

Installation and Maintenance Best Practices for Rotary Fans in Chicken Houses

Installing and maintaining your air equipment correctly will directly affect whether it lasts as long as it's supposed to or breaks down before its time.

Site Preparation and Installation Guidelines

Make sure the floor surfaces are level and the structure is sound before you put in your Floor-raised Chicken House Rotary Fan Pedestal. The platform rocks when it's being used because it wasn't put down evenly. This speeds up the wear on the mounting bolts and creates fatigue stress points that cause the system to fail early. Thoroughly clean the installation area, getting rid of any trash or other things that might get in the way of the platform base's footprint. Place units so that airflow patterns meet and there are no dead spots.

Usually, fans are spaced 40 to 60 feet apart and run in a random pattern along the length of the house.Safety rules must be carefully followed when making electrical links. Run power lines through protective conduit to keep them from getting damaged by rats or coming into touch with them by chance during normal operations.

Make sure that all of the connections are made with waterproof junction boxes that are rated for use in rural areas with a lot of moisture. To keep people from getting shocked, each fan circuit should have a ground fault circuit interrupter (GFCI) protecting it. After the electrical work is done, make sure that the voltage at the motor connections is within the range allowed. Motors that are under-voltaged will warm and break down early.Adjust the speed settings according to the instructions that came with the car.

For variable frequency drives to work, the motor's horsepower values and the speed ranges that are wanted must be programmed in. When setting goes wrong, it can lead to the motor overheating, operation that isn't efficient, or speed responses that aren't regular. Most good providers offer installation videos that show the right way to set up their products. These videos greatly reduce mistakes during fitting and make sure that the products work at their best from the start.

Routine Maintenance Protocols

Set up an organized repair schedule to keep performance from going down. Every seven days while production is going on, check the fan blades for dust and feathers that have accumulated. Even small amounts of buildup can throw off the flow of air, which makes vibrations and noise worse. Don't use strong chemicals to clean the blades; instead, use a soft brush and a light detergent solution. When inspecting the blade, make sure that the mounting bolts are still tight.

Over time, vibrations can loosen screws, and a blade that isn't attached can cause dangerous projectile dangers.Motor bearings should be oiled once a month with food-grade grease that is safe for use in high-temperature farming settings. Too much or too little oil can cause problems, so make sure you follow the manufacturer's instructions to the letter. Check electrical connections for rust or thermal damage, which can be seen in lines that are turning a different color or insulation that is breaking easily.

Check the pedestal frame for rust, especially where the welds meet and the frame meets the base, which is where coating damage happens most often. Use touch-up paint made for metal surfaces right away to fix any sealing holes.During downtime at home between flocks, do a full review of all the tools. Take the fan case apart and clean all of the parts inside it very well. Check the motor windings visually for signs of damage from water or insulation that is breaking down. Use a multimeter to check the operation of the capacitors. One of the most common problems with motor efficiency is a failed capacitor. If you have belt drives, check them for proper tension and wear patterns that show they aren't lined up right. Instead of waiting for old parts to break during the next production cycle, replace them before they break.

Troubleshooting Common Issues

When there is too much vibration, it usually means that the blades are out of balance because of debris buildup, the blades are bent from contact damage, or the mounting hardware is free. Run the fan at a low speed and slowly increase it until you find the cause. Vibrations that only happen at certain speeds mean that the blades aren't balanced right, while vibrations that happen at all speeds mean that there are problems with the fitting. Strange noise patterns, like grinding, squealing, or clicking, often mean that the bearing is wearing out and needs instant attention before it fails completely.

When there are problems with the speed control, fans either don't reply to requests to change speeds or run at different speeds. These signs point to a problem with the processor, the wires, or the motor windings. Check the security of the voltage source over a 24-hour period with a recording meter. Voltage changes caused by bad service panels or loose utility connections can make the motor behave in strange ways. If the source voltage stays the same, the problem is probably with the speed driver or the motor itself, and needs to be looked at by a professional.

Procurement Considerations and Trusted Supplier Insights

Buying ventilation equipment from a reputable company saves your investment and gives you access to expert help for as long as the equipment lasts.

Evaluating Manufacturer Credentials

Work with providers who can show they have knowledge with poultry ventilation systems. This way of doing things is shown by Weifang Shuilin Musen Aquaculture Equipment Co., Ltd., which has spent eight years developing tools for farming and raising animals. Their full service model includes research and development, sales support, service after the sale, and expert advice. This is an important feature that other companies that sell industrial tools can't offer. The company has a team of five skilled engineers who work only on poultry houses. These engineers know the specific problems that come up with controlling the environment in poultry houses, so they can offer custom solutions instead of goods that work for everyone.

Check to see if the providers you're interested in have written quality control systems that cover all stages of the production process. Reputable makers test the core parts for strength to temperature, wetness, and corrosion before putting them together. To make sure the layer will last, they test it with salt spray that mimics years of contact to ammonia. When specifying materials, they should be made of high-quality galvanized steel or 304 stainless steel so that they can last for 7 to 10 years of constant farming use.

Understanding Warranty and Support Terms

A full guarantee shows that the company that made the product is confident in its reliability. As standard, coverage should include a free guarantee for at least one year that covers problems with the products and the work. Carefully read the guarantee terms to see what they don't cover. For example, some makers will not honor warranties if the equipment is used in certain environments or if the installation doesn't follow their instructions.

Make it clear how long it takes for warranty claims to be processed and if the provider offers substitute units during repair periods to keep production running smoothly.Having access to technical help is also very important. Suppliers should offer how-to videos, full user guides, and online access to technical support staff who can fix problems with speed. On-site installation and testing services are more valuable, especially for businesses that are putting in a lot of units or complicated control systems that work together.

Customization and Scalability Options

Large operations benefit when providers offer customizable setups that fit the design of a building. This could include changing the height of the pedestals to fit different floor plans, making the motors meet specific requirements for harsh weather, or adding the ability to work with current building control systems. Talk about the options for customization early on in the buying process to make sure that it is technically possible and that the wait time is acceptable.Check to see how well the provider can help your growth.

Working with manufacturers that can deliver uniform product specs across multiple orders makes repair logistics and managing your parts inventory easier if you run more than one facility or plan to grow. Agreements to buy in bulk should include volume prices that reflect the fact that the seller makes less money on each unit sold and on shipping costs when the order is bigger.

Assessing Total Cost of Ownership

Instead of just looking at the buy price, use total cost analysis to compare different choices. Over the course of its useful life, a unit that costs $150 less but uses 200 more watts quickly becomes more expensive. In the same way, equipment that needs special new parts that take a long time to get creates expensive downtime risks that cancel out any savings made at first. When making your final choice, think about how much energy you think it will use, how much you think it will cost to maintain, how much the insurance will cover, and how well the seller can help you. Ask present customers who run similar sites for references.

Direct feedback from other chicken farmers gives you information about how well equipment works in the real world, how quick suppliers are, and how satisfied you are with your purchase over time that marketing materials can't. Reliable providers are happy to put potential customers in touch with their current customers because they know that good experiences will lead to more sales. Floor-raised Chicken House Rotary Fan Pedestal systems are an important factor to consider in your total cost analysis as they balance both initial purchase price and long-term energy efficiency.

Conclusion

To choose the right rotary fan with a changeable speed, you have to weigh the technical specs, the fitting needs, and the reputation of the provider. The floor-raised pedestals provide better airflow distribution and positioning freedom that is necessary for modern chicken businesses. Prioritize tools made from materials that won't rust and that can rotate 360°, have variable speed controls, and come with a full guarantee.

Installing equipment correctly by following the manufacturer's instructions and doing regular repair will make it last longer and work better. Work with sellers who have been in the poultry industry for a while and can offer technical support, customization options, and proven knowledge in poultry environmental systems. This will help you make sure that your ventilation investment keeps your flock healthy and increases production efficiency over time.

FAQ

What fan size and quantity do I need for my chicken house dimensions?

Figure out how much wind is needed based on the number of birds and the size of the house. For a house with 20,000 broilers, it usually needs 6–8 80 cm diameter circulation fans that move about 12,000–15,000 cubic meters of air per hour. For homes that are wider than 50 feet, adding more units along the sides keeps the air moving.

How do corrosion-resistant materials affect equipment longevity in poultry environments?

The heat and amount of ammonia in poultry houses make normal steel rust very quickly. Hot-dip galvanized steel with a zinc covering of at least 275g/m² has a service life of 5–7 years. On the other hand, 304 stainless steel construction gives you 7–10 years of steady use, lowering the number of replacements and long-term costs even though it costs more up front.

What energy savings can adjustable speed fans deliver compared to fixed-speed units?

Using 30–40% less electricity during normal production cycles is possible with variable speed controls that are combined with temperature monitors. By managing the speeds of twelve 550-watt fans more efficiently, a building can save between $850 and $1,100 a year on energy costs compared to running the fans at full speed all the time.

Partner with Shuilin Musen for Reliable Poultry Ventilation Solutions

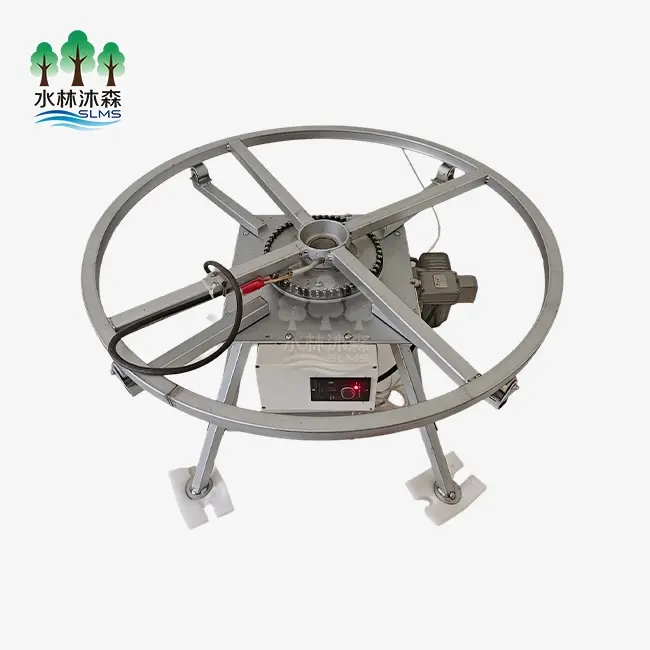

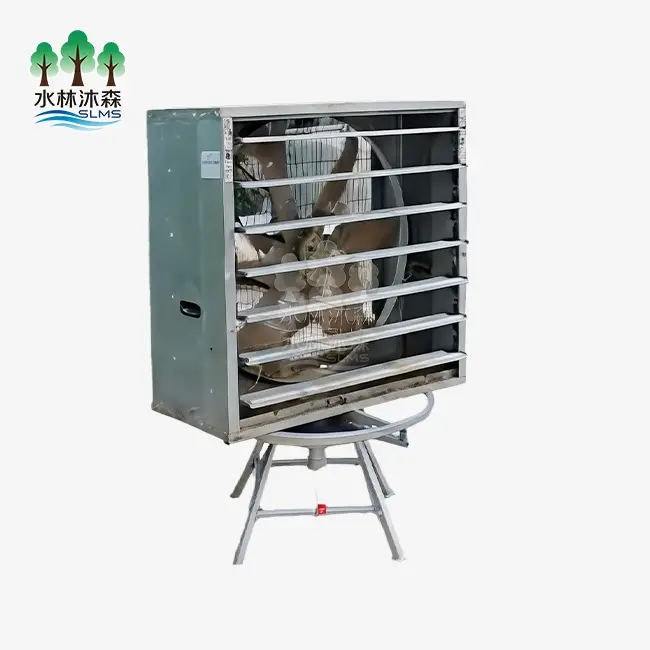

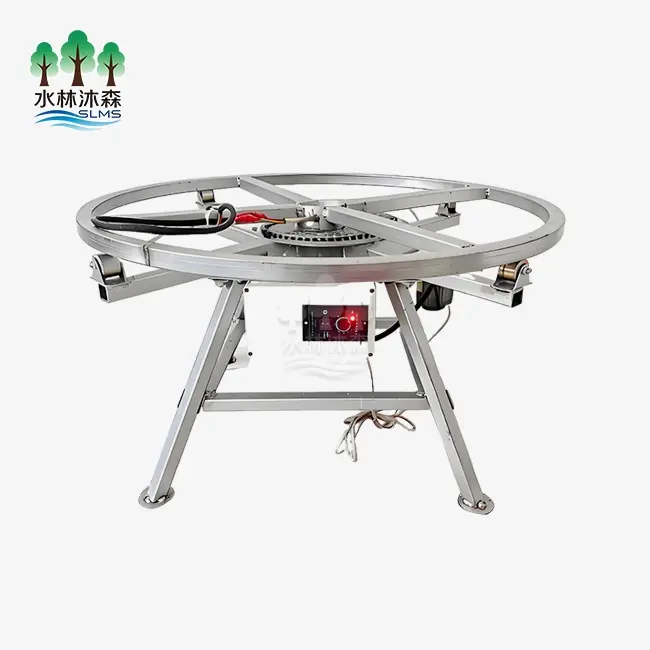

Upgrading your chicken coop's air flow with tried-and-true Floor-raised Chicken House Rotary Fan Pedestal tools will improve the health of your flock and make your business run more smoothly. Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience making farming machinery and offers full technical help to make sure your ventilation investment works well. For easy installation, our standing fans come with full video instructions and can turn 360°.

They also use very little power and are energy-efficient. Each unit comes with a one-year guarantee, and it can still be customized to fit specific needs. Email our team at wangshuaislms@gmail.com to talk about your building needs with experienced experts who know how hard it is to raise chickens. As a reliable maker of Floor-raised Chicken House Rotary Fan Pedestals, we offer full solutions, from the initial advice to fitting help and ongoing service. You can see our whole line of products at slms-equipment.com and learn why top chicken farms trust Shuilin Musen for their air needs.

References

1. National Chicken Council. (2021). Animal Welfare Guidelines and Audit Checklist for Broiler Chickens. Washington, DC: National Chicken Council.

2. Donald, J. (2018). Poultry Housing and Management in Developing Countries. Rome: Food and Agriculture Organization of the United Nations.

3. Czarick, M., & Lacy, M. (2019). Poultry Housing Tips: Circulation Fan Management. Athens: University of Georgia Cooperative Extension.

4. American Society of Agricultural and Biological Engineers. (2020). ASAE Standards: Ventilation Systems for Poultry and Livestock Housing. St. Joseph, MI: ASABE.

5. Purswell, J.L., & Dozier, W.A. (2019). "Fan Performance and Energy Use in Broiler Houses," Applied Engineering in Agriculture, 35(4), 587-595.

6. Harner, J.P., & Murphy, J.P. (2020). Mechanical Ventilation Systems for Livestock Housing. Manhattan: Kansas State University Agricultural Experiment Station and Cooperative Extension Service.
