How to Design an Efficient Poultry House Ventilation System

Designing an efficient poultry house ventilation system demands understanding the interaction between air velocity, temperature control, and airflow distribution. The solution lies in integrating properly engineered components like Chicken House Ventilation Guide Vane units that direct incoming fresh air strategically throughout your facility. These precision-engineered devices prevent cold air from dropping directly onto your flock, instead guiding it along the ceiling to mix with warm air before descending gradually. This approach eliminates temperature stratification, reduces ammonia concentration, and maintains uniform conditions essential for optimal feed conversion ratios and bird performance across operations ranging from 5,000 to 100,000+ birds.

Understanding the Ventilation Challenges in Poultry Houses

Keeping the air quality in modern chicken farms under control is hard and has a direct effect on your bottom line. Several agricultural studies show that heat stress alone costs the U.S. poultry industry more than $165 million a year in lost production. At the same time, ammonia levels above 25 ppm cause breathing problems, which slows growth and raises death rates.

Common Environmental Issues Affecting Flock Performance

Your birds make a lot of heat and wetness through their metabolism. During peak production, a grill house with 40,000 birds makes about 1,200 pounds of wetness every day. Without enough air flow, this water builds up in the litter, making it perfect for bacteria to grow and releasing more ammonia. These problems are made worse by changes in temperature. Birds in cooler areas eat more food without adding any weight, but birds in hot areas get heat stress and stop eating all together.

Why Traditional Ventilation Systems Fall Short

Using standard exhaust fans and easy input arrangements can lead to bad airflow patterns. When cold winter air comes in through simple wall openings, it drops quickly, chilling the birds below while the warm air in the ceiling goes to waste. This is called cold air drop, and it loses heating energy and makes thermal zones in the same house where temperature changes are more than 10°F. In the summer, birds can't cool themselves through evaporation because the air isn't moving fast enough. This makes them pant and is subject to heat prostration even when fans are running at full capacity.

The Critical Need for Precision Airflow Management

Large-scale business operations need air systems that can adapt to changes in the weather while keeping the temperature inside the building steady. Your building needs equipment that always works, whether it's controlling minimum ventilation during heavy rain or maximum tunnel ventilation during summer heat waves. Solutions must be able to handle the toxic, ammonia-filled environment without breaking down, work efficiently to keep energy costs low, and distribute air evenly across the building no matter its size or the number of birds that come and go during production cycles.

Guide Vane Ventilation Systems: Principles and Benefits

New aerodynamic Chicken House Ventilation Guide Vane technology changes how fresh air gets into and moves through chicken coops. The Coanda effect, which is the way air flows naturally along curved surfaces, is used by these parts. When placed correctly at openings where air comes in, they direct the air upward and horizontally along the ceiling instead of letting it fall straight down.

How Engineered Vanes Control Airflow Direction

The airflow throw distance and mixing properties are set by the angle and curvature of the guide vane surfaces. Designs that are of high quality have measured curves that keep laminar flow going even when the static pressure changes. Negative pressure devices pull air through openings, and vanes that can be adjusted change the size of the openings and direct the flow of air at the same time. This two-in-one feature lets you fine-tune both the speed and pattern of the air flow, adapting to the different ventilation rates needed in minimum, transitional, and tunnel ventilation modes.

Measurable Performance Improvements

Companies that use engineered Chicken House Ventilation Guide Vane systems say that their heating costs drop by 15 to 25 percent in the winter because they are better at recovering heat from warm air stuck in the roof. Monitoring the air quality shows that the ammonia is spread out more evenly, and peak amounts are 30–40% lower than at sites with standard inlets. Temperature mapping shows that variations in temperature drop from 8 to 12°F to 3 to 5°F along the length of the house. This means that the flock is more uniform and the feed conversion efficiency is 2 to 4 percent higher. These improvements come from getting rid of dead zones and making sure that every bird has the same environmental conditions no matter where they are in the facility.

Energy Efficiency and Bird Health Advantages

In addition to saving money right away, directing airflow correctly cuts down on the amount of time a fan needs to run. When air moves around efficiently, you can reach your ventilation goals with lower air exchange amounts, which directly lowers your power use. Birds do better in places without drafts, even when there isn't much air flow, because it keeps their immune systems from being weakened by stress. Better moisture management in the litter reduces footpad sores and breast blisters, which increases processing yields and meets the higher welfare standards that major integrators and retail customers are demanding.

Step-by-Step Design Guide for Poultry House Ventilation Using Guide Vanes

To make a system that works, you need to carefully look at your facility's features and what it needs to do its job. The following framework will help you make important design choices that will affect the long-term performance and return on investment.

Assessing Your Facility Requirements

First, write down the size of the house, the height of the roof, and the number of birds in the group at its busiest. Find the total number of cubic feet and the desired air exchange rates for minimum ventilation (usually 0.1-0.15 CFM per bird while nesting) and maximum ventilation in the tube (400–600 feet per minute air velocity). Find out where and how many fans are already in place, and make note of any uneven airflow patterns that you find by using smoke testing or temperature mapping. Think about the temperature ranges and wind directions in your climate zone. These affect how to place the inlets and the ranges of adjustments that need to be made to the guide vane angles throughout the year.

Positioning Guide Vanes for Optimal Air Distribution

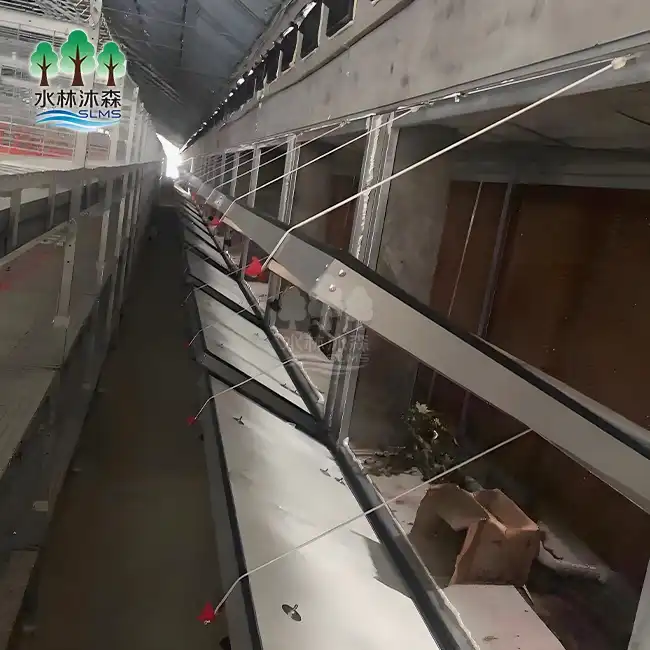

In standard grill houses, the vane is placed 48 to 60 inches above the floor, and the spaces between the intakes are usually 10 to 20 feet along the sidewalls. The throw distance is the most important measurement. The air must reach at least two-thirds of the width of the house before it falls to bird level. Our 5 cm thick Chicken House Ventilation Guide Vane units can be made to fit any opening size, and their frames are made of aluminium alloy or stainless steel to prevent corrosion. When it's hot outside, the angle adjustment feature lets you change the throw characteristics, sending air more vertically during tunnel ventilation modes. When it's cold outside, the minimum ventilation modes direct air more horizontally.

Integrating Mechanical and Natural Ventilation Components

Fan-driven negative pressure and carefully controlled entry areas work together to make systems work well. Use the formula total square inches equals CFM divided by desired inlet velocity (usually between 800 and 1000 feet per minute in the winter) to find the required inlet area. Our electrically powered vane systems link to your environmental controller and change places on their own based on temperature and static pressure readings. This integration keeps the ideal pressure (0.08 to 0.12 inches water column) even when the ventilation rate changes. This stops the system from being too pressurised, which loses energy, or too under-pressurized, which lets air in through cracks and other unexpected holes.

Retrofitting Considerations for Existing Facilities

Adding precision Chicken House Ventilation Guide Vane parts to standard curtain inlets or basic adjustable holes can help a lot of different tasks. Retrofits usually don't need many changes to the structure because the units can be mounted in existing wall openings. Check the current opening sizes and the condition of the frames. If the wooden frames are in bad shape, they should be replaced with long-lasting metal frames during the upgrade installation. We give you installation videos and expert help documents that show you how to measure, mount, and connect the controller. For complicated retrofits or new construction jobs that need to coordinate with building builders and mechanical system installers, on-site installation services are available.

Comparing Ventilation Solutions: Guide Vanes vs Alternatives

Learning about the differences in performance between air methods helps you make smart investment choices that fit your budget and operating needs.

Performance Analysis Across Different System Types

Simple exhaust fans with simple wall openings are the cheapest to install at first, but they don't give you much control over the airflow. These layouts have trouble with cold air drop in the winter and make temperature spread uneven, especially in homes wider than 40 feet. Turbine ventilators help with natural airflow, but they can't give the exact amounts of air that are needed in extreme weather or high-density production. Fully automatic Chicken House Ventilation Guide Vane systems, like the one we sell, cost more up front, but they provide better environmental stability, energy economy, and bird performance results that pay for themselves quickly through lower mortality, better feed conversion, and lower utility costs.

Cost-Benefit Considerations for Different Operation Scales

Businesses that take care of more than 50,000 birds usually get their money back in less than 18 months by saving energy and making production better. Smaller sites that can hold 10,000 to 25,000 birds still get a lot out of it, especially in places where the weather changes a lot from season to season. The strong, lightweight design of good Chicken House Ventilation Guide Vanes means they can last for 10 to 15 years with only minor maintenance—regular cleaning and an annual mechanical check are all that's needed. This lasts longer than foam-based options, which break down in three to five years when exposed to humidity, ammonia, and the high-pressure washing that is needed for biosecurity reasons between groups.

Scalability and Customization Advantages

Our flexible sizes can fit any type of house, from 30-foot curtain-sided homes to 60-foot tunnel-ventilated buildings. The flexible design lets the installation be done in stages, starting with one corner and then moving on to the next while performance is tested. This flexibility is especially helpful for operations that want to add more capacity or try how well a system works before committing to changes that affect the whole fleet across many homes. When equipment wholesalers work with us, they like being able to describe exact configurations that meet customer needs and regional building standards without having to keep a lot of fixed-size parts in stock.

Procurement and Supplier Guide: Selecting the Right Guide Vane for Your Poultry House

When looking for a trusted supplier, you need to look at more than just the price of the tools. Long-term performance depends on the quality of the materials, the engineering know-how, and the full support infrastructure.

Critical Material and Construction Specifications

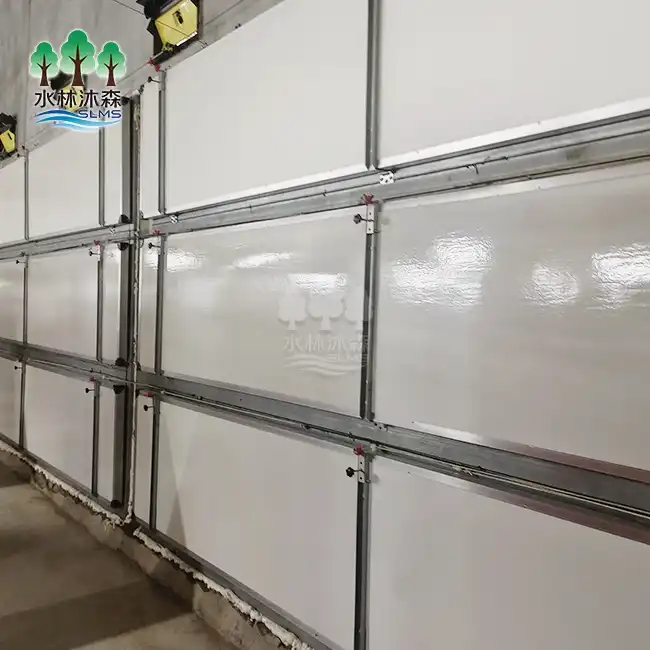

Good Chicken House Ventilation Guide Vane units are made from rigid plastics that are stabilised by UV light or metals that are resistant to corrosion and were designed to work in agricultural settings. Our 5 cm thickness gives the structure rigidity that stops fluttering when air speeds are high, and it also has enough insulation to keep condensation to a minimum during winter operation.

Frames made of aluminium metal or stainless steel don't break down when they are exposed to ammonia and high-pressure cleaning methods over and over again. Galvanised steel hardware that rusts easily and foam parts that soak up water and allow bacteria to grow should not be used in products. Check to see if the sealing systems use EPDM rubber or a similar material that can withstand high and low temperatures without cracking or losing its ability to compress.

Evaluating Supplier Technical Capabilities

When making parts to your exact specs, manufacturing knowledge is very important. We have a research and development team of five engineers whose job it is to keep making products better. Based on feedback from real-world farming operations, we release three or more new solutions every year. This innovation capability gives you access to the newest technologies while still getting stability that has been tested in the field.

Before agreeing to a provider, ask for full technical sketches that show the aerofoil profiles, adjustment mechanisms, and mounting hardware. Our technical documentation includes a computational fluid dynamics analysis that shows how air flows in different operating conditions. This helps farm managers, integrator engineering departments, and agricultural contractors make smart decisions.

Warranty Coverage and After-Sales Support

Full warranty security shows that the maker trusts the product to last. Our free one-year warranty covers material flaws and mechanical failures, and we offer quick technical support for questions about installation, how to make adjustments, and how to fix problems. On-site installation services get rid of the risks that come with bad hardware or controller integration, which could hurt the performance of the system.

Check how quick the provider is to your initial questions—companies that give you detailed answers and personalised suggestions are likely to provide better support for the life of your equipment. Check to see if replacement parts are available for things like actuator motors, linkage hardware, and sealing strips. This will make sure that the system works for a long time without any problems with it becoming obsolete.

Building Long-Term Partnership Value

For poultry farms to be successful, they need to get their equipment from dependable companies that know how to work with their customers' needs. For eight years, Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has worked with farmers and cattle owners. This has taught us that good relationships are more than just deals. We take the time to learn about your facility's layout, your output goals, and your budget so that we can suggest solutions that get measured results instead of just moving product. Our all-around method includes a free consultation, a custom-designed system, help with installation, and ongoing expert support to make sure that your ventilation infrastructure works at its best through different production cycles and changing environmental conditions.

Conclusion

A good plan for the ventilation in a chicken house takes into account many factors, such as the speed of the wind, how evenly it spreads, how much energy is used, and how long the equipment lasts. Precision-engineered Chicken House Ventilation Guide Vane systems meet all of these needs at the same time by strategically directing fresh air to get rid of temperature stratification and cut down on operational costs. Investing in high-quality parts pays off in the form of better bird performance, lower death rates, and lower energy costs.

To be successful, you need to carefully look at your building, choose the right parts based on your operational needs, and work with suppliers who offer both tested goods and full support. As rules about the environment get stricter and the cost of production goes up, improved ventilation solutions go from being competitive benefits to being necessary for keeping the business profitable.

FAQ

What static pressure should I target when operating guide vane inlets?

Keep the water level between 0.08 and 0.12 inches thick when it's cold outside. This pressure range gives the right amount of throw distance for mixing the air without making fans work too hard or using too much energy. When tunnel ventilation is used, the pressure may drop to 0.05 inches because the inlets open wider and the air speed rises along the length of the house instead of across the width.

Can guide vanes prevent moisture problems in bedding material?

When Chicken House Ventilation Guide Vane systems work right, they get rid of the cold air droplets that condense humidity near the sidewalls, which cuts down on litter moisture by a large amount. When you direct entering air horizontally, it can warm up and hold more moisture before it reaches the floor. This means that water vapour is removed through the vent system instead of being deposited in the bedding.

How often should guide vane positions be adjusted?

Modern systems with built-in controllers make changes automatically based on sensors that measure pressure and temperature. When it's cold outside, manual systems need to be adjusted to have more straight throw angles, and when it's warm outside, they need to be adjusted to have higher angles. Before each flock placement, make sure that the calibration is correct and that the mechanical linkages work smoothly and that the vanes open evenly across all inlets.

Partner With Shuilin Musen for Your Ventilation System Needs

Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience creating solutions for farming and raising animals that make operations better in a way that can be measured. Our engineering team creates ventilation Chicken House Ventilation Guide Vane systems that are exactly the right size and climate for your building. We also offer full technical support, such as installation videos and service on-site. We use high-quality materials—aluminum alloy or stainless steel frames with precisely made vanes—so they will last for 10 years or more in harsh chicken house conditions.

As a reliable guide vane supplier, we help you succeed with our one-year warranty, quick technical support, and dedication to coming up with new ideas that save you money. Email our team at wangshuaislms@gmail.com to talk about how our customisable guide vane solutions can help your chicken house breathe better, save you money on energy, and make your flock more regular. You can find full product information and case studies showing how it works in the real world at slms-equipment.com.
