Poultry Barn Climate Control System Design and Installation

Managing a profitable poultry operation demands more than just quality feed and healthy stock—it requires precise environmental control. Poultry Barn Climate Control System Design and Installation represents a critical investment for commercial farms, where temperature, humidity, and air quality directly impact bird health, feed conversion ratios, and mortality rates. At the heart of effective climate management lies the Livestock Ventilation System Negative Pressure Fan, an engineered solution that creates controlled airflow by exhausting stale air and drawing fresh oxygen through strategically placed inlets. This principle transforms enclosed barns into optimized production environments, removing harmful ammonia concentrations while maintaining thermal stability across seasons.

Understanding Negative Pressure Ventilation in Poultry Barns

How Negative Pressure Systems Operate

With negative pressure ventilation, the air pressure inside your chicken coop is lower than the air pressure outside. Industrial exhaust fans on one or both gable ends pull air out of the barn automatically, letting fresh air in through openings on the sides or at opposite ends. This controlled intake makes sure that there is even distribution instead of random drafts that stress birds.

The method keeps a pressure difference that can be measured, usually between 0.05 and 0.12 inches of water column. This precise control tells the difference between professional installations and bad ones. When the system is set up correctly, every cubic foot of wasted air is filled with filtered, temperature-appropriate fresh air. This keeps the temperature and humidity levels the same throughout the building.

Comparing Ventilation Methods

Natural ventilation depends on wind and thermal buoyancy. It doesn't cost anything to run, but the performance is hard to predict. Positive pressure devices push air into barns, which makes it hard to control moisture and needs a lot of ductwork. Negative pressure ventilation is the most common way for large chicken farms to move air because it works with evaporative cooling pads, keeps backdrafts from introducing contaminants, and can be used in any weather. This dependability directly affects the stability of your production—no matter how cold it is outside or how hot it is outside, the settings for your birds stay the same.

Airflow Dynamics and Proper Fan Sizing

To figure out how much wind you need, you must first know how big your building is and how many air changes you want every hour. In normal weather, grill rooms need four to six full air exchanges an hour. During peak heat, they need forty to sixty exchanges an hour. It is possible for a 50-inch industrial fan moving 28,000 to 38,000 m³/h to properly air out 150 to 200 square meters, but this calculation needs to take into account the static pressure that is created by duct turns, inlet restrictions, and cooling pad resistance.

Undersized fans keep running at full speed all the time, using too much energy and not meeting the conditions that are needed. When units that are too big turn on and off too quickly, they cause temperature changes and wear on the parts. A professional barn climate designer fits the fan capacity to the size of the building, the number of birds that live there, and the weather trends in the area. This makes sure that the equipment works at its most efficient level.

Designing an Effective Poultry Barn Climate Control System

Core System Components

A full temperature control system uses a lot of different technologies that all work together. Exhaust fans are the building blocks, but how well they work relies on how well the inlets, environmental monitors, and automatic controls work together. Throughout the barn, temperature and humidity sensors send real-time data to programmable logic controllers that change the stages of the fans, the openings for the air to flow through, and any other heating or cooling equipment that is needed.

Modern systems have variable frequency drives that let fans run at partial speeds. This lowers energy use in mild weather while still ensuring enough air flow for good air quality. Running one fan at a low speed for basic ventilation and then gradually turning on more units as temperatures rise is the best way to keep the birds comfortable and keep costs down.

Critical Design Calculations

Ventilation design needs precise engineering, not just a guess. Based on the bird's age and weight, engineers figure out the necessary air rates that make sure the birds get enough oxygen while also getting rid of the moisture from their breathing and waste. Maximum ventilation rates help reduce heat stress, and air speeds of 600 to 700 feet per minute across birds are often needed to make wind chill effects cool them down. Livestock Ventilation System Negative Pressure Fan is a critical component in this setup, as it ensures consistent airflow and pressure control to meet the calculated ventilation demands effectively.

When choosing a fan, you should also think about the size of the inlet. Inlets that are too small raise static pressure, which makes fans work harder while lowering airflow. When inlets are too big, they let in low-speed drafts that settle near the floor and don't mix with barn air well. Professional designs define the inlet square footage based on the fan's capacity, the goal air velocity, and the pressure difference that is wanted. This makes sure that the systems are balanced and work the way they were meant to.

Real-World Performance Outcomes

In the southeast of the United States, a commercial grill company recently switched from old circulation fans to a properly built negative pressure system with eight 50-inch industrial units. Monitoring after installation showed that differences in barn temperature dropped from 8°F to less than 3°F between measurement points, and the amount of ammonia in the air also dropped by 60%. The operation saw a 2.3% drop in death during summer production rounds and a 4% rise in feed conversion. These measured gains show that engineered temperature control has a direct effect on profits that goes beyond the cost of buying tools.

Comparing Ventilation Solutions for Livestock Facilities

Evaluating System Trade-Offs

Buying decisions take into account more than just the original buy price. Even though they cost more up front than natural air, negative pressure systems work reliably in all kinds of weather. When compared to positive pressure setups, negative pressure systems are easier to maintain, easier to figure out what's wrong, and work better with evaporative cooling technology.

The amount of energy used depends a lot on how efficient the motor is, how the fan blades are designed, and how well the system is balanced. High-end industrial fans have efficiency rates of more than 20 CFM per watt, which is a lot better than cheap types. Over a typical 40,000-hour service life, energy costs are much higher than the initial cost of the equipment. This makes efficiency specifications very important when evaluating.

Another thing that sets them apart is their control precision. Slowly adapting to changing conditions, natural air can't stop wind patterns that aren't helpful. Basic positive systems let you turn them on and off, while designed negative pressure setups let you set different speeds and operate in stages. This fine-grained control keeps things running at their best during changing weather, when barns need some air flow, which happens 60 to 70 percent of the time in warm areas.

Conventional Power Versus Alternative Energy

Electric negative pressure fans are most common in business settings because they work reliably and are easy to connect to automatic controls. Off-grid facilities like solar-powered choices, but they are harder to manage because of battery storage, panel upkeep, and performance changes when it's cloudy. Hybrid systems that use both grid power and solar power can help find middle ground between the two. They can lower operating costs without sacrificing reliability, especially during times of extreme heat when both solar production and ventilation demand are high.

If a business is thinking about adding green energy, they should figure out the payback times by looking at the local power rates, the incentives that are available, and their best guesses for output. In places where grid power is expensive and solar power is plentiful, hybrid installations start making money within 5 to 7 years. In places where energy is cheap, traditional methods may be cheaper over the life of the equipment.

Installation, Maintenance, and Troubleshooting of Negative Pressure Fans

Professional Installation Procedures

The right way to place something starts with checking the structure. The barn building needs to be able to hold the weight of the fans and the vibration loads without bowing too much. Mounting sites need electrical service that is waterproof and meets the needs of the motor. For industrial 1.1 kW units, this is usually 380V three-phase power. Fans are mounted flush with the outside walls and the mounting frames are sealed so that air doesn't leak out and lower the system pressure.

When wiring electrical devices, it's important to pay attention to the direction of the motor spinning. If the wiring is backwards, the fans will spin backwards, which drastically reduces airflow. Professional installers make sure the rotation is correct before securing the final mounting. They then set the parameters of the automated controllers to match the needs of the facility. The placement of the intakes is based on airflow modelling to make sure that the incoming air is mixed well before it reaches the exhaust fans. This stops short-circuit patterns that happen when fresh air leaves without going through bird zones.

We offer full installation support, including detailed video guides and technical help at the job site. Our engineering team helps operations put equipment in the best place for maximum performance. Livestock Ventilation System Negative Pressure Fan is central to this placement strategy, because its positioning directly affects airflow uniformity and static pressure, which in turn makes sure that systems work as planned and don't let down because of bad installation.

Maintenance Protocols for Longevity

Regular repair keeps technology working well and extends its life. Once a month, the cleaning of the blade should be checked because feathers and dust that build up create imbalances that make vibrations and bearing wear worse. When shutters are partially closed during operation, sticky mechanisms cut airflow by 30% or more, so they need extra care.

Motors need to be inspected every three months to make sure they don't get too hot, make noises that could mean bearing wear, and have tight electrical connections. Units that are driven by belts need to have their tension checked and their belt condition evaluated. Direct-drive configurations, on the other hand, don't need this kind of maintenance. Deep cleaning metal surfaces once a year gets rid of ammonia corrosion that has built up, especially around bolts and electrical covers.

Our industrial fans are made of high-strength galvanised steel or 304 stainless steel, which is designed to work in corrosive chicken barns. When this choice of materials is combined with regular maintenance, the service life goes over 40,000 hours, which is about 8 to 10 years of constant use in busy business settings.

Common Issues and Solutions

Less airflow is usually caused by dirt building up on the blades or blocked airflow, not by the fan breaking down. Before you think there are problems with the equipment, make sure that the inlet openings aren't blocked by wind-blown debris or dampers that were accidentally closed. Check the static pressure to see if the resistance has gone up because the cooling pads are dirty or the vent hoods are clogged.

Problems with controllers are usually caused by broken sensors rather than problems with the main board. Temperature sensors that are exposed to ammonia and water slowly become out of whack, which makes fans run too much or too little. This common problem can be avoided by verifying sensors once a year using accurate reference tools.

Noise that is too loud is generally a sign of worn bearings or blade unbalance. Taking care of these problems right away keeps them from becoming disasters during times of high demand, when replacement parts might not arrive in time to stop production losses.

Procurement Guide & Choosing the Right Negative Pressure Fans

Essential Specification Criteria

When judging fan offers, you have to look at more than just the airflow rates. For motors to last in corrosive environments, they need to be completely sealed with Class F insulation and IP55 or IP56 entry protection. When compared to belt-driven options, direct-drive configurations require less maintenance and are more efficient in the long run.

Construction of the blade has a big effect on how long it lasts and how stable it performs. Stainless steel blades don't rust, but they are heavier and cost more. Fibreglass composite materials are lighter and less likely to rust, but the quality changes a lot from one company to the next. Premium blades are dynamically balanced to within a limit of less than 1 gram. This gets rid of the vibrations that cause bearings to fail too soon.

Warranty coverage shows that the company that made the product is sure that it will last. Our standard one-year warranty covers any problems, and service life ratings of more than 40,000 hours show that the product was designed to last, not be thrown away after a short time. Livestock Ventilation System Negative Pressure Fan is built with this durability philosophy in mind, so its warranty reliably reflects real-world farm conditions. The procurement team should make sure that the warranty covers both parts and labour, since the cost of a service call is often higher than the cost of the parts.

Supplier Evaluation Factors

Reliable providers give you more than just tools; they also offer expert help, the ability to make changes, and quick service. We provide engineering advice to help operations choose the right number and placement of fans, installation video tools that cut down on setup time and mistakes, and on-site installation services for complete set-ups.

Customisation options let you meet the needs of your facility in ways that standard catalogue items can't. Custom motor voltages for foreign installs, different blade materials for areas with high corrosion, and changed airflow rates to fit different barn shapes are all things that we can make. This freedom gets rid of compromises that make the system less useful.

Bulk buying plans are helpful for big businesses or equipment distributors who are building a lot of facilities. When you make a volume promise, you can get better prices and make sure that all of your installations follow the same specs. This makes it easier to keep track of maintenance parts and train technicians.

Understanding Total Cost of Ownership

The price of buying something is only a small part of how much it will cost over its lifetime. Over 40,000 hours of operation, the amount of energy used is much greater than the original investment. This makes efficiency scores very important from a financial point of view. A fan that uses 1.1 kW and moves air at 28,000 m³/h gives about 25.5 CFM per watt, which is a high level of efficiency that lowers running costs compared to cheaper options that need 1.5+ kW to move the same amount of air.

Maintenance needs affect the cost of labour and the chance of downtime. Direct-drive designs get rid of the need to replace belts and adjust tension. Construction that resists corrosion means that parts don't have to be replaced as often. These factors add up over the life of the equipment, having a big effect on the total cost of ownership above and beyond changes in buying price.

Conclusion

Controlling the temperature and humidity in a chicken coop requires careful planning, high-quality tools, and a lot of experience running the coop. When negative pressure ventilation systems are set up correctly, they keep the growing conditions at their best, which leads to better feed conversion, lower mortality, and stable output results.

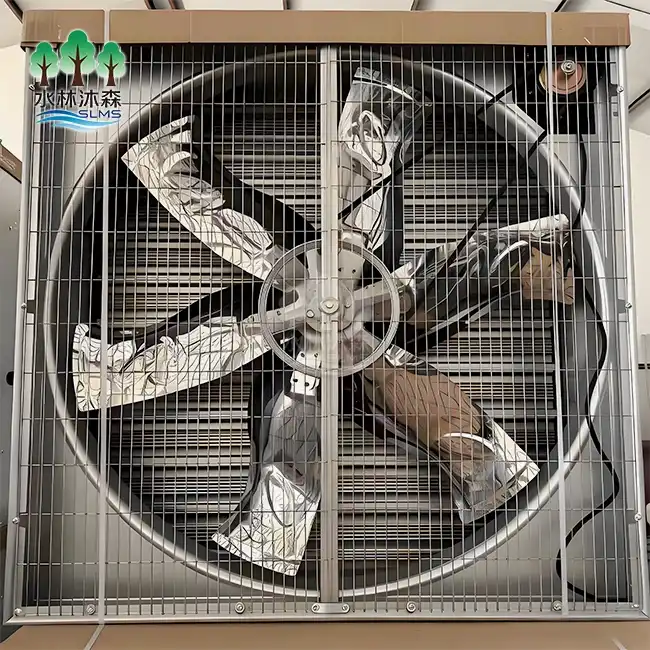

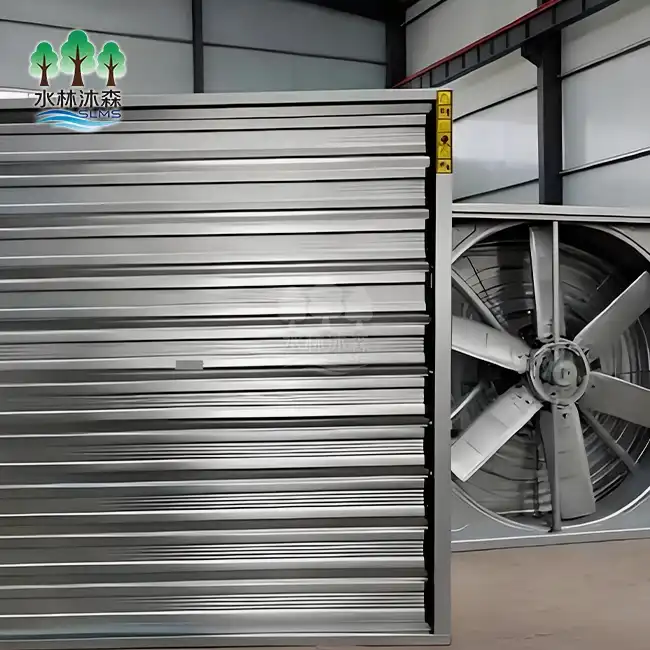

Livestock Ventilation System Negative Pressure Fan is the core driver of such negative pressure setups, ensuring that airflow matches the coop's design parameters under varying weather conditions. When making purchasing decisions, the goal should not be to save money at first, but to maximise system performance, component durability, and supplier technical support. Using industrial-grade exhaust fans with measured inlets and automatic controls makes places where birds can grow while also making operators a steady profit.

FAQ

What airflow capacity do commercial poultry barns require?

During normal weather, grill rooms need 4 to 6 air changes an hour. During peak heat, they need 40 to 60 air changes an hour. Layer facilities usually need a little less in exchange rates. For staged ventilation systems that change output based on real-time conditions instead of running at full capacity all the time, a 50-inch fan that covers 150 to 200 square meters is the right size.

How does static pressure affect fan performance?

The real airflow is much less than the stated capacity because of rising static pressure caused by dust buildup or limited inlets. When the static pressure is 0.10 inches and there is no resistance, good industrial fans keep 70–80% of their maximum speed. When the same conditions are used, inferior designs lose 40% or more of their capacity, making installations useless even though they look like the right size on paper.

Can negative pressure fans integrate with cooling pad systems?

Negative pressure setups work well with evaporative cooling pads placed where fresh air comes in. Fans cause a difference in pressure that pulls air from outside through wet pads. Depending on the humidity level, this lowers the temperature of the air coming in by 10 to 20°F. This mix effectively reduces heat stress in hot places without having to pay for expensive cooling.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Superior Barn Ventilation

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has been making specialised equipment for eight years and brings that knowledge to every barn climate project. Our 50-inch negative pressure fan systems move 28,000 to 38,000 m³ of air per hour, are very resistant to rust, make very little noise, and last more than 40,000 hours of service. As a reliable provider of Livestock Ventilation System Negative Pressure Fans, we offer full solutions that include engineering advice, installation videos, on-site expert support, and a guarantee that covers you for a year.

Because we can customise, we can meet the specific needs of your facility in a way that standard products can't. Visit slms-equipment.com or email our team at wangshuaislms@gmail.com to talk about how our ventilation solutions can help your business be more productive and make more money.
