Top Chicken House Evaporative Ventilation Curtain Suppliers

When sourcing top-tier cooling solutions for intensive poultry operations, identifying reliable chicken house evaporative ventilation curtain suppliers becomes paramount. These specialized systems combine water evaporation with negative-pressure ventilation to reduce ambient temperatures by 5-8°C while filtering airborne particulates, directly addressing heat stress that compromises feed conversion ratios and bird mortality rates in commercial broiler and layer facilities.

Understanding Chicken House Evaporative Ventilation Curtains

How Evaporative Cooling Technology Works

The operating concept is beautifully simple, but it works very well. At one end of the chicken coop, wet cellulose pads let air from outside flow through. As water molecules evaporate from the pad's surface, they take in heat from the incoming air flow and cool it down before it goes through the bird zone. At the same time, the wet media traps dust, pollen, and pathogens in the air, which makes the air quality better overall.

Three parts must work together for this process to work: cooling pads with a high absorption rate, a reliable water circulation system, and negative-pressure exhaust fans at the other end of the structure. The fan speed determines how fast the air moves through the pads. For best cooling without too much static pressure loss, the speed should be kept between 1.5 and 2.0 meters per second.

Key Performance Factors

The composition of the materials has a direct effect on how well they cool and how long the system lasts. Premium curtains are made of high-molecular-weight cross-linked cellulose that has been treated with phenolic resins. This makes the fabric stiff even when it's fully wet. This treated paper can handle being wet and dried over and over again without mould growing or mineral scale building up from recycled water.

It's important to pay attention to geometric design. The standard for ventilation in poultry tunnels is the Model 7090 specification, which has 7mm flute height and 45-degree corrugation angles. This setup makes the most of the surface area where air and water touch while keeping the ventilation resistance low. This lets the fans work well without using too much power.

Frame construction affects how easily and how long a Chicken House Evaporative Ventilation Curtain can be installed. Corrosion-resistant frames made of aluminium alloy or stainless steel can handle the harsh conditions in agricultural settings where high levels of ammonia, high humidity, and sudden changes in temperature and humidity speed up the breakdown of materials. Edge protection coatings on good frames stop algae from growing along water distribution channels.

Economic and Environmental Benefits

Data from commercial poultry farms that show how things work shows strong benefits. Properly designed evaporative cooling systems consume 80-90% less electricity compared to refrigerated air conditioning while maintaining target temperature ranges. This translates to substantial cost savings across multi-house operations running 24/7 during warm seasons.

Beyond direct energy savings, improved environmental control delivers measurable production benefits. Maintaining temperatures within the thermal neutral zone (68-75°F for broilers) optimizes feed conversion efficiency, accelerates growth rates, and reduces heat-related mortality. Layer operations experience more consistent egg production with fewer shell quality defects attributed to thermal stress.

Top Manufacturers and Reliable Brands of Evaporative Ventilation Curtains

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd.

Based in Qingzhou City, Shandong Province, Shuilin Musen brings eight years of specialized experience in agricultural ventilation solutions. The company distinguishes itself through vertical integration—maintaining in-house R&D, manufacturing, quality control, and technical support capabilities under one operational structure.

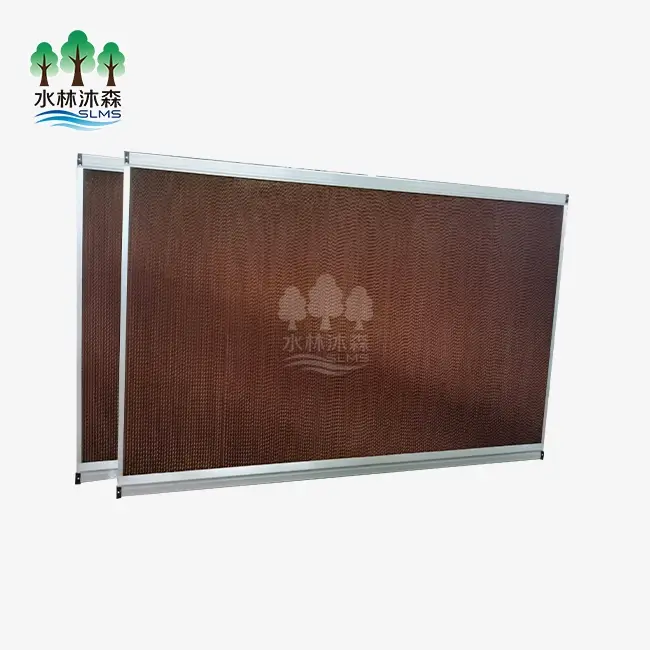

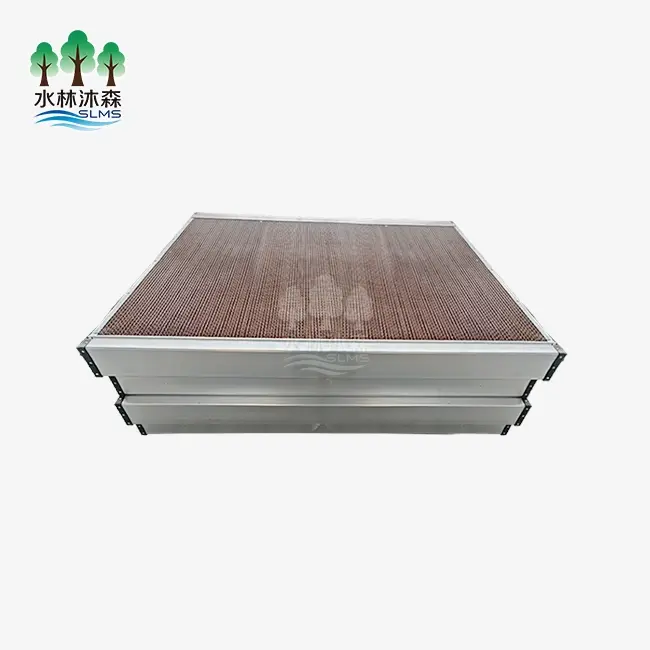

Their Model 7090 evaporative curtain system features high-molecular-weight cross-linked polyethylene pads available in 15cm and 20cm thickness configurations. Frame assemblies utilize customizable aluminum alloy or stainless steel construction, engineered to accommodate flexible combination installations matching any barn dimension. The water circulation system incorporates distribution channels that ensure uniform pad saturation while minimizing pump energy consumption.

Technical help goes beyond just delivering the goods. Shuilin Musen provides installation videos, remote commissioning assistance, and on-site installation services for complex projects. Their five-engineer R&D team develops three-plus innovative products annually, continuously refining designs based on field performance data and customer feedback. Every Chicken House Evaporative Ventilation Curtain system includes a one-year comprehensive warranty covering both materials and workmanship.

What Sets Leading Suppliers Apart

The most reliable manufacturers share several distinguishing characteristics. They keep rigorous quality control methods covering raw material selection through final product testing. Reputable suppliers conduct absorption rate tests, wetting-drying cycle endurance trials, and static pressure drop measurements to check performance specs before shipping.

Customization capability proves essential for diverse farm layouts. Top-tier suppliers accommodate non-standard dimensions, integrate custom mounting brackets for retrofit installations, and engineer hybrid systems combining evaporative cooling with supplemental heating for year-round climate control. This flexibility ensures smooth integration with current systems without costly structural changes.

After-sales support infrastructure separates professional makers from commodity providers. Responsive expert teams provide troubleshooting help, replacement part finding, and preventive maintenance advice. Suppliers with established delivery networks offer faster order completion and localized service—critical factors when equipment failures threaten bird care during extreme weather events.

Choosing the Best Evaporative Ventilation Curtain for Your Poultry Operation

Climate and Facility Considerations

Geographic position and local climate trends drive system sizing needs. Operations in hot, dry regions achieve maximum cooling efficiency—evaporative systems can reduce intake air temperatures by 12-15°F in low-humidity environments. Facilities in humid coastal areas still benefit from 5-8°F temperature decreases plus major air filter advantages.

How big a pad needs to be depends on the size of the building and how many birds it can hold. Engineers figure out how big of a pad area is needed by looking at how much air needs to flow. For broilers, this is usually around 4 to 5 cubic feet per minute per bird. Tunnel-ventilated homes need enough pad area to keep air speeds in the ideal range of 1.5 to 2.0 m/s without too much static pressure, which makes exhaust fans work harder.

Specification Selection Guide

The choice of pad thickness strikes a balance between how well it cools and how much it blocks airflow. Standard 15cm pads work well for most business uses because they cool well and let fans keep the air moving at the right speed. When working in places with very high temperatures, a 20 cm layer is helpful because it extends the time for atmospheric heat exchange while raising the static pressure slightly.

The choice of frame material relies on the factors of the building and the budget. Aluminium alloy frames don't rust and aren't too expensive. They're good for well-kept facilities with controlled water chemistry. Stainless steel frames are worth the extra cost in places with a lot of ammonia or that use raw water sources with a lot of minerals for a Chicken House Evaporative Ventilation Curtain.

Modular Design Features

Modular design features allow for installation in stages and future growth. Systems that allow for creative combination and splicing can be used for building improvements, adding more capacity, and changing the layout for the seasons without having to replace whole systems. This flexibility saves investments in cash as business needs change.

Installation and Maintenance Planning

For implementation to go smoothly, the preparation of the structure, the installation of the plumbing, and the integration of the electricity must all work together. The pad frames are securely attached to the building structures and are sealed properly so that air can't get around the edges of the curtains. Water transport systems need to have the right flow rates to keep the pads evenly saturated and bleed-off valves to keep mineral concentrations from building up.

Regular repair keeps the cooling system working well and extends its life. Every month, inspections make sure that the water is spread out evenly, that the pads are not damaged or sagging, and that the fans are working correctly. As part of seasonal maintenance, algae must be killed with approved antimicrobials, scale must be removed from distribution channels, and pads must be completely dried between cooling seasons to keep them from breaking down.

Common failure modes can be avoided by managing water chemistry correctly. Keeping the pH level between 6.0 and 8.0 stops acidic damage and alkaline scale from forming as much as possible. By draining and refilling a part of the flowing water on a regular basis, you can control the concentrations of dissolved minerals that would otherwise settle on pad surfaces and make it harder for air to flow and absorb water.

Market Trends and Innovations in Poultry House Ventilation Curtains

Automation and Smart Controls

Evaporative cooling and automatic temperature control systems are being used together more and more in modern buildings. Programmable controls change the speeds of fans and the rate at which water flows by using real-time data from temperature sensors, humidity monitors, and static pressure detectors. This careful control improves cooling while lowering the amount of water and electricity used.

Variable-frequency drives on exhaust fans let the rate of airflow be slowly changed to match changes in temperature throughout the day. When it's not too hot in the morning, managers slow down the fans to keep the air quality at a minimum without overcooling. As the temperature rises, the system gradually increases both the flow of air and water, providing the right amount of cooling when it's needed.

Sustainable Materials and Design

Environmental laws and companies' promises to be environmentally friendly lead to new curtain materials and ways to handle water. Manufacturers make cellulose pads with bio-based resin treatments that lower the amount of chemicals that come from petroleum and recycled paper fibres. These eco-friendly materials work just as well as standard ones, but they have less of an effect on the earth.

In places that are prone to drought, elements that save water become more important. Closed-loop recirculation systems with improved filters cut down on the need for freshwater makeup. Some plans use rainwater collection to cool the building by using the water that has been gathered. UV sterilisation and ozone treatment systems make it safe to reuse water and stop biological growth without using chemicals.

Energy efficiency improvements focus on getting rid of parasitic loads. Fans can move target air amounts with less electricity when they use low-static-pressure pad designs for the Chicken House Evaporative Ventilation Curtain. When water delivery systems are optimised, they need less horsepower from pumps. When paired with settings for variable-speed fans, these improvements cut the total amount of energy used by the system by 15 to 25 percent compared to older models.

Hybrid Ventilation Strategies

As operations move forward, they use mixed systems that combine liquid cooling with other technologies to control the temperature and humidity completely. When the temperature is too high for evaporative cooling to work, placing motion fans in the right places can help mix the air and lower the temperature people think they are feeling by increasing convective cooling. This tiered approach keeps birds comfortable without installing too many cooling pads for times of the year when conditions are at their worst.

Having the ability to run in the winter makes cooling equipment useful all year. Installations with modular pad sections let you take down part of the curtain in the winter, which keeps the air quality high and cuts down on heat loss. Some designs have insulated bypass filters that direct incoming air around cooling pads, keeping too much wetness from entering during the heating season.

Geothermal pre-cooling is a new technology that can improve buildings with the right geology. Before it gets to the evaporative pads, air comes in through underground ducts. Stable earth temperatures are used to lower the cooling loads. These systems require a big investment up front, but they save a lot of energy over time in places where the weather changes a lot from season to season.

How & Where to Procure Evaporative Ventilation Curtains for Chicken Houses

Direct Manufacturer Sourcing

For big businesses and equipment distributors, buying straight from manufacturers has a number of benefits. Direct relationships get rid of markups for middlemen, give you access to engineering knowledge during system design, and make the guarantee claim process easier. Customisation requests are easier for manufacturers to meet than for wholesalers who work with set inventory.

When looking at different manufacturers, make sure you get full details about their products, such as what materials they use, the results of any tests done by a third party, and installation case studies from similar facilities. Reliable providers give detailed technical information, CAD models to help with planning the integration, and performance guarantee terms based on certain working conditions for each Chicken House Evaporative Ventilation Curtain.

Communication protocols are very important during procurement. Set up clear ways for people to get in touch with expert staff who know how to ventilate chicken coops instead of general sales reps. Make sure that lead times, shipping methods, and packaging standards are clear so that products arrive in good condition and ready to be installed on time for the project.

Distributor and Dealer Networks

When projects need localised support, faster delivery, or the ability to work with complementary equipment from more than one manufacturer, regional distributors can help. Established sellers in farm equipment have working ties with several ventilation system providers. They can provide price comparisons and package deals for full barn outfitting projects.

Distributors add value by making sure there is enough product and coordinating logistics. Buyers don't have to deal with foreign shipping and customs clearance themselves; instead, they get consolidated packages with easier billing. This convenience comes at a small cost, but it speeds up project timelines and makes management easier.

Before working with a wholesaler, make sure they are technically qualified and have maker authorisation. Authorised sellers get training from the manufacturer, can get real replacement parts, and can quickly handle guarantee claims. While independent resellers may have cheaper prices, they don't have the same professional help infrastructure or direct support from the maker.

Cost Considerations and Budgeting

The costs of materials and parts are only a small part of the total costs of ownership. A complete budget includes shipping and logistics, installation labour, any building changes that need to be made, water supply infrastructure, electricity service upgrades, and supplies for ongoing upkeep. For big installs that cover more than one house, these extra costs often equal or go over the price of buying the equipment.

When you buy something internationally, you have to think about more things, like import taxes, changes in currency exchange rates, and longer lead times. Get detailed quotes that include Incoterms, such as whether the price includes delivery to the port, transportation within the country, or installation site. Customs processing fees and possible inspection delays should be planned for in project plans.

When figuring out worth, lifecycle cost analysis is better than just looking at the price up front. Higher-quality systems made with better materials and building cost 20 to 40 percent more than cheaper ones, but they last 4-6 years instead of 2-3 years for cheaper ones. Even though they cost more at first, better systems often end up being more cost-effective when you look at them over their expected lifespan and the cost of replacement labour.

Conclusion

Choosing the right Chicken House Evaporative Ventilation Curtains and dependable providers is a long-term strategic choice that will affect the success of a chicken business for years to come. When you combine high-quality materials that last, smart engineering, and a full support network, you get measured results like lower energy costs, less animal mortality, and better feed conversion.

The best procurement strategies weigh the initial investment against the total cost of ownership while giving extra weight to suppliers who show technical know-how, the ability to adapt to specific needs, and quick support after the sale. As climate change gets worse and people expect things to last longer, new liquid cooling technology sets businesses up to be competitive in the farming markets that are becoming more demanding.

FAQ

What makes Model 7090 curtains suitable for poultry houses?

The Chicken House Evaporative Ventilation Curtains in the Model 7090 have a flute height of 7 mm and optimal corrugation angles that make the most of the surface area available for evaporation while keeping airflow resistance low. This shape lets vent fans work well at the right air speeds without creating too much static pressure, which lowers the amount of electricity used. The design works with the fast air flow needed in tunnel-ventilated chicken houses and keeps the temperature down by 5 to 8°C all the time.

How long do quality evaporative cooling pads last?

If you take care of high-grade cotton pads that have been treated with phenolic resins, they should last for three to five years. Its life rests a lot on the quality of the water, how it is maintained, and how it is dried during different times of the year. Regularly getting rid of algae, keeping the pH between 6.0 and 8.0, and letting the soil dry out completely between cooling seasons keep it from breaking down too quickly. In the same situations, cheap pads that don't have good plastic treatment may fail within 12 to 18 months.

Can these systems w​​​​​​​ork in humid climates?

The best conditions for evaporative cooling are hot and dry places, but it still works well in wet places. Even though temperature drop slows down as humidity rises, systems can still cool things by 5 to 8°F when the humidity is moderate. The benefits of air filters stay the same no matter how wet the air is; they remove dust and other particles that are bad for your health. Even though the air is generally more humid, many coastal chicken farms are able to use evaporative screens successfully.

Partner with Shuilin Musen for Proven Cooling Solutions

Shuilin Musen Aquaculture Equipment Co., Ltd. has been engineering evaporative curtain systems for eight years and has a lot of experience making them. Our Model 7090 cooling solutions have frames that don't rust, cellulose pads that absorb a lot of moisture, and can be easily customised to fit any system, from family farms with 5,000 birds to business operations with 100,000 birds. Our industry-leading one-year warranty covers both materials and labour. Each system also comes with full technical support, including installation guides, online commissioning help, and on-site service options.

Our five-engineer R&D team is always improving designs based on data from the field, and every year they come out with three or more new products. As a direct manufacturer of Chicken House Evaporative Ventilation Curtains, we don't have to pay markups to middlemen. We also offer quick technical support during the system design, procurement, and operation phases. You can email our team at wangshuaislms@gmail.com or visit slms-equipment.com to talk about your ventilation needs and get personalised suggestions along with affordable bulk prices for your next chicken plant project.

References

1. Donald, J. (2018). Poultry Production Systems: Behaviour, Management and Welfare. CABI Publishing, Wallingford, UK.

2. Czarick, M., & Lacy, M. (2019). "Tunnel Ventilation Design and Management for Broiler Production." University of Georgia Cooperative Extension Bulletin 1391.

3. Yahav, S., et al. (2021). "Thermal Comfort in Poultry Houses: Physiological Responses and Management Strategies." World's Poultry Science Journal, 77(2), 403-420.

4. Gates, R.S., & Zhang, H. (2020). "Evaporative Cooling System Performance in High-Density Poultry Housing." Transactions of the ASABE, 63(4), 987-998.

5. Liang, Y., et al. (2022). "Energy Efficiency Analysis of Ventilation Systems in Intensive Livestock Production." Biosystems Engineering, 215, 156-170.

6. Purswell, J.L., & Dozier, W.A. (2020). "Environmental Control Strategies for Modern Broiler Production." Applied Engineering in Agriculture, 36(5), 741-752.
