What Is a Three-Tier Broiler Cage System?

A Three-tier Broiler Cage is a special kind of vertical chicken house system designed for raising a lot of meat chickens for sale. This new equipment places three levels of cages vertically, making the best use of room and creating the best conditions for broiler growth from day-old chicks to market weight. Unlike traditional floor systems, these multi-level buildings have automatic systems for feeding, watering, and trash management. This makes them more hygienic and increases production efficiency. The system is made of strong stainless steel that doesn't rust, so it will last for a long time in high-ammonia chicken environments and can handle stocking densities of up to 50 kg/m².

​

​



​







Understanding the Three-Tier Broiler Cage System

These days, raising chickens requires new ideas that combine economic efficiency, animal care, and productivity. The three-tier broiler cage system is a big step forward in dense chicken production technology. It solves important problems in the industry by making better use of vertical space and incorporating automation.

Core Design Principles and Construction

The structure and choice of materials are the most important parts of any broiler cage system that works well. Quality three-tier systems are made with Q235 international standard industrial steel, which is known for having high tensile strength and not deforming easily when heavy birds are put on it. Zinc coatings of 275g/m² to 600g/m² are used in the hot-dip galvanization process. This gives the metal 15-20 years of service life, even in harsh chicken house settings.

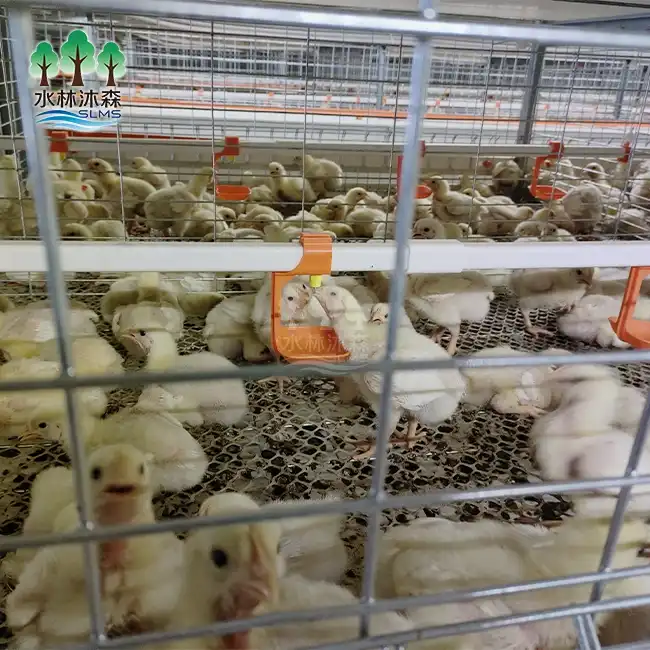

Modern floor technology uses high-quality polyethylene flexible bottom mats to protect the meat and feet of broiler chicken, which greatly lowers the number of body downgrades that happen in processing plants. Standard unit sizes usually have a length of 1400mm to 1600mm per cell, which leaves 400mm to 450mm of headroom to allow for fast growth phases without getting in the way of natural behaviors.

Automation Integration and Efficiency Features

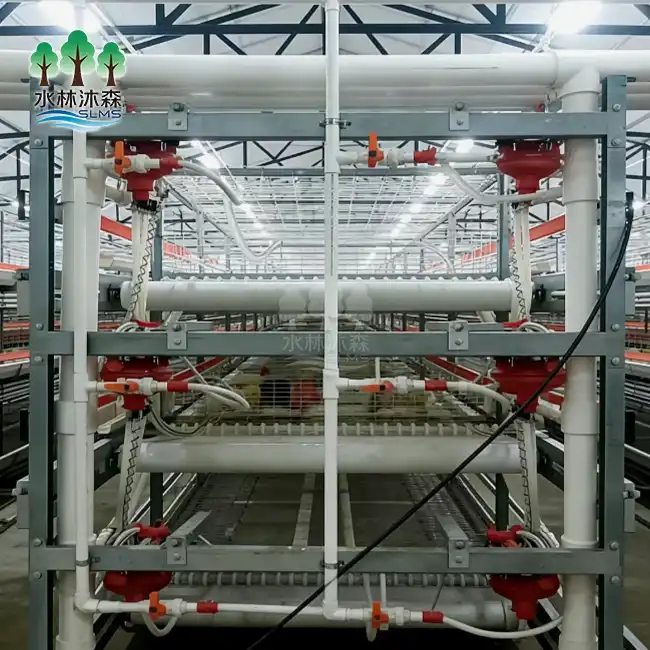

Today's three-tier broiler cage systems work really well because they combine a lot of technology that makes tasks that used to require a lot of work easier. Precision augers or trolley-based delivery systems are used by automatic feeding systems to make sure that feed is distributed evenly and that spills and contamination are kept to a minimum. The built-in mouth drinking systems give animals access to water from all sides, so they stay properly hydrated throughout the production cycle.

Automated manure removal systems use special polypropylene belts to move waste constantly between tiers. This greatly reduces ammonia emissions and keeps the air quality high. Compared to traditional floor systems, this technology cuts the amount of work that needs to be done by over 40%. It also improves feed conversion rates through controlled environment management.

Space Utilization and Production Capacity

Three-tier broiler cage systems are very good at making use of room because they stack vertically, which can increase rearing density by 300% to 400% compared to standard floor operations. This spatial optimization, inherent in the three-tier broiler cage design, is very helpful for businesses that can't afford to buy land or don't have enough room in good farming areas.

Typical setups can hold between 30,000 and 100,000 birds per facility. Each level supports the right number of birds while still allowing enough air flow. The design of the system makes it easy to clean and cleanse quickly, which is necessary for all-in, all-out production routines and supports biosecurity standards needed for antibiotic-free production programs.

How to Effectively Use and Maintain a Three-Tier Broiler Cage System

Understanding the installation steps, operating rules, and maintenance plans for three-tier broiler cage systems is essential for their successful application. Good management has a direct effect on how long equipment lasts, how well birds do, and how much the whole process costs.

Installation Best Practices and Setup Procedures

A professional installation starts with a careful analysis of the space and the merging of weather controls. To make sure that air flows evenly through all three levels, the cage system has to line up properly with the ventilation patterns. Positioning lighting systems carefully is needed to make sure they provide enough light without causing heat stress that could hurt birds' health.

Technical support teams usually provide thorough installation films and on-site help to make sure that the right steps are taken during assembly. Professional attention is needed at key link points like food line integration and water system pressurization to keep operations running smoothly during production cycles. When electricity systems are properly connected, automated systems work with current farm management tools without any problems.

Routine Maintenance Protocols and Inspection Schedules

System performance needs to be kept at its best through regular inspections and preventative repair. Visual checks are done every day to make sure that the feed flow is consistent, the water pressure stays high, and the manure is removed efficiently. Every week, the structure is carefully checked to make sure it is still in good shape. The copper covering is worn down and the wire mesh is bent, both of which could put birds in danger.

All system parts are cleaned and sanitized thoroughly once a month as part of complete maintenance. Specialized cleaning methods use the right disinfectants and keep metal surfaces safe from chemical damage. Scheduling inspections helps find early signs of rust or mechanical wear so that fixes can be made quickly and without having to stop production, which would be very expensive.

Quality Control and Performance Monitoring

Quality control measures that work well make sure that the system always works the same way throughout its output span. Load-bearing tests make sure the structure is still strong when there are a lot of birds around, and the total movement stays within accepted limits. Surface checks find possible dangers like zinc needles or sharp protrusions that could hurt birds and lower the quality of the body.

Automated systems need to be checked regularly to make sure they are delivering feed correctly, using water efficiently, and getting rid of waste effectively. Performance measures keep track of feed conversion rates, mortality rates, and growth regularity across all cage levels. This gives producers and system developers useful information for improving output and making the system work better.

Comparison and Decision-Making: Choosing the Right Three-Tier Broiler Cage

When choosing the right broiler cage systems, you need to carefully consider a lot of practical and financial factors. Knowing the differences between products helps makers make choices that are in line with their budgets and output goals.

System Comparison: Three-Tier vs. Alternative Housing Methods

Three-tier broiler cage systems are better than traditional floor systems and single-tier options in many ways. When compared to deep litter operations, vertical cage systems offer better cleanliness control because they physically separate birds from feces, which greatly lowers the risk of coccidiosis and other soil-borne pathogens spreading. The controlled setting keeps animals from moving around too much, which wastes energy, but they can still easily get to food and water, which improves the efficiency of feed conversion.

An analysis of energy use shows that while the initial investment costs for a three-tier broiler cage system may be higher than for floor systems, the lower labor needs and higher feed conversion rates save a lot of money in the long run. Investing in high-quality materials for improved coatings and structural parts makes systems like the three-tier broiler cage last longer and require less upkeep than standard options.

Capacity Planning and Scalability Considerations

Capacity planning that works takes into account both the current production needs and the potential for growth in the future. Three-tier broiler cage systems can be used on farms of all sizes, from medium-sized ones with 10,000 birds to huge industrial ones with over 100,000 birds per cycle. The concepts of modular design allow for small-scale growth that doesn't affect current output schedules.

Stocking density optimization finds the best mix between using all available space to its fullest and making sure animals are safe. Standard setups can handle a density of 50 kg/m3 while still allowing enough air flow and room for moving. Customization choices meet the needs of different breeds and meet market needs, making sure that the best output conditions are always met in all kinds of operational situations.

Return on Investment Analysis

For full ROI estimates, you need to include the costs of buying the equipment, installing it, saving money on operations, and increasing output. When compared to traditional methods, labor costs usually drop by more than 40%, and better feed conversion rates increase profit margins. Death rates that are lower and carcass quality that is better add value through higher price possibilities.

Long-term financial plans should take into account how long equipment will last, how much it will cost to maintain, and any possible technological updates. When quality systems are properly maintained, they will work reliably for 15 to 20 years, which is a big savings over the life of the system compared to replacing it often with a less reliable one.

Procurement Guide for Three-Tier Broiler Cage Systems

To get through the buying process, you need to carefully consider the skills, technical requirements, and customer service that each provider provides. Procurement choices that work well balance short-term needs with long-term business needs.

Supplier Evaluation and Selection Criteria

Manufacturers with a good reputation show that they have a lot of experience designing and making chicken equipment by providing confirmed client references and industry certifications. Manufacturing skills, quality control systems, and leadership in technical innovation should all be used as evaluation factors. Suppliers who offer complete solutions, such as feeding systems, air integration, and weather controls, offer better value because their systems work better together.

Material certifications, welding standards, and surface treatment specs are all examples of manufacturing quality markers. Hot-dip galvanization papers prove that the metal is resistant to rust, and structural engineering paperwork proves that it can hold weight. Following international quality standards makes sure that equipment meets the needs of the global agriculture business.

Customization Options and Technical Support

To fit different building layouts and working needs, leading providers offer a wide range of customization options. Customizable sizes, unique feeding arrangements, and built-in automation systems meet particular production needs while upholding standards for system stability and performance.

Technical support services include help with installation, teaching on how to use the system, and ongoing repair. Full help packages usually come with guides on how to install something, technical information, and direct access to engineers. On-site installation services make sure that the system works well together and is ready to use as soon as the job is finished.

Warranty Terms and After-Sales Service

A full guarantee protects you against production flaws and early component failure, which is very important. Standard guarantee terms should cover all structural parts and motor systems for one year, with choices for longer covering for important automation parts.

The ability to provide after-sales service has a direct effect on the long-term success of operations and the dependability of tools. For systems like the three-tier broiler cage, quick technical help, new parts that are easy to find, and local service networks are essential. They keep production running smoothly and make sure that the system always works at its best throughout its lifetime.

Future Trends and Innovations in Three-Tier Broiler Cage Systems

The poultry tools business is always changing because of new technologies and efforts to be more environmentally friendly. Knowing about new trends helps companies make smart business choices that keep them ahead of the competition.

Sustainable Material Development

Being concerned about the environment leads to new ways of using sustainable materials and making buildings that use less energy. Advanced coating methods use formulas that are better for the environment while still having excellent rust protection. Recycled steel parts and recyclable plastic options are better for the earth and don't hurt the structure or the way it works.

Automation systems that use less energy have motors with variable speeds and smart control programs that adjust how much power they use based on the needs of the work at the moment. Waste-to-energy systems and the ability to integrate solar panels make sustainability ratings even better while lowering running costs.

Smart Technology Integration

IoT sensors, automated tracking systems, and predictive repair are some of the features that are being added to digital transformation projects to improve business control and animal care standards. Environmental sensors constantly check the temperature, humidity, and quality of the air, and when they detect problems, they automatically change the heating and ventilation systems to keep things running at their best.

Producers can keep an eye on various facilities from a single control center thanks to remote monitoring. This makes operations more efficient and speeds up the time it takes to make important decisions. Data analytics systems look at performance data and find ways to improve things that will make the business more productive and profitable.

Market Adaptation and Scalability Solutions

Modular designs that can be changed to fit different building sizes and production needs are driven by the need for flexible production systems in the industry. Scalable options work well for both small family businesses and big commercial companies, giving the same level of performance at all operating sizes.

Adding advanced automation makes system running easier for people who don't have a lot of skills while also making it more consistent and reliable. Producers with different levels of technical knowledge can use advanced technology thanks to easy-to-use interfaces and streamlined maintenance processes.

Conclusion

Modern chicken production has been completely changed by three-tier broiler cage systems, which offer huge savings on space, the ability to automate tasks, and financial advantages. These systems solve important problems in the industry by making the best use of vertical space, controlling cleanliness better, and fully integrating automation. Quality three-tier broiler cage systems last 15 to 20 years if they are properly chosen, installed, and maintained. They also make production much more efficient and profitable. The technology keeps getting better by using sustainable materials and integrating smart systems. This means that it will always be useful for chicken farmers who want to stay ahead of the competition in a farming world that is always changing.

FAQ

What is the optimal stocking density for three-tier broiler cage systems?

For three-tier broiler systems, the ideal stocking density is 50 kg/m². This level of density strikes a balance between animal comfort needs and maximum capacity utilization. This density makes sure that there is enough room for animals to move around naturally, while also making sure that all floors of the cage have enough air flow.

How often should maintenance be performed on three-tier cage systems?

Visual inspections are done every day to check the feed flow and water systems, and thorough inspections are done once a week to check the structure's soundness and the function of automated parts. Hygiene standards are kept up by thorough cleaning and disinfecting once a month, and professional checks once a year make sure that the building will always be reliable and safe.

What customization options are available for different farm sizes?

Modular design principles allow three-tier systems to fit sites with 10,000 to over 100,000 birds. To meet specific operating needs and budget limits, customization includes changing the size of the cages, the way the food systems are set up, the level of automation, and how well they work with the existing infrastructure of the facility.

What warranty coverage is typically provided with quality systems?

Reputable makers offer full one-year guarantees that cover structural parts, automation systems, and mistakes in the manufacturing process. Critical parts may come with extended warranty options, and fast after-sales service will make sure that operating problems and parts repair needs are taken care of quickly.

How do three-tier systems compare to traditional floor housing in terms of efficiency?

When compared to floor systems, three-tier systems save over 40% on labor costs and use 300 to 400% more room. Better feed conversion rates, lower death rates, and better disease control are all economic gains that usually pay for themselves within three to five years.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Premium Three-Tier Broiler Cage Solutions

You can trust Shuilin Musen Aquaculture Equipment Co., Ltd. to make high-quality three-tier broiler cages. They have eight years of experience coming up with new farming and cattle equipment. Our complete three-tier broiler cage systems are made of strong galvanized steel, come with built-in automation, and can be adjusted to meet your exact working needs. We offer full technical support, including installation videos, help with setting up on-site, and a guarantee that is backed by our professional engineering team for one year. Get in touch with our experts at wangshuaislms@gmail.com to learn more about our advanced three-tier broiler cage for sale choices and how our tried-and-true solutions can improve the efficiency of your chicken production while lowering costs and increasing profits.
