Poultry Manure Removal System

Poultry Manure Removal System: Automated Solution for Modern Poultry Farming

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. brings 8 years of specialized manufacturing expertise to deliver industrial-grade Poultry Manure Removal System solutions. Our automated system combines a dual-structure design—integrating scraper cleaning mechanisms with PVC conveyor belt technology—achieving over 60% labor cost reduction for intensive poultry operations. Built from high-zinc coated steel and copper motors, the system features customizable dimensions adaptable to varied barn configurations. With installation support, one-year warranty coverage, and an operational lifespan extending 8-12 years, this Poultry Manure Removal addresses critical biosecurity needs while maintaining 95%+ cleaning efficiency in chicken and duck farming environments.

Why Modern Poultry Farms Need Automated Manure Removal

Manual waste management in poultry operations creates multiple operational bottlenecks. Labor-intensive cleaning protocols increase operational expenses while exposing workers to respiratory hazards from ammonia and hydrogen sulfide concentrations.

Traditional methods fail to maintain consistent hygiene standards required for disease prevention. Wet manure accumulation creates breeding grounds for pathogens, directly impacting flock health and productivity metrics.

Automated systems eliminate these challenges through continuous waste transport. Your facility maintains optimal air quality while redirecting labor resources to value-added farm management tasks.

Technical Specifications

Dual-System Architecture for Maximum Efficiency

Our Poultry Manure Removal System employs a two-component structural design optimized for complete waste evacuation.

Scraper Cleaning System: Heavy-duty scrapers traverse concrete manure pits beneath cage arrays. Galvanized steel construction resists corrosive environments while maintaining structural integrity across distances up to 150 meters. This subsystem handles semi-solid waste volumes in deep-pit and A-frame cage configurations.

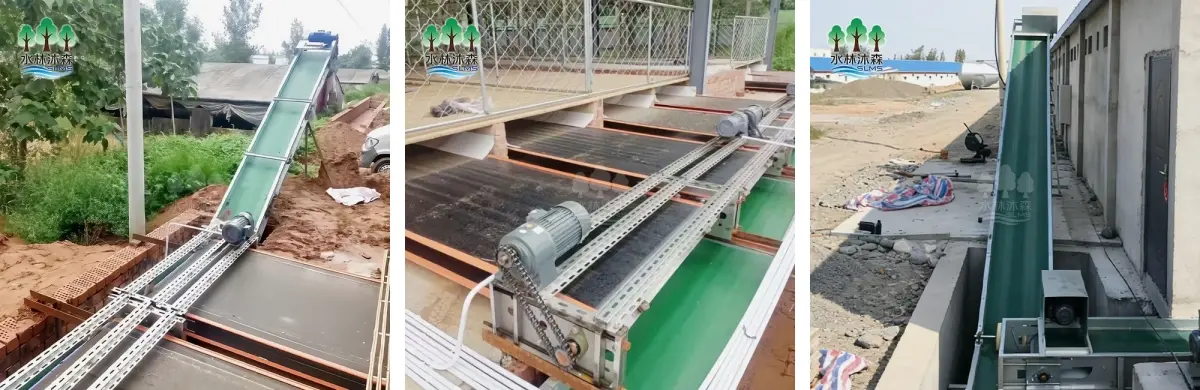

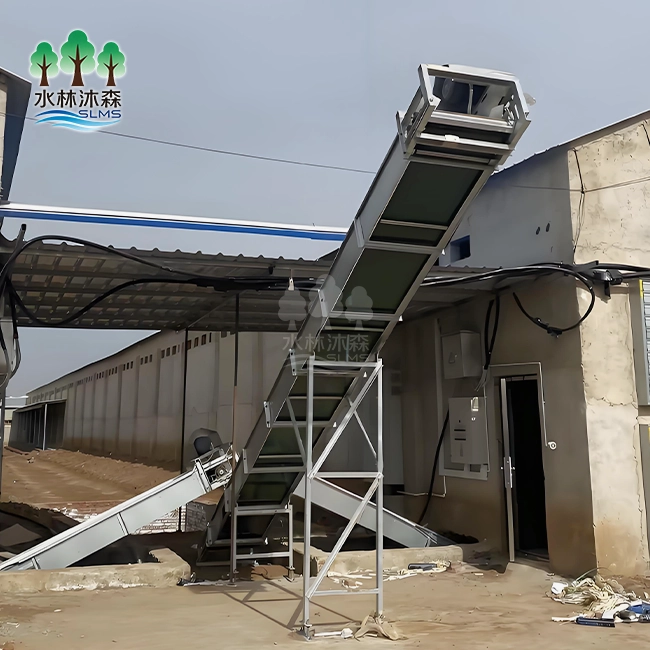

Conveyor Belt System: PVC belting runs continuously beneath multi-tier battery cages, capturing droppings immediately upon deposit. The ultrasonic-welded belt surface prevents material adhesion while side-sealing strips guide waste flow precisely onto collection surfaces.

Copper motor drive units provide stable torque output ranging from 0.75kW to 3.0kW depending on barn dimensions. Variable frequency drives enable programmable cleaning cycles synchronized with flock activity patterns.

Quantifiable Operational Benefits

Labor Cost Reduction: Automated operation eliminates daily manual cleaning requirements, reducing labor expenses by over 60%. Your team focuses on flock monitoring rather than waste management.

Enhanced Biosecurity: Timely waste removal decreases ammonia and hydrogen sulfide emissions by up to 40%. Lower respiratory irritants translate directly to reduced disease incidence and improved feed conversion ratios.

Environmental Compliance: Centralized collection facilitates integration with manure-sewage separators and fermentation systems. Your operation meets green farming standards while generating potential biogas revenue streams.

Universal Compatibility: Modular design accommodates poultry houses of varying lengths and widths. Whether operating cage-layer facilities or floor-rearing broiler houses, the system adapts to your infrastructure.

Application Across Poultry Farming Scenarios

Multi-Tier Layer Operations: The conveyor belt configuration excels in H-type battery cage systems where vertical space utilization is critical. Belts positioned beneath each tier transport waste to transverse collection conveyors.

Deep Pit Facilities: Scraper systems navigate long-distance pits in commercial layer houses. High-traction ropes prevent slippage when moving substantial waste volumes through extended pit lengths.

Broiler Floor Systems: Specialized floor scrapers operate in free-range environments, separating dry bedding from wet manure while functioning reliably in high-dust conditions.

The Poultry Manure Removal System maintains consistent performance across these diverse operational contexts, providing installation flexibility that protects your infrastructure investment.

Quality Assurance and Technical Support

Every system undergoes rigorous factory testing before shipment. Salt spray testing verifies galvanization integrity against corrosive waste conditions. Tensile strength verification ensures belt materials exceed 20MPa standards under load.

Our 5-member engineering team provides comprehensive installation support including video tutorials and optional on-site commissioning. Technical assistance covers belt tracking adjustments, motor parameter configuration, and maintenance scheduling.

Material selection prioritizes durability—hot-dip galvanized steel with 275g/m² zinc coating resists pH fluctuations in poultry waste. Polypropylene belts feature impact-resistant formulations that withstand daily operational stress.

Frequently Asked Questions

Q: How does the system stop the manure belt from deviating sideways?

A: Equipped with adjustable passive rollers and tension adjusting devices to keep the belt running on the correct track all the time. Cleaning dirt and manure residues off rollers regularly can effectively avoid belt drift. Upgraded premium versions are fitted with automatic deviation-correcting roller components for stable operation.

Q: What maintenance cycle is suggested?

A: Carry out visual checks on the intactness of the manure belt every week; lubricate driving parts once a month to guarantee efficient operation. Inspect the condition of scraper pull ropes quarterly, and the pull ropes made of conventional materials need to be replaced every 1 to 2 years.

Q: Is this system compatible with the existing automatic breeding equipment on farms?

A: Definitely. The supporting variable frequency drive motors can receive control signals sent by PLC programmable controllers and timing systems. It can also be linked with ammonia sensors to start automatic manure cleaning cycles intelligently, realizing refined environmental control inside the poultry house.

Q: What designs are adopted to avoid manure leaking out?

A: The manure belt is formed by ultrasonic seamless welding with no gaps or metal connectors. Rubber baffles are installed on both sides of the cage racks, which can guide all manure to fall onto the manure collection belt thoroughly without overflowing.

Q: Will ambient temperature impact the normal running of the equipment?

A: The whole system works stably under conventional temperature ranges of poultry houses. For farms located in cold freezing areas, increase the frequency of manure cleaning to prevent frozen waste buildup. Meanwhile, we can use special low-temperature lubricating grease for motors to ensure all mechanical parts run smoothly in frigid conditions.
