Chicken Coop Ventilation Water Curtain

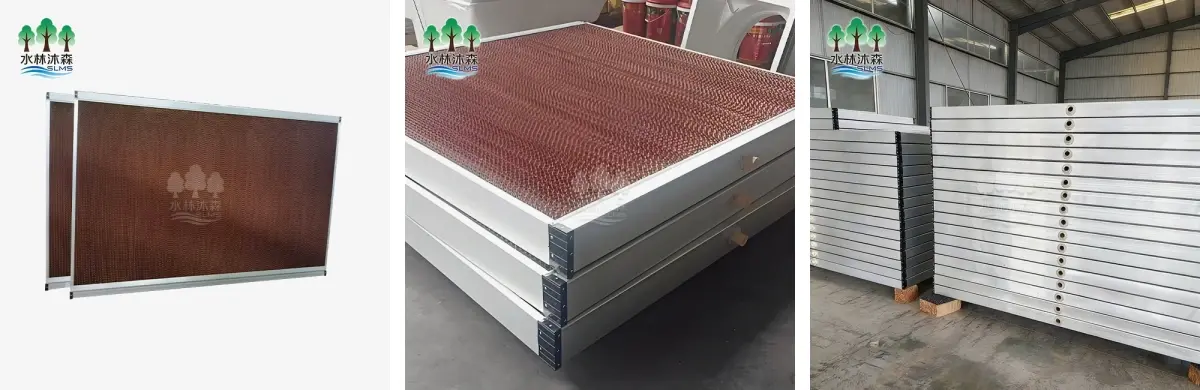

Chicken Coop Ventilation Water Curtain - Premium Cooling Solutions for Modern Poultry Farming

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. specializes in manufacturing high-performance Chicken Coop Ventilation Water Curtain systems designed for modern poultry operations. With their precisely constructed 15cm and 20cm thickness options, our Model 7090 evaporative cooling pads may reduce temperatures in high-density farming areas by 5-8°C. Our systems, which are built with corrosion-resistant aluminum alloy or stainless steel frames and cross-linked high-molecular-weight polyethylene, achieve 80–85% saturation efficiency at standard face velocities. Comprehensive installation videos, a one-year guarantee, and on-site technical assistance are included with every item.  With over eight years of manufacturing expertise, our R&D team has developed solutions that reduce labor costs by more than 40% while maintaining superior dust filtration and humidity regulation for optimal avian respiratory health.

How Evaporative Cooling Technology Works in Poultry Facilities

In negative pressure tunnel ventilation systems, the Ventilation Water Curtain uses adiabatic cooling principles. Before entering your building, hot ambient air travels through the wet corrugated cellulose matrix, where thermal energy turns water into vapor, dramatically reducing the air temperature.

Heat stress, a major issue that results in decreased feed intake, poorer egg production rates, and higher broiler mortality throughout the summer, is addressed by this thermodynamic mechanism. Evaporative cooling offers energy-efficient climate management appropriate for large-scale agricultural operations, in contrast to expensive air conditioning systems.

The corrugated construction maximizes air-water interaction by producing a large surface contact area (around 420 m²/m³). The system creates regulated airflow patterns that provide uniform temperature distribution throughout your chicken coop when combined with exhaust fans at the other end.

Technical Specifications

Installation Applications for Different Farming Operations

Closed-House Layer Systems: Place exhaust fans on the opposite wall and install the water curtain at the gable end inlets. In order to maintain ideal thermal zones for high-density cage operations, this system produces high-velocity airflow (2.5 m/s+) that combines ventilation and evaporative cooling.

Commercial Broiler Production: For meat birds in late growth stages (after 35 days), integrate the Chicken Coop Ventilation Water Curtain with climate controllers. Automated water pump cycling based on temperature set-points prevents heat stress while managing humidity levels to preserve litter quality.

Breeder Houses and Hatcheries: These sensitive environments benefit from black-coated edge reinforcement options. Enhanced durability withstands frequent cleaning protocols while preventing algae growth, ensuring stable temperatures required for optimal fertility and hatchability rates.

The modular design allows flexible combination and splicing configurations. You can adapt the system to existing infrastructure or new construction projects regardless of facility dimensions.

Performance Advantages and Cost Benefits

Using our evaporative cooling technique has several advantages for your business. During the chilling process, the system filters airborne dust particles, improving your flock's respiratory health and lowering the danger of disease transmission.

Automated climate management will lower labor expenses by over 40% as compared to conventional cooling techniques. Water evaporation uses a lot less energy than mechanical refrigeration systems, therefore energy consumption is still very low.

Years of dependable operation are guaranteed by the stainless steel and high-strength galvanized steel construction. Core components minimize maintenance needs and replacement frequency by meeting strict industry standards for high temperature resistance, moisture resistance, and corrosion resistance.

Procedures for installation and disassembly are still simple. Replacing parts is quick, and regular cleaning keeps performance at its best without the need for specialist technical expertise.

Quality Control Standards and Material Testing

We implement comprehensive quality verification protocols to ensure every Chicken Coop Ventilation Water Curtain meets professional-grade standards. Each production batch undergoes 24-hour soak testing to confirm structural rigidity and shape retention under continuous water exposure.

Bonding point inspection verifies high-grade polymer adhesive application, preventing delamination that compromises cooling efficiency. Our materials contain no phenol or formaldehyde compounds, protecting your flock from respiratory irritants while meeting international RoHS and REACH compliance standards.

Wetting angle testing confirms even water distribution across the entire surface within seconds. Uniform saturation eliminates dry streaks that reduce cooling capacity and create temperature variations within your facility.

Airflow resistance measurements ensure low static pressure drop at operational speeds. This engineering reduces strain on your exhaust fan systems, extending equipment life while maintaining energy efficiency.

Frequently Asked Questions

Q: What determines the operational lifespan of the cooling pads?

A: High-quality cellulose pads normally last three to five years with regular maintenance and appropriate water quality management (pH 6-9). Frequent examination avoids algae obstruction and scale accumulation, which are more likely to cause early degradation than material failure.

Q: How should water flow be optimized for maximum efficiency?

A: For 100mm pads, the ideal flow rate is 4-6 liters per minute per square meter of top surface area. While excessive flow raises static pressure without enhancing cooling effectiveness, insufficient flow results in dry areas and mineral deposits.

Q: Can the system operate effectively in humid climates?

A: As relative humidity increases, cooling efficiency falls. To avoid excessive moisture buildup inside your building, turn off the water pump and use solely exhaust fans for air exchange when the ambient relative humidity rises above 80–85%.

Q: What prevents algae growth on the curtain surface?

A: Black-coated treatments on the air-inlet side block sunlight exposure. Implementing controlled dosing with quaternary ammonium compounds compatible with paper resin formulations provides additional protection without damaging the cellulose structure.

Q: Is the initial odor from new curtains harmful to poultry?

A: During the first two to three days, a slight resin odor is typical and goes away on its own. Strong, lingering smells are a sign of subpar phenolic resins that could be harmful. For safe livestock surroundings, our products are certified phenol-free.
