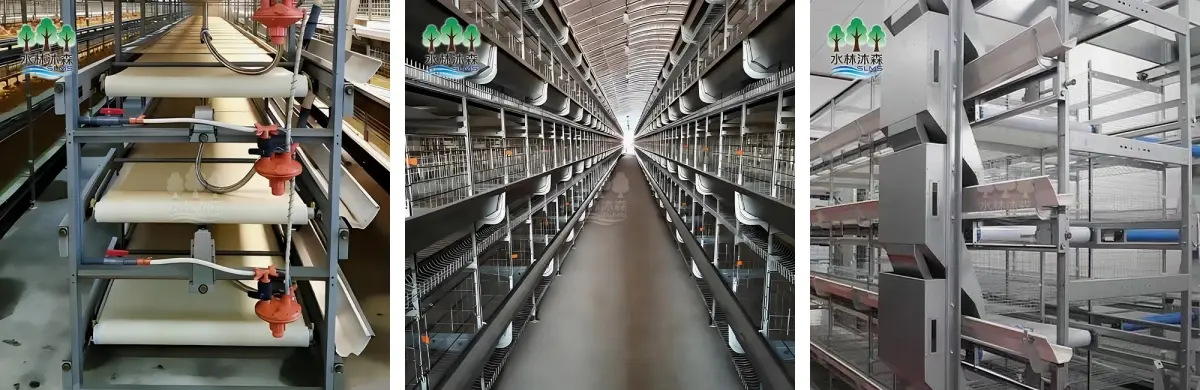

4-Level Broiler Chicken Cage
2. Installation Service: On-site installation service available.
3. Technical Support: Installation videos and other supporting technical support provided.
4. Core Specifications: Stocking density 50KG/㎡, corrosion-resistant galvanized iron wire and frame, automatic manure removal, automatic feeding, and automatic watering for modern farms.
5. Product Advantages: Reduces labor costs and improves farming efficiency; accelerates weight gain, reduces the risk of disease transmission, and is suitable for broiler farming of different sizes.
6. Customization available according to customer needs.
7. After-sales Service: 1-year free warranty.
4-Level Broiler Chicken Cage - Industrial Poultry Housing Solution
Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. presents the 4-Level Broiler Chicken Cage, an enterprise-grade vertical farming system engineered for intensive broiler operations. This H-type integrated structure maximizes spatial efficiency with a proven bearing capacity of 50KG/㎡. Constructed from hot-dip galvanized Q235 steel wire with zinc coating exceeding 275g/m², the system guarantees over 15 years of corrosion resistance in ammonia-rich environments. Each tier measures 125cm (L) × 160cm (W) × 45cm (H), seamlessly integrating automated feeding, nipple watering, and manure removal systems. Our installation support and technical assistance ensure rapid deployment. This solution reduces labor costs by more than 40% while increasing stocking density by 300-400% compared to floor-raising methods, addressing critical challenges in land utilization and disease control for commercial broiler production.
Why Choose Our 4-Level Broiler Chicken Cage System
Modern broiler farming demands equipment that balances productivity with animal welfare. Your operation faces constant pressure to improve feed conversion ratios while controlling disease outbreaks and labor expenses.
Our system physically separates birds from manure, breaking the fecal-oral transmission cycle responsible for Coccidiosis and Necrotic Enteritis. The specialized bottom mesh design with elastic properties eliminates hard pressure points, preventing breast blisters that downgrade meat quality.
The vertical battery configuration multiplies your production capacity within existing building footprints. You can rear broilers from day-old chicks to slaughter weight (42-45 days) without expanding land holdings, directly reducing rental costs per unit breeding area.
Technical Specifications
| Parameter | Details |
|---|---|
| Cage Dimensions | 125cm (L) × 160cm (W) × 45cm (H) per unit |
| Structure Type | H-type four-layer integrated design |
| Material | Q235 steel wire, hot-dip galvanized |
| Service Life | Over 15 years |
| Stocking Density | 50 KG/㎡ |
| Components | Cage frame, cage mesh, feed trough, nipple drinker, water pipe |
| Integrated Systems | Automatic feeding, automatic watering, automatic manure removal |
| Corrosion Resistance | High-grade galvanized coating |
Core Advantages for Commercial Operations
Your investment in this system delivers measurable operational improvements. The tiered design allows staged management of broilers at different growth phases, accommodating weight-specific feeding programs.
Automated systems reduce daily labor requirements dramatically. Feed distribution, water supply, and waste removal operate on programmable schedules, freeing your staff for health monitoring and critical tasks. The controllable microclimate within each tier promotes uniform weight gain, shortening slaughter cycles and improving batch consistency.
The reinforced framework distributes weight scientifically across support points. This prevents cage deformation even under maximum bird load at harvest. Disassembly for maintenance requires standard tools, keeping long-term operational costs predictable.
You maintain flexibility in stocking density adjustments. Whether raising standard broilers or heavier specialty breeds, the cage accommodates variations in bird count per cell. Our customization service adapts dimensions to your facility specifications and breed requirements.
Quality Assurance Through Rigorous Testing
Every 4-Level Broiler Chicken Cage undergoes multi-stage inspection before shipment. Our quality control process includes coating thickness measurement using calibrated gauges, verifying uniform galvanization depth across all wire surfaces.
Tensile strength testing validates weld integrity on bottom mesh panels. These stress tests simulate dynamic loads from heavy broilers moving within cells, ensuring weld points exceed industry safety thresholds. Salt spray testing exposes samples to 72-hour neutral salt environments, replicating years of ammonia exposure.
We inspect PP manure belts for UV stabilization and tensile flexibility. Temperature cycling tests confirm plastic components won't crack under operational stress. Dimensional tolerance checks guarantee automated feed trolleys track smoothly without derailment across all tiers.
This comprehensive testing protocol protects your investment, delivering equipment that maintains structural integrity throughout its extended service life.
Installation and Support Services
Your purchase includes field installation support from our technical team. We provide detailed installation videos covering framework assembly, automation system integration, and initial calibration procedures.
Our engineers assist with nipple drinker positioning and feed line configuration. You receive guidance on optimal cage placement within your facility for ventilation efficiency and biosecurity compliance. The modular design allows phased installation, letting you scale operations incrementally.
Technical assistance extends beyond installation. We offer troubleshooting support for automation components and maintenance scheduling recommendations. Replacement parts ship promptly, minimizing downtime during your production cycles.
The 1-year warranty covers manufacturing defects and material failures. This protection ensures your operation maintains continuous production without unexpected capital expenses during the critical first year.
Frequently Asked Questions
Q: How does the cage prevent breast blisters in broilers?
A: The bottom mesh features elastic wire spacing combined with optional PP slat overlays. This eliminates constant contact with wet litter and hard pressure points that cause breast blisters, maintaining Grade-A carcass quality at slaughter.
Q: What maintenance does the H-type structure require?
A: The H-type vertical battery relies on automated manure belts requiring daily operation. Weekly inspection of belt tracking and monthly lubrication of drive rollers maintain system reliability. The design minimizes manual cleaning compared to traditional floor systems.
Q: Can the system handle heavy broiler breeds exceeding 3kg?
A: Yes. The reinforced framework with thicker wire gauges and additional support bars beneath each tier supports heavy breeds. The structural design accommodates final bird weights up to 3.5kg without mesh sagging or frame deformation.
Q: What ROI timeline should operations expect?
A: Initial capital expenditure typically recovers within 2-3 years. The return stems from 3-4x increased bird capacity per cycle, 40%+ labor cost reduction, and improved feed conversion ratios compared to floor-raising systems.
Q: How does manure removal function across four tiers?
A: Each tier incorporates a longitudinal PP belt running beneath the cage mesh. Waste falls onto the belt and conveys out of the housing unit daily. This maintains low ammonia levels critical for respiratory health and growth performance.
