Four-stage Broiler Housing Cage

Four-stage Broiler Housing Cage - High-Density Vertical Broiler Farming Solution

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. delivers enterprise-grade Four-stage Broiler Housing Cage systems engineered with Q235 hot-dip galvanized steel and H-type integrated architecture. Our solution achieves 50KG/㎡ stocking density, reduces labor costs by over 40%, and extends operational lifespan beyond 15 years. Each tier measures 125cm × 160cm × 45cm, accommodating comprehensive automation for feeding, watering, and manure removal. With eight years of R&D excellence and a dedicated team of five professional engineers, we manufacture systems that quadruple space utilization while maintaining biosecurity standards critical for intensive commercial broiler production.

What Makes This System Different

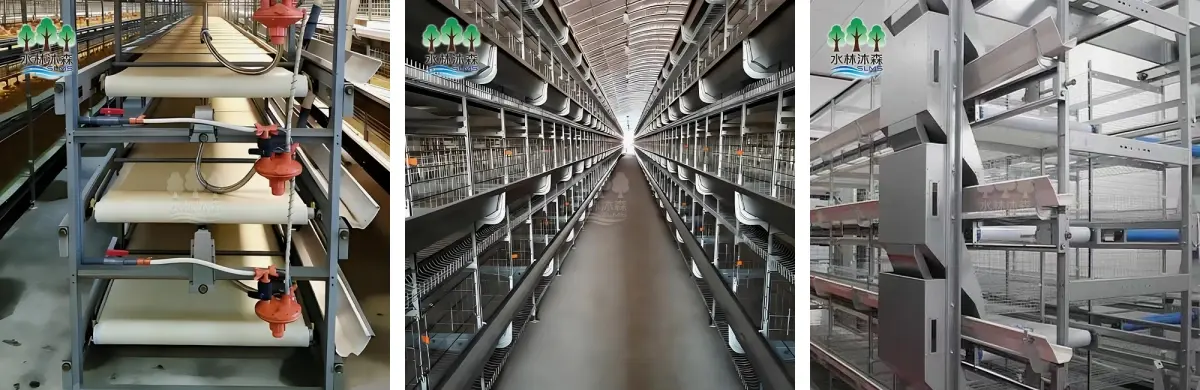

The Four-stage Broiler Housing Cage represents a vertical farming infrastructure that physically separates birds from waste accumulation. This design addresses land scarcity challenges facing modern poultry operations.

Your facility gains four times the capacity per square meter compared to floor rearing methods. The H-frame engineering distributes weight scientifically across tiers, preventing structural deformation even at maximum capacity.

Automated manure belts remove waste daily, breaking fecal-oral disease transmission cycles. This reduces antibiotic dependency and lowers mortality rates significantly.

Technical Specifications

Application Scenarios for Commercial Operations

Large-scale commercial meat production complexes utilize this system within environmentally controlled houses. Your operation achieves densities exceeding 50-60 birds/m² while maintaining permissible CO₂ and ammonia levels through tunnel ventilation integration.

Vertically integrated food companies adopt these cages to standardize meat quality control. The system enables precise health monitoring and uniform growth rates essential for automated processing lines.

Tropical high-humidity climate zones benefit significantly from suspended bird placement. The Four-stage Broiler Housing Cage provides superior airflow around birds and eliminates wet litter issues common in floor systems, reducing heat load and ammonia toxicity.

Performance Advantages

Your investment delivers measurable operational improvements across multiple metrics.

Space utilization increases dramatically, reducing rental costs per breeding unit. The tiered architecture integrates seamlessly with automation systems, cutting labor requirements by 40% or more.

Controllable growth environments promote uniform weight gain and shorten slaughter cycles. Birds convert feed more efficiently when movement is limited, channeling calories directly into muscle development.

Scientific weight distribution prevents cage deformation. Installation and maintenance procedures remain straightforward, keeping long-term costs controllable and predictable.

The system accommodates segmented feeding requirements from chick to market weight. You can adjust stocking density per tier based on breed specifications and target weights.

Quality Assurance Standards

Every Four-stage Broiler Housing Cage undergoes rigorous inspection protocols before shipment.

Salt spray testing per ISO 9227 standards verifies zinc coating durability. Our cages show no red rust after 72 hours of continuous exposure to corrosive conditions simulating manure pH levels.

Weld tensile strength testing ensures bottom mesh integrity under cumulative broiler weight. All weld points are burr-free to prevent physical injury to birds during production cycles.

Dimensional tolerance checks maintain ±1mm precision on cage doors and feed trough alignments. This prevents mechanical jamming in automated operations.

Static load testing applies 150% maximum capacity to verify structural stability. Material certifications confirm Q235 steel compliance and virgin polypropylene manure belt specifications.

Frequently Asked Questions

Q: Does raising broilers in cages cause higher rates of breast blisters or leg problems?

A: Modern systems use flexible bottom meshes or specialized plastic slat inserts designed for broilers. These provide soft footing that reduces mechanical pressure on keel bones and footpads.

Q: How does the four-tier system improve disease control compared to floor rearing?

A: Automated manure belts remove waste daily, eliminating bird contact with fermented litter. This drastically reduces oocyst accumulation and coccidiosis outbreaks, decreasing antibiotic needs.

Q: What is the lifespan difference between electro-galvanized and hot-dip galvanized cages?

A: Electro-galvanized cages typically last 3-5 years before significant rusting occurs. Hot-dip galvanized cages feature chemical metallurgical bonding lasting 15-20 years, ensuring superior return on investment.

Q: How does four-tier height affect harvesting the birds?

A: Professional installations utilize automatic broiler harvesting systems or design cages with fully removable drawer modules. This streamlines load-out processes to transport trucks efficiently.

Q: What ventilation requirements apply to four-tier systems?

A: Four-stage setups significantly increase biomass density. Your facility requires negative pressure ventilation systems with higher CFM capacity compared to floor housing, ensuring fresh air reaches middle and bottom tier sections.

Contact Us

Ready to transform your broiler operation? We're here to answer questions, provide detailed specifications, and discuss how our solutions fit your farm.

Get in touch today:

Email: slms-equipment.com@slms-equipment.com

Let's discuss your specific needs and create a customized solution that drives your success. Our four-stage broiler housing cage's team looks forward to partnering with you for efficient, profitable poultry farming.
