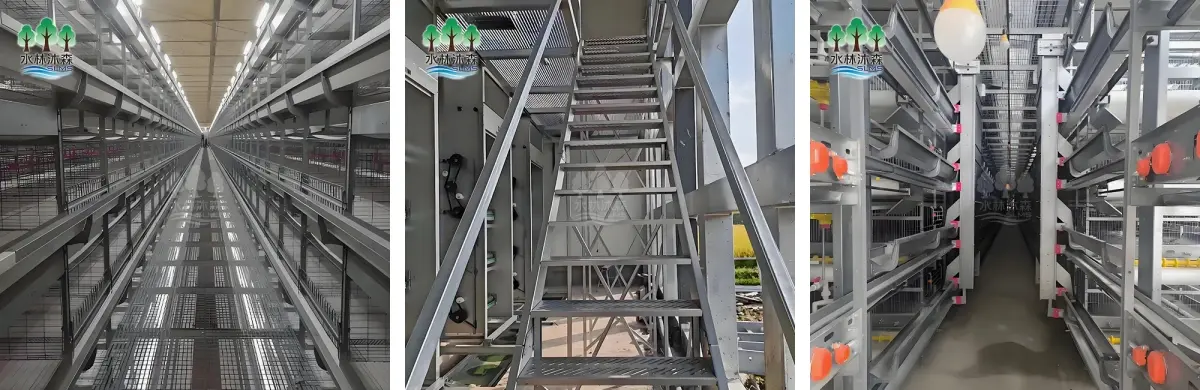

8-Level Broiler Rearing Cage - High-Density Vertical Poultry Housing Solution

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. presents its 8-Level Broiler Rearing Cage, an ultra-high-density vertical housing system engineered for intensive meat chicken production. Constructed from Q235 steel with hot-dip galvanization (275g/m² zinc coating), this system delivers over 15 years of corrosion-resistant performance. Each tier measures 125cm (L) × 160cm (W) × 45cm (H) with a bearing capacity of 50KG/㎡. The integrated H-type eight-layer design maximizes land utilization by up to 400% compared to floor systems while reducing labor costs by over 40%. Our automated feeding, watering, and manure removal subsystems maintain low ammonia levels below 20ppm, accelerating broiler growth cycles to 38-42 days with uniform flock weights ideal for industrial processing.

Technical Specifications

Why Choose This High-Density System?

Space Optimization and Cost Efficiency

Your land acquisition costs represent one of the largest capital investments in poultry farming. This vertical cage system addresses that challenge directly. By stacking eight tiers within a unified frame, you achieve maximum stocking density on minimal footprint.

The design allows staged and layered broiler management. You can adjust single-cage stocking density based on breed requirements while maintaining consistent environmental control throughout all levels.

Automated Operations Reduce Labor Dependency

Manual feeding and cleaning consume significant labor hours in traditional systems. Our 8-Level Broiler Rearing Cage integrates trolley feeding systems that distribute nutrition uniformly across all tiers simultaneously. The 360-degree nipple drinkers with pressure regulators ensure consistent water access. Longitudinal PP manure belts remove waste daily without human intervention, cutting your operational labor by more than 40%.

These automation features prove especially valuable in regions facing agricultural labor shortages or rising wage costs.

Improved Biosecurity and Growth Performance

Disease outbreaks can devastate entire flocks within days. The tiered separation prevents bird-to-manure contact, dramatically reducing coccidiosis risk and pathogen transmission between groups.

Restricted movement within cages channels energy toward weight gain rather than activity. This controlled environment promotes uniform growth rates, allowing harvest cycles as short as 38-42 days with consistent processing weights. Fewer underweight or overweight birds mean better returns per batch.

Quality Control Standards

Material Testing and Durability

Every component undergoes rigorous inspection before leaving our facility. We conduct Salt Spray Testing (ASTM B117) on galvanized surfaces to verify corrosion resistance in high-humidity, ammonia-rich environments. Our zinc coating remains smooth and burr-free to prevent bird injuries that cause carcass downgrades.

Weld shear strength tests ensure structural joints withstand automated system vibrations and the concentrated weight of mature broilers across eight levels. C-shaped steel leg reinforcements distribute loads evenly, preventing frame deformation over years of continuous operation.

Mesh Design for Bird Welfare

The bottom wire mesh features high-elasticity construction. This flexibility reduces breast blister formation and footpad dermatitis—common defects that lead to processing plant rejections. Surface smoothness inspection eliminates sharp edges that could damage delicate broiler skin.

Application Scenarios

Large-Scale Commercial Integration

Export-oriented producers and contract growers supplying major processors benefit most from this configuration. Closed-environment poultry houses exceeding 100 meters in length can accommodate millions of birds annually with minimal staffing. The system's cleanliness standards support residue-free certification requirements for premium export markets.

Peri-Urban Farming Operations

Land-scarce regions near urban centers face expensive real estate costs. Vertical expansion through the 8-tier structure allows you to achieve competitive economies of scale on compact plots. This proximity to consumer markets reduces transportation costs while delivering fresh product to metropolitan areas.

Climate-Controlled Environments

Sophisticated ventilation becomes critical in high-density vertical systems. Tunnel ventilation combined with air deflectors and mixed-air fans ensures uniform temperature and air velocity distribution. This prevents heat stress at upper tiers and cold stress at lower levels—maintaining optimal growth conditions throughout the structure.

Installation and Support Services

Our team provides field installation support to ensure proper assembly and system integration. Each purchase includes a 1-year warranty covering structural components and mechanical systems.

You receive detailed installation videos and ongoing technical assistance. Our 8-year industry experience and 5-member engineering team stand ready to address operational questions or customization needs.

Customization Capabilities

Standard configurations accommodate most commercial operations, but unique facility dimensions or breed-specific requirements may demand modifications. We offer customized cage dimensions, tier spacing adjustments, and specialized mesh coatings based on your production goals.

Whether you operate a 10,000-bird starter farm or a million-bird integrated complex, our engineering team can scale the 8-Level Broiler Rearing Cage to match your operational capacity and budget parameters.

Maintenance and Longevity

Structural components require minimal maintenance due to hot-dip galvanization protection. However, moving parts like PP manure belts and drinking nipples typically need replacement every 5-8 years depending on usage intensity.

The modular design simplifies disassembly and part replacement. Individual cage sections, feed troughs, or water lines can be serviced without disrupting adjacent tiers. This accessibility reduces downtime during maintenance windows and extends overall system profitability.

Frequently Asked Questions

Q: Does high density compromise meat quality?

A: Not with proper mesh selection. Our high-elasticity, plastic-coated wire floors cushion breast tissue, significantly reducing blisters compared to rigid concrete or low-quality metal floors.

Q: What foundation requirements support eight tiers?

A: The concentrated weight demands reinforced concrete foundations. Standard floor slabs prove insufficient—we recommend thickened concrete strips under cage leg rows to handle point loads safely.

Q: How does the system facilitate rapid harvesting?

A: Front doors open fully or feature sliding grates for efficient manual crating. The design also accommodates automated bird harvesting systems that reduce labor hours and minimize bird stress during catch operations.

Q: What is the expected ROI timeline?

A: Most operators achieve payback within 3-4 production cycles due to reduced land costs, lower labor expenses, improved Feed Conversion Ratios, and higher uniformity rates that command premium processing prices.
