Eight-layer Commercial Broiler Cage System
2. Installation Service: On-site installation service available.
3. After-sales Service: 1-year free warranty.
4. Technical Support: Installation videos and other supporting technical support provided.
5. Core Specifications: Stocking density 50KG/㎡, corrosion-resistant galvanized iron wire and frame, automatic manure removal, automatic feeding, and automatic watering for modern farms.
6. Product Advantages: Reduces labor costs and improves farming efficiency; accelerates weight gain, reduces the risk of disease transmission, and is suitable for broiler farming of different sizes.
7. Customization available according to customer needs.

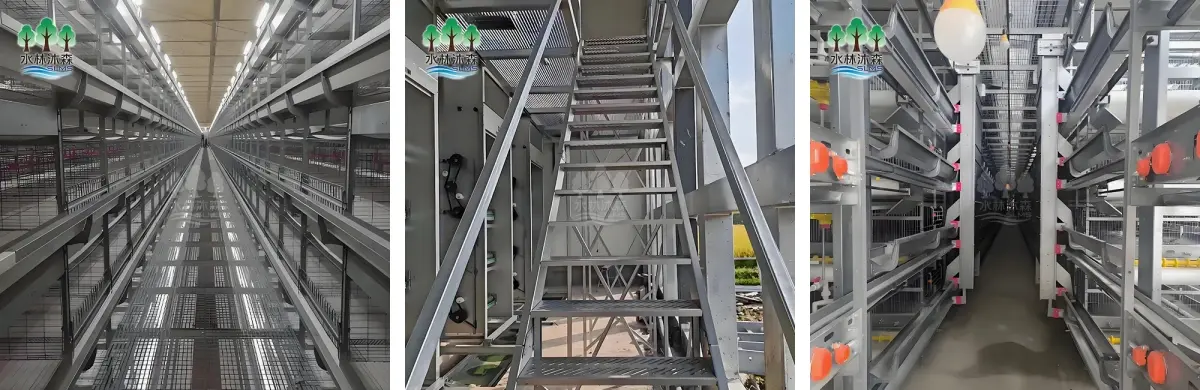

Eight-layer Commercial Broiler Cage System Advanced Vertical Infrastructure for Industrial Broiler Production
Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. delivers enterprise-grade Eight-layer Commercial Broiler Cage System engineered for high-density meat production operations. Compared to floor rearing techniques, our H-frame arrangement maximizes stocking capacity by 300–400%, reaching 50KG/㎡ load capacity per tier. This system, which is made of Q235 hot-dip galvanized steel with a 275g/m² zinc coating thickness, is guaranteed to last more than 15 years.
The integrated design lowers labor expenses by more than 40% by combining automated feeding, nipple watering, and belt-driven manure removal. With dimensions of 125 cm (L) × 160 cm (W) × 45 cm (H), each cage unit maximizes space use while preserving uniform airflow over all eight stages. For commercial broiler operations, this infrastructure addresses important issues with disease prevention, feed conversion ratio optimization, and land scarcity.
Technical Specifications
| Parameter | Details |
|---|---|
| Cage Dimensions | 125cm (L) × 160cm (W) × 45cm (H) per unit |
| Material | Q235 high-strength steel wire, hot-dip galvanized |
| Service Life | Over 15 years |
| Stocking Density | 50kg/㎡ |
| Structure Type | H-type eight-layer configuration |
| Components | Cage frame, mesh, feed trough, nipple drinkers, water pipes |
| Integrated Systems | Automatic feeding, watering, and manure removal |
| Load Capacity | Optimized weight distribution across all tiers |
| Corrosion Resistance | Hot-dip galvanized finish for maximum durability |
Why Choose Our Eight-Layer System
Maximized Space Efficiency
A typical residence (100 m × 15 m) can accommodate 60,000–80,000 birds thanks to the vertical stacking architecture. The problems of land shortage in peri-urban and high-density farming areas are immediately addressed by this arrangement.
On footprints that are unmatched by conventional floor systems, you achieve commercial viability. Without adding more physical infrastructure, the tiered architecture increases manufacturing capacity.
Labor Cost Reduction Through Automation
Our integrated automation ecosystem eliminates manual feeding, watering, and waste management tasks. The system operates as a self-sustaining production unit requiring minimal human intervention.
Automatic auger feeding lines deliver precise nutrition to all eight tiers simultaneously. Nipple drinker systems with pressure regulation ensure consistent water access. Belt-driven manure removal operates on programmable schedules, maintaining biosecurity standards.
Enhanced Disease Prevention
Separating birds from manure via automated belts drastically reduces coccidiosis and fecal-borne pathogen transmission. This design lowers medication costs while improving flock health uniformity.
The galvanized steel construction resists microbial colonization. Moisture drainage channels prevent ammonia buildup that compromises respiratory health in dense stocking environments.
Optimized Feed Conversion Performance
Restricted movement within properly sized cages channels energy toward rapid weight gain rather than physical activity. You achieve target slaughter weights 3-5 days faster with reduced feed consumption.
The controlled environment promotes uniform growth rates critical for automated slaughterhouse processing lines. Size consistency minimizes grading losses and maximizes premium-grade carcass yields.
Application Scenarios
Mega-Scale Closed-House Operations
Our Eight-layer Commercial Broiler Cage System integrates seamlessly with environmentally controlled housing featuring tunnel ventilation and evaporative cooling pads. The system supports integrators supplying national retail chains requiring traceability and biosecurity compliance.
Advanced negative pressure ventilation designs prevent heat stratification across tiers. Strategic air-channel spacing ensures bottom-tier birds receive equivalent airflow to top-tier populations.
Tropical High-Humidity Intensive Farming
In Southeast Asian and African markets, the galvanized treatment withstands accelerated corrosion from constant humidity exposure. The vertical design maximizes airflow velocity over birds, creating wind-chill effects that improve thermal comfort.
The system pairs effectively with misting systems and side-wall inlet configurations optimized for tropical climates. You maintain production efficiency without excessive cooling infrastructure investments.
Automated Supply Chain Integration
For operations feeding automated slaughtering facilities, this system delivers the size uniformity essential for mechanized processing. The cage environment produces consistent bird weights suitable for automatic shackling systems.
Optional automated harvesting modules eliminate manual catching labor. Birds transfer directly from cages to transport crates, reducing bruising and wing breakage that downgrade carcass value.
Structural Advantages
Our engineering team has refined weight distribution mechanics to prevent frame deformation under full-load conditions. The reinforced skeleton utilizes bridge-grade Q235 steel with calculated stress tolerances.
Installation requires no specialized heavy equipment. The modular design allows phased expansion as your operation scales. Maintenance protocols focus on accessible components—belts, drinkers, and augers—that technicians service without disassembling structural elements.
The flexible bottom mesh design prevents pododermatitis and breast blisters that compromise meat quality grading. This specialized flooring maintains bird welfare standards while supporting intensive stocking densities.
Customization and Support Services
We accommodate site-specific modifications including adjusted tier spacing for breed-specific requirements and custom house dimensions. Our R&D team analyzes your ventilation infrastructure to optimize cage bank positioning for airflow uniformity.
Technical support includes installation video libraries, remote troubleshooting via digital platforms, and optional on-site commissioning services. The one-year warranty covers structural components and automation systems under normal operational conditions.
Our engineers provide post-installation consultations addressing ventilation balance, stocking density optimization, and preventive maintenance scheduling. You receive documentation packages including structural load calculations and automation programming guides.
FAQ
Q: What stocking density does the system support?
A: The configuration accommodates 18-22 birds per cage unit depending on target harvest weights. Adjustable spacing allows density modifications for different broiler breeds or market weight targets.
Q: How does the system handle ventilation challenges?
A: Our design incorporates inter-tier air channels that work with tunnel ventilation or cross-flow systems. We provide ventilation modeling during project planning to ensure CFM requirements meet bird density across all eight levels.
Q: What maintenance schedule is recommended?
A: Weekly inspection of nipple drinkers and feed auger alignment. Monthly belt tension checks and quarterly deep cleaning of water lines. Annual structural inspections focus on galvanization integrity at high-stress joints.
Q: Can existing facilities be retrofitted?
A: Yes, provided your house structure supports vertical load requirements and ceiling height accommodates the 3.6-4.0m system height. Our team conducts structural assessments before retrofit projects commence.
Q: What training is required for staff?
A: Operators need familiarization with automation controllers, basic mechanical troubleshooting, and biosecurity protocols. We provide training materials and virtual sessions covering system operation and emergency procedures.
