Evaporative Cooling Pad Prep: Getting Your Cooling Cells Ready for Summer

If you want to keep your farming business running easily, you should get your Poultry House Evaporative Cooling Pad equipment ready for summer. In these specialized cooling systems, 10 to 15°F are lost when hot air from outside is sucked through media that is wet. Your cooling cells will work best when your chickens need them the most if you set them up right. This will keep them from getting heat stress, which in the summer can hurt bird health and output.

Introducing Poultry House Evaporative Cooling Pads

The Science Behind Evaporative Cooling Technology

The idea behind evaporative cooling pads is adiabatic cooling. This is when hot, dry air moves through a medium made of cellulose that is full of water. The water takes in heat and then gets rid of it, which cools the air inside your chicken coop. The air coming in can cool down by 5 to 8°C because of this natural process. This makes it easier for birds to work even when it's very hot outside.

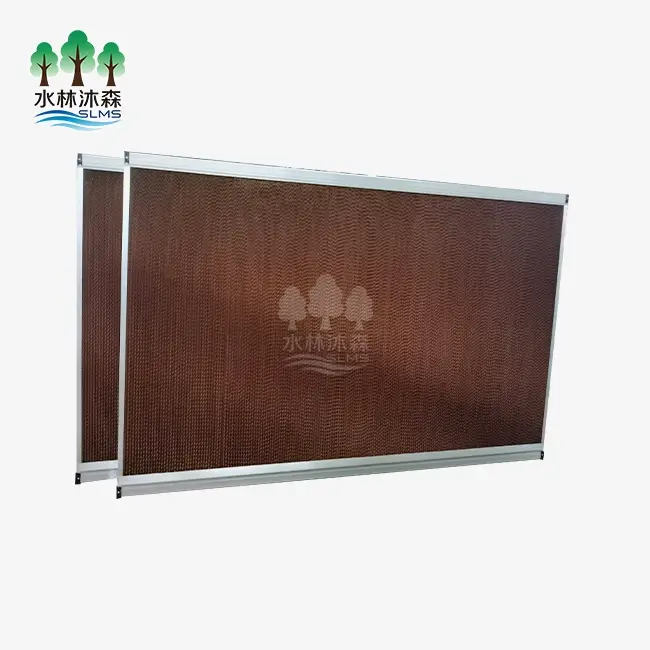

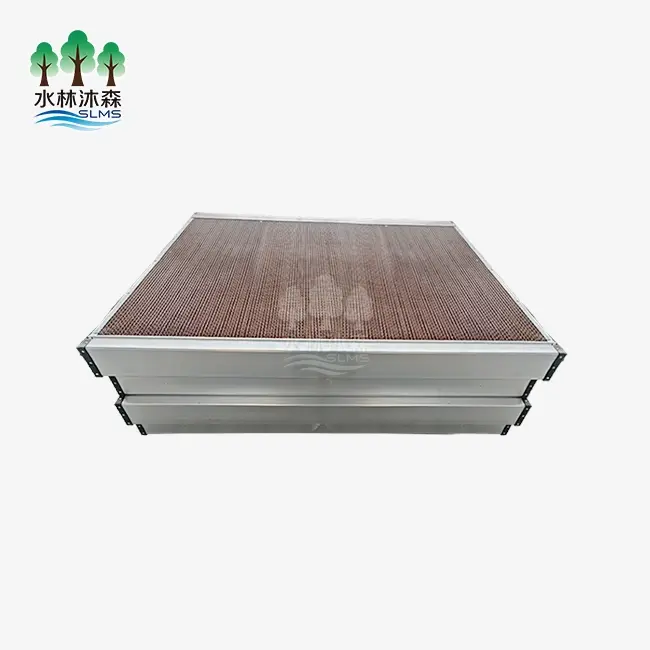

Cross-fluted cellulose paper that has been handled in a special way makes up the Poultry House Evaporative Cooling Pad. It is usually put down at a 45-degree angle. As long as the structure stays strong even when it's always wet, this shape makes the most of the surface area that touches air and water. The frame is bent so that the water is spread out evenly and air can flow easily through the system.

Material Composition and Durability Features

Not long ago, cooling pads were made from low-quality kraft paper that had phenolic resins soaked into it. This made the paper very strong. The Model 7090 standard, which comes in two widths (15 cm or 20 cm), cools better and has a lower pressure drop. It's not possible for these pads to rust, grow algae, or get damaged, so they will work well for many seasons.

The cellulose construction can soak up a lot of water; it normally gets to a 60–70 mm height in five minutes. This short soak makes sure that the cooling starts up right away when the system is turned on. Another good thing about the treated paper is that it doesn't break down or change form when it's wet, which would make the wind patterns less effective.

Preparing Your Cooling Pads for Summer: A Step-by-Step Guide

Pre-Season Inspection Protocol

Comprehensive inspections should be conducted before the summer heat arrives to prevent costly breakdowns and ensure optimal performance. To begin, examine every part of the Poultry House Evaporative Cooling Pad for damage such as cracks, warping, or delaminating layers. Look for areas where the cellulose structure appears compressed or broken, as these restrictions hinder airflow and reduce cooling efficiency.

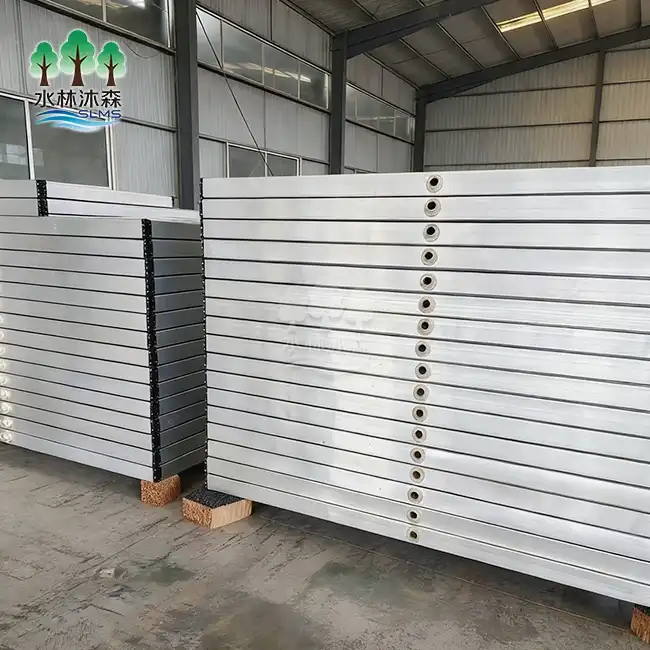

Make sure that the aluminum metal or stainless steel frames don't have any rust, broken or loose connections, or building damage. These frames hold up the cooling media and make sure they are covered properly. If there are any holes or other problems with the gadget, air can get through and make it less effective. This means it uses more energy.

Comprehensive Cleaning Procedures

By cleaning well, you can get rid of mineral layers, organic buildup, and other junk that forms during storage or earlier use. To get rid of any fine dust or dirt, start by giving it a rinse with low-pressure water. To keep cleaning areas from getting dirty again, work your way down from the top. Do not wash with high pressure, as it can damage the delicate cellulose fibers and create weak spots that are likely to break.

Clean with light cleaners that are made to work with evaporative cooling systems. These cleaners can get rid of mineral scale and living things without hurting the paper or making it less able to soak up water. To use the cleaning solution, do what it says and wait the time it says to. After that, wash it off fully with clean water.

Water Quality Assessment and System Flushing

When the water isn't clean, pads don't cool down as well or last as long. The pH level, minerals, and organic pollution in the water you use should all be checked. Between 6.0 and 8.0 is the best pH level. Water that has a lot of minerals in it needs to be cleaned up so that scale doesn't form and block the pad structure.

The pumps, lines, and distribution heads in the water distribution system should all be cleaned. This gets rid of the dirt and germs that grew on the fish while it was kept when it wasn't in season. Make sure the pumps are working well and the water filters are changed before the grilling season starts.

Selecting the Best Evaporative Cooling Pads for Your Poultry House

Critical Performance Specifications

When picking out cooling pads, the most important thing to look at is how well they cool. Good Poultry House Evaporative Cooling Pad Systems can cool chicken coops by 75 to 85% when everything works perfectly. This number shows how close the system is to what is thought to be the coolest temperature drop that can happen in this setting.

How fast it cools down and how much pressure it drops depend on how wide the pad is. If the weather is mild, the 15 cm thickness option is great because it keeps things cool. If it's very hot where you live, the 20 cm thickness option is better. Thick pads can keep you cooler, but they need bigger fans to keep the air moving at the right speed.

Here are the core specifications that determine cooling pad performance:

• Absorption Rate: Good pads soak up water quickly—usually 60 to 70 mm in five minutes—so chillers can start working right away.

• Structural Integrity: When treated cellulose gets wet, it keeps its shape and power. This means it doesn't break down into dead zones that make cooling less effective.

• Pressure Drop: Low resistance means the fan needs less power to work, but it still lets a lot of air flow through the cooling medium.

• Corrosion Resistance: As long as the material is treated chemically, rocks, changes in pH, and organic growth can't break it down, which can hurt its long-term performance.

It's important to make a smart choice because these specs have a direct effect on how much it costs to run and how well the cooling works in the long run.

Supplier Evaluation and Support Services

Having good links with providers means that you will always get good products and full expert help. Check out potential service providers based on how knowledgeable they are in technology, how well they can do repair work, and how well they can offer ongoing support. When looking for a company, look for ones that offer expert documents, movies on how to do the job, and on-site installation services.

Getting a warranty is a good way to keep your investment safe. Good sellers cover problems with the work and failures that happen too soon with full guarantees that are usually free for one year. This guarantee keeps the buyer safe during the important break-in time and shows that the seller believes in the quality of the product.

Installation and Optimization for Maximum Efficiency

Professional Installation Procedures

Proper installation is essential for a Poultry House Evaporative Cooling Pad to perform optimally during the operating season. First, carefully measure and clean the mounting areas to ensure precise alignment and a tight seal. Any gaps in the pads or frames allow air leakage, which reduces cooling efficiency and increases energy consumption.

When putting up a frame, it's important to pay attention to how the structure is held up and how water flows away. Because the units are flexible, they can be put together in any way that works for your building's size and air needs. As well as being able to hold the weight of the wet pad, each frame piece must properly seal against the units next to it.

System Integration with Ventilation Equipment

Negative pressure ventilation fans and liquid cooling pad systems for chicken coops work together to make the best air flow patterns. For the best cooling, the cooling pads should be able to work with existing fan systems and keep air speeds between 1.5 and 2 meters per second.

Set up water distribution systems so that pads are evenly wet, with neither dry spots nor too much wetting that lets water leak over. Different types of weather and the need for cooling can make 0.5 to 1 gallon per minute per linear foot of pad the right water flow rate.

Performance Monitoring and Adjustment

It is important to keep an eye on your cooling system all summer long so that it keeps running at its best. Place temperature sensors in several locations to keep an eye on how well the cooling is doing and identify issues before they make the birds unhappy. To find out what's wrong with the distribution systems or the pads, keep an eye on how much water is being used.

Seasonal changes make things work better as the weather changes. Raise the water flow rate and let the system run for longer during very hot days to keep the temperatures where you want them to be. To save water, make sure there is enough air flow, and make sure the pads last longer, turn down the system when it's not very hot or cold.

Troubleshooting and Long-Term Care for Cooling Pads

Common Issues and Quick Solutions

Evaporative cooling systems often require maintenance due to mineral scale buildup. Hard water, rich in calcium and magnesium, forms deposits that restrict water flow and reduce the effectiveness of a Poultry House Evaporative Cooling Pad. However, using appropriate cleaning agents and performing regular descaling can remove these layers without damaging the cellulose structure.

If the water isn't spread out properly, it can make places that are too hot for cooling to work as well. Most of the time, this happens when the water flow is too low or the distribution valves get clogged. The whole pad area stays wet because the parts that supply water are checked and cleaned regularly.

Replacement Timing and Cost Analysis

When to change the Poultry House Evaporative Cooling Pad depends on a number of signs that it is no longer working well. If it can't cool down as well, the pressure drops more, and there is clear damage to the cellulose structure, it needs to be changed. Good pads should last between 3 and 5 years if you take care of them.

This tool helps people choose what to replace by comparing things that aren't working well to things that are more expensive. When you decide when to replace your air conditioner, you should think about how much more energy it will use, how birds might get stressed out because they can't control the temperature, and how often it will need to be fixed.

Sustainable Disposal and Environmental Considerations

Getting rid of old cooling pads in an eco-friendly way is the right thing to do. It is possible to compost or dump organic trash because of the cellulose structure. These methods are better for the environment. A lot of businesses have recycling programs that get things back and make the trash stream less damaged.

Businesses that use sustainable cooling technology are better for the world and run more smoothly. These days, pads are made with recycled materials and production methods that are better for the environment without lowering the quality or durability of the pad.

Conclusion

When properly installed, an evaporative cooling system ensures reliable performance during peak summer heat at your chicken farm. This article guides you through every step—from thorough inspection and cleaning to professional installation and ongoing maintenance—specifically for the Poultry House Evaporative Cooling Pad. Following these steps protects your investment and keeps your birds happy and productive. The value of high-quality cooling pads is clear: they reduce heat stress, improve feed conversion rates, and enhance overall flock performance during critical summer months.

FAQ

Q1: How often should I replace cooling pad media?

A: If everything stays the same, good evaporative cooling pads should be changed every three to five years. But when to replace it depends on how clean the water is, how often it is used, and how well it is taken care of. Use your own needs to figure out when the best time is to change your systems. Check how well the cooling works and look for signs of damage to the structure.

Q2: What water quality requirements ensure optimal pad performance?

A: To keep scale from forming, keep the water's pH between 6.0 and 8.0 and lower the amount of minerals that are dissolved. A lot of the time, check the water for fungal, magnesium, and calcium toxins. If your water source has more chemicals than is good for you, you might want to look into methods that clean water. If the water isn't clean, the pads won't last as long and won't cool as well.

Q3: Can evaporative cooling pads operate year-round in all climates?

A: How well evaporative cooling works depends on how dry the air is and how hot or cold it is outside. In places that are hot and dry, these methods work best. They don't help much in places that are damp. You should think about the weather patterns in your area and how the humidity changes with the seasons when you choose when to run your system.

Partner with Shuilin Musen for Superior Cooling Solutions

For eight years, Shuilin Musen Aquaculture Equipment Co., Ltd. has been making farming tools. Their cooling systems are the best on the market. The frames of the Model 7090 Poultry House Evaporative Cooling Pad systems can be made of stainless steel or aluminum alloy, and they are made to last. They can also soak up a lot of water. There are training films, on-site installation services, and a one-year promise that come with all of our help. Poultry House Evaporative Cooling Pads are what we make, and you can trust us. More than 40% less money is spent on staff when you use our full solutions. Production also gets better. You can email us at wangshuaislms@gmail.com to find out more about how our cooling solutions can help your business make more money and go faster.
