Eight-layer Commercial Layer Cage System
2. Technical Support: Provides installation videos and other supporting technical support.
3. Core Specifications: Stocking density 40KG/㎡, corrosion-resistant galvanized iron wire and frame, automatic manure removal, automatic feeding, and automatic watering for modern farms.
4. Product Advantages: Reduces labor costs and improves farming efficiency; the rational design reduces egg breakage rate and flock injury and disease rate, indirectly improving egg production efficiency and shortening the payback period.
5. Customization available according to customer needs.
6. Installation Service: On-site installation service available.
7. After-sales Service: 1-year free warranty.

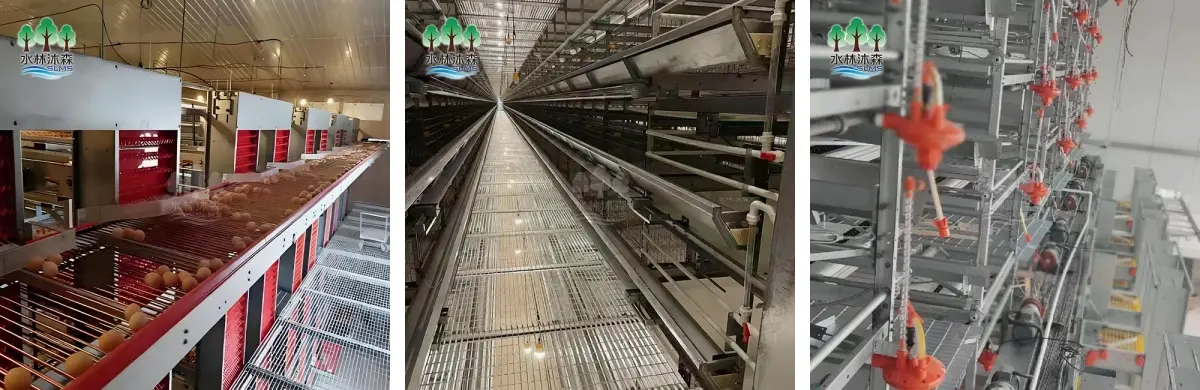

Eight-layer Commercial Layer Cage System: Modern Solution for Large-Scale Egg Production
The Eight-layer Commercial Layer Cage System from Weifang Shuilin Musen Aquaculture Equipment represents advanced H-type vertical stacking technology for large-scale industrial egg farms. Engineered with Q235 hot-dip galvanized steel wire, this system achieves a load capacity of 40KG/㎡ while maintaining a service life exceeding 15 years. Individual cage dimensions measure 45cm (L) × 45cm (W) × 450cm (H) with a precision 10° slope for automated egg collection. Your operation benefits from 40% labor cost reduction and up to 4-5 times higher raising density compared to floor rearing systems. This infrastructure integrates seamlessly with automated feeding, drinking, manure removal, and environmental control units.
System Architecture and Design
For farms aiming for capacities above 50,000 birds per shed, the H-type layout addresses crucial space usage issues. With specialized manure belts that disrupt the cycles of fecal-oral disease transmission, each layer functions autonomously.
High-strength galvanized steel that can endure high ammonia conditions is used in the structural framework. In order to prevent deformation under full load circumstances, cross-welds are built to >3,000N shear strength norms. To guarantee 72-hour corrosion resistance, cage mesh is subjected to stringent salt spray testing (compatible with ASTM B117).
Eight vertical levels of scientific weight distribution are added to your facility. This design streamlines installation processes and continuing maintenance duties while preserving structural integrity.
Technical Specifications
| Specification | Details |
|---|---|
| Cage Dimensions | 45cm (L) × 45cm (W) × 450cm (H) per unit |
| Bottom Slope | 10° angle for effortless egg collection |
| Material | Q235 hot-dip galvanized steel wire |
| Service Life | Over 15 years |
| Stocking Density | 40KG/㎡ |
| Structure Type | H-type eight-layer design |
| Core Components | Cage frame, mesh assembly, egg collection device, feeding trough, nipple drinkers, water pipes |
| Compatible Systems | Automatic feeding, automatic watering, automatic manure removal |
Performance Advantages
Your operation achieves measurable efficiency gains through this system's integrated design. The Eight-layer Commercial Layer Cage System reduces labor input by over 40% through full automation integration.
Egg breakage rates drop below 0.5% due to the precision-engineered 10° collection slope. Eggs roll gently onto collection belts without gaining velocity that causes cracks. This directly increases saleable egg volume and shortens payback periods.
Disease occurrence decreases significantly as manure belts separate birds from waste. Coccidiosis and other fecal-borne illnesses reduce medication costs while maintaining flock health. The tiered isolation prevents cross-contamination between levels.
Feed conversion ratios improve through specialized trough designs that eliminate spillage. Your birds consume optimized nutrition without waste, enhancing egg production efficiency. Climate control systems maintain uniform temperatures across all eight tiers.
Customization and Installation Support
We provide tailored solutions based on your specific shed dimensions and capacity targets. Our engineering team customizes cage arrangements to maximize your available floor space.
Installation guidance includes comprehensive technical documentation and on-site setup services. Your team receives step-by-step protocols for efficient assembly procedures. Parts disassembly remains simple for routine cleaning and maintenance cycles.
The modular design allows for phased expansion as your operation scales. You can implement additional tiers or extend existing rows without complete system overhauls.
Quality Assurance Protocol

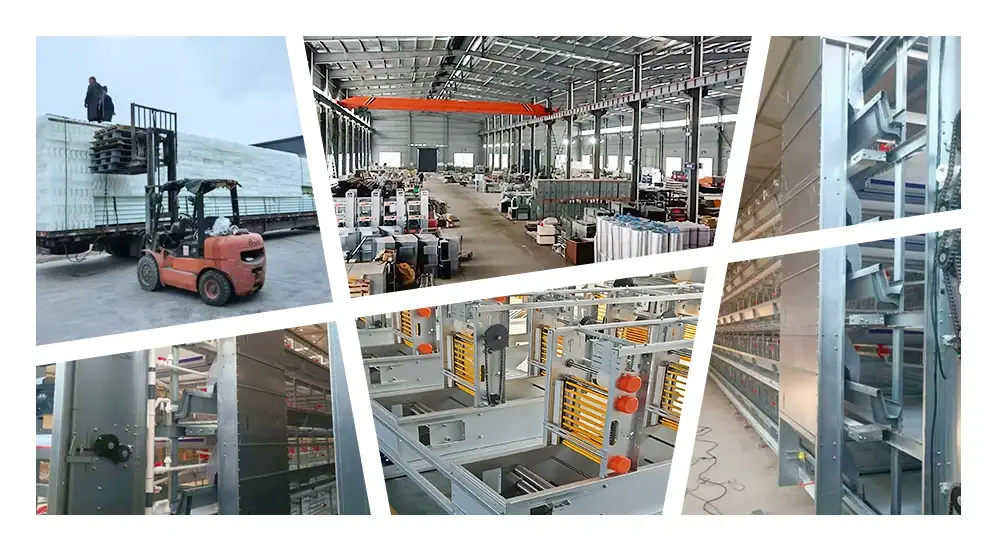

Every system undergoes rigorous factory testing before shipment. Tensile strength verification ensures welds meet >3,000N shear force requirements. Manual inspections eliminate sharp burrs that could harm birds or reduce feather quality.
Elasticity testing loads cage floors at 3x standard weight (15kg per cell) for 24-hour deformation checks. Only systems demonstrating zero permanent deformation pass final approval.
Your investment is protected by a one-year comprehensive warranty covering materials and manufacturing defects. Technical support materials remain available throughout your system's operational lifetime.
FAQ
Q: What ROI timeline can farms expect from the Eight-layer Commercial Layer Cage System?
A: Typical payback periods range from 2-3 years. Higher initial investment costs are offset by 15-20% density increases, 5-8% feed waste reduction, and 90% lower egg breakage rates compared to conventional systems.
Q: How does the system withstand ammonia exposure in closed-house facilities?
A: Hot-dip galvanized coating creates protective zinc carbonate barriers against ammonia corrosion. This specification ensures 15+ year lifespan versus 3-5 years for cold-galvanized alternatives.
Q: Why choose H-type over A-frame for eight-layer configurations?
A: H-type construction is essential for closed climate-controlled facilities. It provides superior stocking density and integrates mandatory manure belt systems for efficient waste management at this vertical height.
Q: What maintenance does the automated manure removal system require?
A: Monthly inspections include ultrasonic welding checks and belt tracking alignment. Polypropylene belts need cleaning to prevent manure desiccation that increases motor load and friction.
Q: Can the system adapt to different shed sizes?
A: Absolutely. Our R&D team of 5 engineers customizes configurations to your exact dimensions, ensuring optimal space utilization regardless of existing infrastructure constraints.
Contact Us
Ready to transform your layer farm to eight-layer commercial layer cage system? Let's discuss how our multi-tier cage system can boost your productivity and profitability.
