How to troubleshoot a malfunctioning drive motor in a breeder house?

If your Poultry House Breeding Drive Motor stops working for no reason, your whole business may come to a halt. Every minute of downtime hurts your bottom line, threatens the health of your group, and throws off feeding plans. Systematic analysis is the key to getting things fixed quickly. First, look for signs: does the motor not start, make strange noises, or get too hot? With a voltmeter, check the power source for continuity. Also, look at the wires for corrosion or loose connections. Finally, make sure that the limit switches haven't been tripped. Knowing how your motor is put together, including its power module, control module, and safety features, makes fixing problems a lot easier and faster.

Understanding the Role and Types of Poultry House Breeding Drive Motors

Drive motors are the most important part of modern automatic chicken farms. Different types of actuators power curtain systems, air inlets, feed line winches, and egg collection devices. Unlike regular industrial motors, Poultry House Breeding Drive Motor units have to work in harsh situations like high amounts of ammonia, moisture, and dust particles in the air.

Why Drive Motors Are Critical for Breeding Success?

Controlling the environment has a direct effect on the feed conversion ratios and group death rates. If a Poultry House Breeding Drive Motor doesn't work right and doesn't change the ventilation inlets, temperatures can rise quickly above safe levels, especially in summer houses with tunnel ventilation. Accurate motor-driven winching is needed for automated feeding systems to raise and lower feed lines as birds grow. This keeps the optimal feeding height throughout the production cycle. When these motors break, they have to be fixed by hand, which is a lot of work that breaks biosecurity rules and slows down operations.

Common Motor Types in Poultry Automation

Because they last a long time and don't cost much, AC motors are still the standard for breeder homes. Single-phase AC motors usually have power levels between 0.75KW and 3KW, which is enough for most uses like controlling the entrance and moving the curtain. Three-phase versions run more smoothly and have more force for heavy-duty uses like systems that get rid of manure.

DC motors without brushes are becoming more popular in high-end setups. Their ability to change speeds allows for precise control, and they react right away to data from weather sensors. Brushless versions don't have carbon brushes, so they last longer in corrosive conditions. But their higher cost at first needs to be weighed against the money saved on upkeep over time.

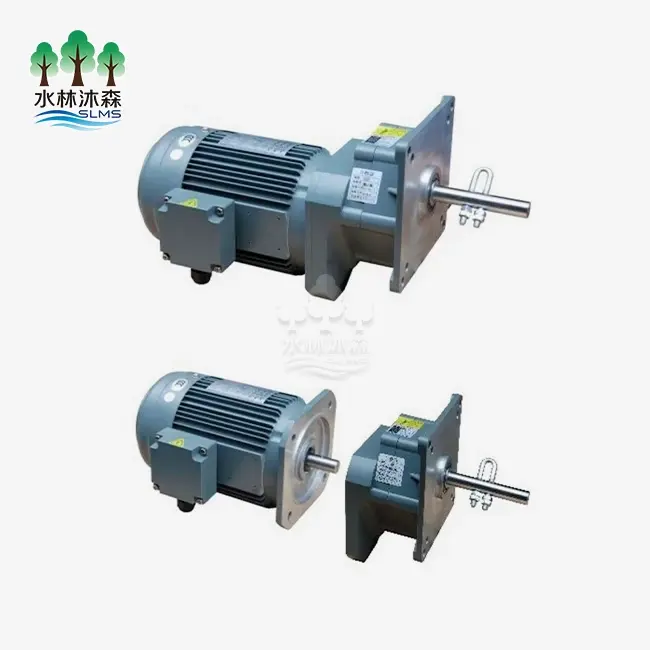

Gear motors have motors that are built in with reduction gearboxes. They can give a lot of power at low speeds. Ratios between 3:1 and 50:1 let heavy air curtains move easily even when the wind is blowing against them. Self-locking worm gears are very important for safety because they keep feed lines from crashing if the power goes out suddenly.

Matching Motor Specifications to Your Operation

Choosing the right Poultry House Breeding Drive Motor specs involves looking at a number of things. Buildings that house 20,000 to 100,000 birds usually need motors that can work continuously in temperatures ranging from -20°C to +60°C. Resistance to high-pressure washdowns during cleaning rounds is ensured by IP55 or IP66 grades for ingress protection. When mechanical jams happen, thermal overload safety keeps the machine from burning out, and built-in limit switches let curtain and input systems automatically find the endpoints.

Systematic Troubleshooting Approach for Malfunctioning Drive Motors

Safety is the first step to effective fixing. Always turn off the power before looking at motor parts. Lock out power sources and label control screens so that they don't get turned on by chance while maintenance is being done.

Identifying Common Symptoms and Root Causes

Motor Fails to Start: If the Poultry House Breeding Drive Motor won't start, it could mean that there are problems with the electricity. Check the control panel lights, circuit breakers, and fuses. Check the voltage at the motor connections with a multimeter to make sure it meets the stated requirements. Check the contactor coils for signs of burnout. Coils that are darkened or smell like they are on fire mean that they need to be replaced. Power spikes during electrical storms often cause control modules to fail, especially in places that don't have surge safety devices.

Overheating During Operation: Thermal stress greatly shortens the life of motors. Make sure there is still enough air flow around the motor housings; blocked air vents cause heat to build up. Check the load conditions; motors that are too small have trouble with curtains that are too big or mechanical links that are too tight. Use a clamp meter to check the working current. Readings that are 15% higher than the nameplate values mean that there is an overload that needs to be fixed right away.

Unusual Noises or Vibrations: Grinding sounds usually mean that a bearing is failing because of too much wetness or not enough oil. Most of the time, clicking sounds are caused by fixing bolts that aren't tight enough, letting the machine move around too much. Rhythmic rattling could mean that gear teeth are damaged and the shaft needs to be inspected. If you don't fix these problems right away, the damage to the parts will get worse faster.

Diagnostic Tools and Techniques

For professional analysis to work, the right tools must be used. Digital multimeters check the resistance, continuity, and voltage across motor windings. Infrared thermometers can find hotspots that mean there are problems with the bearings or the covering on the windings. For testing insulation resistance between windings and motor frames, megohm meters are used. Readings below 1 megohm mean that moisture is present and the Poultry House Breeding Drive Motor needs to be dried completely before it can be started up again.

Phase rotation testers make sure that three-phase motors get power in the right order. Reversed phase rotation makes the process go backwards or fails to start. Vibration monitors use frequency analysis to find patterns of bearing wear. This lets maintenance be planned ahead of time, before a catastrophic failure happens.

When to Repair Versus Replace

This choice is based on a study of the economy. Motors with burned windings need to be rewound, which takes weeks longer and costs 60–70% of the price of a new motor. During busy production times, breeder houses can't afford to have long periods of downtime. When motor frames and windings are still in good shape, it makes sense to change the bearings. This usually costs 20–30% of the price of a new unit and can be done the same day.

Think about the total cost of ownership. Older motor designs don't have the safety and efficiency features of newer ones. By reducing the amount of energy used and the number of times they need to be maintained, upgrading to newer models with intelligent control links can cut running costs by over 40%. Our engineering team at Weifang Shuilin Musen does a full return on investment (ROI) study for you, comparing repair and replacement choices based on your unique business needs.

Troubleshooting Checklist for Quick Resolution

Structured testing procedures are helpful for maintenance teams. Start by writing down specific details about the symptoms, like when the failure happened, what the motor was driving, and were there any warning signs before it happened. During a visual check, you should look for signs of corrosion, broken wires, and strange deposits around the connections.

Electrical tests must check the quality of the input power, the integrity of the control signals, and the state of the motor windings. As part of the mechanical review, the mounting stiffness, coupling alignment, and driven load movement resistance are all checked. This methodical technique cuts the time needed to diagnose from hours to minutes and keeps failure reasons from being missed.

Maintenance Tips to Prevent Drive Motor Malfunctions

Preventative maintenance stops 80% of motor problems before they happen and greatly increases the life of equipment. Setting up routines cuts down on emergency fixes and unplanned downtime.

Routine Inspection and Cleaning Protocols

Visual checks once a month catch problems early as they start to happen. Check the motor housings for cracks, missing parts, or bolts that are coming loose. Use compressed air to clean the venting holes of dust and dung that has built up. Do not use high-pressure water jets directly on motors unless the Poultry House Breeding Drive Motor has an IP66 grade, which means they are made to be used in wet settings.

Deep checks should be done every three months, and the final box should be inspected. Tighten all of the electrical links because vibrations cause them to loosen over time. Protect uncovered wires from water and corrosion by putting dielectric grease on them. Check the pipe covers and wire entry points where ammonia vapor can get in the most easily.

As part of the manufacturer's recommended annual upkeep, bearings must be oiled. Too much grease damages seals and builds up heat, while not enough grease speeds up bearing wear. Keep track of when and how much you lubricate to find out how much you use on a regular basis. Unexpected increases cause warning seal failure that needs quick attention.

Energy Efficiency Practices

The right size motor cuts down on lost energy. Oversized motors don't work well when they're only partially loaded, using too much power and making too much heat. Variable frequency drives (VFDs) make the best use of energy by matching the speed of the motor to the demand. Putting VFDs on curtain and outlet motors cuts energy use by 25 to 35 percent compared to running them at a set speed.

Modern control systems connect many motors to work together as a network of automated systems. Intelligent connection makes sure that the positions of the air intakes are in sync with the angles of the tunnel doors and the speeds of the exhaust fans. This keeps the static pressure in the building at the ideal level. Temperature, humidity, and CO2 monitors make these systems constantly change. This eliminates the energy waste that comes with manual control or simple timer-based operation.

Strategies to Mitigate Environmental Stress

40% of motor breakdowns in poultry settings are caused by dust buildup. Putting input screens on motor cooling fans stops particles from getting in while keeping air flow going. If you can, move the motors away from areas with a lot of dust. Mounting the actuators above areas where curtains are stored greatly reduces exposure.

Paying attention to the details of placement is important for moisture protection. Mount motors so that the pipe openings face downward. This will keep water from collecting in the junction boxes. Apply coats that don't rust to cast iron housings that will be washed many times. Putting silicone sealant around the mounting plates makes even more shields against water.

Mechanical stress breakdowns can be avoided with load control. Check driving equipment often for sticking or resistance increases. Curtain tracks collect dirt and dust, which makes motors work harder than they should. Over time, feed line wires stretch, which adds to the load on the winch motor. Taking care of these technical problems before the motors show any signs stops them from wearing out too quickly.

Smart Installation and Integration of Drive Motors in Poultry Houses

The quality of the installation decides how reliable the Poultry House Breeding Drive Motor will be over its entire working life. When placing and connecting equipment, taking shortcuts can lead to long-lasting problems that make even high-end equipment less effective.

Best Practices for Matching Motor Specifications

Designers of facilities must correctly figure out how much power is needed. Curtain systems that weigh between 200 and 500 pounds need motors with enough starting power to get rid of static friction and keep motion control smooth. We have tools for figuring out torque that take into account the weight of the curtain, the friction between the track and the curtain, the wind load resistance, and the desired journey speed.

Voltage matching is only one part of electrical connectivity. Check that the voltage outputs of the control system match the inputs of the motor control module. The voltage levels should be 24VAC, 110VAC, or 220VAC, based on the standards in your area. Our motors have voltage compatibility that can be changed, so they can work with existing systems without having to pay for expensive electricity improvements.

Ratings for duty cycles are very important. When they are used continuously, intermittent-duty motors break down quickly. When used in breeder houses, motors need to be rated for continuous service so they can keep running even during extreme weather when keeping the flocks safe is essential.

Installation Steps That Enhance Durability

Vibration damage can be avoided by fixing correctly. Use all of the mounting holes that came from the factory to attach motors to hard structure parts. Flexible fastening surfaces make vibrations stronger, which speeds up bearing wear and leads to problems before they should. Using laser alignment tools, make sure that motor shafts are perfectly lined up with the driven equipment. Misalignment of more than 0.5 degrees leads to coupling wear and shaft stress.

Longevity is directly affected by how the wires are used. To lower voltage drop and heat production, use wire sizes that are bigger than what the minimum code requires. When installing tubing, make sure there aren't any sharp curves that could damage the insulation when the wires are pulled. Clearly label all of the links so that they can be quickly fixed during future repair.

Protective gadgets need to be set up properly. To stop thermal overload switches, set the current to 110 to 115% of the motor's rated current. Change the settings of the limit switches so that movement stops two to three inches before the mechanical ends. This will keep driven equipment from being damaged by impacts. You can set up emergency stop circuits to cut off power right away when they are triggered, saving both people and equipment.

Synergy Between Drive Motors and Ventilation Systems

Integrated automation turns separate parts into environmental control systems that work together. To keep the goal steady pressure, the drive motors that change the positions of the intake fans must work with the staging of the exhaust fans. When the tunnel fans turn on, the inlet motors should open the tunnel doors and close the sidewall inlets at the same time. Programmable controls that watch over multiple sensors make this cooperation happen instantly.

Real-time input from static pressure devices lets you control things precisely. As the wind changes outside, motors constantly change the holes to the inlets, keeping the pressure inside stable no matter what the outside conditions are. This dynamic reaction stops leaks when it's cold outside and makes the cooling system work as efficiently as possible when it's hot outside.

Our flexible motor designs work perfectly with the world's best control systems. Pre-programmed interface units get rid of the need for complicated custom programming, which greatly speeds up the installation process. Technicians can follow detailed installation videos that walk them through the setup process, making sure that the system works at its best from the start.

Selecting Reliable Brands and Suppliers for Poultry House Breeding Drive Motors

The standard of equipment made by different companies changes a lot. Choosing the right provider is very important because choices about purchases have long-lasting effects on the reliability of operations.

Evaluating Motor Brands Based on Durability

Premium makers put a lot of money into making styles and materials that don't rust. In places with a lot of ammonia, cast iron housings with special treatments that stop corrosion last 5 to 7 years longer than painted steel ones. Copper motor windings are more expensive than aluminum ones, but they last longer and conduct electricity and heat better, so the extra cost is worth it.

Protection features set industrial-grade gear apart from consumer-level options. Overload safety with multiple stages keeps an eye on current, temperature, and mechanical binding all at the same time. Built-in emergency stop buttons and trip limit switches keep damage from happening when the control system fails. These safety features are very helpful when things go wrong, which often happens in farming.

In work settings, performance uniformity is very important. Motors must safely give their stated torque over the temperature range they are designed for, without de-rating. When manufacturers put out specific performance graphs, it shows that engineers are confident in their designs. Before clearing them for production, we put our Poultry House Breeding Drive Motor units through a lot of tests that make them work like they have for years in the field.

Criteria for Assessing Supplier Reliability

How quick a supplier is affects how long equipment breakdowns last. Check the average reaction times for technical help questions and the availability of parts for items that get worn out often. Keeping parts in stock locally cuts down on shipping delays, and companies with US-based parts distribution allow important parts to be shipped the same day.

Customization features meet the specific needs of operations. Large-scale operations often need motor designs that aren't standard to work with the infrastructure that's already in place. Motors with changed mounting patterns, special shaft lengths, or different voltage needs can be customized by suppliers who offer OEM modification. Our five-person engineering team at Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. creates custom solutions that meet exact needs. They do this with eight years of experience working with farming equipment.

The level of after-sales service shows how committed a seller is. Technical support that covers everything includes help with installation, starting, and problems. We offer thorough installation videos and help on-site if needed. Our one-year guarantee covers problems with the way the product was made and how well it works, covering your investment during the important first few months of use.

Balancing Cost Against Long-Term Value

The initial buying price only makes up 30–40% of the total costs of owning. The main things that affect lifecycle costs are energy use, the regularity of upkeep, and the time between replacements. Energy-efficient motors use 20–30% less power each year, which saves money that is quickly recouped within 18–24 months.

When you order in bulk, you save a lot of money. Volume pricing systems are good for businesses that are growing or for equipment sellers who are adding new product lines. We work with buying managers to set up orders in a way that saves money and makes sure there is enough product for planned projects.

The warranty terms show how confident the maker is. Standard one-year guarantees cover problems with the way the product was made, while extended warranties that cover three to five years show that the quality is really good. Know what the guarantee doesn't cover—many makers won't cover motors that are used in certain environments or that have been changed without permission.

Conclusion

To fix Poultry House Breeding Drive Motor problems, you need to be able to diagnose them in a structured way, have the right tools, and know how common failure modes work. Regular maintenance stops 80% of unplanned breakdowns and greatly increases the life of equipment. Performance and energy economy are improved by smart installation methods and systems that control the surroundings. By choosing dependable suppliers, you can be sure of getting access to high-quality tools, quick expert help, and full warranty protection. These factors work together to decide how well modern chicken breeder houses run, where automation drives profits and improves the health of the flock.

FAQ

What are the first signs that my drive motor needs some TLC?

Keep an eye out for gradually changing performance, such as slower trip speeds, more noise while operating, or starting problems that come and go. If a motor is taking more current than its nameplate rate or running warmer than usual, it means that problems are starting to show up and need to be checked out before they break completely.

How often should skilled repair be done on drive motors?

Visual checks once a month catch clear problems, and electrical testing every three months and bearing servicing every year cover all the bases for preventive maintenance. Feeding systems and other systems that get a lot of use may need more frequent maintenance, especially during busy production times when dependability is very important.

If a motor breaks, can I get a different brand?

Compatibility depends on the size of the fixing hole, the specs of the shaft, and the power needs of the control. Before switching brands, make sure these factors match exactly. When you mix parts from different makers, they may not always work well together and need extra connections or changes to the control.

What kinds of weather factors hurt chicken house motors the most?

Terminal rust and coil insulation breakdown happen when ammonia is present. When sealing isn't done right, moisture can get in and cause bearing failure and electricity shorts. Too much dust stops the flow of cooling air, which causes thermal stress that speeds up the breakdown of parts throughout the motor assembly.

Partner With Shuilin Musen for Reliable Drive Motor Solutions

The motors that Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. sells are built to work well in the harsh conditions of chicken houses. After eight years of focusing on agricultural automation tools, we've come up with better ways to make products that can handle ammonia, water, and ongoing use. As a maker that only makes poultry house breeding drive motors, we offer full support, including installation guides, on-site commissioning help, and quick expert support.

For stable performance from 0.75KW to 3KW across temperature ranges of -20°C to +60°C, our copper motor designs with flexible power, control, and safety systems are the best choice. Customizing the equipment meets the specific needs of each job, and our one-year warranty and ongoing expert help protect your investment. Visit slms-equipment.com or email wangshuaislms@gmail.com to talk about motor solutions that are made to fit the needs of your building and learn how our low-cost designs can cut your running costs by over 40%.
