Poultry Cooling Pad System vs Fogging System: Which Is Better?

When managing large-scale poultry operations, choosing the right climate control technology directly impacts bird welfare, operational costs, and profitability. After evaluating both systems across hundreds of commercial installations, we can confirm that Poultry Cooling Pad Systems deliver superior performance in most intensive farming scenarios. These evaporative cooling solutions achieve consistent temperature reductions of 5-8°C while maintaining lower operational costs and greater system stability compared to fogging alternatives. The choice ultimately depends on your specific climate conditions, facility design, and production goals, but cooling pads consistently demonstrate better cost-effectiveness and reliability in medium-to-large operations.

Understanding Poultry Cooling Systems: Cooling Pads and Foggers

How Evaporative Cooling Pad Systems Work

Simple thermodynamic rules govern how Poultry Cooling Pad Systems work. A pair of vent fans at the other end of the building pull hot air from outside through wet cellulose pads. As air moves through the wet media, water molecules evaporate, taking in heat energy and lowering the dry-bulb temperature of the air before it reaches your birds.

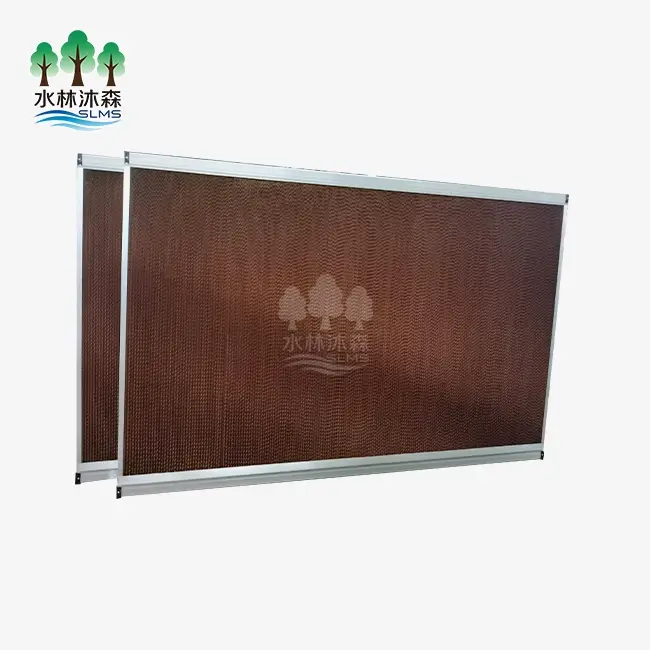

These days, Poultry Cooling Pad Systems are made of corrugated cellulose paper that has been treated with special cross-linked polymers. This process makes sure that the structure stays strong even when it's constantly exposed to water while also increasing the surface area that can evaporate. The corrugated design makes rough airflow patterns that increase the time that air and water are in contact with each other, which makes cooling more effective. The thickness of our Model 7090 Poultry Cooling Pad Systems can be either 15 cm or 20 cm. The thicker choice is better for keeping you cool in very hot situations.

The method works with negative pressure ventilation systems that are popular in chicken homes with tunnel ventilation. Water distribution methods use perforated lines along the top edge to keep the pad consistently saturated. Recirculation pumps keep water from going to waste by collecting and using runoff. This makes the system very water-efficient, even though it works all the time during the hot months.

How Fogging Systems Operate

Fogging devices work differently. They use high-pressure nozzles to send very small water droplets (about 5–10 microns in diameter) straight into the barn. These very small drops float in the air and quickly evaporate while collecting heat before they fall to the ground. To atomise water well, the system needs high-pressure pumps (800 to 1200 PSI).

When it comes to cooling, fogging works quickly and can be put in places where traditional pad systems can't. The tech works well for cooling specific areas on the spot or to help other air methods. However, fogging systems can't work well in humid places where too much water can fill the air and stop it from evaporating, leaving wet litter that is bad for birds' health.

Climate Suitability and Water Quality Considerations

The weather has a huge effect on how well a system works. Poultry Cooling Pad Systems work best in hot, dry places with low relative humidity so that water can evaporate as quickly as possible. In the southwestern United States, pad systems that are properly set up can regularly lower the temperature by 10 to 15°C in the summer afternoons when it's over 38°C outside.

Fogging systems work well in mild areas but not so well when humidity levels rise above 70%. The risk of overwetting rises, which could make breathing difficult and cause ammonia to build up in damp clothing. The quality of the water is very important for both devices. Hard water with a lot of minerals builds up scale that makes them less efficient and needs to be maintained often.

Key Performance Comparison: Cooling Pad System vs Fogging System

Temperature Reduction Efficiency

In most situations, Poultry Cooling Pad Systems are better at lowering temperatures than other methods. When installed correctly, they consistently lower the temperature of the intake air by 5 to 8°C in mild climates and by 12 to 15°C in dry regions. This level of performance stays the same throughout the day, making the climate control reliable for automated systems.

Fogging methods don't always give the same effects. They can cool specific areas right away by 3 to 5°C, but the general temperature drop in the barn is usually only 2 to 4°C. Performance drops a lot as humidity rises, which makes it less useful during the humid summer months when cooling needs are highest.

Impact on Bird Health and Productivity

Stable temperatures are directly linked to measures of chicken welfare and productivity. Heat stress causes a chain of bodily reactions, including faster breathing, less food intake, weaker immune systems, and higher death rates. Keeping the temperature in the barn below 27°C for broilers and 24°C for layers helps them grow and lay eggs at their best.

When properly combined with tunnel air, Poultry Cooling Pad Systems make the temperature evenly spread. Conditions are the same for all the birds in the building, so there are no hot spots that affect how well the group does overall. The constant flow of air also makes the air better by getting rid of dust, ammonia, and pathogens.

When fogging systems aren't managed properly, they can cause uneven cooling patterns and high humidity in certain areas, which can lead to respiratory diseases. Wet trash from droplet fallout makes it easier for pathogens to grow, especially dangerous bacteria like Clostridium perfringens. This makes footpad dermatitis more common.

Energy Consumption and Operating Costs

Energy economy is a very important part of the long-term costs of operations. Poultry Cooling Pad Systems only use a small amount of electricity—mainly to run return pumps, which need between 0.5 and 1.5 kW. The exhaust fans use most of the energy, but they would still be running to move the air around.

For fogging systems to work, they need high-pressure pumps that use 3–7 kW of power all the time. The higher demand for energy means higher operating costs, especially during long summer cooling periods. During the normal five-month cooling season, mist systems can use 200–300% more energy than pad systems.

The amount of water used is also very different. Both systems cool by evaporation, but Poultry Cooling Pad Systems do a better job of recirculating water so that they only lose what evaporates. Fogging systems lose water because droplets that haven't drained fall to the ground. They also need 30–50% more water to cool the same amount of space.

Maintenance Requirements and System Longevity

The amount of maintenance needed has a big effect on the total cost of ownership. Poultry Cooling Pad Systems need regular upkeep, like checking every week to make sure the water is spread out evenly and cleaning every month to stop algae growth. Depending on the water quality, the pads may also need to be replaced every season. Good Poultry Cooling Pad Systems like our Model 7090 usually last three to five seasons before they need to be replaced. This is especially true if the frames are made of an aluminium metal or stainless steel that doesn't rust.

More work needs to be done on fogging systems. Mineral layers often block the nozzles, so they need to be cleaned or replaced every week. Regular maintenance is needed for high-pressure pumps, and filter systems need to be watched all the time to make sure they don't break down. It costs more to repair parts, and the costs often go over pad system upkeep costs by 40 to 60 percent a year.

Pad system design that is easy to understand means that it is more reliable. Failure points are lowered when there are fewer moving parts and lower operating pressures. Our installations always have 95% or more uptime during the busy summer months. Fogging systems, on the other hand, only have 85 to 90% uptime when maintenance schedules are strictly followed.

Procurement Considerations for B2B Clients

Matching System Design to Facility Scale

The size of the farm has a big effect on the best cooling system choice. Integrated Poultry Cooling Pad Systems work best for operations that house more than 20,000 birds in tunnel-ventilated buildings. The numbers get better as the facility gets bigger. This is because the costs of the tools are spread out among more birds, which lowers the investment per bird while keeping the environment the same throughout the building.

Fogging devices may be easier to use with current equipment in smaller operations with 5,000 to 15,000 birds that are kept in naturally ventilated or partially controlled areas. Because the system is modular, it can be slowly expanded as needed. However, for long-term efficiency reasons, it is better to switch to Poultry Cooling Pad Systems when facilities need major renovations.

Climate Considerations and Regional Performance

The position of a cooling system has a big impact on how well it works. Poultry Cooling Pad Systems work really well for farmers in Arizona, Texas, California's Central Valley, and other dry areas. When atmospheric temperatures are high and humidity is low, the conditions are perfect for lowering temperatures the most while adding the least amount of wetness.

States in the southeast that have high humidity in the summer make things more difficult. Poultry Cooling Pad Systems still work better than fogging options, but they need to be carefully watched for high humidity to keep them from building up too much wetness. By combining relative humidity sensors with automated controls, systems can change the flow of water to balance the need to lower the temperature with the need to address humidity concerns.

Investment Analysis and Return on Investment

The amount of capital that each system needs is very different. A full Poultry Cooling Pad System installation for a 40,000-bird grill house usually costs between $15,000 and $25,000. This includes the pads, frames, water distribution systems and connecting the new equipment to the air system that is already there. Fogging systems with the same amount of volume cost between $8,000 and $15,000. They require less money to buy but cost more to run.

To figure out the return on investment, you have to look at how much energy the system uses, how long it lasts, how much it affects output, and so on. Poultry Cooling Pad Systems usually pay for themselves in two to three years thanks to lower running costs, lower mortality, and better feed conversion rates. Fogging systems have longer payback periods because they have higher ongoing costs. However, the exact results depend on the utility rates in your area and the production parameters.

Supplier Selection and Customization Capabilities

Picking dependable equipment sellers has a big effect on long-term happiness and the way well the system works. For eight years, Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has been making cooling systems and has become a master at controlling the temperature for farms and animals. Our professional research and development team of five dedicated engineers is always making product designs better. Each year, they release three or more new products to meet the changing needs of the industry.

When adding cooling systems to buildings that are already there and have special measurements or needs for operation, the ability to customise is very important. We let you completely change the size of the pads, the frame material (aluminium alloy or stainless steel), and the way the water systems are set up. This adaptability makes sure the best fit no matter what the building limitations are, getting rid of compromises that make the system less effective.

Making the Decision: Which System Is Best for Your Business?

Decision Framework for System Selection

To choose between Poultry Cooling Pad Systems and fogging systems, you need to look at a lot of factors that are all linked. The weather is the most important thing to think about. Poultry Cooling Pad Systems work best in hot, dry places where the relative humidity stays below 60% in the summer. pad systems should be the first choice for operations in the southwestern United States, parts of California, and other dry areas.

The second important factor is the form of the building and its air system. Tunnel-ventilated homes with the right air flow (1.5 to 1.75 meters per second) are perfect for adding a Poultry Cooling Pad System. Before Poultry Cooling Pad Systems can fully work, the foundations of open-sided buildings or buildings that don't have enough fans may need to be upgraded. Fogging systems can be easily changed to fit different building designs, but they lose efficiency and performance consistency in the process.

It's important to think about the total cost of ownership when making a budget, not just the initial cash spending. Businesses that don't have a lot of money may like fogging systems because they don't require as much money up front. However, this kind of short-term thinking usually ends up costing them a lot. For businesses that can afford it or spread the cost of the equipment over several production cycles, Poultry Cooling Pad Systems are worth the extra money because they lower operating costs, are more reliable, and work better.

Long-Term Strategic Considerations

Commercial chicken production is still moving toward bigger farms, more automation, and stricter environmental controls. Poultry Cooling Pad Systems are more in line with these industry trends because they can be connected to high-tech temperature control computers that can change the flow of water, keep an eye on how well the system is working, and automatically use the least amount of energy possible.

Environmental laws are becoming stricter and are looking more closely at how much water and energy farms use. The better water economy of Poultry Cooling Pad Systems through recirculation and lower energy use make activities more favourable as rules change. Showing care for the earth also helps with marketing efforts and meets the growing sustainability needs of retailers.

Our modular design lets the Poultry Cooling Pad System grow as the business does. Adding pad parts and increasing the amount of water that can be distributed can make initial setups bigger without spending too much money. This adaptability keeps expensive equipment safe while allowing for business growth, so when facilities grow, there's no need to replace the whole system.

Conclusion

After comparing them, it was found that Poultry Cooling Pad Systems work better for most commercial poultry uses. Compared to mist options, these evaporative cooling systems lower temperatures more effectively, keep the temperature more stable, cost less to run, and need less upkeep. Tunnel-ventilated facilities that are used in hot, dry areas get the most out of fogging, but properly built Poultry Cooling Pad Systems work better in a wide range of environmental conditions. While misting systems require less money up front and can be easily modified to fit different building layouts, Poultry Cooling Pad Systems are better for medium to large businesses that want to be more efficient and productive in the long run.

FAQ

How frequently do cooling pads require maintenance and replacement?

Regular maintenance checks the even distribution of water once a week and cleans the Poultry Cooling Pad System once a month to keep algae from building up. This is especially important in warm climates where biological growth speeds up. Depending on the water hardness, pH balance, and how hard the machine is used, good Poultry Cooling Pad Systems should be replaced every three to five years. Our Model 7090 pads are more durable thanks to a special resin treatment. When water quality is handled properly, they often last longer than the average pad in the business. Keep pH levels between 6 and 8 and use "bleed-off" of recirculated water on a regular basis to keep minerals from building up.

Can cooling pads and fogging systems be combined effectively?

Hybrid methods that use both technologies can be useful in some situations, but they need to be carefully designed to keep moisture from building up in ways that aren't helpful. Some big businesses use Poultry Cooling Pad Systems as their main way to lower the temperature, while focused fogging is used in certain areas that need extra cooling. This plan works best in very dry, hot places where evaporative capacity stays high even when combined moisture is added. Most facilities, though, find it easier to optimise a single system than to deal with the complexity of two different technologies.

What is the typical return on investment timeline for cooling pad systems?

Payback times depend on the severity of the climate in the area, the cost of energy, the number of birds in the area, and the type of production. However, most commercial installations get their full ROI within 24 to 36 months. In places with extreme heat and a lot of heat stress, operations usually get their money back within 18 to 24 months just by lowering mortality, and that's before they take into account better feed conversion and output stability. Layer businesses usually have longer payback periods of 30 to 42 months, but they gain from steady production levels and egg quality during the summer, when uncontrolled facilities see big drops.

Partner with Shuilin Musen: Your Trusted Poultry Cooling Pad System Manufacturer

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. can help you get the best climate control for your facility by using tried-and-true cooling methods. Our Model 7090 Poultry Cooling Pad System gives you measured results—consistent temperature drops of 5 to 8°C, long-lasting materials that don't rust, and full support throughout your ownership experience. We make pads out of high-molecular-weight cross-linked polyethylene that come in two thicknesses (15 cm or 20 cm) and frames out of aluminium alloy or stainless steel, depending on what your building needs.

There is a one-year warranty on the work done by our engineering team, as well as installation videos, detailed technical documentation, and on-site installation services. Please email us at wangshuaislms@gmail.com to talk about your unique cooling needs and get a personalised quote. As a reputable provider with eight years of experience in manufacturing and the ability to cut labour costs by over 40% compared to traditional methods, we turn problems with climate control into competitive benefits for businesses all over the world.

References

1. Lott, B.D., Simmons, J.D., and May, J.D. (1998). Air velocity and high temperature effects on broiler performance. Poultry Science, 77(3), 391-393.

2. Yahav, S., Straschnow, A., Luger, D., Shinder, D., Tanny, J., and Cohen, S. (2004). Ventilation, sensible heat loss, broiler energy, and water balance under harsh environmental conditions. Poultry Science, 83(2), 253-258.

3. Czarick, M. and Lacy, M. (2000). Tunnel ventilation of broiler houses. Poultry Science, 79(9), 1493-1501.

4. Dozier, W.A., Lott, B.D., and Branton, S.L. (2005). Growth responses of male broilers subjected to increasing air velocities at high ambient temperatures and a high dew point. Poultry Science, 84(6), 962-966.

5. Gates, R.S., Overhults, D.G., and Zhang, S.H. (1996). Quantifying tunnel ventilation effectiveness in broiler housing. Transactions of the ASAE, 39(5), 1907-1913.

6. Timmons, M.B. and Baughman, G.R. (1981). Similitude analysis of ventilation in full-scale and model poultry houses. Transactions of the ASAE, 24(5), 1341-1345.
