Top-rated ventilation baffles for poultry houses

When you look for the best ventilation baffles for chicken houses, you'll find specialized air intake devices that control how air flows in business farming facilities. A Poultry House Ventilation Baffle is a precision-engineered part that is attached to the sides or ceilings of a poultry house. Its job is to direct fresh air upward so that it mixes with warm roof air before it gets to bird level. This design stops cold air from dropping, keeps the temperature inside the building constant, and keeps your flock from getting thermal shock. When you use good baffles, you can see a difference in the feed conversion rates. They also lower the amount of ammonia in the air and get rid of hot spots that hurt output in broiler, layer, and breeder operations.

​

​



​

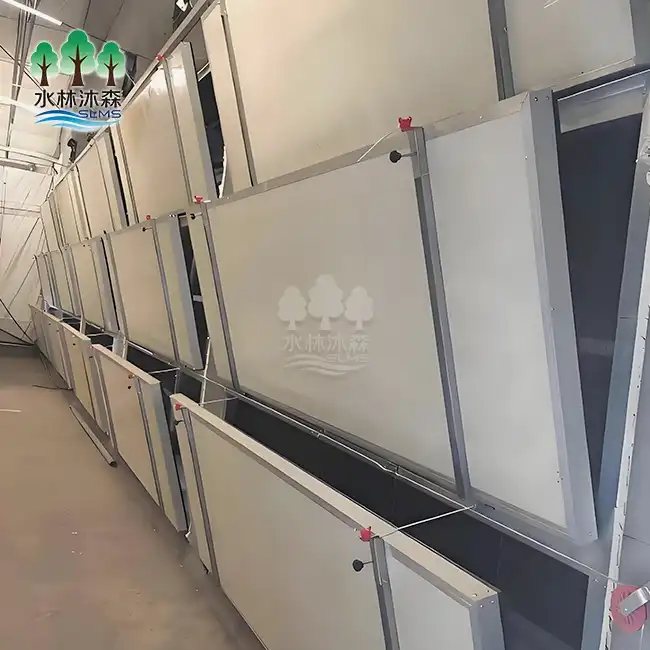

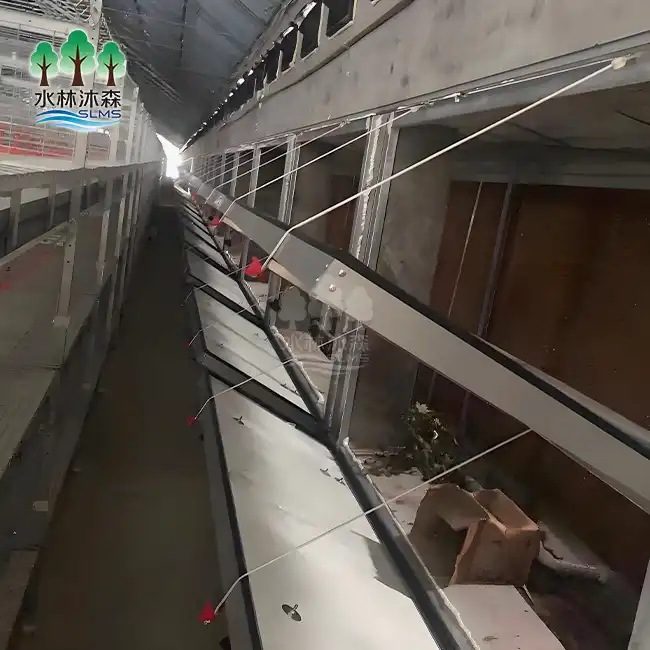

Understanding Poultry House Ventilation Baffles

What Makes These Devices Essential?

Ventilation screens decide how much fresh air comes into your chicken coop during low-flow and transitional ventilation modes. Unlike regular wall holes, these designed inlets make a fast-moving air jet that goes along the ceiling, mixing cold air coming in with warm air that has been building up before it falls to bird level. This mechanism stops the cold air dump that stresses out young chicks and makes it harder for adult groups to eat.

The main job is to keep the standing pressure in the water level between 0.05 and 0.12 inches. When vent fans make the air inside the house less dense, air rushes through carefully placed baffles instead of cracks and gaps that weren't meant to be there. With this managed entry point, you can precisely control the speed, direction, and spread pattern of the air.

Key Performance Benefits

Improving the quality of the air is one of the most obvious effects. When baffles work right, they move ammonia and carbon dioxide from areas of the roof where they tend to build up. The constant flow of air keeps wetness from building up, which can cause wet trash, footpad dermatitis, and breathing problems. Your birds are safe inside because the air level stays the same and the disease pressure goes down.

During the payment cycle, improvements in energy saving become clear. When exhaust fans turn off, sealed vents stop air from leaking out. This keeps the static pressure that makes your ventilation system work well. You're not heating or cooling air from outside that comes in through cracks you didn't mean to. With the focused airflow pattern, you can meet your environmental goals with fewer hours of fan runtime than with inlet systems that aren't controlled well.

Common Baffle Configuration Types

Panel-style shields are used most often in modern chicken coops. When negative pressure pulls these units open, an insulating panel on the inside opens inward, sending a jet of air upward. Air speed and throw distance are based on the angle of the panel and the width of the hole. Most panel systems come with automatic controls that change the opening based on readings from temperature sensors and static pressure sensors.

Curtain-style systems are flexible and can be used in older buildings or by businesses that want to save money on their first investment. These cloth or reinforced vinyl walls hang along the sides and can be raised to certain heights by winch systems that can adapt to the needs of the surroundings. Curtain setups aren't as accurate as fixed panel systems, but they work well in some situations, especially in mild areas where controlling extreme temperatures isn't as important.

The best type of shield is one that can be adjusted in angle. You can change not only the hole width but also the angle at which the air deflects with these units. This skill comes in handy when dealing with different stages of growth, changes in the seasons, or odd-shaped buildings. With the adjustment feature, you can get the best performance even as the flock ages and the weather changes during the production cycle.

Top-Rated Ventilation Baffles for Poultry Houses: A Comparison

Material Construction and Durability Standards

The difference between useful tools and solutions that will last for ten years is the quality of the building. The best filter systems use UV-stabilized materials that don't break down in light, which can cause them to become weak and crack. The heart of the panel is usually made of polyurethane foam, which has an R-8 to R-12 insulating value. This keeps condensation from building up inside the panel and dripping onto trash, which corrodes mechanisms.

When there is a lot of ammonia in the air, frame building needs extra care. At Shuilin Musen, our shields have frames made of either aluminum alloy or 304 stainless steel. The metal parts are coated with high-zinc. This standard deals with the problem of corrosion that makes tools in chicken houses last less long. We put the coated steel we use for structural parts through a lot of salt spray tests to make sure it can handle the harsh chemicals that are used every day in your building.

If a baffle system keeps the right static pressure, sealing technology tells us. When the panels are closed, double-lip covers made of thermoplastic rubber keep the air out. This feature stops air from leaking, which reduces the effectiveness of airflow and wastes heating fuel when the building is used in cold weather. Before equipment leaves the plant, good makers put it through smoke tests under negative pressure to make sure the seals are still good.

Automated Versus Manual Operation Systems

Environmental controls that keep an eye on static pressure, temperature, and humidity are built into automated screen systems. Linear actuators or winch mechanisms change the opening of the panel in small steps, reacting to real-time conditions without any help from the user. With this level of accuracy, the setting is always managed well, even when staff are busy with other tasks. The automation cuts down on the need for workers and makes all the houses on big farm buildings more uniform.

Hand-cranked winches or stop devices that can be adjusted are used in manual methods. Operators physically set the width of the baffles based on what they see and what they know from experience. Manual systems are cheaper to buy at first, but they require more work and rely on the skill of the person using them to find the best choices. The delay between changes in the environment and human adjustments can make it hard for the flock to stay comfortable when the weather changes quickly.

Based on the size of the business, the cost-benefit analysis changes. A facility that takes care of 100,000 birds in various houses usually gets the extra cost of automatic systems back within one to two production cycles by saving time and money on feed conversion and labor. Smaller businesses with hands-on managers may find that manual methods work well, especially if the building's design and the weather in the area make it so that changes don't need to be made very often.

Integration with Existing Ventilation Infrastructure

Good barrier systems will work with the vent fans you already have. Matching the fan's CFM numbers to its inlet size is the most important part of compatibility. As a general rule, you should have about one square foot of space for air flow for every 750 to 800 CFM of exhaust capacity when minimum ventilation is in effect. Our engineering team at Shuilin Musen figures out exact requirements for each Poultry House Ventilation Baffle by looking at the size of your home and how your equipment is set up.

When renovating older buildings, installation freedom is important. The baffle mounting method should work with different wall thicknesses and types of building without needing major changes. When our units are shipped, the length and width can be changed to fit the plan of your building. Because it is so light, installation can be done by two people without any heavy tools, which cuts down on costs and time.

How to Choose the Right Ventilation Baffle for Your Poultry House?

Assessing Your Facility Requirements

Size of the house directly affects the number and placement of baffles. A 40-foot-wide broiler house needs a different way of distributing airflow than a 60-foot-wide layer plant. You figure out the total intake area by finding the maximum capacity of your exhaust fan in minimum ventilation mode. Then, you spread that opening out evenly along both sides, making sure that the baffles are properly spaced. The goal makes the negative pressure the same all the way along the house length.

Performance objectives are set by the type of bird and the type of production. Rapid air mixing is a top priority for broiler operations to avoid cold stress during the first 14 days, which are very important. To keep egg output even, layer farms make sure that the air quality is the same between rows of cages. To exactly control photoperiod, breeder houses may need to have light traps built in with baffles. Your choice should be based on these species-specific needs, not on general requirements.

The weather in your area determines how much insulation you need and how important it is that the seals are of good quality. In order to keep snow from forming and heat from escaping, operations in northern areas need baffles with high insulation values. Facilities in the South stress how long something can last under strong UV light and how well it can handle high humidity loads. The baffle system must work consistently in all of your area's weather changes and during all four seasons.

Budget Optimization and ROI Calculation

The initial cost of the tools is only one part of the total costs of ownership. A cheaper filter system that needs to be replaced every five years usually costs more than a high-end one that lasts fifteen years. When you look at prices, you should think about how long the product is expected to last, how much upkeep it will need, and how energy-saving changes can lower your ongoing operating costs.

Our team has kept track of performance data that shows correctly installed Poultry House Ventilation Baffle systems usually increase feed conversion by 2 to 4 points compared to air that isn't handled well. At the price of feed right now, this efficiency gain means big saves for every thousand birds grown. Another measured benefit is that better air quality lowers death rates. These changes to operations usually make the higher prices of premium tools worth it within two production runs.

Bulk buying has big benefits for businesses with multiple locations or that sell a lot of tools. Ordering in bulk lowers the cost per unit and makes sure that all of your facilities follow the same specs. Shuilin Musen can make custom solutions for farm buildings and is willing to work with wholesalers who want to add ventilation goods to their product lines and name them themselves.

Installation and Maintenance Practicality

Equipment that needs to be installed by someone with special skills or that has complicated upkeep plans comes with extra costs. High-quality filter systems have easy-to-follow installation steps that farm crews can do with common tools. You don't have to hire an expensive contractor to help you set up our units because they come with full installation movies that show you every step.

Long-term dependability is affected by how easy it is to do maintenance. Panel hinges, actuator motors, and seal parts need to be serviced or replaced at some point. Repairs can be done on baffle designs that keep the whole unit attached to the wall, which saves a lot of time and money on downtime. It is possible to do high-pressure washouts during a house cleanout without damaging any gears or seals. This keeps cleanliness standards high without shortening the life of the equipment.

When repair needs come up, the supply of parts is important. Well-known makers keep parts in stock and make it easy to identify parts. With this support system, you can quickly get new motors, springs, or seals instead of having to wait weeks for custom parts. The difference in production continuity between an hour-long fix and two weeks without tools is very large.

Procurement Insights: Where and How to Buy Poultry House Ventilation Baffles

Identifying Qualified Suppliers

When choosing a supplier, you need to check more than just what the marketing says. Instead of general industrial ventilation, look for makers that have experience with uses that are specific to poultry. Some of the problems that come up in poultry houses are ammonia exposure, the need for high-pressure cleaning, and the careful control of low-volume airflow. Companies that have been in this market for eight years or more usually know these needs very well.

Quality approvals give industrial standards an objective seal of approval. Different regions have different certificates, but all suppliers should show that they have a method for quality control that includes testing materials, checking assemblies, and making sure products work as expected. At Shuilin Musen, every part is checked over before it is put into a finished unit, and we test its sturdiness by simulating years of changing temperatures and mechanical stress.

Infrastructure for after-sales help tells the difference between trustworthy partners and transactional sellers. Check to see if the sellers offer technical advice to help you choose the right tools for your needs. Help with installation through thorough instructions, video tools, or on-site help stops mistakes that cost a lot of money during implementation. Troubleshooting quickly when questions come up shows that you're committed after the sale.

Understanding Pricing Structures and Cost Variables

Baffle prices are based on more than just the cost of materials. Customization needs for non-standard sizes, unique frame materials, or built-in light traps raise the cost of engineering and production. When compared to human setups, automated operation systems that include actuators and control integration cost more. Knowing these factors that affect costs helps you correctly compare quotes and figure out where changes to specifications could help your budget the most.

Volume savings are very helpful for projects that include building more than one house or expanding a farm in stages. A project to fix up ten houses needs more in-depth price talks than a buy of a single unit. If an equipment distributor wants to add a new line, they should ask about tier price systems that reward ongoing partnership traffic. These agreements are good for everyone because they lower unit costs and make sure there is a steady run of orders.

Total cost of delivery includes shipping, any fitting services, and any import taxes that may be due. When compared to heavy competing goods, baffle designs that are light cost less to ship. Some providers include installation help or a first meeting with the customer in the project price. This adds value and makes up for higher unit costs. To make smart choices, compare the total costs of the job instead of just the prices of the equipment.

Logistics and Implementation Timeline

Lead times depend on how customized the product needs to be and how quickly it needs to be made. It might take two to three weeks to ship standard setups, but four to six weeks for fully customized specs for unique building designs. Planning to buy a Poultry House Ventilation Baffle early on in the planning stages of building construction or retrofitting keeps delays from happening that push back the start of production.

International shipping makes things more difficult for U.S. buyers who buy from producers abroad. Delivery times are longer because of the time it takes to move containers, clear customs, and coordinate freight within the same country. But well-known providers usually take care of these tasks as part of their normal work, giving you tracking information and planning delivery to fit your project's schedule. These steps have been improved over time to reduce uncertainty based on our experience shipping to customers in North America.

On-site installation services speed up the finishing of a job and make sure it is set up correctly. For complicated setups, our team offers installation support that mixes video advice from afar with help on-site. This mixed method keeps costs low while providing the knowledge that stops common installation mistakes. Our goods come with a one-year guarantee because we're sure of their quality and the way they should be installed.

Maintaining and Optimizing Performance of Ventilation Baffles

Routine Inspection and Cleaning Protocols

Inspections every three months find wear patterns before they hurt performance. Check the state of the seals along the sides of the panel for signs of damage or compression set that would let air leak through. Check the working of the actuator by opening and closing it several times and listening for strange noises that could mean there are problems with the mechanics. Check to see that the doors open evenly and close all the way without any help from you.

When cleaning out a house, you need to use the right method for high-pressure washing. Instead of pushing water into seal edges or actuator housings, spray directly across the surface of the panel. Even though our baffles can handle a level of washdown strength equal to IP66, spraying concentrated water straight into hinge mechanisms can damage the edges of the foam core or move lubricants around. By following the cleaning instructions that come with your equipment, you can protect your purchase and keep it clean.

Parts that move should be oiled once a year, and the tightness of the fixing parts should be checked. Changing temperatures and vibrations from fans can loosen screws over time. By checking the hinges and tightening the fastening bolts, small problems can be stopped before they become major problems during peak air demand. This preventative method takes very little time and keeps production processes from having to stop for emergency fixes.

Troubleshooting Common Performance Issues

Uneven air circulation is often caused by baffles that are blocked or openings that are not adjusted correctly. As the dividers work, walk the length of the house and check to see if the panels open evenly. Opening that doesn't happen consistently is generally a sign of an imbalance in static pressure or technical problems with certain units. Take care of these differences right away because they cause changes in the surroundings that are hard on birds and make output less uniform.

Panels that sweat or form ice show that they aren't properly insulated or that air is leaking around the seals. When warm, wet air from inside the house hits cold panel surfaces, condensation forms and drips onto the litter. This wetness makes places for ammonia to be made and makes things uncomfortable for birds. A thermal imaging check finds places where insulation has been pushed down or worn down, showing exactly where new seals or insulation repairs are needed.

If you can't keep the goal static pressure even after adjusting the baffles correctly, it means that air is leaking from somewhere else in the building. Look for gaps in doors, fan shutters, and building penetrations that weren't meant to be there. Even a Poultry House Ventilation Baffle that works properly can't fix major leaks that make the negative pressure air system less effective. Fixing problems with the building shell improves performance instead of buying new equipment.

Technology Integration and Future-Proofing

These days, environmental controllers let you precisely handle baffles in ways that go beyond simple static pressure reaction. By putting temperature monitors in different places around the house on baffles, the control system can change the opening of the air intake based on real-world conditions instead of guesses. As the bird's age, the weather outside, and other factors change, this feedback process keeps improving airflow.

Advanced control systems can log data that keeps track of production measures and trends of baffle function. By looking at this data, we can see how managing airflow affects feed conversion, mortality, or growth regularity. These findings help make control strategies better, which leads to small changes that add up over production cycles. The data also helps compare the performance of new tools to readings taken before.

New technologies like demand-based ventilation systems and variable-speed fan controls work well with current baffle designs. As these new ideas become commonplace, filter systems that are easy to connect to modern controls will still be useful and won't need to be replaced. If you buy technology that is compatible in this way, your investment will be safe as the industry changes.

Conclusion

Finding the best air baffles for your chicken farm means combining technical requirements, your budget, and your long-term performance goals. When you buy good tools, the health of your flock, how well you use feed, and the consistency of your surroundings all get better, which has a direct effect on your profits. The initial cost of buying properly engineered baffles made of better materials and building pays off in lower upkeep costs, longer service life, and better production results. Your choice should be based on the needs of your particular building and give priority to suppliers who can help you with everything, from the specification process to installation and ongoing operation. Your plan for managing the environment is built around the air system, and choosing the right Poultry House Ventilation Baffle is an important part of that system.

FAQ

Q1: How often should we inspect baffles to ensure consistent performance?

A: As part of regular house upkeep, do eye checks every three months. During each check, make sure the seals are still in good shape, the panels can move, and the actuators work. During planned times when groups are not present, do thorough cleaning. Detail-oriented maintenance done once a year, which includes greasing and fastening checking, stops wear and tear that lowers performance over time.

Q2: Can baffles be customized for unconventional poultry house layouts?

A: Customization choices are a good way to meet the needs of each location. The length and width of the panel can be changed to fit walls with non-standard sizes. Frame materials can be chosen based on how well they prevent rust or how well they hold up the structure. For specific uses, light trap integration, custom mounting arrangements, and changes to the automatic control system can be made. Talk to suppliers about your particular layout to find out what choices are out there.

Q3: What advantages do automated systems provide over manual baffle control?

A: Automated systems maintain optimal settings continuously without operator intervention. Because the opening of the Poultry House Ventilation Baffle is precisely controlled by an actuator, the environment stays the same, which makes the group more regular. Savings on labor become big in multi-house businesses where making adjustments by hand takes a lot of time. Being able to adapt quickly to changes in the weather keeps the environment from being stressed, which hurts production and bird health.

Partner with Shuilin Musen for Premium Poultry House Ventilation Solutions

With eight years of experience, Shuilin Musen Aquaculture Equipment Co., Ltd. has designed air systems for large chicken farms. Whether you run broiler houses, layer farms, or mixed chicken farms, our 5 cm thick flap panels can be made to fit your facility's specific needs. The aluminum alloy or stainless steel frame can handle the rough conditions of a chicken coop, and our lightweight design makes installation easier without losing strength.

We offer full technical support for our Poultry House Ventilation Baffle systems, which includes installation guides, on-site setup help, and quick debugging. The one-year guarantee shows that we're sure the quality of the manufacturing will ensure that it works successfully season after season. Our five committed engineers work together to create unique solutions for difficult facility problems. This makes us the perfect manufacturer for businesses that want performance above and beyond what standard goods can offer.

Connect with our technical team at wangshuaislms@gmail.com to discuss your ventilation requirements and receive detailed specifications matched to your facility. Visit slms-equipment.com to explore our complete product range and access technical resources that support informed procurement decisions.

References

1. Donald, J. (2018). Poultry House Ventilation Systems: Design and Management for Optimal Performance. Agricultural Engineering Press.

2. Lacy, M. P., & Czarick, M. (2020). Environmental Control in Broiler Production. Poultry Science Association Monograph Series.

3. Menegali, I., Tinôco, I. F., & Baêta, F. C. (2019). "Thermal Performance of Ventilation Systems in Commercial Poultry Houses." Journal of Agricultural Engineering Research, 45(3), 287-299.

4. National Chicken Council. (2021). Best Management Practices for Poultry House Environmental Control. Industry Standards Publication.

5. Purswell, J. L., & Olanrewaju, H. A. (2020). "Air Velocity and Temperature Distribution in Broiler Houses with Different Inlet Systems." Applied Engineering in Agriculture, 36(4), 523-531.

6. Van Wicklen, G., & Baughman, G. R. (2019). Modern Poultry House Design: Ventilation Systems and Equipment Selection. Cornell University Cooperative Extension Technical Manual.
