How to install a poultry cooling pad system in a poultry house

Putting in a Poultry Cooling Pad System changes how you deal with heat in your chicken house, which has direct effects on the health of your birds and how much you can produce. When used correctly with negative pressure ventilation systems, this liquid cooling technology lowers the temperature of the air coming in by 5 to 8 degrees Celsius. Careful site assessment, exact pad placement on walls or air intakes, connection to water distribution lines, and integration with current exhaust fans are all parts of the installation process. Professional installation makes sure that the water circulation system evenly wets all the cellulose pads and keeps the face speed at 1.5 to 1.75 meters per second, which is the best range. If you plan and carry out this method correctly, it will protect your investment and create a safe thermal environment that will support steady growth rates and lower the number of deaths from heat stress during the summer.

Introducing Poultry Cooling Pad Systems

The science behind Poultry Cooling Pad System technology gives people who raise chickens a useful way to deal with heat stress. When hot air from outside moves through cellulose pads that are saturated with water, the water takes heat energy and evaporates. This turns sensible heat into latent heat, which cools the air down a lot before it hits your birds.

Core Components and Their Functions

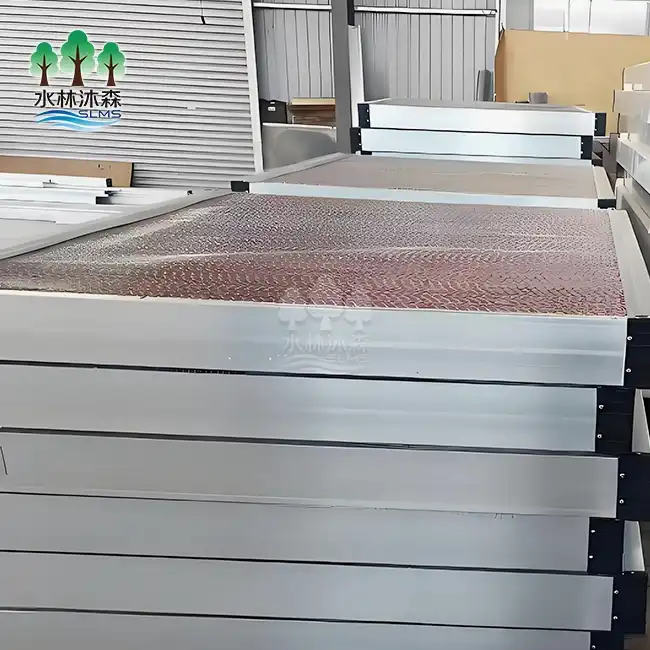

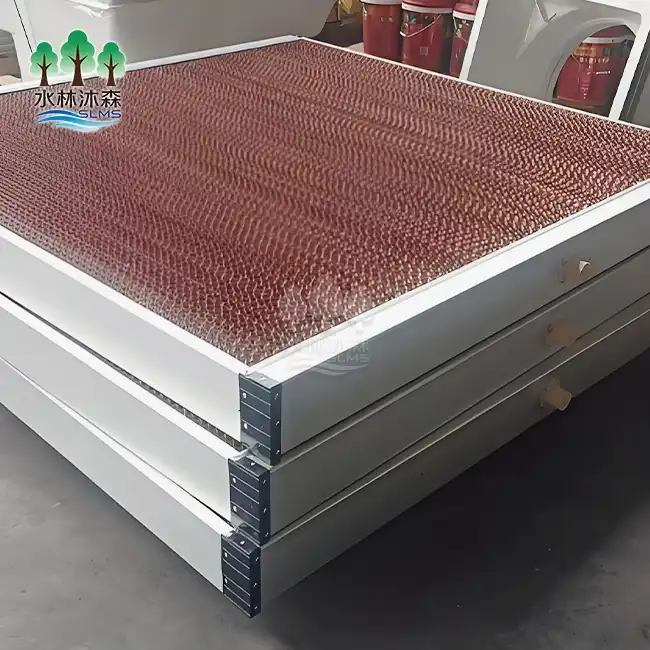

A full Poultry Cooling Pad System is made up of many parts that are all linked and work well together. The cooling pad is made of corrugated cellulose paper that has a specific flute shape. This is usually the standard 7090 design, which has 7mm wave height at 45-degree angles. The geometric shape makes the surface area for water contact as big as possible while keeping the static pressure drop across the pad as small as possible. The frame that holds these pads can be made of either an aluminum alloy or stainless steel. Both are very resistant to rusting in damp farming settings.

Through perforated pipes or drip lines, water delivery methods keep a steady flow across the top of the pad. The water flows down through the wavy pathways and soaks the cellulose fibers. A closed-loop system that saves water catches extra water in a basin at the bottom and pumps it back up through the system. Control units tell pumps how to work and check the amount of the water. They can also connect to environmental controls to change the cooling based on temperature readings.

Performance Benefits for Modern Poultry Operations

There are more benefits to this way of cooling than just lowering the temperature. Our Model 7090 system, which comes in 15cm and 20cm thicknesses, keeps birds in their thermal comfort zone by lowering the temperature consistently. In very hot and dry places, where maximum cooling capacity is needed in the afternoon, thicker pads are more useful because they increase soaking efficiency.

In addition to controlling temperature, these systems make the air better by cleaning air that comes in. The dust, pollen, and other flying pollutants are caught by the wet pad surface before they get into the barn. This filter effect lowers respiratory pollutants and makes the air your flock breathes better. High-quality cellulose material quickly absorbs water and spreads it evenly across the pad surface, stopping dry spots that would let air that isn't cool get around the system. Low ventilation resistance means that exit fans don't have to work as hard, which keeps power costs low and makes sure that the barn's air flow is normal.

Step-by-Step Guide to Installing a Poultry Cooling Pad System

Implementation that goes well starts long before the tech gets to your building. Installing a Poultry Cooling Pad System correctly saves your investment and makes sure it works well for years to come.

Pre-Installation Assessment and Planning

Take a look around your chicken coop and see how the airflow is set up. Find where the vent fans are; cooling pads need to be put on the other end to get the air flowing right. Check the wall space that you have for installing the pad and make a note of any support posts, electricity panels, or doors that might get in the way of the placement. Find out how much space you need for the pad by measuring the size of your barn and the number and size of your air fans. Most of the time, you need about one square meter of pad space for every 3,000 to 4,000 cubic meters per hour of fan capability.

Check the quality and quantity of your water source. If your water has a lot of minerals in it, you will need to do upkeep more often to keep calcium scale from building up. Checking the pH of the water can help you decide if you need cleaning equipment. Planning ways for water to move away from pad placements keeps them from flooding. If the ground doesn't slope away from the house, you'll have to connect drain lines to the draining system on your farm.

Mounting and Securing Cooling Pads

The steps for installing pads are a little different based on whether you are adding them to a new building or to an old one. We'll focus on the most usual case, which is installations that are placed on the wall of an existing building.

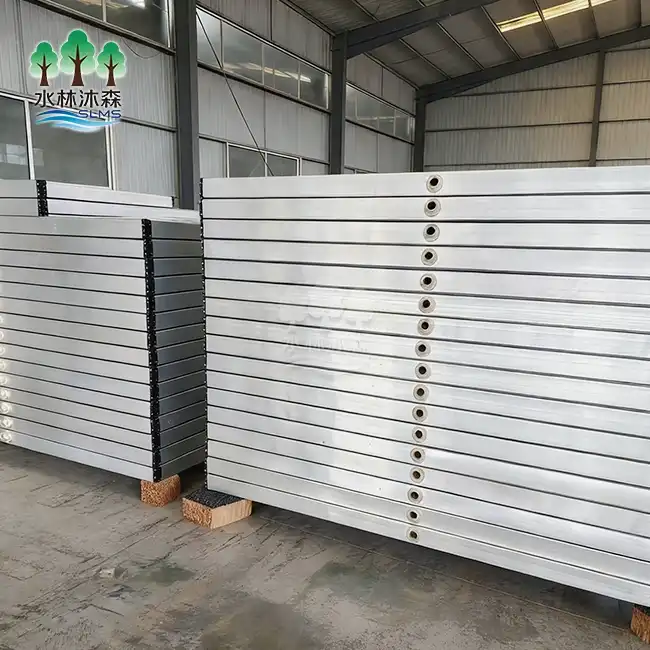

Make the wall surface ready by making sure it is clean and has a good structure. Set up the frame that the cooling pads will go on. Frames made of stainless steel or an aluminum blend last a long time and don't rust when they are constantly exposed to water. The frame needs to be exactly level and firmly attached to wall studs or other structural members. Frames that sag leave gaps that let warm air skip the pads.

If you're working with unique sizes, cut the cooling pad pieces to fit the frame. Be careful when you handle the cellulose material so that you don't tear the paper or crush the flutes. Slide pad pieces into the frame holes to make sure that the sections next to each other are tightly connected. Gaps between pads make them less effective and make the flow of air less even. In some setups, sealing the edges where the pads meet the frame can help stop air from leaking out.

Water Distribution System Integration

Place the pipe that brings water to the pad along the top edge of the frame. The holes in perforated pipes should face downhill and be spread out so that they cover the whole width of the pad evenly. You can connect the delivery pipe to your water line with a pump and a storage tank. The tank should hold enough water to keep the pump running. Figure out how much water it needs by looking at the pad surface area and pumping rate of your system.

To keep the water level stable, add a float valve or an electronic level monitor to the tank. The device has to automatically fill up the tank as water evaporates and is taken in by air flow. Install overflow safety in the reservoir so that it doesn't leak if the fill valve stops working. In the base of the pad installation, put down basins or tubs for collecting water that runs off. Return lines will take this water back to the pond.

Controlling pressure is very important. Too much water pressure makes too much flow, which is too much for the pad to handle and sends water into the barn. Dry spots show up on the pad's surface when there isn't enough pressure. Before final completion, you should install a pressure reducer and test how the water is distributed. Within minutes of turning on the pump, the whole pad surface should be evenly wet.

Electrical Connections and Controls

Wire the pump motor according to the manufacturer's instructions and the electrical rules in your area. To keep wetness out, any wiring that will be exposed to the damp area around cooling pads needs to be protected with weatherproof electrical boxes and tubing. If you already have an automatic temperature control system, you can connect the pump control to it. With this combination, the cooling system will turn on by itself when the barn temperature goes above certain levels.

When the main controller stops working or you need to change the settings that the controller normally uses, the manual backup buttons let you keep working. A simple on-off switch lets staff turn on cooling when it gets too hot out of the blue. You might want to put hour meters on the pump to keep track of how long it runs so that you can plan your repairs.

Testing and Commissioning

Once everything is set up and linked, fill the tank with water and turn on the pump. Carefully watch how the water is distributed. You want the pad to be completely and evenly wet all over. If you see dry spots or places with too much flow, you may need to adjust the distribution pipe. Run the system for 30 minutes to fully wet the pads. While the fans are running, check the temperature of the air on both sides of the pad. When the temperature outside is middling to high and the humidity is low, you should record drops of 5 to 8 degrees Celsius.

Make sure there are no water leaks around the edges of the links, the frame, and the reservoir. Leaks, no matter how small, waste water and can cause upkeep issues or damage to the structure over time. Make sure that the draining systems can handle the water flow and don't back up or overflow. As the system works, walk around the inside of the barn to make sure the wind is working right and that there are no water drips being pulled off the pad and into the barn.

Best Practices for Maintaining Your Poultry Cooling Pad System

Regular repair keeps Poultry Cooling Pad System performance working well and extends the life of equipment. Systems that aren't taken care of slowly lose their ability to work, and problems get worse until they need major fixes.

Routine Cleaning Protocols

Minerals from hard water build up on pad surfaces, stopping movement and making evaporation less effective. Depending on the water quality, clean the pads every three to six months. With care, take the pads off the frames and spray them with low-pressure water. Do not use high-pressure cleaners on cellulose because they damage the structure. Calcium and mineral scale can be removed with acidic cleaners. You can use commercial items made for cooling pad upkeep, or you can dilute vinegar to get rid of lighter buildup.

Another problem that comes up in warm, wet places is algae growth. Algae grow on the air entry side of pads when they are exposed to sunlight. Cleaning gets rid of growth that's already there, and some owners treat pond water with algaecide to keep it from growing in the first place. Make sure you check with the makers of the chemicals you use to make sure they won't hurt birds if the dust gets into the barn or damage cellulose material.

During the cold season, check the water delivery system once a month. When holes in distribution pipes get clogged, they wet unevenly. Remove any things that are in the way with a wire or a small drill bit. Every so often, flush the whole water system to get rid of the sediment that builds up in the pipes and the tank. This cleaning stops the buildup that slows flow rates and makes the pump less effective over time.

Component Inspection and Troubleshooting

Pumps need to be taken care of so they keep working properly. Check the pump's entry screens for anything that could block the flow of water. If you hear strange noises, it could mean that the bearings or rotor are damaged. Check to see that the electrical lines are still safe and free of rust. Over time, pumps lose their effectiveness. If you notice less water flow even though the filters and lines are clean, the pump may need to be rebuilt or replaced.

It's important that the frame is solid because if it breaks, air can get around the cooling pads. Metal frames should not rust, but high-quality frames made of aluminum alloy or stainless steel will not rust even in tough circumstances. Tighten any frame or fixing nuts that aren't tight enough. Frames that are sagging or twisted need to be fixed right away to stop the damage from getting worse.

The cloth of the cooling pad goes out over time. Under normal conditions, good cellulose pads should last between three and five years. Breakdown of the cellulose structure that can be seen, loss of stiffness when wet, dry spots that won't go away even though water is being spread out properly, and holes or tears that can be seen in the material are all signs that it needs to be replaced. Our new pads are easy to find, and it only takes a few hours of work to switch them out.

Seasonal Maintenance Checklist

As the cooling season gets closer, give the whole system a thorough check. This preventative method finds small issues before they get in the way of activities during very hot weather. Inspect all components systematically: pads for damage, frames for corrosion, pumps for wear, electrical connections for safety, and water lines for leaks. Make sure the system works as expected by putting it through a load test.

During the off-season, in the cooler months, store your investment in the right way to protect it. If it freezes where you live, take the cooling pads off the frames because the water that is trapped can freeze and damage the cellulose structure. Keep pads somewhere dry and away from animals and bugs. To keep pumps and lines from freezing, drain water systems all the way. With this yearly care, your system will be ready to go when the weather gets hot again.

Comparing Poultry Cooling Pad Systems with Other Cooling Solutions

Learning about different Poultry Cooling Pad System options can help you make smart choices about where to put your money and how to run your business.

Evaporative Cooling Versus Fan-Only Ventilation

With traditional fan ventilation, air moves through the barn without making it cooler. This method works well in warm weather because it gets rid of the heat and wetness that the birds create. When temperatures outside are too high for the birds, however, fans can't stop heat stress by themselves—they're just moving hot air over birds that are already too hot. This basic problem is fixed by Poultry Cooling Pad System units, which cool the air coming in before it hits the group.

The energy efficiency comparison favors pad systems significantly. Heavy-duty mechanical refrigeration systems that can cool down big chicken coops use a lot of electricity and cost a lot of money. Natural thermal principles are used for evaporative cooling, which only needs the energy to run a water pump and the air fans that are already there. For businesses that are keeping an eye on energy costs, this saving benefit means lower costs during the cooling season.

Pad Systems Versus Misting or Fogging

Misting systems with high pressure shoot small drops of water into the air in the barn, which cools it down some. This method directly adds water to the bird's surroundings, which greatly increases the relative humidity. Too much humidity can make it hard for birds to cool themselves naturally through evaporation and can cause trash wetness problems that make more ammonia. Conditions with wet litter make foot pad sores more likely to happen and make people more likely to get lung diseases.

Because evaporation happens before air comes into the barn, Poultry Cooling Pad System solutions are better at controlling humidity. You lower the temperature without creating too much humidity, which can lead to other problems. Maintenance needs are also different. Misting tools get clogged up a lot in hard water and need to be cleaned all the time, but pad systems need less attention if they are well taken care of.

Conclusion

Putting in a properly designed Poultry Cooling Pad System changes how you handle the temperature in your chicken coop and keeps your birds from getting too hot. Planning ahead, paying attention to details during building, and integrating with current ventilation systems are all important parts of the installation process.

When kept according to set procedures, high-quality equipment with a structure that doesn't rust and high-absorbency cellulose pads will give you years of reliable service. Knowing how these systems stack up against other cooling technologies can help you make the best use of your money and run your business more efficiently. If you choose a seller that offers full technical support, customization options, and a real relationship after the sale, you can be sure that your investment will pay off in the form of better bird performance and lower bird mortality during heat events.

FAQ

Q1: How often should cooling pads be cleaned?

A: If the cooling pads are being used, clean them every three to six months, or more often if the water is really dirty. When water has a lot of minerals in it, it needs to be cleaned more often so that scale doesn't build up and block movement. Visually check the state of the pad—if you see white deposits or less water absorption, clean it right away, no matter what plan you're following.

Q2: What thickness of cooling pad is right for my operation?

A: If you live in a moderate temperature or in a place where reducing static pressure drop is important because of a limited fan capacity, choose a thickness of 15 cm. Choose a 20 cm thickness for places that are very hot and dry and need the most cooling power. The bigger pad has a higher saturation level and lowers the temperature more, but it also makes it a little harder for air to flow through.

Q3: Can I install the system myself or do I need professional help?

A: Our thorough video guides and technical paperwork can be used by our experienced support staff to do the installation. If you don't know much about evaporative cooling systems or if your building has some unique problems, you can have a professional install them for you. Professional installation makes sure that the contract is followed and that the system works at its best from the start.

Partner with a Trusted Poultry Cooling Pad System Manufacturer

It has been eight years since Shuilin Musen Aquaculture Equipment Co., Ltd. has been making farming equipment and offers tried-and-true Poultry Cooling Pad System solutions. Our Model 7090 Poultry Cooling Pad System has frames that won't rust, cellulose material that absorbs a lot of water, and can be set up in any way needed for sites with thousands to over 100,000 birds. We want you to be successful, so we offer detailed installation films, on-site service, and a guarantee on all parts for one year.

Our engineering team comes up with unique solutions that fit the ventilation needs and temperature problems of your building. You can email us at wangshuaislms@gmail.com to talk about your cooling needs and get a detailed price from a dependable chicken cooling pad system provider that wants your business to succeed.

References

1. Lacy, M.P., and Czarick, M. (2014). Tunnel Ventilation of Broiler Houses. University of Georgia Cooperative Extension Service Publication.

2. Donald, J. (2010). Environmental Control in Poultry Production. Poultry Science Department, Auburn University.

3. Simmons, J.D., Lott, B.D., and May, J.D. (2003). Heat Loss from Broiler Chickens Subjected to Various Air Speeds and Ambient Temperatures. Applied Engineering in Agriculture, 19(1), 85-90.

4. Gates, R.S., et al. (2005). Design and Performance of Evaporative Cooling Systems for Livestock Housing. American Society of Agricultural and Biological Engineers Technical Paper.

5. Yahav, S., and Hurwitz, S. (1996). Induction of Thermotolerance in Male Broiler Chickens by Temperature Conditioning at an Early Age. Poultry Science, 75(3), 402-406.

6. Czarick, M., and Lacy, M. (2008). Cooling Pad Maintenance and Management. Poultry Housing Tips, University of Georgia College of Agricultural and Environmental Sciences, Volume 20, Number 6.
