What is included in a complete poultry ventilation system setup

A full Poultry Ventilation System setup is made up of several interdependent parts that work together to keep the environment in poultry farms at its best. An example of an exhaust system is a Livestock Ventilation System Negative Pressure Fan, which removes old air automatically and creates a pressure difference that draws in new air through carefully placed inlets.

Other parts include automatic controls, sensors that measure temperature and humidity, air intakes with movable baffles, light traps, heating units, ducts, and evaporative cooling pads. These parts work together to keep the temperature stable, cut down on dangerous gases like ammonia, keep the humidity level in check, and make sure air flows smoothly throughout the barn. All of these things have a direct effect on the health and productivity of the group.

Understanding a Complete Poultry Ventilation System

Modern chicken farms need precise weather control to get the most out of their birds and keep diseases from spreading. A complete air system uses a number of different technologies that work together to adapt to changing conditions inside the barn.

The Core Components and Their Functions

Negative pressure exhaust fans are the heart of the system. They actively pull air out of the chicken coop and create a vacuum that allows limited air entry. New air comes in through carefully planned openings that usually have devices that can be adjusted to change the amount and direction of wind. This controlled approach keeps drafts from happening and makes sure that all places where birds live get the same amount of air flow.

Why System Integration Matters for Your Operation

The success of each part depends on how well it works with the others. If negative pressure fans are used without properly regulated inlets, the system creates too much vacuum pressure, which causes drafts and uneven temperature distribution. In the same way, sensors that can't talk to controls correctly cause fans to cycle in the wrong way, which wastes energy and hurts birds.

We have seen operations where facilities put in high-quality exhaust fans but forgot to maintain the inlets, which caused holes to get blocked and air to flow through places that weren't meant to be there. This made cold spots near the birds, which raised the risk of lung illnesses even though a lot of money was spent on equipment. The right system design takes into account the size of the barn, the number of birds that live there, and the weather patterns in the area so that the system works the same way all year.

Key Features and Specifications of Negative Pressure Fans for Poultry Ventilation

To choose the right exhaust equipment, you need to know the technical details that have a direct effect on how well the system works and how much it costs to run.

Critical Technical Specifications

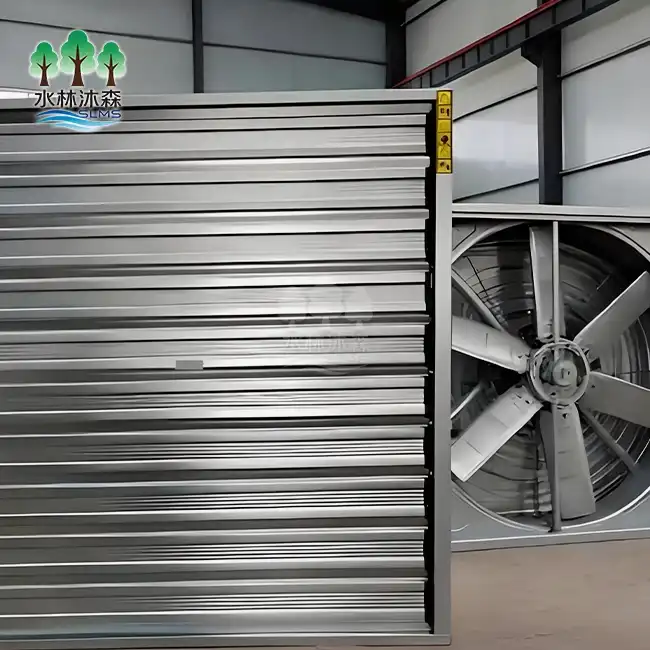

The airflow from our 50-inch negative pressure fan is between 28,000 and 38,000 cubic meters per hour, which is enough to ventilate 150 to 200 square meters per unit. The unit weighs 80 kilograms and is powered by a strong 1.1 kW motor working at 380V. Its design is built to last so it can be used continuously in agriculture. These requirements are good for medium- to large-sized chicken coops that raise broilers, layers, turkeys or ducks.

How many fans your building needs is based on its airflow ability. Find the total volume of your barn and then multiply it by the air exchange rate you want (4 to 8 full air changes per hour during the hottest summer months). To find out how many units are needed, divide this number by the size of each fan. Ratings for static pressure show how well fans keep air moving even when they run into problems like dirty covers, cooling pads, or ductwork that is too tight.

Durability and Material Construction

The hard climate of a chicken barn requires materials to be very strong. Ammonia from manure makes conditions very acidic, which breaks down metals very quickly. The high-strength galvanised steel or 304 stainless steel used to build our units is chosen because it resists rust better than other materials. Livestock Ventilation System Negative Pressure Fan – this choice of materials directly applies to every component of the fan, from the housing to the motor mount, ensuring that even under continuous acidic exposure, the unit maintains structural integrity. This choice of materials directly leads to longer service life; our fans are rated to run for at least 40,000 hours.

Motor enclosures must have security grades of IP55 or IP56 to keep dust and water out, which would otherwise cause the parts to fail early. Heavy-duty bearings that are made to work continuously cut down on the number of maintenance tasks and unplanned breaks that happen during the summer, when a ventilation system failure can cause huge flock loses.

Energy Efficiency and Operational Economics

The amount of energy that chicken farms use is a big ongoing cost. Modern vent fans have energy efficiency rates of more than 20 cubic feet per minute per watt, which means they use a lot less electricity than older equipment. Variable frequency drives let workers smoothly change fan speeds, adjusting air capacity to exact needs instead of always running at full capacity.

Less noise from machines is good for both animals and people who work on farms. Too much noise can stress birds, which could affect how well they convert food into energy and their growth rates. Our equipment keeps the air flow fixed while making very little noise. This makes the barn a quieter place where birds can do their best work.

Installation and Maintenance Guide for Poultry Ventilation Negative Pressure Fans

Whether air equipment works as it should or becomes a source of constant frustration and cost depends on how well it was installed.

Strategic Installation Planning

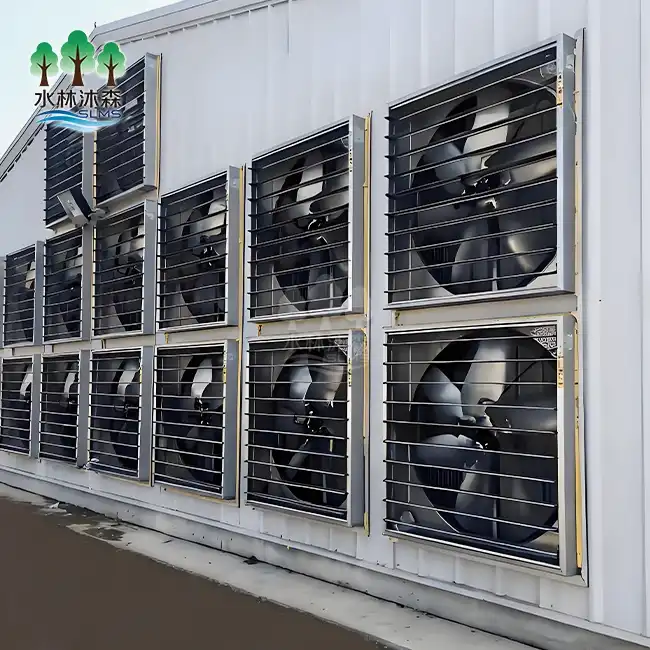

As a first step in the site review process, you should look at your barn's size, orientation, and structure features. Exhaust fans are usually mounted on one end wall, and air intakes are placed along the sides or on the end wall facing the exhaust fan. When tunnel ventilation is set up, all the exit ports are at one gable end and all the intake ports are at the other end. This creates high-speed airflow along the length of the barn. For shorter, bigger buildings, cross-ventilation systems put fans along the sides.

The height at which a fan is placed has a big effect on how air flows. When units are mounted too low, air currents move litter and blankets around. If you put them up too high, the bottom areas might not get enough air flow. For best performance in normal chicken houses, we suggest placing fan centers about 1.2 to 1.5 meters above the floor.

Practical Maintenance Procedures

Cleaning on a regular basis keeps performance from dropping. When dust builds up on the blades, movement is cut by 20 to 30 percent, which makes the motors work harder but provides less cooling. Cleaning once a month during production cycles and a deep clean between groups keeps the rated capacity. Livestock Ventilation System Negative Pressure Fan – for this type of fan, pay close attention to the shutter mechanisms because sticky or binding shutters make it impossible to close properly, letting cold air in during winter minimum ventilation modes.

When you check a bearing, you can find early signs that it is about to fail. If you hear strange noises, vibrations, or clicking, it means the bearings are worn out and need to be replaced. Models that are pulled by belts need to have their tightness checked and new belts put on them before they break. As part of our technical support, we offer installation films that show your team the right way to do regular maintenance tasks.

Comparing Negative Pressure Fans: Choosing the Best Solution for Your Farm

When deciding what to invest in, you need to weigh the features of the equipment against the wants of your business and your cash.

Performance Analysis Across Fan Types

In how they work, negative pressure fans are different from circulation fans. Negative pressure exhaust fans take away air volume, pushing new air into the barn. Circulation fans move air around inside the barn without draining it. Axial fans, which are the most common type used in chicken uses, move a lot of air with low standing pressure. Their simple form makes them reliable and affordable for basic air needs.

Centrifugal fans make more static pressure, which makes them good for situations where air needs to move through narrow spaces, like long pipes or thick cooling pad media. Mixed flow patterns try to find a good mix between the pros and cons of both types. Axial negative pressure fans are the best choice for chicken houses because they have the best mix of airflow capacity, energy economy, and purchase price.

Economic Considerations and Total Cost of Ownership

The price of the tools is only one part of its total cost. Figure out the total cost of ownership by adding up the prices of installation, the amount of energy the equipment will use over its lifetime, the amount of upkeep that will need to be done, and the time frame for replacement. Equipment that costs less at first but needs more frequent upkeep or uses more energy usually ends up costing more in the long run.

When compared to standard hand ventilation control, our equipment cuts the cost of labour by more than 40%. Automated operation gets rid of the need to constantly check on and make changes. This frees up workers to do other things on the farm and keeps the environment more stable than human management can.

Procurement Strategies for Maximum Value

When businesses plan to build more than one barn or work together with neighbouring farms to make purchases, they can often get better prices when they buy in bulk. Building ties with dependable equipment suppliers gives you access to technical knowledge that helps you make sure you choose the right specs for your needs.

Customisation features let tools be changed to fit specific needs. We can change the materials, power requirements, and other factors based on what the user wants. Customised solutions make sure that equipment works at its best, even if your building uses different power standards, needs unique mounting arrangements, or needs better corrosion protection for especially harsh conditions.

Impact of Negative Pressure Ventilation on Poultry Health and Farm Productivity

Controlling the environment has a direct effect on all success metrics that show how profitable a farm is.

Measurable Health and Performance Benefits

Managing airflow correctly keeps temperatures stable in the thermoneutral zone, which is where birds use the least amount of energy to keep their bodies warm. Livestock Ventilation System Negative Pressure Fan – when such a fan is properly sized and positioned, it ensures uniform air distribution across the entire house, minimising hot or cold spots that push birds out of the thermoneutral range. This improvement lets more of the food's energy go toward growth and egg production instead of keeping the temperature stable. Studies show over and over that flocks grown in buildings with good ventilation have better feed conversion ratios, which means they turn feed into meat or eggs more efficiently.

Evidence from Real-World Applications

Businesses that use full negative pressure air systems say their productivity goes up in a way that can be measured. Grill businesses report faster growth rates, with birds hitting market weight a few days earlier. This lowers the cost of production per bird. Layer farms are able to keep up their egg production more consistently, with fewer breaks caused by heat stress or lung disease breakouts.

Innovation Trends Shaping Future Ventilation Technology

Adding IoT devices is the next step forward in controlling the surroundings. Internet-connected sensors let managers keep an eye on things from afar and let them know when equipment breaks down or the environment changes in a way that could cause flock loses. Cloud-based data analysis finds small trends in performance, which lets birds make strategic changes that improve their performance.

Conclusion

Putting money into a full chicken ventilation system setup pays off in a big way: healthier birds, higher output, and lower operating costs. Good negative pressure exhaust fans are the building blocks of good environmental control. They work with properly designed inlets, sensors and controllers to keep the barn at the perfect temperature and humidity no matter what the weather is like outside.

When choosing tools, don't just look at the price. Also think about how long it will last, how much energy it uses, and how well it will be supported after the sale. Livestock Ventilation System Negative Pressure Fan – for this critical piece of equipment, these factors are even more important, because a poorly chosen fan can waste electricity, rust prematurely, and fail to provide the static pressure needed for hot summer conditions.

Proper installation and regular maintenance will protect your investment and keep the equipment running smoothly for as long as it's used. As technology improves, it becomes easier to handle complex environments. Modern air systems are necessary for businesses that care about animals and make money at the same time.

FAQ

How Often Should Negative Pressure Fans Undergo Maintenance?

When checks are done once a month during production runs, problems with dust buildup, bearing wear, or the shutter mechanism can be found quickly. Cleaning and inspecting all parts thoroughly between groups stops small problems from getting worse and causing major failures. Operations that don't have any breaks in production should plan full maintenance every three months to keep their performance at its best.

Can Existing Facilities Retrofit Modern Ventilation Systems?

Most buildings can handle better airflow by only making small changes to the structure to make room for fans and air intakes. When you renovate older barns, you can use the latest best practices, which makes controlling the environment much better. A professional evaluation figures out what changes need to be made to your building while taking into account its current structure and energy abilities.

What Determines Negative Pressure Fan Lifespan?

How long a piece of equipment lasts relies on how well it was built, how it is used, and how often it is maintained. Fans made of materials that don't rust and have good motors and springs can run for 40,000 hours or more if they are well taken care of. If you don't maintain your equipment or use it in harsh circumstances, it will not last as long. On the other hand, high-quality equipment in well-run facilities often lasts longer than the stated term standards.

Upgrade Your Poultry Facility with Proven Ventilation Solutions from Shuilin Musen

Shuilin Musen Aquaculture Equipment Co., Ltd. has been making specialised products for eight years and can help you handle the environment. As a full-service manufacturer of Livestock Ventilation System Negative Pressure Fans, we offer total solutions backed by professional engineering support, high-quality building, and quick service. Our team is ready to look at what your building needs and suggest the best equipment specs that balance performance with cost-effectiveness. You can talk to us about how our Livestock Ventilation System Negative Pressure Fan technology can help your business be more productive and make more money by emailing wangshuaislms@gmail.com or visiting slms-equipment.com.

References

1. Donald, J. (2019). Poultry Production Systems: Principles and Practice. Boston: Agricultural Press International.

2. Xin, H., Gates, R.S., Green, A.R., Mitloehner, F.M., Moore, P.A., & Wathes, C.M. (2021). Environmental impacts and sustainability of egg production systems. Poultry Science, 90(1), 263-277.

3. Purswell, J.L., Dozier, W.A., Olanrewaju, H.A., Davis, J.D., Xin, H., & Gates, R.S. (2020). Effect of temperature-humidity index on live performance in broiler chickens grown from 49 to 63 days of age. Proceedings of the 9th International Livestock Environment Symposium, Valencia, Spain.

4. Czarick, M. & Lacy, M. (2018). Tunnel Ventilation of Broiler Houses. Athens: University of Georgia Cooperative Extension Bulletin.

5. Simmons, J.D., Lott, B.D., & May, J.D. (2017). Heat loss from broiler chickens subjected to various air speeds and ambient temperatures. Applied Engineering in Agriculture, 13(5), 665-669.

6. Reed, S., Thorp, B., & Waldon, S. (2022). Modern Poultry House Environmental Control: Design, Operation and Economics. London: International Poultry Science Publishers.
