What size negative pressure fan is needed for a breeding house

What size Negative Pressure Fan for Breeding Ventilation System you need varies on a number of things, such as the size of the building, the number of animals, the weather, and your ventilation goals. Many medium to large chicken farms can use a 50-inch fan that covers 150 to 200 square meters and moves 28,000 to 38,000 m³/h. To make the right choice, you need to look at the building space, the needed air changes, the static pressure, and the cooling needs of the animals to keep the environment healthy and productive.

Understanding Negative Pressure Fans in Breeding Ventilation Systems

In modern cattle farms, negative pressure air devices are a key part of keeping the environment in check. By letting air out of breeding buildings that are closed off, these fans create a difference in pressure that pulls in fresh air from the outside through cooling pads or sidewall inlets that are set up to allow for controlled air flow.

A Negative Pressure Fan for Breeding Ventilation System moves air around the building in a controlled way. These units are different from circulation fans because they are made to work against static pressure, which in breeding situations is usually between 20 and 40 Pa. This helps keep the air moving evenly through areas with animals and cuts down on areas where moisture, gases, or contaminants can build up.

Core Benefits of Negative Pressure Systems

These days, breeding businesses have to deal with a number of environmental issues that negative pressure air can help with. Keeping animals from getting too hot is especially important when it's hot outside and the temperatures can be too high for them to handle. Increasing the speed of the air creates a wind-chill effect that can make it feel cooler and help animals perform better when it's hot outside.

Another important job is getting rid of dangerous gases. When airflow isn't good enough, high levels of ammonia and hydrogen sulphide can be very dangerous for animals' lungs. Negative pressure systems constantly remove dirty air and bring in clean air, which helps keep the air quality higher. Controlling moisture also stops situations in sleeping and living places that help microbes grow.

Ventilation System Integration

Fans, air intakes, cooling systems, and environmental controls all need to work together for breeding houses to have good airflow. With variable speed controls, operators can change the ventilation from low airflow to high airflow as needed for heat events and moisture and gas removal when it's cooler. This adaptability helps keep things stable throughout the year and lowers energy use.

Critical Factors for Determining the Right Size of Negative Pressure Fan

Before you can accurately size the fans, you need to take a close look at the breeding facility. To get a true idea of a building's volume, you need to know its length, width, and normal roof height. For example, a 40-foot-by-500-foot grill house with 10-foot sides has an air volume of about 200,000 cubic feet before the circulation needs are figured out.

The amount of wind needed is directly related to the number of animals. In hot weather, the amount of air flow a grill needs depends on the weight of the birds, the stocking density, the temperature, the humidity, and the target air velocity. The number of birds and the weather can also change the layer requirements. All of these things should be looked at together to make sure there is enough fresh air and that metabolic heat and extra moisture are removed.

Air Changes Per Hour Requirements

Air changes per hour can help you figure out how much ventilation you need, but they shouldn't be used as a rule for all designs. Many chicken farms use higher ventilation rates in the summer and when it's really hot, and lower minimum rates in the winter to get rid of moisture and gases without losing too much heat. So, the real building and animal factors should be taken into account when choosing a Negative Pressure Fan for Breeding Ventilation System.

Environmental factors can change airflow needs in a big way. Places that are humid might need more wind to get rid of wetness, and buildings that aren't well sealed might need more power to handle changes in temperature. The time of year also matters. During the winter, ventilation usually focuses on keeping the flows low enough to control gases and moisture without lowering the temperature inside too much.

Performance Parameter Evaluation

When choosing fans, it's important to keep a number of performance factors in mind. Most of the time, airflow capacity is given in cubic feet per minute or cubic meters per hour, but static pressure also affects how well something works. When working against 25 Pa of static pressure, a fan that can move 40,000 m³/h of air in open air may move a lot less air.

How well you use energy also affects your long-term costs of doing business. Instead of just looking at motor power, a new Negative Pressure Fan for Breeding Ventilation System should be judged by how much air it moves at a certain static pressure. You should also think about the noise output. The sound level should be compared at one metre under a clearly stated working situation so that different types can be judged fairly.

Step-by-Step Guide to Selecting the Appropriate Negative Pressure Fan Size

There is a set way that professionals size fans that takes the guesswork out of the process and makes the system run better. The first evaluation should include measurements of the building, the number of animals that can live there, the weather, and any air systems that are already in place. This knowledge can be used to figure out how much movement is needed and choose the right tools.

You can guess how much airflow is needed by looking at the sensible heat, the amount of moisture removed, the air quality, and the minimum fresh-air needs. Calculating the heat load can be a good place to start, but controlling humidity and gases may need more airflow. When choosing a final fan, you should also think about standing pressure, the shape of the entrance, and how the facility actually works.

Facility Assessment Protocol

A complete building assessment includes more than measuring floor area. Ceiling height, structural obstructions, inlet positions, and exhaust locations can all affect airflow. Buildings with uneven ceiling heights may develop stagnant zones that require changes to inlet design, fan placement, or supplementary circulation.

An evaluation of existing infrastructure can identify both limitations and advantages. Buildings with effective cooling pad systems may require fewer larger fans, while facilities with limited inlet capacity may need different fan arrangements. Electrical service capacity also affects selection. Three-phase power can support larger and more efficient ventilation equipment where the facility infrastructure permits it.

Equipment Comparison Framework

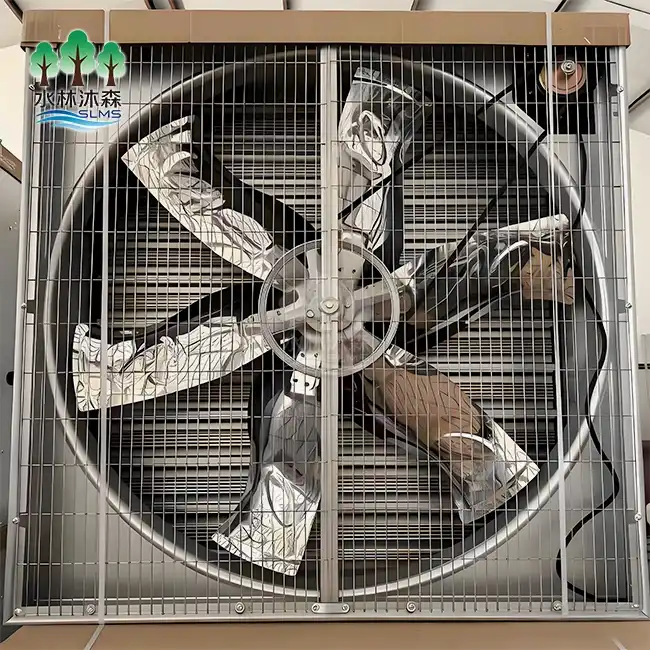

Comparing fan types systematically helps identify the best option for each facility. Our 50-inch Negative Pressure Fan for Breeding Ventilation System delivers 28,000 to 38,000 m³/h and uses a 1.1 kW motor, providing an efficient option for medium to large operations. Its stated coverage of 150–200 square meters can reduce the number of units required for suitable installations.

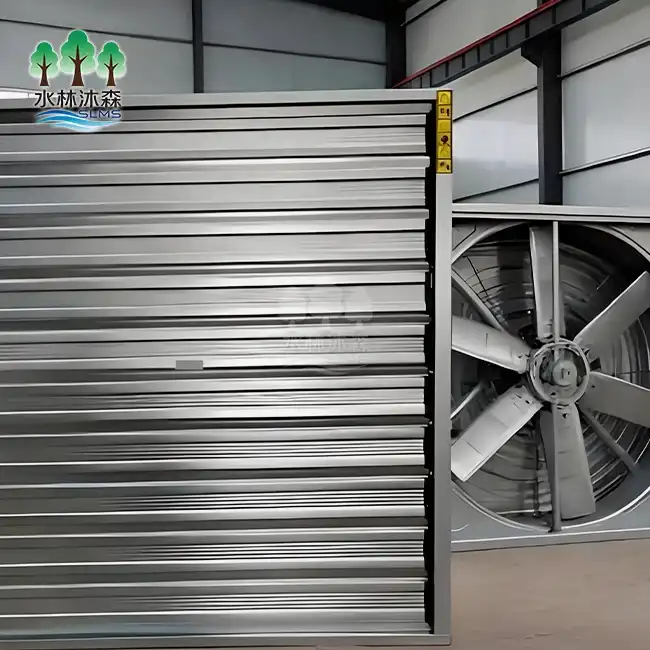

Material selection affects service life and maintenance requirements. High-strength galvanized steel with 304 stainless steel components provides corrosion resistance for demanding breeding environments. The approximately 80-kilogram unit is designed for continuous operation, with a rated service life exceeding 40,000 hours under suitable operating and maintenance conditions.

Troubleshooting and Maintaining Negative Pressure Fans for Breeding Houses

Routine maintenance helps maintain airflow performance and reduce unexpected downtime. Weekly visual checks can identify loose fasteners, excessive vibration, unusual sounds, or visible wear. Monthly cleaning removes dust and debris that can restrict airflow and reduce fan efficiency over time.

Common performance problems are often linked to installation or maintenance. Reduced airflow may result from dirty blades, damaged shutters, restricted inlets, or excessive static pressure. Motor overheating can indicate bearing wear, electrical problems, poor airflow, or blocked ventilation paths. Early inspection can help prevent minor issues from becoming costly failures.

Preventive Maintenance Schedules

Systematic maintenance reduces unexpected repairs and can extend equipment service life. Belt-drive models should have belt tension checked regularly according to manufacturer recommendations, while direct-drive models generally require less mechanical maintenance. Bearings, electrical connections, and shutter components should be inspected periodically to ensure smooth operation and reliable closure.

Breeding environments can accelerate electrical component wear. Motor connections, control panels, and variable speed drives should be checked regularly for corrosion, loose connections, or abnormal heating. Protection devices, including overload and phase-monitoring systems, should also be inspected and calibrated according to the equipment manufacturer's requirements.

Performance Optimization Strategies

Operational improvements can reduce energy use without major equipment changes. Variable speed controls allow fans to operate closer to efficient points during mild weather, while staged operation prevents unnecessary simultaneous startup. These methods can reduce peak electrical demand and mechanical stress.

Environmental monitoring can further improve automatic control. Temperature and humidity sensors can adjust fan speed or activate additional units as conditions change. This approach helps maintain stable conditions while limiting unnecessary energy use and is particularly useful when weather conditions change rapidly.

Where and How to Procure High-Quality Negative Pressure Fans for Breeding Ventilation?

Choosing the right supplier can influence long-term equipment reliability, service, and operating costs. Manufacturers with established agricultural equipment experience are generally better positioned to understand breeding-house ventilation requirements. Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience developing agricultural equipment, including Negative Pressure Fan for Breeding Ventilation System solutions.

Quality evaluation should cover manufacturing standards, testing procedures, materials, documentation, and applicable certifications rather than relying only on advertised specifications. High-strength galvanized steel or 304 stainless steel can provide suitable corrosion resistance, while performance testing under defined operating conditions gives buyers more useful information than laboratory-free-air ratings alone.

Procurement Strategy Development

Effective procurement balances purchase price with operating costs, maintenance requirements, reliability, and expected service life. Higher-quality equipment may require a greater initial investment, but improved efficiency and durability can reduce energy and replacement costs. A total cost of ownership assessment should include electricity consumption, maintenance frequency, replacement parts, and expected service life.

Technical support is particularly valuable for complex installations and troubleshooting. Suppliers offering installation documentation, technical guidance, and on-site services can reduce setup risks and improve commissioning. Our support package includes detailed installation guidance and, where required, professional installation assistance.

Warranty and Service Considerations

A clear warranty provides protection against manufacturing defects and premature component failure. Our standard one-year warranty covers the supplied equipment according to the agreed warranty terms. Extended warranty options may also be available for critical installations where unexpected downtime can create significant operating costs.

Long-term service quality depends on response times, spare-part availability, and technical expertise. Local service resources can reduce repair delays, while trained technicians can support accurate troubleshooting and replacement using compatible parts. Preventive service programs can identify developing problems before they cause major downtime, improving equipment availability and service life.

Conclusion

Selecting the right Negative Pressure Fan for Breeding Ventilation System requires careful consideration of building size, livestock requirements, climate, airflow demand, and static pressure. A 50-inch fan delivering 28,000 to 38,000 m³/h may suit many medium to large breeding operations, but actual fan quantities should be confirmed from site conditions and operating requirements. Proper sizing supports animal comfort, energy efficiency, and reliable ventilation. Choosing durable equipment with technical and after-sales support can also improve long-term value.

FAQ

Q1: What factors determine the number of fans needed for my breeding house?

A: Fan quantity depends on building volume, required airflow, static pressure, climate, livestock numbers, and individual fan capacity. One to two of our 50-inch units may suit a 200-square-meter building under suitable conditions, but the final quantity should be confirmed from actual ventilation requirements and site conditions.

Q2: How do I calculate the correct airflow requirements for my livestock operation?

A: Airflow calculations should consider animal type, body weight, stocking density, building volume, temperature, humidity, and ventilation targets. Broiler and layer requirements differ, so the final calculation should follow the conditions of the specific livestock operation rather than relying on one fixed airflow value.

Q3: What maintenance schedule should I follow for optimal fan performance?

A: Inspect the equipment weekly, clean blades and shutters monthly, and perform more detailed mechanical and electrical checks according to the manufacturer's schedule. Regular maintenance helps preserve airflow and service life. Our fans are designed for long-term operation when properly installed and maintained.

Q4: Can your fans operate with variable speed controllers?

A: Yes, compatible three-phase motors can work with suitable variable frequency drives. This allows operators to adjust airflow according to environmental conditions, reduce unnecessary energy consumption during mild weather, and maintain suitable ventilation when temperatures increase.

Q5: What warranty coverage do you provide for your ventilation systems?

A: Our standard warranty covers supplied equipment for one year according to the agreed terms. Extended warranty options may be available for critical projects requiring additional protection. Buyers should confirm warranty scope, exclusions, spare parts, and service arrangements before placing an order.

Partner with Shuilin Musen for Your Breeding Ventilation Solutions

Shuilin Musen Aquaculture Equipment Co., Ltd. provides Negative Pressure Fan for Breeding Ventilation System solutions for commercial livestock facilities. With eight years of agricultural equipment experience and a five-person engineering team, we develop configurations for different building sizes, power requirements, materials, and control systems. Our support covers technical consultation, installation guidance, and after-sales service. Email wangshuaislms@gmail.com with your building dimensions, livestock numbers, power supply, and ventilation requirements to receive a suitable configuration and quotation.
