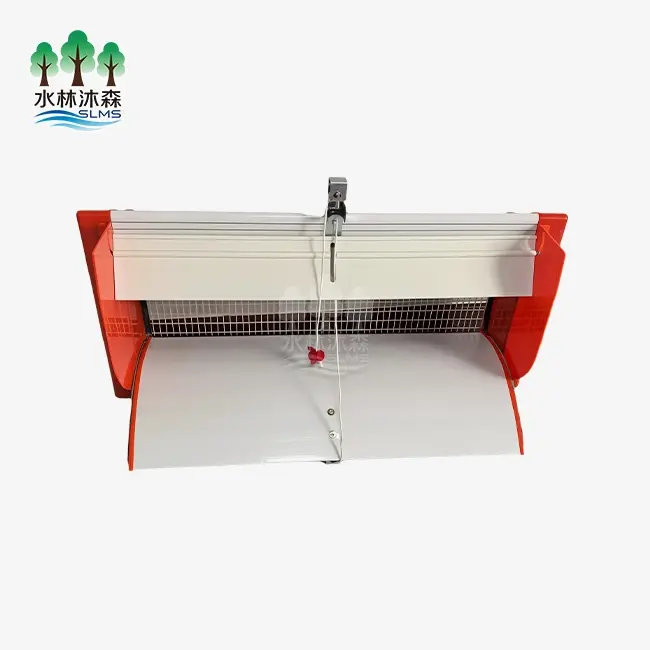

Best poultry air inlet systems for climate control

The best Poultry Air Inlet systems for controlling the temperature are made up of carefully built aerodynamic parts that are meant to create negative pressure ventilation. These systems use the Coandă effect to move incoming air along ceilings so that the temperatures are mixed best. A good Poultry Air Inlet changes changing weather conditions outside into steady weather conditions inside, stopping cold air dumping, ammonia buildup, and temperature shock while increasing the efficiency of feed conversion. Modern systems are made of ABS and have insulation layers built in. They also have changeable flaps and stainless steel devices that keep the airflow speed between 700 and 1000 feet per minute. This directly helps with respiratory stress and wet litter syndrome in industrial chicken operations.

Introduction

Keeping the temperature stable in commercial poultry farms has a direct effect on the health, growth rates, and profits of the flock. Modern gardening that takes place in a controlled setting depends on ventilation systems to keep things running smoothly. Poultry Air Inlet technology is the key to achieving good performance. When buying things, it's important for purchasing managers to know about the technical specs and performance characteristics of air inlet systems. This is especially true for agricultural engineers designing new facilities and equipment distributors looking for reliable product lines.

Poultry farmers today have to deal with more problems than just air flow. Temperature differences of more than 10°F happen between the floor and the roof because of thermal stratification. When ammonia builds up at bird level, it damages the lungs and makes feed less effective. When condensation forms on parts that aren't properly protected, it drips onto the litter, making conditions that are good for pathogens. For these operating pain points, you need advanced air solutions that use aerodynamic engineering, long-lasting materials, and precise control systems. This guide looks at the technology basics, design factors, and buying options that make high-performance outlet systems different from basic ones.

Understanding Poultry Air Inlet Systems for Optimal Climate Control

The Working Principles Behind Effective Air Distribution

Exhaust fans create negative pressure situations that Poultry Air Inlet mechanisms work in. These mechanisms pull in fresh air from the outside through holes that have been placed carefully. The technical problem is not just getting air in, but also controlling its speed, direction, and ability to mix with other air. When fast-moving cold winter air comes in through properly planned openings, it moves horizontally along the roof, mixing with rising warm air before slowly falling to bird level, where it is comfortable. This effect depends on the Coandă effect, which says that airflow sticks to nearby objects when the shape of the inlet makes the right discharge angles.

On the other hand, inlets that aren't properly built or changed let cold air directly hit birds, causing thermal shock that shows up as huddling, less food intake, and higher death rates in young flocks. The shape and size of the entrance flap, along with the internal wind deflector, determine whether the flow of air creates stress-inducing microclimates or even temperature zones. At a static pressure of 0.08" to 0.12" water column, the ideal air velocity at the inlet release point is between 700 and 1000 feet per minute. This creates enough kinetic energy for full house entry without too much draft.

Quantifiable Benefits Driving Operational Improvements

Advanced air intake devices improve performance in a number of operating areas that can be measured. When exact airflow control gets rid of the need to heat too much to make up for cold air dumping, energy use goes down. When automated actuators react to temperature monitors, they don't need to be adjusted by hand when the weather changes, which saves money on labor. Consistent environmental factors that improve feed conversion ratios have been shown to improve bird performance by 0.05-0.10 points in business studies.

Managing humidity is another important benefit area. Relative humidity should stay between 50 and 70% when the inlet is working correctly. This keeps the air from being too dry and stops trash from caking up from too much wetness. When determined ventilation rates are paired with the right-sized intake volume, ammonia levels stay below 25 ppm. These natural factors are directly linked to lower rates of rejects at processing, higher yields of breast meat, and lower use of antibiotics. This makes the case for premium intake technology very strong in terms of return on investment.

Design Principles and Types of Poultry Air Inlets: Choosing the Right System

Critical Engineering Specifications and Material Selection

In order to choose the right Poultry Air Inlets, you need to know how house size, fan capacity, and inlet size are related. To do the basic math, split the total CFM capacity of the exhaust fan by the measured airflow per inlet at the design static pressure. Undersizing makes a pressure that is too high, which stresses out fan motors and lets water get in through cracks in the building without being managed. When you oversize, the air speed drops below the levels needed for efficient mixing. This makes areas where air doesn't move and separates the temperatures.

The makeup of a material has a big effect on its long-term performance and upkeep needs. A high-impact ABS plastic is very good at resisting rusting when exposed to ammonia. It also stays structurally sound at temperatures ranging from -20°F to 120°F. When virgin polymer mixtures are mixed with UV protectors, they stop breaking down when they come into direct contact with sunlight. The 560mm×270mm size is an industry standard that matches airflow capacity with structural manageability. Custom sizes are also available to fit specific design needs or regional tastes.

Material quality is just as important for internal parts. Springs made of stainless steel keep their force even after thousands of uses without breaking down because of rust. The wind blocker built in and placed on the inside causes the upward air flow that is necessary for the Coandă effect to work. Foam insulation layers act as thermal breaks that stop condensation from forming during cold weather operation. For winter areas with steady subfreezing temperatures, R-values of at least 3.5 are suggested.

Adjustable Versus Fixed Configuration Trade-offs

Adjustable inlet systems use mechanical or electronic motors to change the angle at which flaps open in reaction to sensors in the environment or set timers. This control adjusts the ventilation rates based on the changing heat loads during the grow-out cycles. For example, when chicks are just one day old, ventilation rates are as low as 0.1 CFM per bird, but during the hottest parts of summer, rates can reach over 5 CFM per bird. The operating flexibility allows a range of production methods, such as broilers, layers, breeders, and turkeys, each of which has different ventilation curve needs.

Fixed-position inlets make installation easier and lower the initial costs, but they make it harder to change how they work. These arrangements work well in stable conditions or as extra air intakes when switching between ventilation modes. Modern production economics, on the other hand, favors systems that can be changed to make the best use of energy and environmental accuracy in changing conditions. The extra money spent on adjustment devices usually pays for itself in 18 to 24 months, when the heating fuel savings and better group performance cancel each other out.

Installation and Maintenance Best Practices for Long-Term Performance

Strategic Placement and Site Assessment Protocols

The right way to put something starts with a full analysis of the building, looking at things like its orientation, the direction of the wind, and any structure features that affect how air moves through it. For broiler houses, one sidewall Poultry Air Inlet should be placed every 12 to 16 feet of wall length, with the spacing changed for ceiling height and cross-sectional area. In tunnel-ventilated buildings or remodeling cases where sidewall changes are not possible, ceiling inlets are used in specific ways.

To support the weight of the inlet and keep it from deforming from repeated activation forces, the fixing surface needs to be structurally strengthened. Making sure the frame around the outlet is properly sealed stops air from leaking in and out, which lowers the static pressure and causes drafts in certain areas. High-quality butyl rubber seals or closed-cell foam gaskets keep the edges airtight even after many cleaning and pressure washing operations. Manufacturers provide installation guides that show the right way to place the frame, attach the actuators, and connect the control system. This cuts down on mistakes that happen in the field and hurt performance.

Systematic Maintenance Routines Preventing Performance Degradation

Structured repair plans that take care of both mechanical and hygiene issues are necessary for operational efficiency. Every six months, the stiffness of the springs is checked to make sure that the flaps close fully when closed and return smoothly when opened. Food-grade silicone substances that don't collect dust need to be used to lubricate pulley systems. Cleaning the mesh guard gets rid of the dust, feathers, and cobwebs that build up and block airflow, lowering the effective input capacity by 15 to 30 percent if not done.

Inlet-specific needs must be taken into account in washing procedures after flock changeover. High-pressure cleaners can damage foam insulation if the nozzles send streams into edges that aren't sealed or cause plastic parts to separate from each other. Moderate pressure sets below 1500 PSI are recommended, and wide-angle nozzles should be kept at least 18 inches away from input surfaces. Checking to see if a disinfectant is compatible with plastic housings or spring coats stops chemicals from breaking them down. This makes the parts last longer than the average time between replacements in the industry.

Our technical support system includes thorough maintenance routines, flowcharts for debugging, and tips for finding new parts. The one-year guarantee covers problems with the product's making and encourages proper installation. Customers say that repair time is cut by more than 40% when written procedures are used instead of trial-and-error methods. This directly saves money on labor costs and keeps production running smoothly.

Comparing Poultry Air Inlet Solutions to Support Smart Procurement Decisions

Performance Metrics Defining Quality Standards

To compare different Poultry Air Inlets, you need to set objective performance standards that are linked to practical results. Ratings of airflow capacities at standard static pressures allow for direct comparisons, but people who work in procurement need to check that published specs are based on laboratory conditions or readings taken in the field. Reputable makers offer third-party approval that shows CFM performance curves across pressure ranges from 0.05" to 0.15" water column. These curves show how capacity changes or stays linear when conditions change.

Temperature consistency metrics measure the main job of the inlet, which is to make temperature conditions that are all the same. Field studies that measure changes in temperature at bird level under controlled conditions show that basic and designed designs work differently. Premium inlets keep temperature differences across the width of the house to less than 3°F, while cheaper options often have 7–10°F differences that stress some group members. These differences in performance have a direct effect on how well feed is converted. For normal broiler production cycles, each 0.01 point gain means an extra $0.02 to $0.03 per bird in profits.

When testing for durability, parts are put through rapid age procedures that simulate years of being exposed to ammonia, changing temperatures, and being moved mechanically. When spring systems and fasteners fail because of corrosion, they need to be fixed right away during busy grow-out times. This is why oxidation protection is so important. Our stainless steel spring design doesn't have the rust problems that have been seen with cheaper zinc-plated options. It also keeps working well after more than 50,000 cycles of operation, which is about 8 to 10 years of normal broiler production plans.

Supplier Capabilities Supporting Long-term Partnerships

Beyond product requirements, procurement choices must also look at how well the provider can do things that affect the success of the project and the business's ongoing operations. Customization options allow for buildings with unusual sizes, extreme weather in certain areas, or compatibility with certain types of control systems. Customized inlet sizes, different materials for specific settings, and changed deflector angles that improve performance for unusual ceiling heights or house widths are all things that we can do that sellers who only offer products from a catalog can't.

How quickly practical problems are fixed depends on the technical support system. Our engineering team offers installation films, CAD drawings to help with planning the work, and quick consultations to answer questions relevant to the site while the project is being carried out. When distributors and workers don't know how to place things correctly, on-site installation services take away their doubts. This makes sure that the product works as planned from the start. Professional suppliers are set apart from commodity vendors who sell goods without any knowledge by this extensive support framework.

The total cost of a project is affected by bulk price and global shipping logistics in a big way. This is especially true for large-scale operations that place hundreds of inlets in various facilities. Our well-established supply chain management lets us offer competitive prices starting at 50 units, and for foreign customers, containerized shipping choices lower the cost of freight per unit. These buying benefits, along with our eight years of experience making things and well-established quality control systems, make us a strategic partner instead of a transactional vendor for businesses that are looking to expand their facilities over a number of years.

Maximizing Climate Control Efficiency: Advanced Tips and Future Trends

Integrated System Optimization Strategies

To get better temperature control, you need to look at the whole picture and combine Poultry Air Inlet technology with air parts that work well together. Digital manometers used for static pressure tracking allow precise system tuning, which involves changing the fan stages and inlet positions to keep pressure levels within goal ranges that improve air flow and energy economy. During seasonal changeover times, extra care needs to be taken because changes in outside temperatures mean that minimum ventilation rates and inlet opening percentages need to be changed often to avoid thermal stress when temperatures drop at night or rise during the middle of the day.

New developments in environmental tracking give real-time feedback that measures how well air systems are working. Wireless ammonia monitors placed at bird level raise the rate of airflow when amounts get close to safety limits. This stops long-term exposure that hurts respiratory health. Using multiple data loggers to map the temperature shows hot or cold spots that mean there isn't enough mixing or an issue with the entrance.

This lets problems be fixed before they have a noticeable effect on the flock's performance. These data-driven management methods change airflow from a reactive problem-solving method to a proactive optimization method. This makes performance gains possible that were once thought to be due to genetic or nutritional factors.

Emerging Technologies Shaping Future Standards

The ventilation business keeps changing as new technologies are created to deal with issues like sustainability and worker shortages. IoT-enabled control systems connect inlet devices to cloud-based analytics platforms. This lets them be monitored from afar and make changes automatically based on algorithms that look at things like bird age, weather forecasts, and past performance trends. Compared to timer-based controls, these smart systems use 15–25% less energy and make the environment more consistent, which leads to measured output measures.

Sustainable material development takes into account the atmosphere without lowering the standards for performance. Recycling ABS mixtures with used plastics keep their structure integrity while lowering carbon emissions, which is good for businesses that want to be more environmentally friendly. Energy-harvesting actuators that are driven by thermal differentials don't need electrical infrastructure for places far away from the inlet.

This lowers the cost of installation and makes the system more reliable when the power goes out. These trends in technology show that outlet systems of the future will have better performance and less damage to the environment. Early users will have a competitive edge in markets that care more and more about sustainability.

Conclusion

Choosing the best Poultry Air Inlets is a long-term investment that has a direct effect on operating efficiency, animal health, and long-term profits in industrial poultry production. A full evaluation is needed, going beyond simple price comparisons, to take into account technical factors like aerodynamic design, material longevity, installation accuracy, and upkeep schedules. When high-performance inlets are designed with the right insulation, corrosion-resistant parts, and tested airflow features, they provide measured returns through lower energy costs, better feed conversion, and lower mortality rates.

As the production of chickens around the world increases and environmental controls are made stricter, the difference between businesses that use designed air solutions and those that use basic ones grows. The choices we make today about purchases will have an impact on our success for years to come. By focusing on tried-and-true technologies, holding suppliers accountable, and putting in place best-practice maintenance routines, businesses are able to adapt to changing market needs while still upholding standards for animal care.

FAQ

How many poultry air inlets does my facility require?

To find out how many Poultry Air Inlets you need for your building, divide the total CFM capacity of your exhaust fans during transition ventilation by the estimated CFM capacity of each input at 0.10" to 0.12" static pressure. When you undersize, the negative pressure goes above 0.15" and when you oversize, the air velocity drops below the effective mixing thresholds. When figuring out the best spacing, you should think about the ceiling height and house width. For standard broiler facilities, the best distance is usually 12 to 16 feet. Our engineering team offers free sizing consultations based on your building's dimensions and production needs.

What maintenance frequency prevents performance problems?

Deep cleaning should be done every six months to get rid of dust and feathers that have built up on mesh guards and mechanical parts. Visual inspections should be done once a month during active production to check for spring tension loss, seal integrity, and smooth flap operation. After each flock turnover, wash the inlets with moderate pressure below 1500 PSI, being careful not to spray directly onto the insulation edges. Replace worn parts right away instead of putting off repairs, as a broken inlet quickly causes environmental problems that affect whole flocks. Our products come with detailed maintenance instructions and instructional videos.

Can existing poultry houses retrofit modern inlet systems?

Retrofitting is possible for most standard structures, but the specific needs of each site must be determined. Before ordering replacement inlets, measure the existing openings' dimensions and the structure's support capacity. Our customization options allow for non-standard sizes that fit the original openings, which saves you the cost of making expensive structural changes. Upgrading from manual to automated control systems needs electrical infrastructure additions that are coordinated with the specifications of your control equipment. We offer on-site installation services that make sure proper mounting, sealing, and integration, minimizing operational disruptions during retrofit projects.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Superior Ventilation Solutions

To improve your climate control systems, you need a Poultry Air Inlet manufacturer with both proven engineering skills and a wide range of support services. Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience working with large poultry farms, equipment distributors, and agricultural contractors all over the world. Our 560mm×270mm ABS inlet systems have built-in wind deflectors, polyurethane insulation layers, and stainless steel actuation mechanisms that are designed to work in the harsh, ammonia-rich environments of commercial poultry farms.

We are different because we can customize our products to fit any facility's needs, whether they are non-standard sizes or made of materials that can withstand harsh climates. Our professional research and development team comes up with custom solutions to solve specific operational problems, and we offer installation videos, technical consultation, and optional on-site installation services to make sure they work perfectly after they are installed. Our one-year warranty and responsive after-sales support protect your investment, and our bulk pricing structures make the total project costs competitive for multi-building operations.

Contact our team at wangshuaislms@gmail.com to talk about your ventilation upgrade needs. We can help you make an informed purchase decision by giving you competitive quotes, detailed product specifications, and application engineering support. Visit slms-equipment.com to see our full line of products and learn why leading poultry operations trust Shuilin Musen for climate control solutions that deliver measurable performance improvements and long-term operational reliability.
