Companies providing broiler chicken cage automation retrofit kits

Forward-thinking poultry farm owners are increasingly considering automation retrofit kits for broiler cage systems. These solutions can upgrade existing housing with automated feeding, watering, and manure removal. The Quadruple-deck Broiler Rearing Cage is designed for commercial farms that need to use vertical space efficiently while improving daily handling. A four-tier layout can increase bird capacity within the same building footprint, although the actual capacity depends on cage dimensions, aisle space, ventilation, and building height. Retrofit automation can also reduce routine labor and improve consistency when the existing barn structure and equipment are suitable.

​

​



​



Understanding Quadruple-Deck Broiler Rearing Cages and Automation Retrofit Kits

Multi-tier broiler housing changes how farms use building space and manage routine work. Modern systems can combine cage structures with feeding, drinking, manure removal, and environmental control equipment to create a more coordinated production setup.

Structural Design and Vertical Integration

Four-tier broiler systems typically use H-frame or A-frame structures made from corrosion-resistant steel. Hot-dip galvanized Q235 steel is commonly selected for its combination of strength and corrosion protection in poultry-house conditions. Each tier provides access for bird placement, inspection, and collection, while automation equipment runs along the cage rows.

Vertical housing can increase bird capacity without expanding the building footprint. The actual improvement depends on cage dimensions, aisle width, building height, ventilation requirements, and local stocking regulations. This approach can be particularly useful where land or construction space limits expansion.

Automation Components That Drive Efficiency

Automation retrofit kits generally combine feeding, drinking, and manure removal equipment. Chain-and-pan or auger feeding systems distribute feed along the cage rows, reducing the need for manual feeding. Nipple drinking lines provide water through dedicated lines, with pressure regulation helping maintain consistent delivery.

Manure belts below the cage tiers transfer waste to collection points. Regular removal reduces manure accumulation and can support better house hygiene. The exact removal frequency depends on the equipment design and farm management schedule.

For retrofit projects, compatibility is essential. The new equipment must match the existing cage dimensions, drive systems, electrical controls, water supply, and manure handling layout.

Real-World Performance Metrics

Automation can reduce routine labor requirements by limiting manual feeding, watering, and manure-handling tasks. Actual savings depend on flock size, existing labor practices, automation level, and local wage rates.

Feeding consistency may also improve when automated systems deliver feed evenly across cage rows. Better manure management can reduce the accumulation of waste below the birds. However, flock health and feed performance are influenced by ventilation, stocking density, nutrition, biosecurity, and management, so equipment upgrades should not be treated as the only performance factor.

Key Design Features and Maintenance Tips for Quadruple-Deck Broiler Rearing Cages

Material selection, structural design, and preventive maintenance all affect equipment service life and operating reliability. Procurement teams should evaluate these factors together rather than focusing only on the initial equipment price.

Material Quality and Corrosion Protection

Poultry houses expose equipment to humidity, ammonia, cleaning chemicals, and temperature changes. For this reason, corrosion protection is an important specification when evaluating multi-tier cage systems.

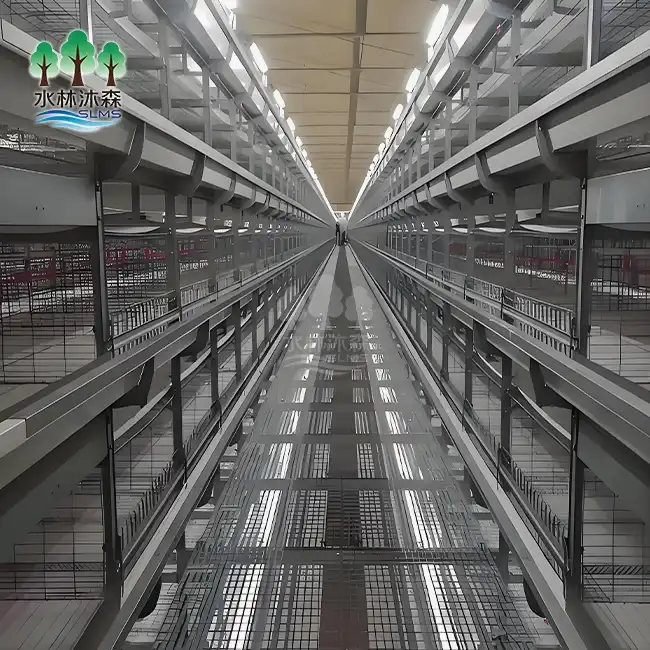

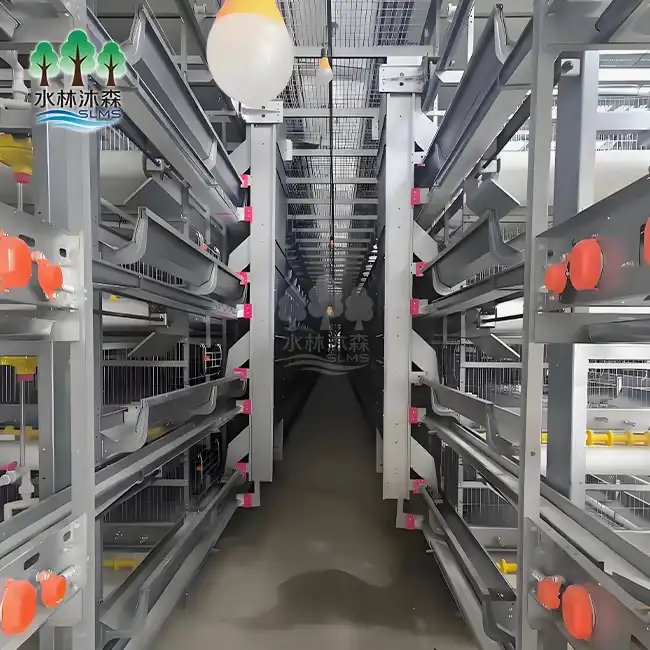

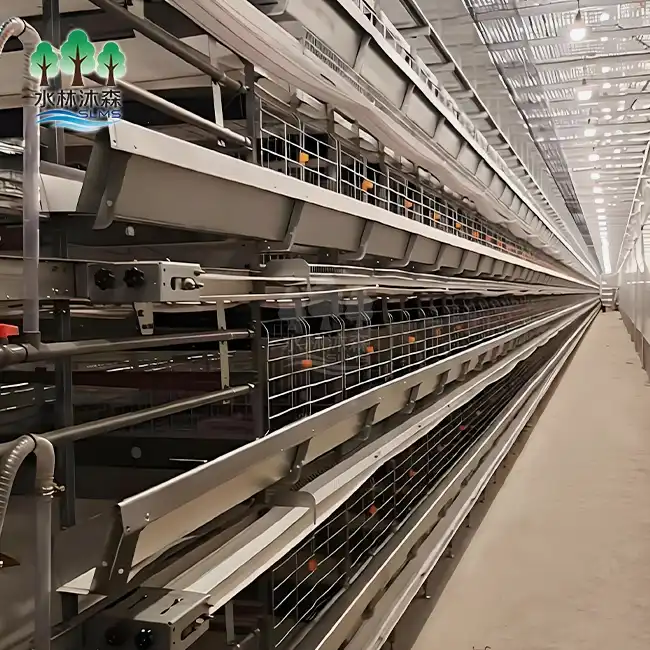

A Quadruple-deck Broiler Rearing Cage can use hot-dip galvanized steel with a coating specification selected according to the operating environment. Buyers should request coating specifications and inspection records from the supplier instead of relying only on general claims about service life.

Flooring also deserves attention. Suitable wire mesh or plastic components should provide adequate support and allow effective cleaning. The final design should match the expected live-bird weight and cage configuration.

Ventilation and Climate Control Integration

Four-tier systems place more birds within the same floor area, making ventilation planning especially important. The building should provide sufficient clearance above the upper tier for air movement and equipment access.

Ventilation design should account for building dimensions, fan capacity, cooling equipment, cage arrangement, and local climate. Sensors can be positioned at different heights to monitor temperature and identify differences between tiers.

A cage system should not be evaluated separately from the ventilation system. During a retrofit, the supplier should review the existing airflow pattern to ensure that the new cage layout does not create avoidable ventilation problems.

Scheduled Maintenance and System Monitoring

Preventive maintenance helps reduce unexpected equipment failures. Inspect wire mesh, cage doors, feeder chains, drive motors, rollers, and manure belts according to the manufacturer's schedule.

Manure belts should be checked for alignment and tension so that tracking problems do not interrupt production. Water lines should also be flushed and inspected regularly to reduce mineral buildup and maintain reliable nipple drinker performance.

Digital monitoring can provide useful alerts when motors stop, belts become misaligned, or other equipment faults occur. These systems are particularly valuable for larger farms where manual inspection of every cage row is difficult.

Comparing Quadruple-Deck Broiler Cages and Automation Retrofit Options

When comparing housing options, buyers should consider capacity, building requirements, automation compatibility, labor needs, maintenance, and total ownership cost. A retrofit may be more practical than complete replacement when the existing building and cage structure can support the required equipment.

Production Capacity and Space Utilization Analysis

Floor housing and single-deck systems use more floor area for the same bird capacity than a properly designed multi-tier system. A four-tier layout can increase the number of birds housed within an existing building, but the actual capacity depends on cage size, stocking requirements, service aisles, ventilation, and equipment clearance.

The vertical arrangement may reduce the need for additional building space. However, buyers should compare usable bird capacity rather than simply comparing the number of cage tiers.

Return on Investment Calculations

The investment cost of a multi-tier automated system depends on cage specifications, automation level, building modifications, installation, shipping, and local labor costs.

The potential return comes from several areas, including reduced routine labor, more consistent feed and water delivery, improved manure handling, and better use of existing building space. A realistic payback calculation should use the farm's actual flock size, labor cost, production cycles, equipment price, and expected maintenance expenses.

For retrofit projects, compare the cost of upgrading existing equipment with the cost of replacing the entire housing system.

User Experience and Case Study Evidence

When reviewing supplier case studies, buyers should look for verifiable information rather than relying only on percentage claims. Useful evidence includes the original cage configuration, bird capacity, automation components, installation scope, operating period, and measurable changes after the upgrade.

A reliable case study should also identify which results came from the equipment itself and which were affected by changes in management, ventilation, nutrition, or biosecurity. This makes the information more useful for evaluating whether the same solution fits another farm.

Top Companies Supplying Automation Retrofit Kits for Quadruple-Deck Broiler Cages

Choosing an automation supplier requires more than comparing product prices. Procurement teams should evaluate engineering capability, material specifications, retrofit compatibility, installation support, spare parts, warranty terms, and after-sales service.

Supplier Selection Criteria for Procurement Managers

Quality assurance should be one of the first evaluation points. Ask suppliers for steel grades, coating specifications, technical drawings, product dimensions, electrical requirements, and relevant inspection records.

Production capacity also matters for large projects. Suppliers should be able to provide consistent specifications across multiple cage rows and coordinate delivery with the installation schedule.

For retrofit projects, technical support is particularly important. Before ordering, provide the supplier with building dimensions, existing cage drawings, bird capacity, feeding equipment, manure removal method, ventilation layout, and control system information.

Shuilin Musen Aquaculture Equipment: A Comprehensive Solution Provider

Shuilin Musen Aquaculture Equipment Co., Ltd. is based in Shandong Province and has eight years of experience in livestock equipment. The company provides broiler cage systems and automation solutions for commercial poultry operations.

Its engineering team can develop cage layouts based on building dimensions, target bird capacity, and existing infrastructure. Technical support can cover system configuration, installation guidance, and equipment integration.

The product range includes complete cage systems, automation retrofit components, and replacement parts. This allows farms to choose between new installations and staged upgrades where the existing building and equipment remain suitable.

Customization Capabilities and Bulk Procurement Advantages

Farm buildings differ in width, length, height, ventilation layout, and existing automation equipment, so customization can be important for retrofit projects. Suppliers may adjust cage dimensions, feeding configurations, manure handling layouts, and connection points according to project requirements.

Before requesting a quotation, buyers should provide accurate building drawings and equipment specifications. This allows the supplier to determine whether the proposed system can be installed without unnecessary structural modifications.

Bulk procurement can also simplify delivery and spare-parts planning. Buyers should compare the total project cost, production schedule, packaging, shipping, installation, and after-sales support rather than evaluating unit price alone. Quadruple-deck broiler rearing cages can then be configured according to the specific requirements of each facility.

Procurement and Cost Considerations for Broiler Cage Automation Retrofit Kits

A proper procurement evaluation should include equipment, installation, shipping, building modifications, maintenance, spare parts, and warranty coverage. Comparing only the purchase price can produce an inaccurate estimate of the total project cost.

Pricing Structure and Cost Influencing Factors

The price of a retrofit system depends on cage dimensions, material specifications, automation components, project quantity, and required modifications. Stainless steel components may be selected for particularly corrosive environments, while galvanized steel is commonly used for general poultry-house applications.

Automation level also affects the cost. Mechanical feeding and manure removal systems generally have different requirements from systems with electronic monitoring and advanced control functions.

Shipping and installation should be included in the final budget. For imported systems, buyers should request a complete quotation covering packaging, shipping terms, installation scope, spare parts, and other applicable project costs.

Cost-Benefit Analysis for Commercial Operations

The financial value of automation depends on the farm's operating conditions. Labor savings are usually easier to estimate when comparing the number of manual feeding, watering, and manure-handling tasks before and after installation.

Other potential benefits include better use of building space, more consistent feed and water delivery, easier manure handling, and reduced routine workload. Buyers should calculate these benefits using their own labor rates, flock size, production schedule, and current equipment costs.

A retrofit is most attractive when the existing building can support the new cage system without extensive structural modification.

Warranty Terms and After-Sales Service Policies

Warranty coverage should clearly state which structural components, motors, controls, and other parts are included and how long coverage lasts. Buyers should also ask about spare-parts availability, response times, remote troubleshooting, and installation support.

Shuilin Musen provides a one-year warranty for its systems and technical support for installation and troubleshooting. Installation videos and remote technical guidance can help maintenance teams resolve routine problems. For projects requiring additional support, buyers should confirm the available installation service before placing the order.

Conclusion

Commercial broiler production increasingly requires efficient use of building space, reliable automation, and manageable labor requirements. The Quadruple-deck Broiler Rearing Cage can increase housing capacity within an existing footprint while supporting automated feeding, watering, and manure removal.

For automation retrofit projects, buyers should assess building height, cage dimensions, ventilation, existing equipment, control compatibility, installation requirements, and total ownership cost. Suppliers should also provide technical drawings, material specifications, customization options, spare parts, warranty terms, and after-sales support.

A well-planned retrofit can improve workflow and make better use of existing poultry-house infrastructure. The final equipment choice should be based on the farm's actual operating conditions rather than general performance claims.

FAQ

Will Multi-Tier Cages Cause Breast Blisters in Broilers?

Modern flooring designs can reduce the risk of breast blisters when the wire mesh, spacing, support, and bird density are properly matched. Plastic slat components may also provide an alternative surface in selected cage configurations.

However, flooring is only one factor affecting bird welfare. Stocking density, ventilation, litter or floor conditions, bird weight, and management practices also need to be considered.

How Quickly Can Systems Be Cleaned Between Flocks?

Cleaning time depends on cage design, manure removal, washing equipment, sanitation procedures, and drying conditions. Automatic manure belts can reduce the amount of waste that remains on cage surfaces, making routine cleaning more manageable.

Before purchasing, ask the supplier about access points, removable components, drainage, pressure-washing requirements, and recommended sanitation procedures.

Are Four-Tier Systems Compatible with Existing Barn Structures?

Compatibility mainly depends on building height, width, floor condition, existing equipment, and ventilation layout. Four-tier systems require sufficient clearance above the upper tier for airflow, maintenance, and equipment access.

A proper retrofit assessment should review building drawings, cage dimensions, feeder and drinker positions, manure removal routes, electrical systems, and ventilation equipment before installation.

Partner with Shuilin Musen for Your Broiler Housing Automation Needs

Investing in a multi-tier automated system can help commercial farms use existing building space more efficiently while reducing routine manual work. The Quadruple-deck Broiler Rearing Cage solutions from Shuilin Musen Aquaculture Equipment Co., Ltd. are supported by eight years of livestock equipment experience and an engineering team focused on project-specific configurations.

We support projects from system planning and equipment configuration through installation guidance and technical support. Our solutions can be customized according to building dimensions, bird capacity, existing infrastructure, and automation requirements. Contact our team at wangshuaislms@gmail.com to discuss your retrofit requirements and request a project quotation. Visit slms-equipment.com to review the product range and discuss cage automation options with the manufacturer.
