Comparison of negative pressure vs positive pressure fans for breeding houses

Choosing between negative and positive pressure systems for ventilation in large chicken and livestock farms has a big impact on both the health of the environment and the business's ability to make money. A Negative Pressure Fan for Breeding Ventilation System pushes air out of the barn automatically. This creates a pressure difference inside the barn that lets fresh air in through cooling pads or sidewall vents that are placed in strategic places. This managed airflow gets rid of harmful ammonia levels, keeps temperatures from getting too high, and lowers infectious bio-aerosols that are bad for lung health. On the other hand, positive pressure fans push air into the building, which can cause dead spots and uneven spread. Knowing these differences in how things work helps procurement teams choose systems that protect animals the most while using the least amount of energy in a variety of building types and climates.

Introduction to Ventilation Systems in Breeding Houses

In large chicken and pig farms, good air flow has a direct effect on feed conversion rates, mortality rates, and the general efficiency of production. Animals produce a lot of heat, wetness, and lung waste, especially ammonia when manure breaks down. Without mechanical help, these build up to amounts that are dangerous, weakening the immune system and slowing growth.

Ventilation systems are very important for many reasons. They keep the temperature stable so that you don't get too hot during the summer and stay warm in the winter without trapping moisture. Gases like hydrogen sulfide and carbon dioxide are diluted and taken away. They control the amount of humidity that would otherwise help bacteria grow in bedding, which can cause footpad rashes in chickens and respiratory disease in pigs.

There are two main types of motorized ventilation: those that use negative pressure to push air out and those that use positive pressure to bring air in. Negative pressure ventilation lets fresh air in through controlled openings at one end and pushes out old air at the other end, creating a steady flow of fast air across the whole animal zone. A wind-chill effect lowers the temperature by a few degrees with this method, which is also known as tunnel ventilation. Positive pressure devices raise the building's pressure a little above the surrounding air, pushing air out of the building through holes. This method is easier to set up, but it has trouble keeping airflow patterns constant, especially in longer buildings, and it can let unfiltered air in through gaps that weren't meant to be there.

Control is what makes the difference. Negative pressure systems control exactly where air comes in and goes out, making sure that the speed and temperature are spread out evenly. Positive pressure systems are less reliable, which makes them better for smaller buildings or buildings that naturally breathe and only need extra movement. Facility managers can make sure that ventilation plans work with the building's size, output goals, and the weather in their area if they understand these practical concepts.

Technical Comparison: Negative Pressure Fans vs Positive Pressure Fans

Airflow Mechanics and System Design

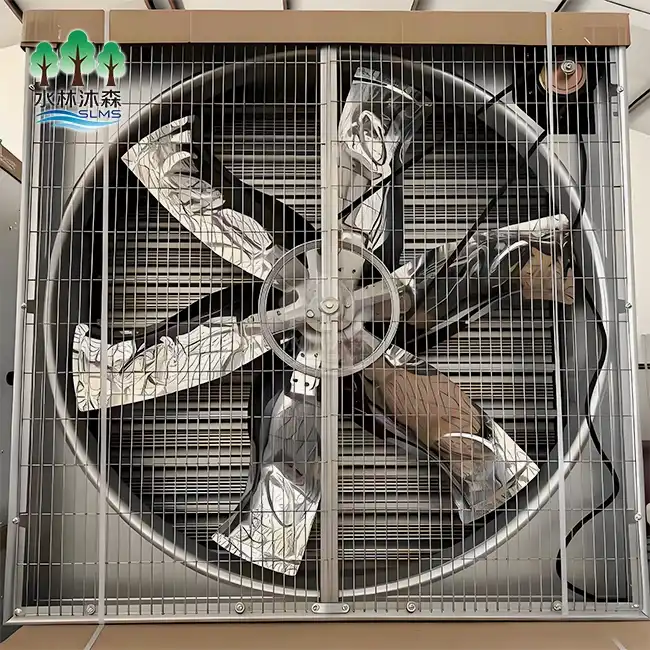

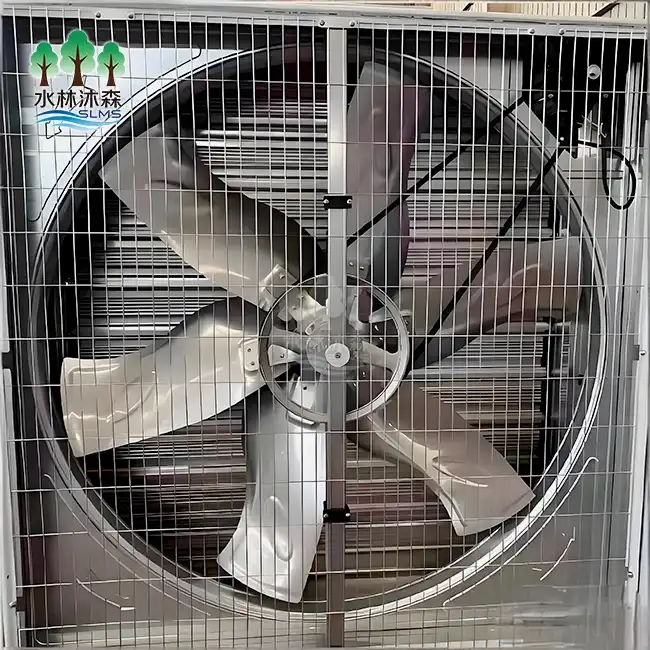

Negative pressure fans are usually grouped together in groups of several units and are mounted on one end of a building to remove air and create an internal pressure difference of 20 to 40 Pascals. This drop in pressure pushes air from outside through holes at the intake, which may have evaporative cooling pads that lower the temperature of the air going in by evaporating water. As a result, air moves along the length of the house at speeds of 2.0 to 3.0 meters per second, right over the animals. This steady moving makes it easier for birds and pigs to lose heat through convection, which lowers thermal stress when it's hot.

Energy Efficiency and Operating Costs

Intensive cattle businesses have a lot of ongoing costs related to energy use. Negative pressure systems work better in big buildings than other types. With a 1.1 kW motor, a good 50-inch exhaust fan can move 28,000 to 38,000 cubic meters of air every hour and ventilate 150 to 200 square meters. This means that fewer units are needed overall than with positive pressure systems, which need more fans to cover the same area because the air isn't distributed as efficiently.

When properly kept, modern negative pressure fans can get more than 20 CFM per watt of power. Belt-driven types that run at 450 to 600 RPM provide high airflow with low noise, which is an underrated benefit that makes animals less stressed. Direct-drive units don't need belt upkeep, but they may make a little more noise. When compared to positive pressure installations, well-designed negative pressure systems use 15–25% less electricity over the course of a production cycle. This is mostly because they control static pressure better and need less runtime to keep conditions at goal levels.

The costs of running a business go beyond power. Positive pressure systems need to have their filters changed more often because they push air through the building shell without filtering it. This makes it easier for particles to settle on the inside surfaces. Negative pressure designs screen air coming in at cooling pads or inlets. This keeps equipment cleaner and stops dust from building up on it. This means less work needs to be done to clean and equipment lasts longer.

Installation and Infrastructure Requirements

When installing negative pressure systems, you need to be very careful. To keep the right pressure differences, buildings need to be mostly sealed, with only limited air inlets. It's important that the walls and ceilings can stand up to pressure without bowing out, which could damage the insulation or cause leaks that weren't meant to happen. When figuring out the size of an intake, the highest fan capacity of the Negative Pressure Fan for Breeding Ventilation System must be taken into account so that there isn't too much negative pressure, which could damage lightweight building parts.

Positive pressure systems don't need as tight of a building seal because a small amount of air loss doesn't affect how well the system works. Because of this, they are more willing to accept changes made to older buildings. To get even air flow, you need to be very careful about where the fans are placed and how big the outlets are. This gets harder as the length of the building goes up. If the breathing patterns don't meet the needs of the animals for comfort, the ease of fitting can turn out to be a waste of money.

Benefits and Challenges of Negative Pressure Fan Ventilation Systems

Health and Productivity Advantages

Negative pressure ventilation is very good at getting rid of dangerous gases before they build up to levels that are bad for animals' health. Levels of ammonia higher than 25 parts per million hurt the nasal epithelium, making animals less resistant to disease and less efficient at using feed. These systems constantly remove dirty air, and when they're working right, they can keep ammonia levels below 10 parts per million. The steady flow of air over animals increases the cooling effect of evaporation from their skin and lungs, which successfully lowers heat stress during the hot summer months.

Another big benefit is that you can control the humidity. When sleeping materials are too wet, they make the perfect environment for germs to grow, especially E. types of E. coli and Salmonella. Negative pressure fans dry bedding better than still or slowly moving air because they exchange air quickly. This lowers the number of pathogens and improves the health of the chickens' feet. Better control of moisture in pig farms lowers the number of lung diseases, which cuts down on the use of antibiotics and raises the average daily gain.

Tunnel ventilation spreads the air evenly, so there are no hot or cold spots that stress out animals. Poultry naturally gathers in cooler areas, which can cause overcrowding and more fighting. Maintaining a consistent temperature level across the floor area helps birds spread out evenly, which lowers the risk of death from heat prostration and stomping. In the same way, swine benefit from more regular eating behavior and less competition for their favorite resting spots.

Maintenance Considerations and Common Issues

All mechanical systems need to be maintained, but negative pressure fans have extra problems that come with working in farming settings. When dust builds up on fan blades and covers, airflow can drop by as much as 30% during a single production run. Cleaning regularly—ideally every two flocks or every three months for ongoing operations—keeps things running smoothly. High-quality units made of galvanized steel with 275 g/m² zinc coats or fiberglass-reinforced plastic don't rust when exposed to ammonia, so they last longer than 40,000 working hours.

Belt-driven types need to have their tightness checked and their belts replaced every so often. Misaligned pulleys speed up wear, so they need to be checked after the initial break-in times. This problem isn't a problem with direct-drive setups, but motor bearing failures can happen if dust gets into protected units. Pay close attention to the shutter mechanisms. Centrifugal push-pull or counterweighted designs must work easily to keep airflow as free as possible when the fans are running and stop air from getting in when the system is not in use.

Monitoring static pressure lets you know early on when a device is breaking down. Readings of rising pressure mean that the inlets are clogged, the cooling pads are dirty, or the entrance area is too small for the fan capacity that is installed. Taking care of these problems right away keeps the fan motor from overloading and breaking down too soon. When paired with inverter-duty rated motors to keep them from burning during low-speed operation, variable frequency drives are a great way to switch between minimum airflow in the winter and maximum cooling in the summer.

Real-World Performance Outcomes

When compared to regular cross-ventilation, commercial broiler farms that use properly built negative pressure tunnel ventilation report a 1-2% drop in deaths during summer heat waves. This means that each 20,000-bird house will get a few hundred more birds that can be sold each year. Feed conversion rates get better by 0.05 to 0.10 points, which means that the animal's metabolism is less stressed and it uses nutrients better.

Layer plants show significantly higher output rates when exhaust ventilation keeps ammonia levels below 10 parts per million. The health of the hens' lungs directly affects how many eggs they lay. Houses with good ventilation keep up peak production for three to four weeks longer than houses with bad ventilation. The quality of the shell also gets better because there is less stress on the lungs, which would normally change the way calcium is used.

The average daily gains for finishing pigs are 5–8 percent higher in tunnel-ventilated barns than in standard setups. This is because the animals are more comfortable in the heat and have fewer respiratory illnesses. Days to market weight drop by 3–5 days per pig, which speeds up turnover and makes the plant more productive. These measured changes in performance make the higher initial investment in good negative pressure systems worth it. The higher initial investment is usually recouped within two production cycles thanks to lower mortality, better feed efficiency, and faster growth rates.

When to Choose Negative Pressure Fans vs Positive Pressure Fans: Decision-Making Criteria

Facility Size and Configuration Analysis

The building's measurements have a big impact on the method that is chosen. As the building gets longer than 300 feet, Negative Pressure Fan for Breeding Ventilation System becomes more useful. This method is perfect for big broiler houses (which are usually 400 to 600 feet long) and large pig finishing barns because it can keep air moving at the same speed over long distances. Positive pressure cross-ventilation may be enough and more cost-effective for smaller activities that are less than 150 feet long.

The fan needs depend on the height of the ceiling. Standard chicken coop ceilings of 8 to 10 feet allow air flow to be maintained at floor level. Taller buildings, like those in cow barns or systems with more than one level, may need extra airflow fans in addition to their main ventilation system. The important math involves figuring out the cubic feet per minute (CFM) capacity based on the size of the building and the rate of air exchange that is wanted, which is usually between 4 and 6 full air changes per hour during peak cooling times.

Density of livestock causes heat load, which determines how much air can flow. About 35 to 40 BTUs are produced by high-density broiler farming for every bird that weighs market weight. A 20,000-bird house makes almost 800,000 BTU per hour, so a lot of wind is needed to keep the temperature comfortable. Lower-density businesses, like chicken breeder farms or gestating sow barns, can get by with lower ventilation rates, which gives you more options when choosing a system.

Climate and Seasonal Considerations

Extreme temperatures in a region guide the design of the system. Operations in southern U.S. states have to deal with temperatures that are above 90°F for long periods of time, which requires the most cooling power. When negative pressure systems are combined with evaporative cooling pads, the incoming air temperature can be lowered by 10 to 15°F. This is a very important benefit that positive pressure systems do not offer. In the winter, northern areas need as little air as possible to get rid of moisture and ammonia without losing too much heat. Both systems can do this, but negative pressure gives better control through better inlet management.

The amount of humidity affects the choice of tools. High humidity areas make evaporative cooling less effective, but negative pressure air exchange can still help get rid of gases. In dry areas, evaporative cooling works best, so negative pressure with wet pads is the best option. Coastal places with salty air require building made of stainless steel or fiberglass, no matter what kind of fan is used. This protects the long-term investment.

Automation and Control Integration

More and more, automatic environmental controls with temperature sensors, static pressure gauges, and timer features are being used to improve fan staging in modern cattle production. Negative pressure systems work perfectly with these controls, letting you smoothly switch from minimum air (with only one or two fans running) to full tunnel mode (with all fans running). Motorized actuators make the inlet holes change automatically, keeping the goal static pressure even as the fan capacity changes.

Positive pressure systems are easier to handle because the fans either run or don't run. However, they don't let you direct the environment as precisely. This restriction is most important during the changing seasons of spring and fall, when daytime temperatures change a lot. If you can't fine-tune the wind, you might have too much ventilation, which wastes heat and dries out birds too quickly, or not enough ventilation, which lets ammonia build up.

Variable frequency drives are the best way to control air because they let you change fan speeds indefinitely instead of just turning them on and off. This technology works best with systems that have negative pressure. It smooths out changes in airflow and uses 20–30% less energy than constant-speed operation. In commercial-scale businesses, the investment premium is usually paid back in 18 to 24 months by lower energy costs.

Procurement Guide: Selecting and Purchasing Fans for Breeding Facilities

Essential Specifications and Performance Metrics

The main way to judge the success of a piece of equipment is by its airflow capacity, which is given in cubic meters per hour (m³/h) or cubic feet per minute (CFM). At 20 Pascals static pressure, which is common in breeding houses, a good 50-inch negative pressure fan should be able to move 28,000 to 38,000 m³/h. If a fan loses more than 20% of its capacity at this point, it means that the blades are poorly designed or the motor is too small.

Motor Specifications matter significantly

The specs of a motor are very important. Three-phase 380V motors with a 1.1 kW rating work well with 50-inch units, but how long they last depends on their insulation class and safety grade. Class F insulation can handle temperatures of up to 155°C, which is important for motors that work in hot farming areas. IP55 security levels make sure that dust and moisture can't get in, which keeps bearings from breaking down too soon. If a variable frequency drive needs to work with the motor, the motor should be rated for inverter duty.

Construction materials directly impact service life

The building materials have a direct effect on how long they last. Galvanized steel frames with a 275 g/m² zinc covering won't rust for 8 to 10 years in places with a lot of ammonia. 304 grade stainless steel makes this last longer (15+ years), but it costs 40–60% more. Plastic with fiberglass reinforcements is better at resisting chemicals and doesn't cost too much more, but it's not as good at resisting pressure as metal options. For the Negative Pressure Fan for Breeding Ventilation System, you can get blades made of stainless steel, aluminum, or composite plastics. Stainless steel lasts the longest, while composites are lighter and quieter.

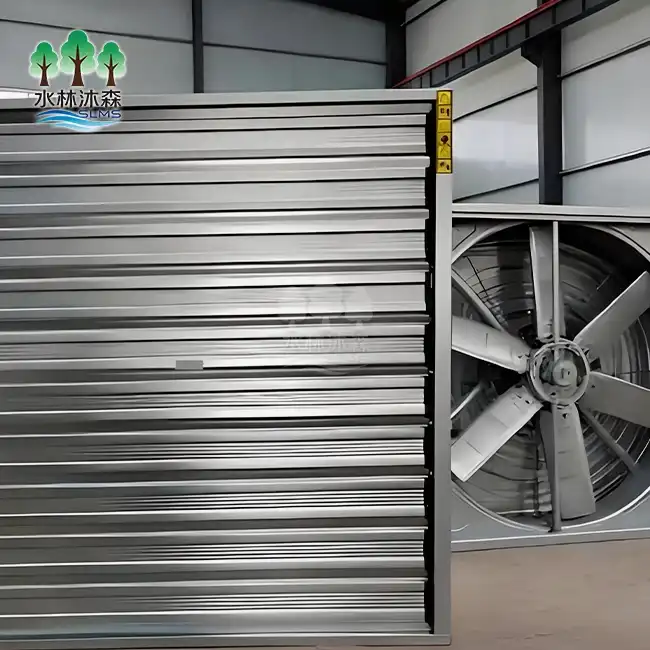

Shutter mechanisms require careful assessment

Careful examination is needed for shutter systems. Gravity doors don't always close properly, letting air in when the fan isn't running. This wastes heating energy in the winter. Motorized or spring-loaded doors close better, but they make the mechanism more complicated. Centrifugal designs that use fan movement to open doors don't need motors, but the counterweight needs to be set correctly during installation. The best choice relies on the weather. In mild areas, gravity doors are enough, but in places with harsh winters, quality sealing systems are needed.

Supplier Evaluation and Quality Assurance

Manufacturers who have been in the farm air business for five years or more have a track record of success. Companies that sell a wide range of products, like fans, inlets, controllers, and cooling pads, are better at integrating systems than companies that only sell one product. How long downtime lasts during breakdowns depends on how easily new parts can be found in the area. When suppliers keep parts in stock in your market area, you can get them the same day or the next day. This is very important during production cycles, when fan failures put whole groups at risk.

Warranty terms show that the company that made the product is confident in its longevity. Standard plans offer full coverage for one year, but some luxury plans cover you for two to three years. Conditions of the warranty are important. For example, some warranties don't cover damage caused by poor upkeep or installation, but complete warranties do. Support services after the sale are what set quality sellers apart from stock vendors. Having access to installation films, expert support lines, and on-site commissioning services lowers the risk of a failed startup and guarantees top performance from the start.

Third-party approvals are an independent way to prove quality. Fans that have been tested to meet the standards of the Air Movement and Control Association (AMCA) have performance graphs that show how airflow changes with static pressure. Getting a CE certificate means that an electrical product is safe for use in foreign markets. Energy Star grades aren't common on farm equipment, but when they are available, they mean that the equipment is more efficient.

Bulk Ordering and Logistics Considerations

Large businesses that need 20 or more fans can save 15 to 25 percent by buying directly from the maker instead of a dealer. When you order in bulk, you have more customization choices, such as choosing specific motor voltages, powder-coating colors that fit your facility's name, or changing the mounting brackets. Some companies, like Shuilin Musen Aquaculture Equipment Co., Ltd., offer custom solutions for choosing materials, adjusting motor power, and creating specific mounting arrangements based on the needs of each facility.

International purchases, you need to carefully plan your operations. Shipping costs for 80 kg fans can be 20–30% of the unit price when they are sent abroad. Optimizing the load of a container lowers the cost of sending each unit. Depending on how they are packed, a 40-foot container can hold 80 to 100 50-inch fans. From the time an order is confirmed until it is delivered, the lead time ranges from 4 to 6 weeks for stock items and 8 to 12 weeks for things that are made to order. Including these dates in the building plans for the facility keeps costly delays from happening during barn startup.

Terms of payment depend on the seller and the size of the order. For established makers, a 30% deposit is usually enough, and the remaining 70% is due before the shipment. For younger ties, letters of credit may be needed. It's important for importers to know if the price includes freight (CIF terms) or just gets the goods to the port of origin (FOB terms). Understanding INCOTERMS can help you avoid unplanned costs and make sure you know who is responsible for insurance during travel.

Conclusion

Choosing between negative and positive pressure ventilation systems is a long-term strategy choice that will affect the well-being of animals, the speed of production, and the revenue of the business for years to come. Negative pressure configurations work better in large business facilities because they control airflow, get rid of contaminants effectively, and handle the environment precisely. A key component of these configurations is the Negative Pressure Fan for Breeding Ventilation System, which ensures consistent air movement and pressure control. These systems regularly improve animal welfare and lower long-term running costs, but they require a bigger initial investment and careful installation.

Positive pressure methods work well for smaller activities or extra uses, but they don't have the control that is needed for high-volume production settings. For procurement to go well, system skills must be matched to building size, climate issues, and output goals, with equipment durability, energy efficiency, and seller support being given top priority. The farms that do the best know that air is an important part of their equipment that needs to be carefully looked at and properly invested in.

FAQ

Which ventilation system reduces energy costs more effectively?

In business settings, negative pressure systems usually use 15 to 25 percent less power than positive pressure systems. This benefit comes from better control of static pressure, the need for fewer fans to cover the same area, and better air spread. A properly set up negative pressure system needs about one 50-inch fan for every 150 to 200 square meters. Positive pressure systems, on the other hand, often need extra fans to fix uneven airflow.

How does negative pressure ventilation improve animal health compared to positive pressure?

Controlled air exchange in negative pressure systems gets rid of ammonia and other dangerous gases better, before they build up to levels that hurt lung tissues. Even air flow gets rid of hot spots that make animals uncomfortable, and steady humidity control lowers the number of bugs in bedding. When put together, these factors lower death rates by 1% to 2% and increase feed conversion efficiency by amounts that can be measured.

Can both systems work with automated climate controllers?

Negative pressure systems work perfectly with multi-stage controls, which lets you make exact changes to the ventilation as the situation changes. Positive pressure setups make it easier to turn something on or off, but they don't let you manage things as precisely. When an operation wants to be as automated as possible and save as much energy as possible, negative pressure setups with variable frequency drives and motorized inlet settings work best.

Partner with Shuilin Musen for Superior Breeding Ventilation Solutions

The most important thing you can do to improve the performance of your livestock and lower your running costs is to look at your current ventilation system. Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience making farming equipment and can help your business with negative pressure fan options designed to meet the needs of intense chicken and swine production. Each of our 50-inch units covers 150 to 200 square meters and can handle 28,000 to 38,000 m³/h.

They are made of materials that don't rust, so they will last for 40,000 hours or more. We offer full professional support, including installation guides, on-site commissioning services, and a warranty that covers everything for one year. As a reliable Negative Pressure Fan for Breeding Ventilation System maker, we can change the motor power, materials, and configurations to fit the needs of your building. Email wangshuaislms@gmail.com to talk about how our air systems can change the environment in your breeding house and cut work costs by more than 40%.
