Octuple-deck Layer Rearing Cage
2. Technical Support: Provides installation videos and other supporting technical support.
3. Core Specifications: Stocking density 40KG/㎡, corrosion-resistant galvanized iron wire and frame, automatic manure removal, automatic feeding, and automatic watering for modern farms.
4. Product Advantages: Reduces labor costs and improves farming efficiency; the rational design reduces egg breakage rate and flock injury and disease rate, indirectly improving egg production efficiency and shortening the payback period.
5. Customization available according to customer needs.
6. Installation Service: On-site installation service available.
7. After-sales Service: 1-year free warranty.

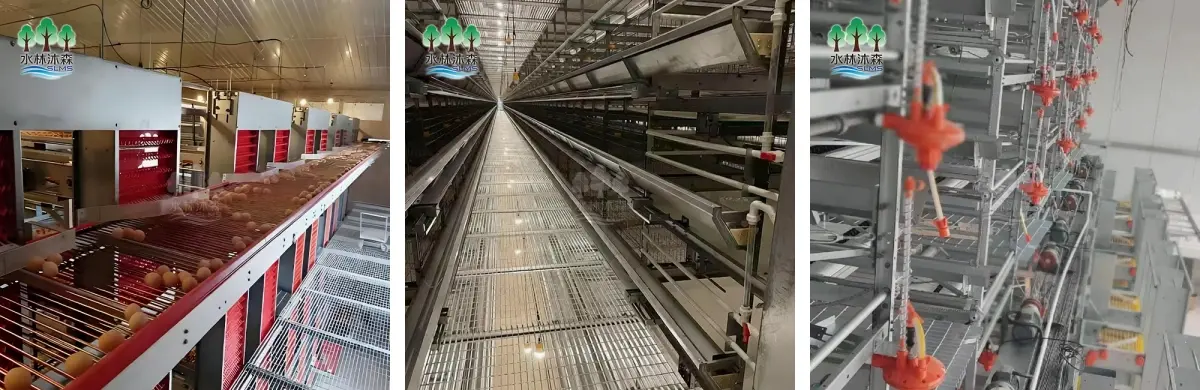

Octuple-deck Layer Rearing Cage: Industrial-Grade Solution for High-Density Poultry Operations
Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. presents the Octuple-deck Layer Rearing Cage, an engineered H-type battery cage system featuring eight vertical tiers designed for large-scale commercial laying operations.This system provides three to four times the capacity of traditional designs, achieving stocking densities of 40KG/㎡. The structure guarantees corrosion resistance in ammonia-rich settings because it is made of hot-dip galvanized Q235 steel wire with a zinc covering of more than 275g/m². For egg harvesting, each cage has dimensions of 45 cm (L) x 45 cm (W) × 450 cm (H) with a 10° bottom slope. Completely automated systems for manure removal, feeding, and watering save labor expenses by more than 40% while upholding biosecurity requirements that are essential for intensive farming operations.
Why Choose Our Octuple-deck Layer Rearing Cage System
Equipment that optimizes return on investment through operational dependability and space efficiency is required for your facility. By using vertical airspace, our eight-tier design solves the problem of land scarcity and enables you to accommodate more than 100,000 birds without increasing the size of your facility.
A protective zinc layer that is impervious to ammonia and hydrogen sulfide corrosion is produced by the hot-dip galvanization process. By extending the equipment's lifespan to 15–20 years, this treatment greatly outlasts cold-galvanized equivalents, which usually break down in 7–10 years.
All layers' feeding, watering, and trash management are handled concurrently via integrated automation. By concentrating on monitoring instead of manual labor, your crew reduces operating costs and improves flock health by providing constant care.
Technical Specifications
| Parameter | Details |
|---|---|
| Cage Dimensions | 45cm (L) × 45cm (W) × 450cm (H) per unit |
| Bottom Slope | 10° angle for automatic egg rolling |
| Material | Q235 high-strength steel wire, hot-dip galvanized |
| Frame Construction | Corrosion-resistant galvanized iron frame |
| Service Life | Over 15 years |
| Stocking Density | 40KG/㎡ |
| System Type | H-type eight-layer design |
| Components | Cage frame, mesh assembly, egg collection device, feeding trough, nipple drinker, water pipe |
| Automation | Automatic feeding, watering, and manure removal systems |
Key Advantages for Large-Scale Operations
Maximized Space Utilization: The vertical stacking architecture increases your breeding capacity per square meter, directly reducing rental and construction costs. You gain substantially more production output from existing infrastructure.
Labor Cost Reduction: Automated systems manage feeding, watering, and waste removal across all eight tiers simultaneously. Your operation requires fewer workers while maintaining higher care standards. The scientific design cuts labor input by more than 40% compared to traditional methods.
Enhanced Biosecurity: Separated manure collection at each tier minimizes disease transmission pathways. Birds remain isolated from waste, reducing pathogen exposure and veterinary costs. This design lowers flock injury and illness rates substantially.
Improved Egg Quality: The egg collection trough features reinforced ribs and high-elasticity steel wire that minimize bounce during egg roll-out. Your breakage rates drop below 0.5%, directly improving profitability and shortening payback periods.
Structural Integrity: Reinforced C-shaped steel framework distributes weight evenly across support legs. The engineering prevents cage deformation under maximum load conditions. Installation, maintenance, and component replacement remain straightforward throughout the 15-year operational life.
Climate Management: When integrated with tunnel ventilation and wet pad cooling systems, the structure maintains temperature variance below 3°C between top and bottom tiers. Your birds experience consistent environmental conditions regardless of tier placement.
Application Scenarios
This system serves specific high-investment commercial environments where land costs and Octuple-deck Layer Rearing Cage density determine profitability:
Mega-Scale Commercial Complexes: Facilities housing 100,000+ birds benefit from centralized feed silos and automated packing center integration. The system connects seamlessly with existing infrastructure.
Land-Constrained Regions: Operations near metropolitan areas face high real estate costs. Vertical scaling allows you to expand production capacity without increasing facility footprint or acquiring additional land.
Climate-Controlled Smart Houses: The eight-tier structure functions optimally in closed-house environments using negative pressure ventilation. Precise alignment with cooling systems manages vertical temperature gradients effectively across diverse climate conditions.
Quality Assurance and Customization
Our manufacturing facility maintains rigorous quality control protocols. Every unit undergoes zinc layer thickness verification, weld shear strength testing, dimensional tolerance inspection, and material hardness evaluation before shipment.
We provide customized solutions based on your specific operational requirements. Our R&D team of 5 professional engineers designs modified configurations for different housing dimensions, capacity needs, and automation levels.
Installation assistance comes standard with delivery. Your team receives installation videos and technical documentation, plus on-site support during setup. A 12-month warranty covers manufacturing defects and component failures.
Frequently Asked Questions
Q: How does ventilation manage temperature differences across eight tiers?
A: High-velocity tunnel ventilation combined with air deflectors maintains Delta T below 3°C between upper and lower levels. Proper air distribution ensures uniform conditions for all birds.
Q: What maintenance does the top-tier manure belt require?
A: Ultrasonic-welded belts feature automatic correction devices preventing tracking issues. Off-track alarms provide immediate notification if deviation occurs, allowing rapid response.
Q: Can the floor structure prevent egg breakage at such heights?
A: Yes. High-elasticity steel wire with reinforced rib construction minimizes bounce and ensures smooth egg roll-out, keeping breakage rates under 0.5%.
Q: How is feed distributed evenly to top-tier birds?
A: The traveling hopper system dispenses feed simultaneously across all eight tiers. Adjustable regulators control feed depth, ensuring uniform distribution regardless of tier position.
Q: How does lifespan compare to A-type systems?
A: Hot-dip galvanization required for H-type frames extends lifespan to 15-20 years, compared to 7-10 years for standard cold-galvanized A-type configurations.
Contact Us
Ready to transform your poultry operation? Let's discuss how our layer rearing solutions can boost your productivity and profitability.
Email: slms-equipment.com@slms-equipment.com
Our octuple-deck layer rearing cage's team responds promptly to inquiries. Share your farm specifications, production goals, and any special requirements. We'll provide expert recommendations and competitive quotations.
