Evaporative cooling pad dimensions and sizes for poultry buildings

Choosing the right evaporative cooling pad measurements and sizes for poultry buildings has a big effect on the health of the birds and the farm's ability to make money. The Poultry House Evaporative Cooling Pad works by letting hot air from outside pass through water-soaked materials, which lowers the temperature of the dry bulbs by 5 to 8°C during the hottest months of the summer. The size of the pads directly affects how fast air flows, how much cooling they can do, and how well the system works with exhaust fans. Common specs include width choices between 100mm (4 inches) and 200mm (8 inches). Model 7090 setups have corrugated cellulose paper set up at certain flute angles to increase the surface area that comes into touch with air and water. Understanding the necessary sizes helps poultry farmers keep groups from getting too hot, keep egg production steady in layer houses, and get the best feed conversion rates in broiler operations.

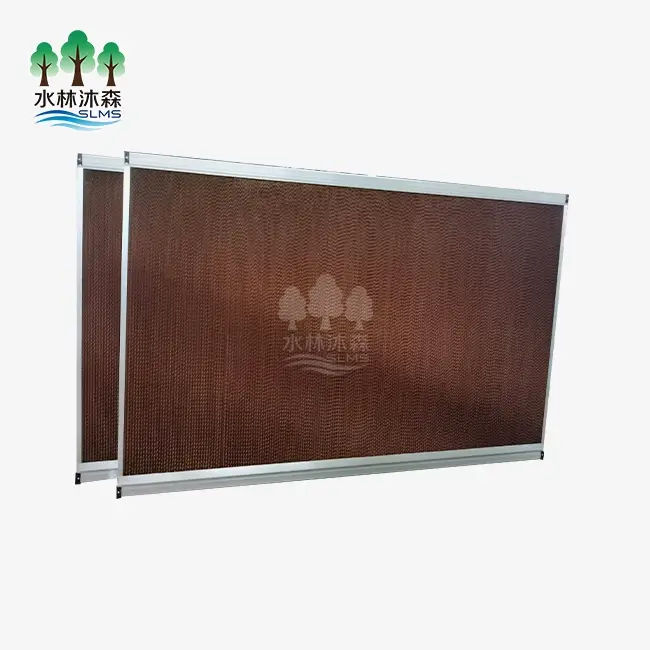

Understanding Evaporative Cooling Pads in Poultry Houses

To keep output levels high, modern intensive poultry farms need to precisely control the temperature. In the United States, heat stress is still one of the most costly problems for groups of broilers, layers, and breeders. This is especially true in the south and southwest, where summer temperatures regularly reach or exceed 95°F (35°C).

The Science Behind Evaporative Cooling Technology

The basic rules of thermodynamics that have been used successfully in farming around the world explain how evaporative cooling surfaces work. When hot, dry air from outside comes into the barn through wet cooling pads, latent heat from the air turns liquid water into vapor, which uses up thermal energy and cools the air. The best conditions for this process are when the relative humidity stays below 70%. This makes it perfect for raising chickens in semi-arid areas. The cooling pads work perfectly with tunnel ventilation systems.

At the other end of the building, negative pressure fans keep air moving through the wet media all the time. Studies done at big farming universities show that evaporative systems of the right size can keep the inside of a building 10-15°F cooler than the outside. This keeps birds in their thermoneutral zone, where they use the least amount of energy to keep their body temperature stable.

How Pad Dimensions Impact Cooling Performance

The size of the cooling medium has a direct effect on three important performance factors: how well it cools, how well it resists static pressure, and how evenly the water is distributed. Thicker pads give air and water more time to touch each other, which lowers the temperature but makes it harder for air to move. In ideal conditions, a 150mm (6-inch) thick pad cools 75–80% of the way, while a 200mm (8-inch) thick pad cools 80–85% of the way. Based on these numbers, the suggested face motion is thought to be between 300 and 400 feet per minute, which is about 1.5 to 2 meters per second.

When these speeds are exceeded, water droplets are carried into the barn, making the litter wet and increasing the release of ammonia. The building's entrance wall standards must be met in terms of height and length to make sure that there are no gaps that would let hot air escape. We've seen operations where pads that weren't the right size left uncovered areas at the top of the outlet walls. This created hotspots that pushed birds into cooler areas, where they gained less weight and died more quickly.

Operational Benefits for Large-Scale Farms

Businesses that raise chickens and use evaporative cooling systems that are the right size report measurable gains in a number of production measures. During heat stress events, broiler houses that aren't cooled see big drops in the amount of food they eat—sometimes 30% less than usual. This means that the birds grow more slowly and can't be sold until later. When temperatures inside layer farms stay above 85°F for long periods of time, egg production drops dramatically, shell quality gets worse, and the death rate goes up.

These problems can be solved by installing the right cooling pad systems, which keep temperatures fixed. When compared to hand cooling methods like misting systems or regular water pan refilling, farms that use our Model 7090 systems with 150mm thickness report labor costs that are more than 40% lower. Pad-based cooling is automatic, so it doesn't need to be watched all the time during heat waves. This frees up farm staff to focus on other management tasks, like checking the quality of feed, doing health checks, and maintaining equipment.

Key Dimensions and Size Factors of Poultry House Cooling Pads

To choose the right cooling pad measures, you need to know how different measurements affect building design and air system parts.

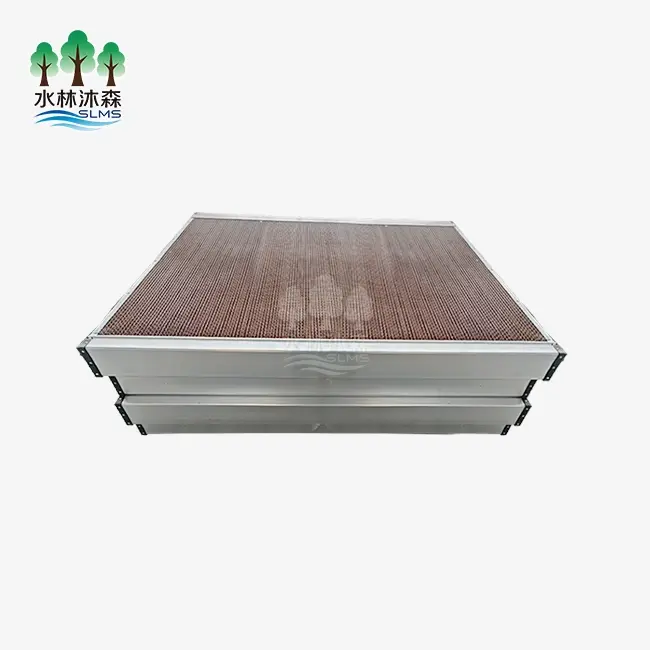

Standard Thickness Options and Their Applications

The thickness of the cooling pad shows how far hot air has to travel through the wet media before it can enter the chicken house. There are two main thickness measures that are used in business:

150mm (6-inch) Thickness Configuration: This size fits most standard 40-foot to 60-foot wide broiler and layer houses with tube ventilation. This thickness is just right for cooling with a Poultry House Evaporative Cooling Pad, and the static pressure stays low enough that air fans don't have to work too hard. We suggest this size for places with 20,000 to 50,000 birds per house, which are moderately cool needs and can handle normal 48-inch or 54-inch exhaust fan sizes. The 150mm pads work well in places where summer temperatures are most common, between 90°F and 100°F.

200mm (8-inch) Thickness Configuration: Operations in areas with high heat benefit from bigger pads because they can cool down faster. With the extra depth, the temperature can drop even more, getting close to 15°F in ideal conditions. This standard works well for breeder houses where keeping the temperature just right has a direct effect on the number of eggs that hatch and the fertility rates. Because of the higher static pressure, air fans need to be stronger, which is something that farm managers should think about when they build the system. Larger businesses that keep more than 75,000 birds in each barn usually choose 200mm pads to make sure they can cool the birds down enough during long heat waves.

Thickness selection affects not only how well it cools but also how often it needs to be maintained. More cellulose is found in thicker pads, which makes them more structurally stable and extends their useful life in heavy chemical load situations that are common in hard water sources.

Height and Length Considerations

To keep air from leaking out and keep cooling even, the height and length of the pad must exactly match the opening sizes of the building. Inlet wall heights in standard industrial chicken houses range from 6 feet to 10 feet, based on the age of the building, the design philosophy, and the number of birds that are intended to live there. Our cooling pads are made in modular parts, which are usually 6 feet high and 4 feet wide panels that are put together horizontally by workers to cover the whole length of the inlet wall.

For a 400-foot-long tunnel-ventilated layer house to have the right air velocity ratios with the exhaust fan capacity, the inlet end wall needs to be covered with pads for about 100 feet. To keep the speed in the 300–400 FPM sweet spot, the formula combines the pad face area with the fan's cubic feet per minute (CFM) output. Undersizing the pad area makes the air move too quickly, which leads to problems with water overflow and insufficient temperature reduction. Oversizing lowers the face velocity below 200 FPM, which means that water doesn't evaporate as quickly as it should and surfaces stay wet, which can lead to algae growth.

Coordinating Pad Surface Area with Fan Capacity

To fit the cooling pad surface area with the vent fan capacity, you need to be very good at math for the system design to work right. The main equation takes into account the fan's total CFM output, the face velocity that is wanted, and the available intake wall area. When going for a 350 FPM face velocity, a balancing system usually calls for 2 square feet of pad face area per 1,000 CFM of fan capability. During the planning part, we work with farm owners to take precise measurements and do the math to make sure that the size requirements are in line with their ventilation equipment.

Building leakage rates are taken into account through adjustments. These rates are usually between 10 and 15 percent in older buildings with worn curtain systems or sidewalls that aren't holding up as well. Modern sealed homes with better sealing allow for more active fan-to-pad ratios, which increase cooling efficiency and lower water use. These technical points make it clear why professional evaluation is needed for measure selection instead of general size suggestions.

How to Choose the Right Cooling Pad Size for Your Poultry Building

Dimensional selection looks at a number of site-specific factors that affect how well a cooling system works and how profitable it is.

Climate Zone Assessment

Minimum cooling capacity needs are set by regional temperature trends. U.S. climate zones are set up by the National Weather Service based on high temperatures, humidity levels, and the number of heat waves that happen. Keeping chicken farms cool is hardest in Arizona, southern California, Texas, and Florida, where summer temperatures stay above 100°F for days on end and heat waves happen often. In these places, the thickest pads (200 mm) and largest pad spaces are available, which is more than the normal fan-to-pad ratio.

High humidity makes evaporative cooling less effective in states in the southeast, like Georgia, Alabama, and Arkansas. Even though pad systems are still very useful, users should not expect them to work perfectly and should think about other ways to cool down during times of high humidity when the relative humidity gets close to 100%. The connection between local weather information and pad size makes sure that planning for capacity is practical and keeps performance disappointments at bay.

Building Dimensions and Bird Density Calculations

The amount of chickens in a house and its size directly affect how much cooling power is needed. There are 25,000 square feet of floor room in a 500-foot-long broiler house that is 50 feet wide. This building can hold between 25,000 and 33,000 birds during a grow-out cycle, based on standard feeding rates of 0.75 to 1 square foot per bird. To manage the biological heat each bird produces, a Poultry House Evaporative Cooling Pad is essential, as this heat builds up inside the enclosure and needs to be constantly removed through cooling and airflow.

Layer operations keep stocking rates lower, but they have to deal with longer periods of heat because their laying cycles are longer (60–80 weeks) than broiler grow-outs (6–8 weeks). Because layers are under a lot of temperature stress, they need to keep cooling down over several summers. This is why lasting pad materials and frame systems that don't rust are preferred. We have frames made of both aluminum alloy and stainless steel. For layer operations, where the longer service life supports the higher starting cost, stainless steel is the better choice.

Custom Sizing Solutions

About 85% of commercial poultry facilities can fit on standard pad measurements. However, older buildings, structures that have been modified, and specialized production systems may need custom designs. To support nesting systems, breeder houses often have walls that aren't the standard height, which means that special pad height requirements are needed. To get full covering, turkey barns with 12-foot sides might need to stack pads vertically.

Custom manufacturing adds wait time to the procurement plan, which usually means that shipping windows are extended by two to three weeks past the release of stock products. When farm managers are planning to build new facilities or make improvements to existing ones, they should involve suppliers in the planning stages so that they have enough time to schedule custom manufacturing, shipping, and installation. Our thorough specification sheets keep track of hundreds of custom setups and serve as a source of reference data that speeds up the process of custom sizing and cuts down on engineering time.

Installation and Maintenance Tips for Cooling Pads Based on Their Dimensions

When installed correctly and in line with the pad's measurements, the equipment works at its best and lasts as long as possible, usually between 3 and 5 years under normal conditions.

Dimensional Installation Guidelines

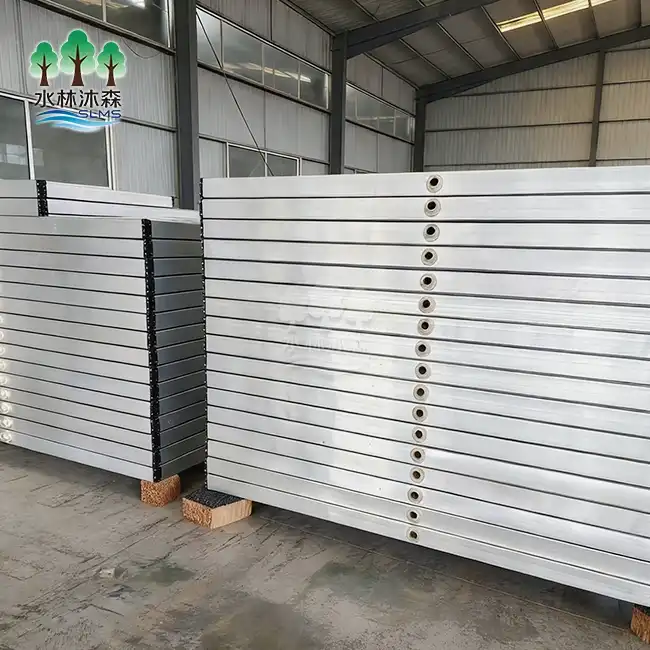

To keep the cellulose structure from getting damaged, installing cooling pads needs to be done with exact measures and care. The first step in the construction process is preparing the frame. This is where either aluminum alloy or stainless steel framing systems are safely attached to the building's entrance wall. To give even support to the whole surface, the frame's dimensions must match the pad's measurements exactly. There are weak spots in the structure where water pressure and wind forces can cause it to fail early because of gaps between frame members and pad edges.

We offer in-depth installation videos that show how to put together the frame, set up the water distribution system, and place the pads. The movies show the right way to handle things so that corrugated flutes don't get crushed or surface coatings get damaged while being moved from storage areas to final mounting places. Teams can usually put pads on a normal 40-foot outlet wall in 4 to 6 hours, as long as they do the right prep work and use frame systems that are already put together.

On-site installation service remains available through our technical support network, particularly valuable for large-scale projects involving multiple buildings or facilities located in remote areas where local technical expertise may be limited. Our assembly teams bring specialized tools and experience that make sure the system starts up correctly and works well before they leave the site.

Dimension-Specific Maintenance Protocols

The amount of maintenance needed is directly related to the size of the pad and the quality of the water in the area. Mineral scaling doesn't affect the Model 7090 setup with 150mm or 200mm thickness very much when the pH of the water stays between 6.5 and 7.5 and the total dissolved solids stay below 500 ppm. Visual checks should be done on the pad surface once a month to look for calcium carbonate deposits (a white crusty buildup) or algae growth (a green discoloration). Both of these things make cooling less effective by stopping airflow through the flute holes.

Different cleaning methods work for different pad thicknesses. To get rid of minerals that have built up in the inside of thicker 200mm pads that water distribution systems can't reach during normal operation, more active flushing methods must be used. We suggest deep cleaning cycles every three months using descaling products based on citric acid that are made especially for cellulose cooling media. High-pressure washing breaks the structure of the pad and cancels the guarantee. Instead, gentle flushing methods using low-pressure hoses work better and protect the pad's integrity.

The one-year free guarantee covers material flaws and early structural failure, but not damage caused by rough handling, chemical exposure from cleaning products that aren't allowed, or using the product outside of what the manufacturer suggests, such as improper installation or operation of a Poultry House Evaporative Cooling Pad. Keeping records of regular maintenance helps with guarantee claims if problems happen during the coverage time.

Extending Pad Service Life Through Proper Care

A lot of different management techniques make cooling pads last much longer than the usual 3 to 5 years. Running pads on duty cycle timers instead of continuously lowers the amount of time they are exposed to water. This lets them dry out every so often, which stops algae and mildew from growing. By constantly flushing out a small amount of flowing water, bleed-off valves in water distribution systems keep mineral concentrations from building up.

In mild areas, winterizing cooling systems keeps pads safe from damage caused by freeze-thaw cycles that break down cellulose fibers and separate layers that are bound together. During the winter months, the structure stays strong by draining all water lines, removing pads for storage inside, or putting on protected covers. These preventative steps pay off because they lower the number of replacements needed and keep the performance level high year after year.

Comparison of Cooling Pad Sizes with Alternative Poultry Cooling Systems

When procurement specialists and farm managers compare evaporative cooling pads to other technologies, it helps them make smart investment choices that are in line with practical goals.

Cooling Pads Versus Fogging Systems

High-pressure misting systems break up water into tiny mist particles that evaporate in the airspace of the chicken house. This cools the area in a way that is similar to pad-based evaporation. Fogging has a smaller installation size than full-wall pad installs, which makes it a good choice for retrofit situations where changing existing inlet systems is hard.

In most business situations, cooling pads are better because they are smaller. Pad systems cool the air where it comes in and send the cooler air throughout the building through guided airflow patterns. Fogging makes the cooling effects less even, making microclimates inside the barn where the amount of mist changes. When pads are the right size, they have low airflow resistance (usually 0.08 to 0.12 inches water column pressure drop). This means that fans don't have to use as much energy as fog systems, which need 800-1200 PSI pumps that use a lot of electricity.

The ways that different systems use water are very different. Pad systems move water back and forth through sump tanks. About 3 to 5 gallons of water evaporate every minute for every 100 square feet of pad area. Fogging systems send water straight into the air flow, where it can cause problems with wet litter if humidity levels rise too much. The accurate measurement of pad sizes stops over-humidification by managing face motion to control the rate of drainage.

Cooling Pads Versus Mechanical Air Conditioning

Mechanical refrigeration-based air conditioning is the best way to control the climate because it can keep the temperature and humidity at exact setpoints no matter what the weather is like outside. This performance comes at too high of a cost for big chicken farms, where conditioning tens of thousands of cubic feet of air needs a huge amount of electricity infrastructure and compressor power.

Based on costs, evaporative pad systems are clearly the best choice for business use. A 40,000-square-foot broiler house with 150mm cooling pads that are the right size runs on 15-20 kilowatts of fan power and light water circulation pump loads, costing between $800 and $1,200 a month in the summer, based on the energy rates in the area. To get the same level of cooling with mechanical air conditioning, you would need 150–200 tons of freezer capacity, 180–240 kilowatts of power, and monthly costs of more than $8–10,000.

Differences in building area sizes also affect how buildings are designed and how much they cost to build. Pad systems can be built into normal inlet walls with only minor structure changes, while mechanical systems need large equipment rooms, ductwork installations, and stronger electrical service that can handle the currents needed for the compressor to start up. Because of these reasons, evaporative cooling is most common in industrial poultry applications, while mechanical refrigeration is still only used in hatcheries and research sites that need to keep the temperature and humidity very low.

Conclusion

Choosing the right evaporative cooling pad measurements and sizes for poultry houses means balancing the need for technical performance with the need to save money. The right size requirements make sure that cooling systems work well, lower temperatures reliably, connect easily with air systems, and last as long as they're supposed to. With thickness choices of 150mm or 200mm, the Model 7090 design of the Poultry House Evaporative Cooling Pad can meet a wide range of operating needs in a variety of temperature zones and production systems. When farm managers know how pad sizes, fan capacities, building sizes, and bird numbers are related, they can make smart buying choices that increase productivity while keeping installation and running costs low. In order to protect capital investments and ensure consistent flock health results, regular repair that is in line with dimensional standards is needed to keep performance high and service life long.

FAQ

What determines the ideal cooling pad thickness for my poultry house?

The width you choose is based on the climate and how much cooling you need. Extreme heat zones with temperatures that stay above 100°F for long periods of time should use 200mm thickness, while 150mm specifications work well in mild areas with high temperatures between 90°F and 95°F. The choice is also affected by the size of the building, the number of birds that live there, and the size of the fan. This is why professional help is useful during the planning stages.

How do I calculate the required pad surface area for my ventilation system?

The needed pad area is found by dividing the total exhaust fan capacity in CFM by the goal face velocity, which is usually 350 FPM. A building with a total fan capacity of 350,000 CFM needs about 1,000 square feet of pad face area. This estimate is based on the idea that the building leaks very little and is properly protected.

Can cooling pads work effectively in high-humidity regions?

As humidity rises, evaporative cooling systems become less effective, but they can still be useful in the southeast, where summer humidity levels often reach 70%. It is still possible to lower the temperature by 5 to 8°F, which greatly lowers thermal stress compared to when the system is not cooled. In humid places, efficiency is best when pads with higher airflow rates are used together.

What maintenance schedule should I follow based on pad dimensions?

Visual checks once a month find the first signs of algae growth or mineral scales. Deep cleaning every three months with approved descaling products keeps the airflow through the cellulose structure at its best. To get to the inside of thicker 200mm pads, they should be flushed more often. In mild areas with seasonal activities, draining and inspecting the system completely once a year before putting it away for the winter can extend its useful life.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Your Cooling Solutions

As a trusted Poultry House Evaporative Cooling Pad maker, we've been coming up with new ways to keep animals cool for eight years. We know that choosing dimensional standards takes more than just looking through a catalog. It requires working with sellers who understand the problems you're facing and want your long-term success. Our five-person engineering team comes up with custom solutions for buildings that don't have standard layouts. This makes sure that everything fits right, no matter how old or new the building is.

Our extensive one-year warranty, training video help, and on-site installation service show that we care about our customers after the sale. Email our technical experts at wangshuaislms@gmail.com to talk about your unique cooling needs and get detailed size suggestions that are made just for your poultry business.
