Comparison of water curtain vs traditional fan ventilation for chicken coops

Modern chicken farms have to choose between water curtain systems and standard fan ventilation. The choice has a big effect on how well the business runs and how well the birds are cared for. Evaporative cooling is used by a Chicken Coop Ventilation Water Curtain to lower the temperature by 5 to 8°C. This is different from regular fans, which only move air to remove heat. When it's really hot outside, water curtain systems are better at controlling the temperature than regular fans because they can cool down much more quickly. For big chicken farms looking for the best environmental control options, this comparison looks at performance measures, installation requirements, and cost factors to help them make buying choices.

Understanding Chicken Coop Ventilation Systems

Modern poultry operations require sophisticated climate control to maintain optimal production conditions. Understanding the fundamental differences between water curtain and traditional fan systems enables informed decision-making for facility managers and procurement professionals.

Traditional Fan Ventilation Principles

Traditional fan ventilation moves air mechanically, creating patterns of wind that get rid of heat, wetness, and contaminants in chicken coops. These systems depend on exhaust fans placed in specific places around the building to bring in fresh air through input vents and push out old air. The main thing that makes the birds cool is the speed of the air moving over their bodies. As the temperature rises above 85°F, the effect weakens.

Most standard fan systems have variable-speed settings that let people change the flow of air based on the weather and humidity. Because motorized ventilation is so easy to use, it can be used in a wide range of building types and locations. During times of high heat, however, regular fans often fail to keep rooms at a comfortable temperature and need to be paired with other cooling methods.

Water Curtain Evaporative Cooling Technology

Evaporative cooling devices are a more modern way to control the temperature in a chicken coop. They use natural processes to lower the air temperature. When hot air moves over wet cooling pads, the water molecules take in heat during phase change, which lets cooler air into the building. In places with high temperatures and low humidity, this process can lower the temperature by 5 to 8°C.

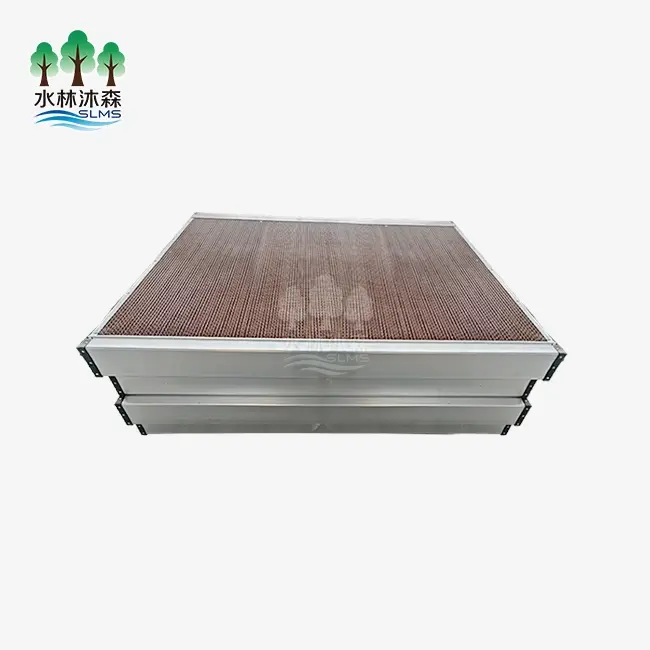

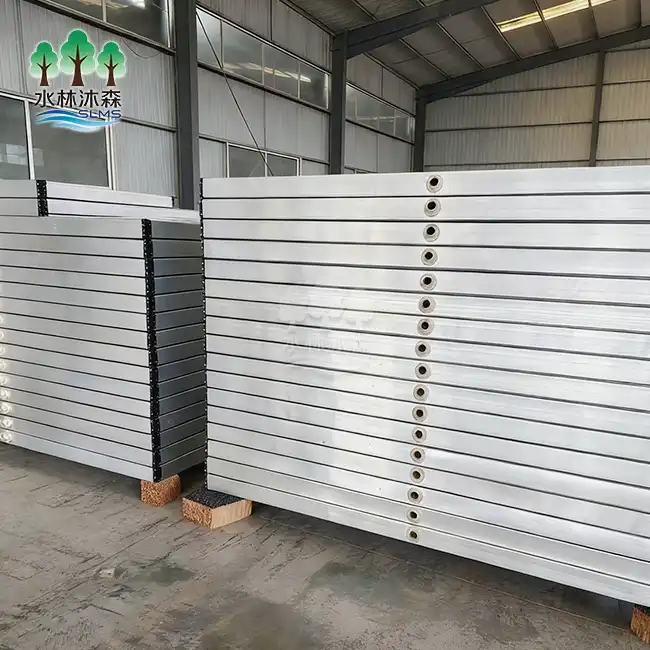

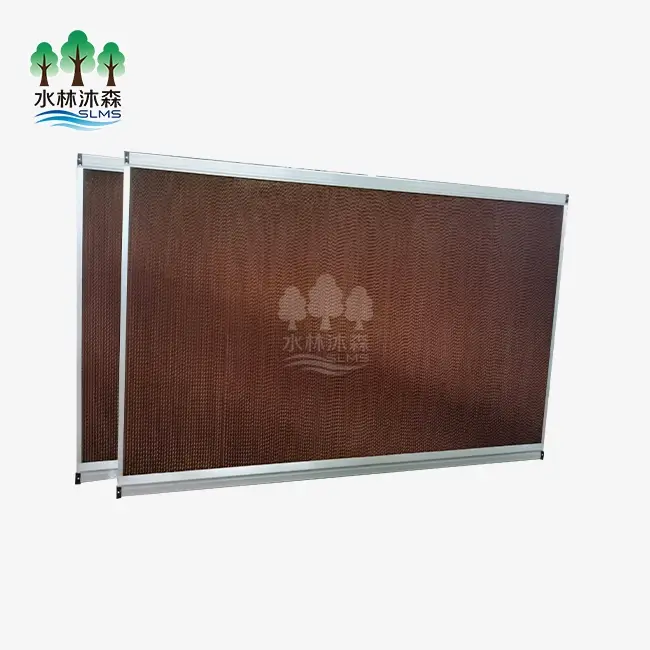

The Chicken Coop Ventilation Water Curtain system is made up of corrosion-resistant frames, high-molecular-weight cross-linked polyethylene cooling pads, and water movement parts. Different building needs can be met by Model 7090 setups that come in 15cm or 20cm thickness choices. The system only works if it is properly connected to negative pressure ventilation. This sets up controlled wind patterns that send cool air all over the building.

Key Operational Differences

The main difference between these systems is how they cool down and what kind of setting they need. Traditional fans work the same way no matter how wet it is, but they can't cool down very much when it's very hot or very cold. Evaporative cooling works best in dry climates, which is where water curtain systems do their best. On the other hand, they don't work as well in wet climates.

Patterns of energy use are also very different between these methods. The motors in traditional fans use a steady amount of power, while water curtain systems need extra power for the water tanks and movement equipment. However, because evaporation systems cool more efficiently, birds are more comfortable and don't get as stressed out by the heat, which means that less energy is used generally.

Performance and Efficiency Comparison

Evaluating the performance characteristics of water curtain versus traditional fan ventilation reveals significant differences in cooling capacity, energy efficiency, and impact on poultry health metrics.

Temperature Control Effectiveness

When it comes to lowering temperatures, water curtain systems work better than regular fan airflow. According to research from the University of Georgia Extension Service, evaporative cooling can lower the temperature in broiler houses by 8 to 12°F during the hottest parts of summer, while standard fans can only lower the temperature by 2 to 4°F by moving air around.

The Chicken Coop Ventilation Water Curtain keeps temperatures more stable throughout the day, which helps the birds work better when they are under a lot of heat stress. Because the temperature stays stable, feed conversion rates go up and death rates go down in broiler farms. Houses for layers that have water curtain systems consistently produce more eggs when it's hot outside.

Energy Efficiency Analysis

When you compare different airflow methods, you can see that they are not all as efficient as you might think. Traditional fan systems use between 0.8 and 1.2 kWh of electricity for every 1,000 cubic feet of movement per minute. The exact cost depends on how efficient the motor is and how many hours it runs. Water curtain systems need more power for the water pumps (usually 0.2 to 0.3 kWh per hour), but because they cool better, the fans don't have to work as hard when the temperature is mild.

Long-term energy analysis shows that in dry areas, buildings that use evaporative cooling save 15 to 25 percent on their total cooling costs compared to those that use standard fan-only systems. But these savings aren't as big in wet places because atmospheric cooling doesn't work as well there.

Impact on Bird Health and Productivity

Conditions in the environment have a direct effect on the health and production of chickens. Studies in the journal Poultry Science show that during times of high heat stress, broilers kept in evaporatively cooled settings gain 8–12% more each day than those kept in regular fan-ventilated facilities.

The ability of water curtain devices to filter air is good for your respiratory health. The cooling pads clean the air naturally, getting rid of dust and other flying pollutants that can make it hard for birds to breathe in large groups. This filtration action lowers the risk of respiratory diseases and raises the health of the group as a whole.

Design, Installation, and Maintenance Considerations

Proper system design and installation practices determine the long-term success of both water curtain and standard fan ventilation systems. Knowing these standards helps facility planners choose the right tools and set up the building in the best way possible.

Water Curtain System Design Requirements

To put a water screen correctly, you need to pay close attention to how air flows and how water is managed. The cooling pads need to be put in a way that evenly distributes the air and keeps the face velocity (usually 350 to 500 feet per minute) across the pad area. Poor cooling is caused by air moving too slowly, while too fast of a speed can lead to water carrying over and pad wear.

Professional design factors include figuring out the right size pad based on the size of the building and the amount of wind that is predicted. A good rule of thumb is to use 4 to 6 square feet of pad space for every 1,000 cubic feet per minute of wind. Using aluminum alloy or stainless steel to build the frame protects it from rust and makes it last longer in damp places.

Managing water quality is an important part of design that is often missed during the early stages of planning. Filtration is needed in the circulation system to keep minerals and living things from building up and getting into the pads, which can make them less effective and cause smell issues. The right drainage plan keeps water from pooling and makes regular upkeep easier.

Traditional Fan Installation Best Practices

More fitting options are available with traditional fan systems, but they need to be placed carefully to get the best air flow. Place exhaust fans so that they create negative pressure throughout the building and stay away from areas with dead air that can trap heat and germs. The design of the air intake must let in enough fresh air without making drafts that bother birds.

To figure out the right size fan, you need to know how big the building is, how fast you want the air to flow, and how much static pressure is lost through the building shell. Fans that are too big lose energy, and units that are too small can't keep up with demand during peak times. With variable speed settings, you can finetune the airflow based on changes in temperature throughout the year and throughout the day.

Maintenance Requirements and Protocols

Due to the biological contamination possibility and water circulation parts, water curtain systems need more frequent upkeep than regular fans. Every week, you need to check the Chicken Coop Ventilation Water Curtain to make sure the pads are in good shape, the water is spread out evenly, and the pump is working. Deep cleaning every three months with approved algaecides stops living things from growing on pads and making smells.

Depending on the water quality and how well the pads are maintained, they should be replaced every three to five years. Because quality systems are made up of separate modules, only certain pads need to be replaced instead of the whole system being redone. This cuts down on maintenance costs and downtime.

In traditional fan care, the motor is oiled, the belt tightness is adjusted, and the blades are cleaned. Motor checks and gear replacements done once a year keep equipment working well and extend its life. Fan covers need to be adjusted every so often to make sure they seal properly when units are not in use.

Cost-Benefit Analysis and Decision-Making Guide for Procurement

Financial evaluation of ventilation systems encompasses initial investment, operational costs, and production benefits over the equipment lifecycle. This analysis guides procurement professionals toward solutions that optimize return on investment while meeting operational requirements.

Initial Investment Comparison

Traditional fan systems usually require a smaller initial investment. Good exhaust fans range in price from $300 to $800 per unit, based on their size and efficiency scores. For basic setups, fans alone can be used to ventilate a whole building for $1.50 to $3.00 per square foot of floor space.

Investing in a water curtain system means buying cooling pads, frames, water movement equipment, and the tools that go with it. Because water management systems are more complicated, a full Chicken Coop Ventilation Water Curtain installation costs $4.00 to $7.00 per square foot. This purchase, on the other hand, comes with better cooling power than regular fans.

Quality issues have a big effect on long-term value. The higher starting prices of premium cooling pads with frames that don't rust and reliable water circulation systems are worth it because they last longer and need less maintenance. A normal 1-year guarantee protects against problems with the product or the way it was installed.

Operational Cost Analysis

Traditional fan systems need energy for the motors and regular upkeep, which adds to their operating costs. In areas with mild weather, the annual running costs are usually between $0.15 and $0.25 per square foot. When fans are running all the time during harsh weather, energy costs go up by a lot.

Water curtain systems cost more because they use more water, power for the pumps, and chemicals to treat the water. However, the better cooling performance often means that less energy is used overall than with fan-only systems when it's hot outside. In dry places where evaporative cooling works best, net practical savings of 10 to 20 percent are typical.

Water quality has a big effect on how much it costs to run a business. Hard water areas need to change pads more often and clean them more thoroughly, while soft water areas make equipment last longer and need less upkeep. Mineral buildup, which can double running costs by causing equipment to break down too soon, can be avoided with proper water treatment.

Return on Investment Calculations

Better temperature control, often achieved through a Chicken Coop Ventilation Water Curtain, justifies the higher initial costs by boosting production. Improved bird welfare leads to measurable gains in feed conversion efficiency, growth rates, and reduced mortality. With effective evaporative cooling, broiler operations typically see a 3–5% increase in productivity.

During times of high heat stress, when normal airflow might cause 10-15% production loses, layer farms benefit from keeping eggs hatching. When combined, better output and lower energy use often mean that investments in water curtains pay for themselves in two to three years in the right conditions.

Future Trends and Innovations in Poultry Ventilation

Technological advancement continues reshaping poultry ventilation systems, introducing smart controls, better materials, and energy-saving innovations that make them work better while making them easier to use.

Smart Technology Integration

IoT connection and automatic settings that improve performance based on real-time environmental variables are built into modern ventilation systems. Advanced sensors keep an eye on factors like temperature, humidity, and air quality. They then change the water pump's operation and fan speeds automatically to keep things running at their best while using the least amount of energy possible.

Machine learning systems look at past performance data to figure out what the best ventilation methods are for different types of weather and stages of production. These prediction systems can cool buildings down ahead of time before temperatures rise and change the rate of air flow based on the age and number of birds.

Facility managers can keep an eye on multiple places from a central control center thanks to remote tracking. Alert systems let workers know when equipment isn't working right or when something changes in the environment. This lets them act quickly to stop production loses. Mobile apps give you information about the state of a facility in real time and about its success in the past, so you can make smart decisions.

Enhanced Energy Conservation Features

Advanced Chicken Coop Ventilation Water Curtain systems use smart water management and variable-speed fans to use less energy while still effectively cooling the chicken coop. Heat recovery systems use the waste heat from exhaust air to warm up new air before it comes in during cold weather. This lowers the cost of energy.

Solar-powered circulation pumps and fan motors make it possible to run machines in rural areas without using electricity from the power grid. Battery backup systems keep things running even when the power goes out, saving important livestock during critical times.

Advanced pad materials make them last longer and keep things cooler. Nano-coated surfaces keep biological contaminants away and make the spread of water more even. These changes to the materials make them last longer and require less upkeep.

Conclusion

Choosing between a Chicken Coop Ventilation Water Curtain and standard fans depends on building requirements, local climate, and operational goals. Water curtain systems excel in dry regions by providing superior cooling and air filtration, which enhances bird welfare and productivity. Traditional fans offer stable, cost-effective airflow suitable for diverse environments with lower maintenance needs. High-performing facilities often integrate both technologies to achieve optimal temperature control year-round. Professional guidance is essential to ensure the right system is selected and installed, maximizing your investment and ensuring long-term reliability.

FAQ

Q1: What climates are best suited for water curtain systems compared to traditional fans?

A: Water curtain systems work best in dry places where the relative humidity is less than 60%. At these temperatures, evaporative cooling works best, lowering the temperature by 8 to 15°F. Traditional fans work the same way no matter what the humidity level is, but they can't cool down very much when it's very hot or very cold. If the relative humidity stays above 75% for a long time, evaporative cooling may not work as well, so standard fans are a better choice for these places.

Q2: How does maintenance complexity differ between these ventilation approaches?

A: Basic upkeep for traditional fan systems includes lubricating the motor, adjusting the belt, and cleaning the system every so often. Water curtain systems need more care, like cleaning the pads, treating the water, keeping the pumps in good shape, and keeping biological contaminants from getting in. But modern Chicken Coop Ventilation Water Curtain systems have automatic cleaning cycles and water treatment systems that cut down on the amount of upkeep that needs to be done by hand while still making sure the system works at its best throughout its operational time.

Q3: Can water curtain systems completely replace traditional fans in chicken coops?

A: Water curtain systems work best when they are added to regular fans instead of being replaced by them. To work properly, the evaporative cooling needs air to flow through the pads, which means exhaust fans are a must. Hybrid systems that use both technologies provide the best climate control. Water screens lower the temperature while fans keep the air moving and ventilating. This mix makes sure that environmental control works well in all kinds of weather and during different seasons.
