How to install pipe clamp brackets in a commercial poultry house？

Whether your watering lines stay level and your air ducting stays safe in your business chicken operation depends on how well you install Poultry House Pipe Clamp Brackets. A Poultry House Pipe Clamp Bracket is the most important part of the link between your suspension system and the pipes that run through broiler houses, layer buildings, and turkey barns. When pipes are installed correctly, they don't sag, which can lead to wet litter, uneven water distribution, and broken equipment. This guide takes you through the whole process, from choosing the right mounting tools to making sure the system is stable after installation. This way, you can be sure that your investment will work well for thousands of production runs.

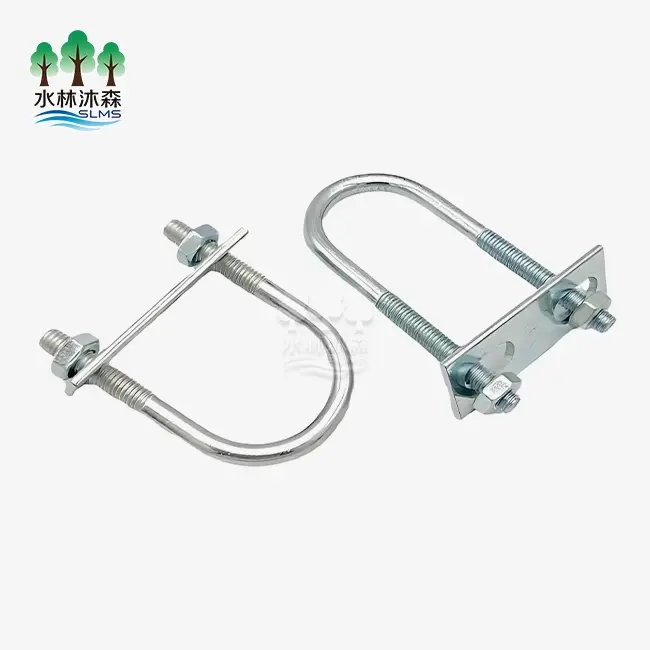

Introducing Poultry House Pipe Clamp Brackets

What Makes These Brackets Different from Standard Industrial Clamps

When chickens are kept in commercial settings, they face special problems that regular tools can't handle. Specialized engineering is needed because of the high humidity, corrosive ammonia gases, and regular contact with chemical disinfectants during cleaning processes. These Poultry House Pipe Clamp Brackets have to keep their hold on water lines that carry several kilograms per meter while still letting the whole system be pulled up to the ceiling for manure removal. Instead of being generic pipe supports, they are made with features that take into account how current chicken production works.

Material Options and Their Performance Characteristics

Hot-dip galvanized steel is very strong and doesn't rust, so it can be used for heavy-duty tasks like holding feed auger lines and bigger ventilation ducting. The zinc covering keeps the base metal safe from ammonia and acidic vapors. 304 types of stainless steel are better at resisting chemicals and last longer in high-density layer houses, which are where ammonia levels are highest. High-impact polypropylene and ABS industrial plastics offer lighter options with UV stabilizers built in to keep them from breaking down when exposed to artificial lighting all the time. Our manufacturing process uses new materials instead of reclaimed ones. This keeps the load-bearing capacity stable and prevents cracks from forming too soon.

Standard Size Ranges and Load Specifications

The bracket systems can fit pipes with widths ranging from 6 mm for small sensor wires to 75 mm for main ventilation trunks. Because of this, one building doesn't have to keep a lot of different types of Poultry House Pipe Clamp Brackets for different line sizes. Different designs can hold different amounts of weight. Standard residential-grade units can hold up to 15 kilograms, while business heavy-duty models can hold 30 kilograms or more under static testing circumstances. Spreading load widely across the clamp body is made possible by the strengthened rib structure. This stops stress concentration points that cause material fatigue.

Step-by-Step Guide to Installing Pipe Clamp Brackets in a Commercial Poultry House

Pre-Installation Assessment and Planning

Before starting the installation, walking around the house gives you important information about the mounting area and the equipment that is already there. Anchors for masonry must be used on concrete piers, but self-drilling screws can be used straight on steel frame members. To keep them from breaking, wooden crossbeams need to be pre-drilled. Find the best bracket spacing by measuring the distance between the supports of a structure. Industry standards say that they should be put every three meters along straight runs. However, in homes longer than 100 meters, this number should be cut to 2.5 meters to avoid any mid-span bowing. Find the places where pipes go in different directions or split off; these need extra support.

Check the lines' state before mounting. Cracked or worn-down PVC needs to be replaced before the work can begin. Make sure that all of the pipe joints are properly sealed and don't leak. Get the Poultry House Pipe Clamp Brackets, an adjustable wrench, a level, a measuring tape, safety glasses, and an electric drill with the right bits. If you have everything you need on hand, you won't have to stop working once you start.

Mounting Process for Different Surface Types

The hardest areas to prepare are those made of concrete. Mark where the mounts will go with a pencil and use a plumb line or laser level to make sure they are straight up and down. Use a brick bit that is the right size for your anchor to drill test holes. Place the expansion pegs so they are flat with the surface, then place the bracket base plate where you want it and drive the mounting bolts through it. Tighten in a cross-pattern to keep the pressure even and keep the base plate from bending.

Putting up a steel frame goes faster. Place the Poultry House Pipe Clamp Bracket against the beam and mark where the holes will go. If the beam is thick enough, use metal screws that drill themselves or put through holes that have already been made. Pull-through is stopped by a backing plate on the other side of the thin-gauge steel. Use a small torpedo level to make sure that the bracket is level with the pipe run before tightening it all the way.

For screws to fit tightly into wooden structures without breaking the grain, the pilot holes need to be a little smaller than the screw width. When supporting water-filled lines, lag bolts work better than wood screws because they have more staying power. After installing the Poultry House Pipe Clamp Bracket, put a small layer of silicone sealant around the base of the Poultry House Pipe Clamp Bracket to keep water out, which speeds up wood rot.

Achieving Proper Spacing and Alignment

When brackets are spaced out evenly, the pipe height stays the same along the whole length of the house. Installing should begin on one end wall and move steadily to the other end. As a reference plane, string a tight line at the height you want to reach. As you put each Poultry House Pipe Clamp Bracket in place, make sure that the surface that supports the pipe lines up with this line. If nothing is done, small changes can add up to sagging or humps that can be seen.

At pipe joints and changes in direction, cut the distance between them in half. Because of the extra weight at the fittings and elbows, they need extra support. Corner clamps with two clamping surfaces can handle right-angle turns without having to be made from scratch. To keep stress from building up at the joint, branch links need to be supported separately on both the main line and the branch line within 30 centimeters.

Post-Installation Verification and Protection

After the work is done, check everything carefully before adding water to the lines or connecting them to automatic systems. As you walk the whole length, gently push up on the pipe in the middle of the span between the frames. Too much movement means there isn't enough support or the fixing isn't tight enough. Tighten up any links that appear to be loose.

Slowly add water to the lines while checking for leaks at the joints and strange stress patterns. Any weak spots in the fixing system are shown by the extra weight. Listen for sounds like creaking or popping that could mean the Poultry House Pipe Clamp Brackets are too full. If the metal hardware isn't already galvanized or stainless steel, cover it with a treatment. A thin layer of petroleum jelly on the threads stops rust that makes taking the parts apart later harder.

Common Challenges and How to Address Them

Dealing with Pipe Misalignment Issues

Most of the time, misalignment is caused by uneven mounting heights for the brackets or incorrect spacing during installation. Instead of making small changes to each Poultry House Pipe Clamp Bracket one at a time, which can lead to new issues, use a laser level to set a new standard. At regular distances, mark the right height, and then change the brackets so that they match. Loosen the fixing gear just enough to move it vertically without taking it off completely. Holding the clamp against the mark, tighten it again.

Preventing and Addressing Corrosion

Over time, the acidic air inside chicken coops breaks down even metal surfaces. By inspecting the area every six months, rust can be found early on. To fix the damage, wire-brush the areas and then use cold galvanizing powder or zinc-rich filler to protect them again. While stainless steel parts don't need as much care, they do benefit from being cleaned with a light detergent every once in a while to get rid of dust and organic waste that sticks to the surface and makes it wet.

The highest amount of ammonia is found in the first meter above the litter, which makes low-mounted frames especially vulnerable. In places where corrosion is a regular problem, switching to 304 stainless steel or high-grade industrial plastics can help. The higher starting cost is justified by longer replacement periods and less work needed for upkeep.

Maintenance Schedules That Extend Service Life

Set up a plan for regular maintenance that works with the time you change your flock. During cleaning times between groups, make sure that none of the mounting hardware is loose. Tighten up any screws that have come loose because of vibrations or changes in temperature. Check the plastic Poultry House Pipe Clamp Brackets for cracks or stress whitening, especially where the screws and hinges meet. These visual cues show when something is about to break, so it can be replaced before a production line stops.

Use a power cleaner to get rid of dust and other organic matter that has built up on Poultry House Pipe Clamp Bracket surfaces while you are cleaning your house. This stops buildup that holds water and speeds up the breakdown of materials. Use food-grade silicone spray to grease any moving parts, like hinges or roller systems. Write down what was found during the check and what was done to replace it so that you can look for trends that point to design problems or bad installation that need to be fixed.

How to Choose the Right Poultry House Pipe Clamp Bracket for Your Needs

Matching Materials to Environmental Demands

There are more than just costs to consider when choosing between coated steel, stainless steel, and specialized plastics. When it comes to broiler houses with eight-week turnover cycles and mild ammonia exposure, galvanized choices work very well. The protective zinc layer lasts longer than the usual five- to seven-year repair period for buildings. The air inside layer houses where birds have been pooping for 80 weeks makes the weather much worse. Here, the higher price of stainless steel is justified by the fact that it lasts longer and needs to be replaced less often.

When electrical separation is important, like when holding anti-roosting shock wires that run parallel to water lines, plastic Poultry House Pipe Clamp Brackets work great. The shielding qualities keep the structure strong and stop short circuits. But because plastic can't hold as much weight, it can't be used for big feed distribution systems or ventilation lines with a large width.

Evaluating Load Requirements Accurately

Figure out the real working loads before you say how much the Poultry House Pipe Clamp Bracket can hold. A normal 25-millimeter PVC water line that is full of water weighs about 3.5 kilograms per linear meter. To find out how much weight each bracket can hold, multiply this number by the distance between the brackets. You should add a safety factor of 1.5 to account for the changing loads caused by birds and heat expansion. For a three-meter span, each bracket has to handle a steady load of 10.5 kilograms, which means it needs to be rated at least 16 kilos.

Poultry House Pipe Clamp Brackets need to be relatively stronger for heavier uses like feed auger tubes or ventilation ducts. Undersizing causes gradual warping over time, which causes the sagging and misalignment problems that proper fitting is meant to stop. Our engineering team can help with load estimates for complicated setups with long spans or a lot of parallel lines.

Customization Capabilities for Unique Applications

Catalog items cover about 80% of common installations, but designs may need to be changed for more specific tasks. Custom Poultry House Pipe Clamp Bracket designs that support multiple parallel lines at specific offset lengths are helpful for breeder houses with complicated feeding schedules. When retrofitting older buildings, non-standard structure spacing can happen that standard bolts can't handle without expensive frame changes. These problems can be solved cheaply with custom hole designs and longer base plates.

We keep our manufacturing methods flexible so that we can accommodate customizations without requiring large minimum order numbers. Our five-person tech team looks over customer needs and comes up with the best solutions while keeping cost and performance in mind. Custom quotes come with technical models and load estimates that can be used for project approval and installation.

Procurement and Purchasing Tips for Commercial Buyers

Direct Manufacturer Engagement Advantages

When you buy pipe supports directly from makers like Shuilin Musen Aquaculture Equipment Co., Ltd., you avoid the markups that come from distributors and have access to professional help during the planning and installation stages. Because we've been specializing in farm tools for eight years, we know how these parts work in real-world situations. Based on real-world feedback from business sites in a range of regions and production systems, this experience leads to improvements in the product.

Direct connections make it easier to talk about customization of the Poultry House Pipe Clamp Bracket and let you change the number of items you order based on the stage of the project. Large companies that are building a lot of houses can get bulk discounts without having to keep too much material on hand. Smaller integrators like that we're willing to ship mixed orders that include different types and sizes of Poultry House Pipe Clamp Brackets in the same package.

Evaluating Total Cost of Ownership

The price you pay for something is only one part of how much it really costs. When comparing choices, think about how much it will cost to install, how long it should last, how often it needs to be replaced, and how much upkeep it needs. A band that costs 30% more but lasts twice as long is a better deal. In the same way, designs that need special tools to be installed add secret work costs that cancel out any savings that might come from lower unit prices.

If you place our galvanized steel Poultry House Pipe Clamp Brackets correctly, they should last between seven and ten years in a normal broiler setting. Stainless steel versions in layer houses have been used for more than twelve years. These performance records help people make smart choices about what to buy by letting them make accurate lifecycle cost predictions. We give you case study data from real sites to help you make your business case.

Warranty Coverage and Technical Support Provisions

Under normal use, a one-year guarantee covers flaws in the way the product was made and material fails. This safety gives you peace of mind that the quality control methods will keep the product working the same way every time. We keep parts and expert help for legacy setups available after the warranty time is over. Installation guides and thorough instructions cut down on the time it takes to set up the system and the number of mistakes that can make it less reliable.

Our expert support team helps you figure out what's wrong with performance problems, whether they happen during startup or years later. Emails are answered within one working day, which helps you solve problems quickly without having to wait for long periods of downtime. This ongoing partnership method sets makers who want to build long-term ties with customers apart from transactional suppliers.

Conclusion

Installing Poultry House Pipe Clamp Brackets correctly is the first step toward building reliable automatic systems for watering, feeding, and air flow in commercial chicken farms. Common problems that hurt bird welfare and production efficiency can be avoided by paying close attention to the material choice, mounting surface preparation, spacing accuracy, and alignment confirmation. Regular maintenance makes parts last longer and keeps them from breaking down during production processes, which can be expensive to fix. When you work with experienced makers, you can get customization options, technical know-how, and quality control systems that you can't get from generic providers. Investing in the right gear and installation methods will pay off over time in the form of less work, lower upkeep costs, and better system performance across multiple flocks.

FAQ

What determines the weight capacity of a pipe clamp bracket?

The load-bearing ability is determined by the materials used and how the structure is built. Basic plastic brackets can't hold as much weight as galvanized and stainless steel Poultry House Pipe Clamp Brackets with strengthened ribs. New industrial plastics work better than recycled materials that have weak spots because their makeup isn't always the same. To check the safety margins, testing methods use static loads that are 50% higher than the stated capacity. Always make sure that the bracket's specs match the estimated working loads plus any safety factors.

Can I install these brackets myself or should I hire professionals?

Maintenance workers with some experience and basic hand tools can easily install Poultry House Pipe Clamp Brackets by following the manufacturer's directions and industry standards for spacing. Professional builders who know how to build poultry facilities may be able to help with setups that are very complicated and need a lot of customization or difficult mounting surfaces. We help people who want to do their own installations by giving them installation videos and professional support. The most important things are exact alignment, choosing the right fasteners for the fastening surfaces, and following a set of steps for checking everything.

How often should I inspect installed brackets?

During cleanout times between groups, do thorough checks of mounting hardware tightness, corrosion formation, and stress signs on plastic parts. Visual walk-throughs during production find problems like droopy lines or loose parts that need to be fixed right away. Comprehensive checks done once a year record changes in health and help figure out when replacements are needed before they happen. In places with a lot of ammonia or strong water chemistry, examinations may need to be done more often.

Partner with a Trusted Poultry House Pipe Clamp Bracket Manufacturer

Shuilin Musen Aquaculture Equipment Co., Ltd. makes reliable mounting solutions that are designed to work in commercial chicken settings. Our Poultry House Pipe Clamp Brackets are made of corrosion-resistant materials and can hold pipes from 6 millimeters to 75 millimeters in diameter. They are backed by strict quality control. We've been specializing in agricultural equipment for eight years, so we know the problems you face and can make goods that fix them.

Our expert team helps you complete a successful installation by giving you clear instructions, letting you make changes, and responding quickly to your messages. Email us at wangshuaislms@gmail.com to talk about the details of your project and get thorough quotes that take into account volume prices for large-scale purchases. Discover how our dedication to new ideas and dependability can help improve the infrastructure of your building at slms-equipment.com.
