Installation guide for negative pressure ventilation fans in breeding houses

It is important to install a Breeding House Negative Pressure Ventilation Fan correctly to keep the air clean and the conditions stable in modern livestock facilities. Controlled airflow patterns made by these specialised ventilation systems get rid of extra moisture, harmful gases, dust, and other airborne contaminants while letting fresh air into the building. When built and set up correctly, negative pressure air systems can make the environment better on chicken farms, cow farms, and pig farms, which is good for animal health and production efficiency as a whole.

Introducing Negative Pressure Ventilation Fans for Breeding Houses

Negative pressure fans work by letting air out of the breeding house and making a managed difference in pressure between the inside and outside. This difference in pressure pulls in fresh air through certain openings, which helps keep airflow and quality stable. The basic idea behind how it works is mechanical exhaust. So, fresh air from outside comes in through cooling pads, sidewall inlets, or other limited holes that are planned into the ventilation system.

Key Operating Principles

Negative pressure fans are better for controlling the environment than natural airflow that isn't managed because they help direct fresh air through clear entry points and keep wetness and dangerous gases from building up. When the system is designed correctly, airflow is spread out throughout the building and there aren't many places where it stops, which is where contaminants can build up. Our 50-inch models with 1.1 kW motors are examples of modern Breeding House Negative Pressure Ventilation Fan units, which can move 28,000 to 38,000 m3/h of air and can cool down an area of 150 to 200 square meters, depending on the application.

Benefits for B2B Procurement Professionals

When looking at air tools for businesses, these perks are very important. Animal health can be improved by better managing airflow, which can cut down on too much wetness, airborne pollutants, and lung stress. Using the right control systems and motors that are efficient can also cut down on electricity use and operating costs. Farms may be able to meet local environmental standards and keep better relationships with nearby communities if they make less noise.

Adding the right air equipment can help the building last longer and keep animals safe while also making the business run more efficiently. Because they are made of materials that don't rust and make little noise when they're running, these systems are good for places with a lot of animals where fans may run for long periods of time throughout the year.

Pre-Installation Preparations and Site Assessment

Planning before installation is very important for getting good ventilation. The first thing that needs to be done is to accurately measure the breeding house's length, width, height, and any openings that are needed. The number of animals and the stage of production help figure out how much air flow is needed. In most cases, these needs are given in terms of cubic feet per minute (CFM) per bird or the animals' overall live weight.

Structural Evaluation and Fan Selection

The evaluation should look at the current wall structures, frame materials, fixing places, and electricity connections. This knowledge helps figure out the best way to place the fan and how much electricity it needs. Each of our 50-inch negative pressure fans weighs about 80 kg, so the attachment points must be strong enough to handle both the static weight and the vibrations that happen when the fans are running.

The right fan size is chosen by considering the amount of wind needed, the size of the building, the number of animals, the weather, and the way the fan will be used. Corrosion resistance and service life are especially important in places where ammonia, water, and dust are present. Our fans are made to last more than 40,000 hours of use, and their structure is resistant to rust so they can keep the airflow stable in harsh farming settings.

Procurement Considerations

Instead of just looking at the price, procurement teams should look at things like guarantee coverage, terms for buying in bulk, expert help, and the total cost of doing business. As part of our standard service, we cover both parts and labour with a one-year warranty. With customisation choices, the motor specs, building materials, and control systems can be changed to fit the needs of the spot. When you buy something, you should also think about how much energy it uses. The 380V motor setup works well and is compatible with the electricity systems found on many industrial farms.

Step-by-Step Installation Process of Negative Pressure Ventilation Fans

Installing a Breeding House Negative Pressure Ventilation Fan should be done carefully and in a planned way to get reliable negative pressure performance. Electrical, industrial, and structure parts must all work together during installation to make sure the equipment works well, is safe to use, and will last for a long time.

Initial Site Setup and Safety Protocols

The right safety steps should be taken before the work starts. Some of these are electricity shutdown methods, fall safety for work at heights, and making sure there is enough air flow during building. As part of getting the site ready, the locations of fans should be marked based on airflow calculations and structural assessments. The right location improves the flow of air while causing the least amount of trouble for the building's current systems.

The fixing area should be made sure to be level, strengthened if needed, and have enough space around the fan box. Openings that are the right size help keep airflow free and give technicians enough room to inspect, clean, and do future maintenance work.

Electrical Installation Requirements

When installing electricity, it's important to follow the wiring guidelines and safety rules in your area. The 380V motor needs circuit protection that is the right size, with motor contactors and breakers that are the right size. Local electrical codes should be followed when routing wires, and areas that are used for farming should have moisture protection. Environmental management tools that keep an eye on temperature, humidity, and air quality can be linked to fans through control integration. With variable-speed control, you can change the flow of air based on the weather and other factors, which can help save energy.

Mechanical Mounting and Sealing

To keep the negative pressure environment you want, the mechanical installation must provide a secure mounting and good sealing. Fasteners that are rated for the unit weight and working loads of about 80 kg should be used to attach the fan body to the right structure supports. Using the right gaskets and seals stops air from leaking out, which can lower the ventilation efficiency.

Using the right fastening methods can also stop vibrations from travelling through the building. Vibration isolation plates help keep links stable and lower noise from mechanical parts. Adding more sealing materials around the installation area can help keep air out even more and keep ventilation working well.

Airflow and pressure should be checked and set up according to the system's design after installation. The first checks should make sure that the fan is turning in the right direction, that the electrical current is safe, and that the minimum breathing rate is being met. By measuring the pressure, you can be sure that the building can keep the negative pressure you want it to have under normal circumstances.

Post-Installation Maintenance and Troubleshooting

Ventilation fans in breeding houses work better and last longer when they are maintained regularly. Dust, wetness, feathers, feed particles, and acidic gases that are common in animal settings should all be taken into account in an organised maintenance program.

Routine Maintenance Procedures

The amount of dust and dirt that the building makes should be taken into account when planning cleaning times. Technicians should check the electrical connections, protected parts, fan blades, motor bearings, belts (if needed), and electrical connections every month. Our Breeding House Negative Pressure Ventilation Fan units are made from materials that don't rust so they can work reliably and require less upkeep in harsh farming settings.

Motor bearings and other moving parts that can be serviced should be oiled according to the care instructions provided by the maker. Replacing worn parts on time helps keep airflow stable during times when ventilation needs are high and stops unexpected breakdowns.

Troubleshooting Common Issues

Troubleshooting steps help find issues with things like breathing, strange noises, vibrations, and electrical performance. Some common problems are incorrect belt tension on models that use a belt, corrosion at the electrical connections, and blade imbalance from dust or debris buildup. Quick evaluation can fix air problems and lower the harm they might cause to animals and output.

Our technical support team can help you figure out what's wrong by giving you detailed instructions and operating advice. On-site installation and service support can also help make sure that the right steps are taken for installation, setup, and maintenance, and it can also give building staff real-world training.

Energy Optimization and Upgrades

One way to save energy is to change the settings on the controls based on the stage of production, the time of year, and the need for air. When the weather is warm, variable-speed running can save electricity while still letting enough air flow through. Adding new parts like high-efficiency motors and up-to-date control systems can make equipment work better and lower its overall cost of ownership over time.

Comparing Negative Pressure Ventilation Fans: Making the Right Procurement Decision

When looking for a negative pressure ventilation fan, you should think about how well it moves air, how much energy it uses, how easy it is to install, what the guarantee covers, and how well the technical help is. Different manufacturers make equipment with different features and service conditions, so purchasing teams should compare products based on what their facilities really need.

Performance Specifications Comparison

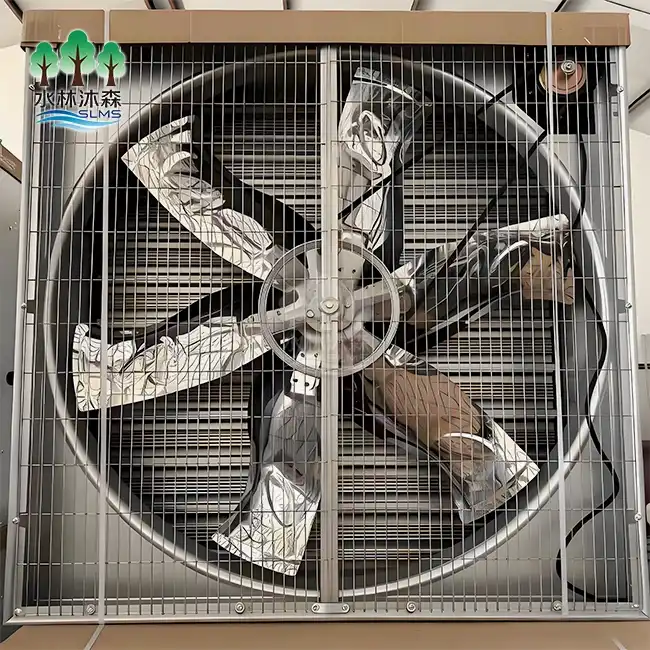

Our 50-inch Breeding House Negative Pressure Ventilation Fan provides airflow of 28,000 to 38,000 m³/h and can serve approximately 150 to 200 square meters per unit, depending on building conditions. The 1.1 kW motor provides a practical balance between power consumption and airflow capacity. These specifications can be adapted for different applications through appropriate configuration and system planning.

Construction materials have a direct effect on service life and maintenance requirements. Compared with conventional painted steel options, galvanized steel and stainless steel construction provide stronger resistance to corrosion in demanding agricultural environments. Improved corrosion resistance can extend service life and reduce maintenance and replacement requirements.

Cost-Benefit Analysis Factors

Procurement decisions should consider the purchase price, energy consumption, maintenance requirements, expected service life, and potential bulk-order savings. Lower maintenance requirements and efficient operation can improve the long-term value of the initial investment. Automated ventilation management may also reduce manual monitoring requirements and help control labor costs when properly integrated with the farm's environmental control system.

Bulk purchasing can provide better pricing and planned delivery schedules, which may simplify installation and replacement planning. Technical guidance and training services are also valuable because they help operating teams use the equipment correctly and maintain stable performance over its service life.

Supplier Reliability and Support

Reliable ventilation equipment should be evaluated together with the manufacturer's technical capability and after-sales support. Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience manufacturing agricultural equipment and a dedicated R&D team of five engineers. The company develops more than three new products each year and provides technical customization for different operating environments. Practical installation guidance and responsive service can help customers achieve more reliable ventilation performance.

Conclusion

Successful negative pressure ventilation depends on proper planning, accurate installation, and consistent maintenance. A detailed site assessment, suitable equipment selection, professional installation, and regular inspection work together to support reliable system performance and service life. Modern Breeding House Negative Pressure Ventilation Fan systems can help maintain controlled environmental conditions in commercial livestock facilities while supporting animal welfare and operational efficiency. Choosing appropriate equipment and qualified installation support can reduce operating risks, improve production conditions, and contribute to more sustainable facility management.

FAQ

Q1: How do I determine the correct number of fans needed for my facility?

The required number of fans depends on building dimensions, animal numbers, ventilation requirements, and local climate conditions. Our 50-inch fans can serve approximately 150 to 200 square meters each under suitable operating conditions. Divide the required ventilation area by the practical coverage per fan, then consider building height and airflow requirements. Our technical team can provide calculations based on your facility layout and operating conditions.

Q2: What electrical requirements are needed for installation?

Our standard fans use 1.1 kW motors operating at 380V. Correctly sized circuit breakers, motor contactors, and wiring are required according to local electrical regulations. The electrical installation should include suitable moisture protection for agricultural environments and compatible speed-control functions where variable-speed operation is required.

Q3: How often should maintenance be performed?

Visual inspections should generally be performed monthly, while thorough cleaning can be scheduled every three months or adjusted according to dust accumulation. Motor bearings and electrical connections should be checked according to the manufacturer's maintenance schedule. With appropriate cleaning, inspection, and servicing, our fans are designed to provide more than 40,000 hours of operating life.

Q4: Can the fans be customized for specific applications?

Yes. We provide customization options for materials, motor specifications, electrical requirements, and installation configurations according to project needs. Our R&D team can adjust standard designs to accommodate different building layouts, operating conditions, airflow requirements, and environmental conditions.

Q5: What warranty coverage is provided?

Our negative pressure ventilation fans include a one-year warranty covering manufacturing defects under normal operating conditions. Technical assistance is also available to help customers with installation, commissioning, operation, and routine maintenance requirements throughout the warranty period.

Upgrade Your Breeding Facility with Professional Ventilation Solutions

Our Breeding House Negative Pressure Ventilation Fan systems are designed for demanding livestock environments, and Shuilin Musen Aquaculture Equipment Co., Ltd. provides equipment and technical support for commercial farming applications. With eight years of agricultural equipment experience and a five-person engineering team, we can provide configurations suited to different facility requirements. Support includes training materials, installation assistance, and a one-year product warranty. Contact our team at wangshuaislms@gmail.com to discuss your ventilation requirements and explore solutions that can improve airflow management, operating efficiency, and animal housing conditions.
