Negative Pressure Fans vs Roof Ventilators: Which Saves More Energy?

When looking at ventilation systems for big chicken farms, how energy efficient they are has a direct effect on your bottom line. After looking at both systems in a number of business settings, Farm Ventilation Negative Pressure Fan Units regularly save more energy than traditional roof ventilators, cutting costs by 30–45 percent. Negative pressure systems make controlled airflow that keeps temperature and humidity in check while using less power per cubic meter of air moved. Their automatic operation and high-volume airflow capabilities—up to 28,000 to 38,000 m³/h in 50-inch models—allow focused cooling exactly when and where it's needed. This gets rid of the constant energy drain of passive ventilation systems that don't respond to the environment.

Understanding Farm Ventilation Systems: Negative Pressure Fans and Roof Ventilators

Keeping the environment in modern chicken houses under control takes more than just moving the air around. To protect the health of the animals and improve production, temperature, humidity, and air quality must be carefully managed.

How Negative Pressure Ventilation Works

Negative pressure devices work by using a simple idea from fluid dynamics: exhaust fans on one end of the barn push air out, leaving a partial vacuum inside the building. Because of this difference in pressure, fresh air from outside has to come in through carefully placed openings or evaporative cooling pads at the other end. Instead of random air movement, this managed linear flow makes sure that the whole building always has the same amount of air flow.

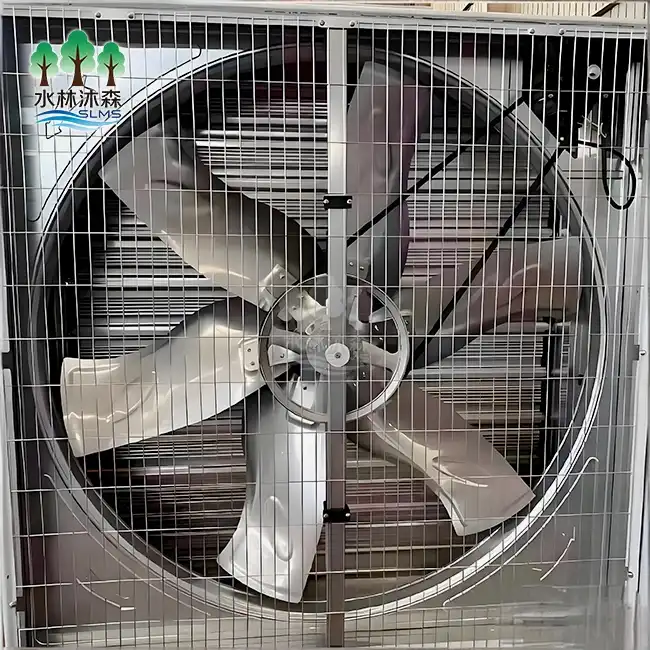

This result is made by the Farm Ventilation Negative Pressure Fan Unit's high-capacity drainage. Our 50-inch industrial fans move a lot of air—between 28,000 and 38,000 cubic meters per hour, which is enough to cover 150 to 200 square meters per unit. The system pulls old, ammonia-filled air out of the barn while simultaneously bringing in temperature-controlled new air. This keeps the barn at the perfect temperature for chickens, turkeys, or layers no matter what the weather is outside.

Roof Ventilator Mechanics and Limitations

Roof ventilators work either by spontaneous natural convection or by using turbines that are driven. Thermal buoyancy is what passive models depend on. Hot air naturally rises and exits through vents on the roof, while cooler air comes in through holes in the sidewalls. Powered roof ventilators have powered fans that help pull in more air, but they don't usually have the unified inlet control that negative pressure systems do.

The main problem is the accuracy of the movement. Roof ventilators can't create the directional air flow needed for tunnel ventilation, which is the usual way to raise a lot of chickens. Changes in air pressure, wind direction, and outside temperatures all have unpredictable effects on performance. Passive systems can't provide the constant air changes needed to keep animals from dying during the most dangerous times of the summer heat stress, when exact environmental control is literally a matter of life and death.

Operational Differences That Impact Farm Performance

When you look at real-world success measures, the difference becomes clear. Negative pressure systems let you precisely control the speed of the air moving through the barn. During hot weather, this speed is usually kept between 2.5 and 3.0 meters per second to keep the air cool through the wind chill. Because it can be controlled, farms can change the rate of airflow based on the age of the birds, the number of birds in the coop, and the weather outside.

Roof ventilators don't have this level of fine control. Their performance changes depending on the outside factors, which makes it hard to keep the inside settings stable. On hot summer days when it's not windy outside, passive roof vents let very little air flow, just when cooling is most needed. On the other hand, when it's windy in the winter, they can make too many drafts that keep young birds cold and drive up heating costs.

The difficulty of installation also varies a lot. To get even airflow in negative pressure systems, you have to carefully figure out the fan capacity, intake size, and spread. But once they are set correctly, they work in the same way every time. At first glance, roof ventilators seem easier to use, but they often need a lot of trial-and-error to get even slightly acceptable results, especially in big business operations that house 50,000 or more birds.

Energy Efficiency Comparison: Negative Pressure Fans vs Roof Ventilators

Energy use is one of the most variable costs in modern cattle operations. This means that the economy of ventilation systems is a very important factor for farm managers and people who sell farming tools to think about when they are buying something, Farm Ventilation Negative Pressure Fan Unit being a prime example of equipment that directly influences both energy consumption and overall cost-efficiency.

Power Consumption Analysis of Negative Pressure Systems

With smart staging and variable-speed settings, modern negative pressure systems use a very small amount of energy. Instead of running at full speed all the time, temperature sensors placed throughout the barn tell automatic controls when to turn the fans on and off. In warm weather, the minimal ventilation mode only runs one or two fans on and off. This keeps the air clean while using very little power.

The motors in our 50-inch negative pressure units are 1.1 kW and run on 380V three-phase power. This standard is very energy-efficient—it moves between 28,000 and 38,000 cubic meters of air per hour while using about the same amount of power as thirteen 100-watt light bulbs. Negative pressure systems always do much better than other options when you look at how much energy they use per thousand cubic meters of air they move.

The benefit of efficiency grows in underground air situations. Negative pressure devices make the most of evaporative cooling for animals by directing high-speed laminar airflow along the length of the barn. This wind-chill effect can lower the temperature by 8 to 12°F without using any extra energy besides what the fan motors put out. This means that extra cooling costs are much lower than with systems that use refrigeration or high-volume misting.

Roof Ventilator Energy Implications

Passive roof ventilators don't use any power, which sounds great until you look at the big picture of energy use. Because they can't cool enough during times of heat stress, farmers have to use extra cooling systems like high-volume misters, evaporative coolers, or even air conditioning in the worst cases. Most of the time, these extra systems use more energy than a properly planned negative pressure device would have needed in the first place.

Powered roof ventilators can be less efficient in some ways. Multiple units must run at the same time to achieve whole-barn air exchange because they don't work as linked system parts but instead work on their own. Most of the time, this spread-out method needs more overall motor horsepower than the focused fan bank setup used in negative pressure designs. Individual motors that are placed on the roof are also not as efficient as the bigger industrial motors that are used in negative pressure fans.

Seasonal changes in performance make the energy balance even more complicated. Roof ventilators may work well during the middle seasons of spring and fall, but they don't work well at all during the summer, which is when backup systems that use a lot of energy are needed. This lack of predictability makes making a yearly energy budget hard, and during peak cooling season, unpleasant shocks often happen.

Cost-Benefit Analysis for Commercial Operations

Negative pressure systems are clearly more cost-effective for large-scale operations when we look at their total cost of ownership over a normal five-year operating time. A full negative pressure system for a 40,000-bird broiler house, which includes fans, controls, inlets, and cooling pads, could cost $18,000 to $25,000 at first. Comparable roof fan installs seem less expensive at $12–$15,000. However, this savings isn't really there when you look at the long-term costs.

The real story is shown by the annual running costs. The average cost of energy for airflow in negative pressure systems at our clients' sites is $0.08 to $0.12 per bird per production cycle. When you add up all the extra cooling systems that roof ventilators need, they usually cost $0.15 to $0.22 per bird, which is almost twice as much. This difference adds up quickly when you look at how many production rounds are done each year.

The cost of maintenance also works in favor of negative pressure systems. Centralized fan banks make it easy for service technicians to get to your units, and they are made of corrosion-resistant galvanized steel or 304 stainless steel, so they can work in tough ammonia conditions for more than 40,000 hours. Roof-mounted units are exposed to harsher weather, need expensive roof access tools to be serviced, and usually have shorter service lives because UV light and temperature cycling break down the housing materials.

Installation and Maintenance Considerations for Negative Pressure Fan Units

Your ventilation investment will directly affect how much energy it saves and how long it lasts if it is installed correctly and maintained regularly.

Site Assessment and System Sizing

A careful site inspection is the first step to a successful installation. To figure out what air exchange rates are needed, we look at the barn's size, building materials, insulation values, and normal stocking densities. The usual method figures out how many fan units are needed by figuring out how many cubic feet per minute are needed based on the highest amount of heat that is expected.

When deciding on sizes, the area environment must be taken into account. Facilities in cold zones don't need as fast air flow or as strong of cooling pad systems as those in hot, muggy places like the Southeast. Because our engineering team helps match equipment specs to your surroundings, you can be sure you're investing in the right amount of capacity and not buying too much equipment that you won't use, which would raise the cost of both installation and running it.

When doing a retrofit, integrating with current systems can be hard in its own way. Farm Ventilation Negative Pressure Fan Unit installations, for example, add specific structural and electrical demands. For older barns to support intense fan loads, the structure may need to be strengthened, and the electrical service may need to be upgraded to provide enough three-phase power. We do thorough load estimates and work directly with your electricians to make sure that the installations are up to code and don't use more power than the transformer or panel can handle.

Common Issues and Troubleshooting Solutions

Even systems that are well thought out can have operating problems that make them less efficient. A lot of noise is usually a sign of worn bearings or blade imbalance, which get worse quickly if not fixed right away. Precision-balanced blades and protected bearings in our units are made to last a long time, but problems can still happen, and regular inspections catch them before they become major problems at crucial times.

Another common thing that kills efficiency is something that blocks airflow. If dust builds up on the shutter parts, they can't open all the way. This can lower the fan's capacity by 15-20% in the worst cases. When debris builds up on cooling pads, it makes the flow of air uneven and raises static pressure, which makes motors work harder while cooling less. Setting up regular cleaning plans stops these problems from happening.

Most of the time, motor breakdowns are caused by poor upkeep rather than problems with the equipment itself. Our 1.1 kW motors have Class F insulation and IP55 entry protection ratings, which means they can handle a lot of dust and water. But they still need to have their electrical connections checked, their voltage source checked, and their working temperatures checked on a regular basis so that problems can be found early and fixed before they become too big to fix.

Preventive Maintenance Protocols

We suggest full checks of the whole system every three months, checking all of its parts. When checking fan blades, make sure that the coats that keep them from rusting are still in good shape, especially at the tips of the blades where air flows fastest. Any surface rust on zinc parts means the coating is failing and needs to be fixed right away to stop faster breakdown in ammonia-filled barns.

When to lubricate depends on the type of bearing. For example, our sealed bearing systems don't need much service, but they do need to be checked every so often to make sure the oil hasn't leaked or worn down. If there are belt-drive systems, they need to be checked for tightness and alignment to keep them from wearing out too quickly and losing performance. Motor bolts should be checked for any looseness that could let vibrations happen and cause the structure to wear out.

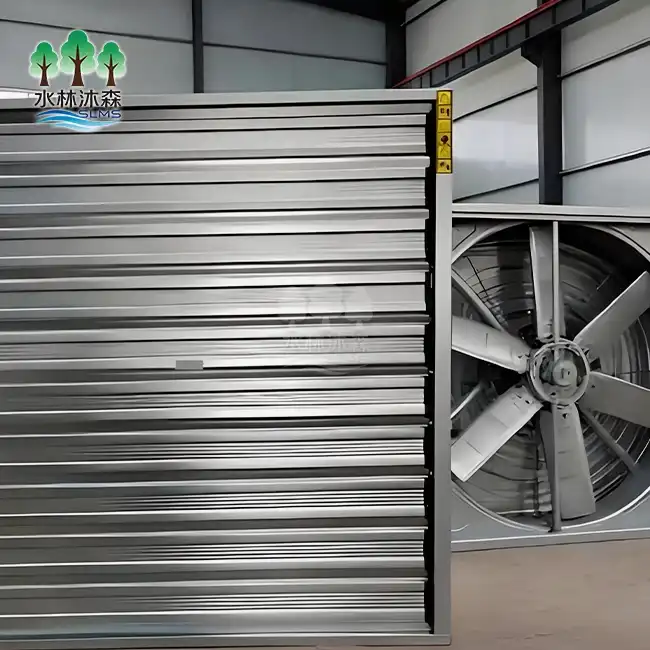

Pay close attention to how the shutter system works because broken shutters have a direct effect on how much energy is saved. When the fans turn off, the doors have to be closed all the way to keep out cold air that would otherwise make heating costs go up. Centrifugal close systems or counterweight mechanisms should work easily and not get stuck, and sealing bands should stay flexible and whole. We offer detailed maintenance videos and technical paperwork to help your team do the right way to check and service the equipment. Our one-year guarantee covers any problems and we're always here to help with technical issues.

Decision-Making Guide: Choosing Between Negative Pressure Fans and Roof Ventilators

Systematic evaluation is important for farm managers and farming groups because the decisions they make about buying equipment affect how well it works and how much money they make for years after it is installed.

Key Evaluation Criteria

Metrics about how much energy is used should guide your research. Figure out how many kilowatt-hours you will use in a year based on your temperature zone and the hours you usually use your system. Negative pressure systems are clearly better for businesses that need to keep the environment under control all year, especially in places where summer temperatures reach over 85°F and animals suffer from heat stress, which limits their ability to produce.

Measuring airflow efficiency shows differences in performance that energy usage numbers alone can't show. Roof ventilators just can't compare to negative pressure systems when it comes to air flow and spread patterns. This directly leads to more comfortable animals during times of heat stress, fewer diseases because of better control of air quality, and higher output metrics like feed conversion ratios and death rates.

Durability is more than just estimating how long something will last. The galvanized steel or 304 stainless steel blades and corrosion-resistant housings in our Farm Ventilation Negative Pressure Fan Units are made of high-strength materials that were designed to work in harsh farming settings. This custom-made design is very different from roof ventilators that were taken from industrial or business buildings and weren't made to handle ammonia or a lot of animals.

Matching Systems to Farm Operations

Due to strict environmental standards and high stocking densities, negative pressure devices work best in poultry farms. For broiler production, it's especially important to keep the temperature just right during the growth cycle, with higher air rates as the birds get bigger and heat production goes up. Negative pressure fans that provide tunnel ventilation are the only realistic way to cool down current high-density broiler houses in the summer.

Layer processes have similar needs, but because they need to keep producing the same things over longer housing times, environmental steadiness is even more important. Farm Ventilation Negative Pressure Fan Unit systems help maintain that stability. Negative pressure systems keep conditions stable during long laying cycles. This stops drops in production and problems with egg quality that happen when air quality or temperature changes.

Scale factors have a big impact on buying choices. Facilities that house less than 10,000 birds might be able to get by with easier air methods, but negative pressure can help even the smallest facilities. Once the capacity goes over 20,000 birds, properly designed negative pressure systems are almost required for competitive production costs because they improve performance and efficiency.

Why Modern Farms Choose Negative Pressure Solutions

More and more, commercial farming wants to see measured returns on machine purchases. Roof ventilators can't compare to negative pressure systems when it comes to measurable benefits like lower energy costs, better feed conversion, lower mortality rates, and more consistent output results. The reason tunnel ventilation is now normal in the industrial chicken business is because it improves performance.

Having the ability to customize is another clear benefit. Our manufacturing center offers custom solutions that meet the needs of each business. If you need a motor with different specs because of an unusual power supply, materials that won't rust in harsh environments, or configurations that are scaled down to fit a barn that isn't the standard size, we can engineer solutions that generic roof ventilator products can't meet.

Animal safety concerns are also playing a bigger role in choosing tools. Negative pressure devices keep the environment in a way that clearly lowers stress in livestock. This increases production efficiency and meets changing standards for animal care. As long as consumers and government rules care about the health and safety of animals, ventilation systems that provide better environmental control will be valuable in the future, in addition to their instant operational benefits.

Leading Manufacturers and Procurement Insights for Negative Pressure Fan Units

When looking for good equipment suppliers, you need to look at more than just prices. You need to look at their technical skills, service infrastructure, and possibility for a long-term relationship.

Manufacturing Excellence and Technical Innovation

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has been making specialized farm equipment for eight years and is now selling it in North America. Our engineering team is always working to improve the physics of fan blades, the efficiency of motors, and the merging of control systems so that each new generation of products performs better than the last. Our dedication to technical progress means that our clients get cutting-edge solutions instead of standard goods.

The problems that farming equipment has are taken into account in our manufacturing quality control methods. We do strict salt spray tests that simulate years of being exposed to ammonia, dynamic balance checks to make sure there are no problems with shaking, and performance checks in a range of static pressure conditions. These quality control steps make sure that rating standards show how well something works in the real world, not just how well it works in a lab.

Professional makers are different from simple dealers because they can make things and make changes to them as needed. Our facility works with both standard product lines and custom-engineered solutions. We can handle everything from replacing a single unit to installing over 100,000 bird facilities completely and without any problems. This ability to grow makes us a good partner whether you run a small farm by yourself or sell farm tools to a lot of different farms.

Smart Procurement Strategies for Equipment Buyers

Distributors and owners with multiple locations can save a lot of money by buying in bulk. Our sales team sets up bulk pricing that rewards bigger commitments while still allowing for flexible installations that can be done in stages to fit building plans or capital budget cycles. We also help equipment sellers build full barn kits under their own brands through OEM relationships.

When choosing a seller, technical help infrastructure should be carefully looked at. We offer full installation instructions that include thorough movies, engineering drawings, and step-by-step guides. In addition to installation, our expert team is available by phone and email to help you with continuing troubleshooting. This way, you can quickly fix operational problems without having to pay for expensive on-site service calls for common issues.

Long-term ownership costs are directly affected by things like warranty support and the supply of parts. Our normal one-year warranty protects your investment during the important first few months of use, and our parts inventory makes sure that new parts are available quickly when service is needed. We keep common wear items like bearings, belts, and shutters in stock and ship new parts quickly to keep equipment up and running as much as possible during service.

Building Reliable Supply Partnerships

Certification guidelines and testing procedures back up claims that equipment is of high quality. Our goods are performance tested by a third party and meet the standards for industrial ventilation tools in the business. When reviewing providers, don't just take marketing claims at face value; ask for proof of how the tests were done and the results.

Working directly with suppliers or with well-known dealers each has their own benefits. When you work directly with a manufacturer, you skip the markups that come from middlemen and get access to engineering knowledge for unique uses. Authorized dealers have local stock, can send items faster, and know how to put things and what the weather is like in your area. The best way to do something relies on your professional skills, the amount of work you need to do, and the level of service you expect.

Having long-term ties with suppliers brings more value than just one purchase. As your business grows or your building is upgraded, having established supplier relationships makes it easier to buy new equipment, make sure that the specs are suitable, and give you institutional knowledge about your installation history, which speeds up service and fixing. We see our ties with clients as partnerships, not one-time sales. We invest in your success throughout the life of our tools in your business.

Conclusion

A study of energy efficiency makes it clear that Farm Ventilation Negative Pressure Fan Units work better than roof ventilators for business livestock operations. Negative pressure systems have many benefits that directly lead to better production numbers. These benefits include precise environmental management, controlled airflow, and lower running costs. Modern chicken farms need reliable, energy-efficient air systems that can keep conditions at their best during all four seasons and output cycles.

Although the original investment may seem higher, when looking at the full cost-benefit study over the entire ownership time, negative pressure installations are always the better choice. Reduced energy use, fewer animals dying, better output metrics, and longer machine service lives all add up to a big return on investment for farmers and agriculture cooperatives that want to be competitive and use sustainable production methods.

FAQ

What are the typical energy cost differences between systems?

The average cost of electricity for negative pressure ventilation systems is $0.08 to $0.12 per bird per production cycle. The average cost of electricity for roof blower processes that need extra cooling is $0.15 to $0.22 per bird. This could save 30 to 50 percent on energy costs related to airflow over the course of a full production year with multiple flocks.

How do I calculate the number of fans needed for my facility?

To find out how much space is needed, multiply the cross-sectional area of the barn in square meters by the air speed that is needed (usually 2.5 to 3.0 m/s for tunnel ventilation) and then divide by the capacity of each fan. Our 50-inch units, which cover 150–200 m² each, are a good place to start. For exact size, you should consider your temperature, insulation values, and stocking density, though.

Can negative pressure systems work in existing older barns?

Retrofit setups work best when the existing structures are strong enough to support the fan and have enough electricity to power the motor. Negative pressure upgrades are very helpful for many older buildings, but some need to be strengthened or their electricity needs to be upgraded in order to work with current high-capacity systems.

Partner with Shuilin Musen for Energy-Efficient Ventilation Solutions

Shuilin Musen Aquaculture Equipment Co., Ltd. is ready to improve the way your farm breathes with our modern Farm Ventilation Negative Pressure Fan Unit systems. Our 50-inch industrial fans can move air at a speed of 28,000 to 38,000 m³/h. They are proven to be energy efficient and have a service life of 40,000 hours or more in harsh farming settings. We offer full help, including training videos, on-site installation services, a one-year warranty, and ongoing expert support to make sure your system works at its best.

Our engineering team specializes in making solutions that are tailored to your exact business needs, whether you are building something new or improving an old one. As a Farm Ventilation Negative Pressure Fan Unit maker with a lot of experience, we offer both high-quality products and full service to help your business succeed. You can email us at wangshuaislms@gmail.com or visit slms-equipment.com to talk about how our air solutions can help you save money on energy costs while also making your animals better and controlling the environment better.
