What are common issues with poultry house air inlet systems?

Modern chicken farms have a hard time keeping the air flow under control, which affects the health of the flock and the business's ability to make money. Ineffective airflow, clogged systems from dust and feathers, worn out mechanical parts, and noise that changes the way birds behave are all common problems with Poultry Air Inlet Systems. These issues stop the air from circulating evenly throughout the building, which throws off the delicate balance of temperature, humidity, and air quality. When intake systems don't work right, lung diseases get worse, birds are more stressed, and feed conversion efficiency goes down. By knowing about these practical problems, farm managers and people who buy tools can make smart choices that protect both animal welfare and production.

Understanding Common Problems in Poultry Air Inlet Systems

Problems with the Poultry Air Inlet are mostly caused by changes in the flow of air. When ventilation systems don't control the air flow or direction correctly, cold air falls straight on birds instead of mixing with warmer air in the roof. This process, called "cold air dumping," causes temperature differences in some areas that are too big for comfort. According to research, temperature changes of more than 5°F within a single house can make broiler operations 2 to 3 percent more likely to kill their birds.

Airflow Inefficiency and Distribution Failures

If the air coming in through the holes isn't moving fast enough, it can mess up the Coandă effect, which is the aerodynamic principle that lets air stick to ceilings and move horizontally before falling. Without enough speed (usually between 700 and 1000 feet per minute at the entry face), fresh air falls quickly, making drafts that cool young birds. This problem is most noticeable in places where the standing pressure falls below the ideal range of 0.08" to 0.12" water column. As a result, there are dead air zones in the farthest points and areas with too much air movement, which makes it hard to control the environment consistently.

Physical Blockages and Contamination

During production rounds, dust, dried manure, feathers, and spider webs build up on the intake screens and flaps. Even a small amount of growth cuts the opening area's usefulness by 15–20%, which makes exhaust fans work harder while letting in less fresh air. In layer activities that release a lot of particulate matter into the air, we have seen entrance screens become 40% blocked in three months without any maintenance. This contamination not only blocks airflow but also holds harmful bacteria and mold spores that move back into the breathing area, making it more likely for people to get sick and raising the cost of medicines.

Mechanical Component Deterioration

During operation, stainless steel springs, plastic flaps, pulley systems, and attaching tools are constantly put under stress. Ammonia fumes from chicken coops are corrosive and speed up the breakdown of materials, which makes plastic parts and springs lose their force. We often see inlet flaps that don't close all the way when they're closed, letting air in without being managed during minimum ventilation times. This makes it harder to be precise, which is needed in cold weather when even small leaks can make drafts that hurt birds and waste heating energy.

Noise and Vibration Issues

When inlet systems don't work right, they make rattling, banging, or whistling sounds that make the background noise louder than what is normally suggested. Chickens that are exposed to noise all the time have higher amounts of cortisol, which lowers their immune systems and slows their growth. Parts that vibrate can also mean that they are out of place or worn out and will soon stop working completely, which could cause the air system to fall suddenly during important production stages. These noise problems change the way birds normally behave, which makes them eat less and do worse overall.

Root Causes Behind Poultry Air Inlet System Failures

To find out why Poultry Air Inlet Systems don't work right, you have to look at the design choices, how they were installed, weather factors, and the repair procedures. There are different conditions in each production plant, but there are some patterns of causes that show up across all businesses.

Design and Sizing Errors

The biggest design mistake is an inlet volume that is too small compared to the CFM rates of the exhaust fan. The ventilation plan fails if the total inlet area isn't able to give enough air volume at a good static pressure. The calculations need to take into account the biggest fan that can work, the size of the house, and the extreme weather in the area. We also see inlets that aren't put properly—they're too low on the sides or spaced out unevenly—which creates preferred airflow paths and leaves some parts of the house without enough air flow. When the thickness of the insulation in the intake isn't thick enough, condensation forms in the winter. Water drops fall onto birds and make the litter wet, which can lead to coccidiosis and bacterial illnesses.

Installation Deficiencies

When fitted incorrectly, even the best inlet items will not work. There are holes in the fixing frames that let air leak out without being stopped. This air flows right past the aerodynamic flaps. If you don't change the angles correctly during installation, you won't get the best air throw patterns. We have records of setups where the builders didn't seal penetrations with the right weatherproofing materials, which led to thermal bridges that caused condensation to form in certain areas. Cable links to automated control systems don't always get enough pressure relief, which can cause the wires to break and the system to stop being able to make adjustments automatically. These quick fixes for installation cause instant operating issues and long-term reliability concerns.

Environmental Degradation Factors

The air in poultry houses is full of strong chemicals that are always attacking things. When 25 to 50 parts per million of ammonia are present during production processes, metal parts rust and many plastics break down. Photo-oxidation happens when ultraviolet radiation hits inlets with external flaps. This makes materials weak and more likely to crack. Temperature changes with the seasons, from highs above 95°F in the summer to lows below 0°F in the winter, put materials through cycles of heat stress that weaken their structures. When there is a lot of dust and high humidity, it leaves behind sticky leftovers that stick moving parts in place and stop them from opening and closing properly.

Maintenance Neglect and Operator Error

Even though manufacturers say that inspections and cleaning should happen every three months, many businesses wait to do upkeep until something breaks. This reactive method lets small problems get worse until they become big breakdowns. During bad weather, operators sometimes ignore automated controls, but they forget to turn them back on automatically afterward, leaving systems stuck in the wrong places. When a building is being cleaned out, pressure washing can push water into protected bearings and control parts, which speeds up failure. When people aren't taught the right way to make adjustments, the settings get thrown off, which hurts performance in later production runs.

Principles of Effective Poultry Air Inlet Design and Installation

Following well-known technical rules and tried-and-true fitting methods for Poultry Air Inlet systems is necessary to get reliable ventilation performance. Modern outlet technology has tools that deal with the failure modes we talked about earlier.

Aerodynamic and Thermal Engineering

High-performance intake designs use flaps with precise shapes that move air coming in at angles of 30 to 45 degrees from horizontal. This shape makes the Coandă effect stronger by letting air streams stick to ceilings and travel 40 to 60 feet before falling. The normal size of 560mm x 270mm allows for enough CFM capacity for most house layouts while keeping the structure stable. Internal deflectors stop cold air from falling too quickly, mixing thoroughly with warmer air that is stratified. High-quality inlets have closed-cell foam insulation layers with R-values of 4.0 or higher. These create thermal walls that stop condensation from forming even when temperatures outside drop below freezing.

The materials used for construction have a big effect on how long something lasts in a hard chicken house. New ABS plastics are much better at resisting ammonia weathering than recovered plastics. They can keep their shape for 10 to 15 years when exposed to it continuously. Grade 304 stainless steel springs keep their force even after thousands of opening and closing cycles without breaking down because of rust. These material requirements are found in high-end goods from well-known manufacturers who know how tough the working environment is.

Installation Best Practices and Field Adjustments

Accurate placement estimates are the first step to a proper fitting. Inlets should be placed on sidewalls 7-8 feet above the floor and should be properly spread apart to keep air from short-circuiting between openings that are close to each other. Each inlet needs to be securely mounted and sealed against the weather all the way around. Silicone sealants that are approved for farm use are reliable long-term shields against air leaks and moisture entry. For automated control systems, the way cables are routed must include service loops and safety tubes to keep them from getting damaged during normal operations.

Once the hardware is installed, calibration checks to see how well it works. By measuring standing pressure in different parts of the house while the ventilation is running in different modes, you can see if the intake capacity meets the design requirements. Performance can be fine-tuned to fit the needs of a specific spot by changing the limits of flap opening and the control system's settings. Keeping detailed records of these choices gives you a starting point for fixing problems in the future. We suggest that experienced technicians be involved in the commissioning part to make sure that the systems are working as planned before the birds come.

Integration with Climate Control Systems

The best results can't be achieved with a single input. For fast environmental management, temperature sensors, humidity monitors, exhaust fans, and heating systems must all be fully integrated. Advanced controllers change the openings of the inlets all the time, keeping the goal steady pressure even as the fan stages turn on and off. This dynamic change keeps the air speed and throw distance the same no matter what the weather is like outside or how much heat is needed. Modern control systems can log data, which lets you look at performance trends and see how things are getting worse over time, before they break down completely.

Troubleshooting and Maintenance Strategies for Long-Term Reliability

Maintaining the efficiency of a Poultry Air Inlet system over many years of use requires planned care and a methodical way of finding problems when they happen. If you take care of your equipment on a daily basis, it will last longer and not break down in the middle of a production run.

Diagnostic Procedures for Common Symptoms

When temperatures aren't the same in different parts of the house, checking the static pressure at the entry points shows right away if airflow is being slowed down by blockages or technical problems. If the pressure reading is less than 0.05" in the water column, it means that the inlet capacity is too high or the exhaust volume is too low. If the pressure reading is above 0.15", it means that the inlet area is too small or the fan is running too much. Using dramatic fog machines for smoke tests lets you see how air moves, showing dead spots or short-circuit flows that temperature monitors alone miss. Seeing how birds behave can help with diagnosis as well. For example, birds gathering away from certain wall sections can mean there are draft problems, and breathing sounds that are concentrated in certain areas can mean there are problems with the air quality in that area.

Preventive Maintenance Protocols

Cleaning on a regular basis is the most important upkeep task. Every eight weeks, dust, feathers, and other waste should be cleaned off of screens and flaps to keep the airflow at the right level. This cleaning happens at the same time as the house change plan between flocks, so production isn't interrupted too much. Technicians should check all mechanical parts for signs of wear during these service times. For example, they should use calibrated gauges to check the tightness of the springs, look for cracks or deformation in the plastic flaps, and move the automatic actuators all the way through their full range of motion. Using food-grade grease that is safe for high and low temperatures to lubricate pivot points makes sure that everything works smoothly.

Verification of the calibration should be part of the three-month upkeep schedule. Making sure that the controller settings create the desired static pressure levels and outlet points stops the parameters from slowly moving away from what they should be. By replacing worn-out parts before they completely break, you can avoid emergencies and extend the system's useful life. Keeping new flaps, springs, and actuator assemblies in stock lets repairs be done quickly without having to wait for shipping during production runs.

Technical Support and Service Partnerships

Working together with manufacturers who offer full expert help has big benefits for operations. Installation movies show the right way to place and calibrate the equipment for the first time, which cuts down on mistakes during commissioning. Having access to application engineers who know about the challenges of the local climate and the needs of specific species helps make system configurations work better. Our business provides these tools through specific support methods, so customers can get help when they need it.

On-site installation services take away any doubts about how to do things right. Mounting, sealing, and calibrating tasks are done by experienced installation teams who follow engineering specs and provide paperwork for building records. This skilled installation sets the right standard performance that maintenance staff can use throughout the lifecycle of the equipment. The one-year guarantee protects your investment by making sure that any problems with the way it was made or early fails are fixed quickly and at no extra cost to you.

Optimizing Energy Efficiency and Cost-Effectiveness in Poultry Air Inlet Systems

Operating costs for Poultry Air Inlet Systems go beyond the cost of buying the tools in the first place. Total ownership costs include the energy used by fans and extra heating, the cost of upkeep labor, and lost output due to poor environmental control. These are all things that buying choices must take into account.

Energy Consumption Analysis and Reduction

Inefficient intake performance means that exhaust fans have to run faster and for longer periods of time to reach the desired airflow rates, which directly increases the amount of electricity used. We found that inlets that work properly cut fan runtime by 15–25% compared to options that don't work well. For a normal 40,000-bird broiler house, this means annual energy savings of $800–1,200. By keeping heat from escaping through too much air exchange, better air mixing also lowers the amount of heating fuel needed when it's cold outside. Over the 10 to 15 years that a quality inlet system is in use, these operating savings add up to a lot, and they often go over the difference in the starting cost of the equipment between luxury and economy goods.

By changing the outlet holes all the time instead of staying in one place, automated control integration saves the most energy. This dynamic reaction keeps the best static pressure and air velocity even when the outside temperature and fan mode change. This stops energy waste caused by too much airflow. Within 18 to 24 months for most operations, the money spent on automated actuators and complex controls pays for itself through lower energy costs and better production measures.

Procurement Considerations and Supplier Evaluation

When buying teams look at possible sources, they should look at more than just unit price. Long-term dependability is based on the quality of the manufacturing process. High-end materials, such as virgin ABS plastics and stainless steel tools, are much better at protecting the environment than cheaper options made from recycled materials and mild steel parts. We promise oxidation resistance by choosing materials and applying protective processes that keep them working well for as long as they're supposed to.

Because they can be customized, inlet systems can be made to fit the needs of a particular building. Our tech team can make custom solutions for buildings with odd shapes or sizes, harsh weather, or problems connecting to current control systems. This gives businesses the freedom to choose the best goods for each job, instead of having to settle for general ones that might not work well in some situations.

The total ownership experience is greatly affected by the technical help system. Manufacturers that offer installation guides, application engineering advice, and quick debugging help help facilities get the performance they were designed for and fix problems as soon as they happen. On-site installation services take away any doubts about how to do it right, and a full guarantee guards against failures before they happen. These support factors make it okay for businesses that put long-term dependability and performance consistency first to charge more.

When buying in bulk, big integrators, equipment dealers, or owners who run more than one facility need to think about these things. Established makers offer volume pricing plans, coordinated shipping schedules, and specialized account management services that make buying easier and make sure that all of your operations use the same product specs. Distributors and big producers can get the most out of their supply chain relationships by judging providers based on how well they can support projects at multiple sites.

Conclusion

Common problems with Poultry Air Inlet Systems include poor airflow, physical blockages, mechanical wear and tear, and noise disturbances that directly affect the health of the birds, the efficiency of production, and the costs of running the business. These issues happen because of bad planning, bad installation, damage to the environment, and not doing enough upkeep. When procurement workers know what the root causes are, they can select strong systems with the right aerodynamic design, long-lasting materials, and full support services.

Improving energy efficiency and forming smart partnerships with suppliers pay off in the long run, far beating any initial costs. Using tried-and-true repair and troubleshooting methods will keep your equipment running well for a longer time, protecting your investment and keeping the right conditions for successful chicken production.

FAQ

How Do I Calculate the Correct Number of Inlets for My Facility?

Find the total air flow rate (CFM) of all the exhaust fans in transitional ventilation mode. Then, divide that number by the rated air flow rate (CFM) of each input at a steady pressure of 0.10" to 0.12". A 500-foot broiler house with six 24-inch fans (for a total of 60,000 CFM) running at half power needs an intake area big enough for 30,000 CFM. Using inlets that are rated at 1,800 CFM each at 0.10" pressure, this building needs about 17 units spread out equally along both sides. Undersizing leads to too little air velocity and too much vacuum, while oversizing takes away the throw distance needed for proper mixing.

What Causes Condensation and Water Dripping from Inlet Components?

When warm, humid air inside the system meets cold surfaces on the inlet during the winter, condensation forms. This can happen if there isn't enough insulation in the inlet body or if there is air leakage around the mounting frame, letting cold air from outside chill plastic parts. Good inlets have closed-cell foam insulation (R-4.0 minimum) and need continuous weatherproof sealing during installation. Fixing leakage points and checking the integrity of the insulation gets rid of condensation problems that cause wet litter and disease pressure.

How Often Should Inlet Systems Receive Maintenance Service?

It is recommended to check and clean the inlet screens, flaps, and mechanisms every eight weeks while the facility is empty between production cycles. This keeps dust from building up and limiting airflow. Calibration checks should be done every three months to make sure that static pressure levels and controller settings stay within the recommended range. Once a year, all mechanical parts should be inspected, including spring tension, plastic condition, actuator function, and mounting integrity. Worn parts should be replaced before they break on Poultry Air Inlet Systems, so that emergencies don't happen during important production periods.

Can Automated Control Systems Improve Inlet Performance?

Automated controls constantly change the openings of the intakes to keep the target static pressure while the exhaust fans cycle through different operating stages. This dynamic adjustment maintains the best air velocity (700–1000 ft/min) and throw distance, even when the outside temperature or ventilation mode changes. Compared to manual fixed-position operation, automation improves temperature uniformity by 40–50% while lowering energy consumption through precise airflow management. Modern controllers connect to comprehensive climate management platforms, which allows data logging and performance trend analysis that shows how things are getting worse before they break down.

Partner with Shuilin Musen for Superior Poultry Air Inlet Solutions

At Weifang Shuilin Musen Aquaculture Equipment Co., Ltd., we solve the ventilation problems we've been talking about with designed solutions based on our eight years of experience making equipment for animals. Our Poultry Air Inlet Systems are made with the design principles and material requirements that stop common failure modes and improve performance in a way that can be measured.

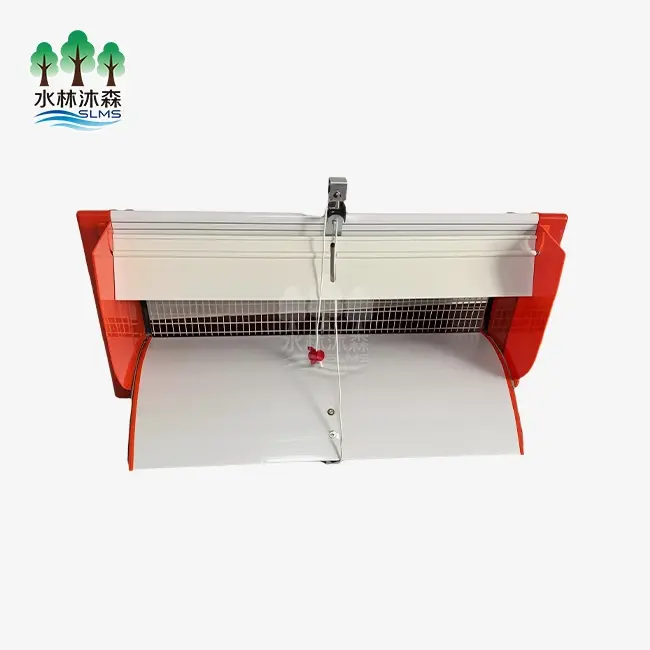

The main benefits of our inlet goods directly address the problems that come with regular air parts. Our 560mm x 270mm ABS structure with built-in deflector, insulation layer, and stainless steel springs gives it better protection to oxidation and longer mechanical life. While the interior wind blocker stops cold air from dumping, it also spreads fresh air evenly throughout your building to keep temperatures and air quality stable. Compared to basic outlet goods, this design cuts down on temperature changes by up to 60%. This protects bird health and increases feed conversion efficiency.

We help your business in more ways than just delivering tools. Installation movies and detailed documents will show your team the right way to mount and calibrate the equipment. On-site installation services make sure that professional installation happens when it's wanted, setting the standard for best performance right from the start. As proof of our faith in the quality of our products, we offer a one-year guarantee. During the life of your equipment, our engineering team is available for application advice and repair assistance.

As an experienced Poultry Air Inlet maker that works with wholesalers, integrators, and farm owners all over North America, we know what you need to think about when buying equipment. Email our team at wangshuaislms@gmail.com to talk about your air problems and find out how our designed inlet systems can help your business run better and make more money. You can find full product specs and more technical information at slms-equipment.com.

References

1. Donald, J. (2018). Poultry House Ventilation Design and Management Principles. American Society of Agricultural and Biological Engineers Technical Publication.

2. Czarick, M., & Lacy, M. (2019). "Heating and Cooling Poultry Production Facilities: Environmental Control Strategies." Poultry Science Journal, 98(6), 2843-2857.

3. Appleby, M. C., Mench, J. A., & Hughes, B. O. (2020). Poultry Behaviour and Welfare: Environmental Requirements and Management Systems. CABI Publishing.

4. Purswell, J. L., & Dozier, W. A. (2021). "Air Velocity and Temperature Distribution in Broiler Houses: Impact of Inlet Configuration." Transactions of the ASABE, 64(2), 487-498.

5. Mitchell, M. A., & Kettlewell, P. J. (2019). "Physiological Stress and Welfare of Broiler Chickens in Transit: Solutions Not Problems!" Poultry Science, 98(12), 6552-6565.

6. Gates, R. S., & Xin, H. (2017). Agricultural Ventilation Engineering: Design Guidelines and Performance Standards. Iowa State University Extension Technical Manual Series.
