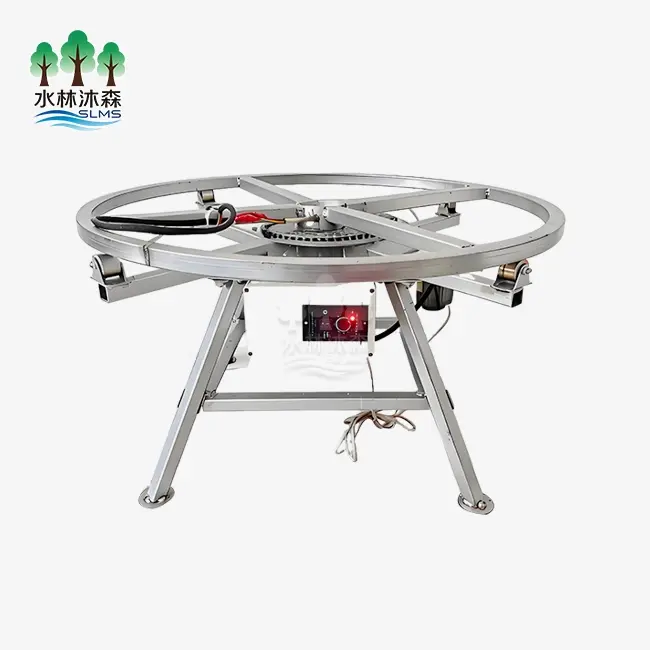

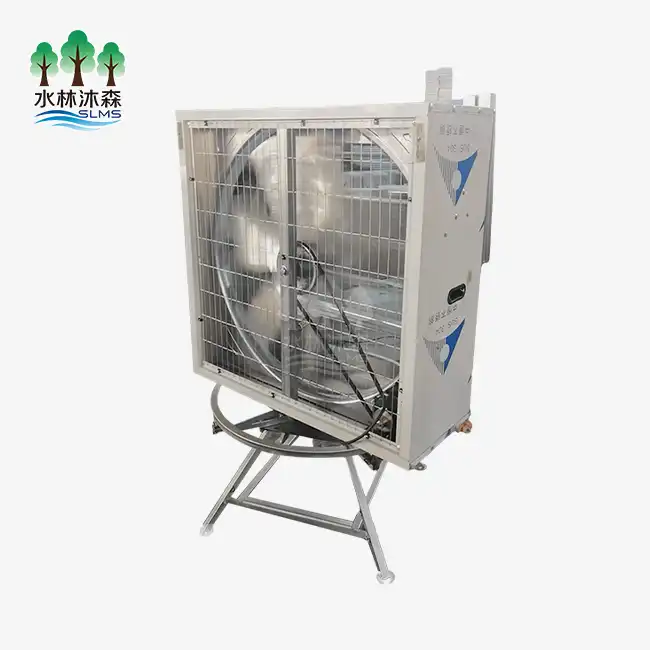

Poultry Floor-Raised Fan Base: Key Features and Applications for Livestock Ventilation

A Poultry Floor-Raised Fan Base is an important part of current ventilation systems for chickens that are made to work in floor-raised houses. These special fan installation systems allow large-diameter exhaust or circulation fans to be placed at floor or low sidewall level, directing airflow across areas where birds live. Poultry Floor-Raised Fan Bases are different from wall-mounted units because they have rotary mechanisms and strong structural elements that are made to resist the harsh environment of chicken barns, which is full of ammonia, dust, and water. Properly designed fan bases make sure that the machine runs smoothly, keep animals from being stressed by vibrations, and directly help with managing air quality, which is important for keeping flocks healthy and producti

Understanding Poultry Floor-Raised Fan Bases: Components and Functionality

For chicken airflow to work well, it needs parts that were carefully designed to work together. Poultry Floor-Raised Fan Bases are the building blocks of reliable air flow and contain several important parts that determine how well the whole system works.

Core Structural Elements and Material Selection

Modern Poultry Floor-Raised Fan Bases are usually made of hot-dip galvanized steel with zinc coats that are thicker than 275g/m². This makes them very resistant to rusting by ammonia and damage from water. For tasks that need better chemical protection during high-pressure wash-down processes, premium models use die-cast aluminum alloy (ADC12) or Grade 304/316 stainless steel. The base case has double-row angular contact ball bearings with an IP55 rating or higher. These keep trash dust and feather down out, which speeds up mechanical wear. Mounting plates are designed to spread load stress evenly across base surfaces. This is very important for setups that handle fans with blade diameters between 36 and 72 inches.

Rotary Mechanisms and Dynamic Balance Standards

The spinning part in Poultry Floor-Raised Fan Bases makes it possible for fans to work smoothly while keeping their structure strong even when they are being used all the time. According to ISO 1940 guidelines, good bases have dynamic balance grades of G6.3 or higher. This means that eccentric spinning, which makes noise and shortens the life of bearings, is kept to a minimum. This precise engineering lowers operating noise below 65dB(A), which stops acoustic stress that can slow down broilers and layers' feed intake and growth rates. Automotive-grade bearings that are sealed for life mean that most installations don't need to be maintained very often. However, units with grease lines should be oiled with lithium-based grease every six months or after each flock cycle.

Integration with Automated Control Systems

Modern Poultry Floor-Raised Fan Bases can be connected to weather control systems, which lets them work at different speeds based on real-time monitors for temperature, humidity, and ammonia. During the grow-out phase, as the group size and metabolic heat production rise, automated models change the airflow on the fly to keep the best ventilation rates. Manual systems can still be used for smaller tasks or retrofits, and when paired with timer-based controls, they can be very cost-effective ways to ventilate. The size of the farm, the supply of workers, and long-term operating goals should all play a role in the decision between automated and manual setups.

By understanding these basic parts, procurement experts can compare product specifications to specific building needs, making sure that the products will work with both current infrastructure and plans for future growth.

Benefits and Best Practices for Using Poultry Floor-Raised Fan Bases

When Poultry Floor-Raised Fan Bases are set up correctly, they improve animal health, production efficiency, and the long-term viability of the business. These benefits go beyond just moving air; they also include managing the world as a whole.

Health and Productivity Advantages

Poultry Floor-Raised Fan Bases are great at getting rid of dangerous gases, especially ammonia, which builds up quickly in chicken operations with a lot of birds. When concentrations go above 25ppm, they cause inflammation in the lungs, a weaker immune system, and less efficient feed conversion. Ammonia levels stay below 15ppm when air exchange works well, which is good for your lungs and lowers the number of animals that are sent to be processed.

Controlling temperature with tailored airflow lowers deaths from heat stress in the summer. In broiler houses, wind chill effects lower temperatures by 8 to 12°F. Better air quality lowers the number of pathogens in the air, which cuts down on disease spread and the use of antibiotics. This is becoming more and more important as rules limit the use of antibiotics for preventative purposes.

Installation Positioning and Site Preparation

To get the best airflow, you need to pay close attention to where you put the fans and how you prepare the structure. Place Poultry Floor-Raised Fan Bases so that air flows evenly throughout the bird zone. In tunnel-ventilated homes, these fans are usually placed 40 to 50 feet apart along the sides. Supports made of concrete pads or strengthened mounting surfaces must be stiff, stopping vibrations that wear down structures and make noise louder. Ground fault prevention and weatherproof enclosures that are rated for farming settings should be built into all electrical links. The design of the inlet and the capacity of the exhaust must be matched to keep a small negative pressure (0.08 to 0.12 inches of water column) that stops backdraft and ensures airflow in a certain direction.

Maintenance Protocols for Extended Service Life

Routine repair has a big effect on how long technology lasts and how reliably it works. Cleaning plans should be based on how often the group is turned over. During barn sanitation, dust should be removed from fan blades, housing, and bearing assemblies. Checking the torque specs on fixing bolts stops them from coming loose, which can cause shaking and misalignment. If you look at a bearing case, you should make sure there is no corrosion or damage to the seals. If there is, or if the temperature goes above usual, you should replace it. Every year, the balance of the blade should be checked because uneven growth or physical damage causes a dynamic mismatch that speeds up the wear on the parts.

These care steps make sure that the performance stays the same for the 8–10 years that most premium Poultry Floor-Raised Fan Bases should last in well-kept settings. In places where rust is bad, parts may need to be checked more often or materials may need to be upgraded to stainless steel.

Comparison and Selection Criteria: Finding the Best Poultry Floor-Raised Fan Base

When choosing the right ventilation tools, you need to carefully look at the technical specs, the needs of the business, and the long-term costs. When you make an informed choice, you weigh the instant costs of acquisition against the value over time.

Floor-Raised Versus Wall-Mounted Configuration Analysis

Poultry Floor-Raised Fan Bases direct airflow at bird level, which is especially helpful in facilities with slatted flooring or raised wire systems that need steady air flow under raised platforms for waste separation. Wall-mounted exhaust fans work great for tunnel ventilation because they create fast airflow that cools the tunnel the most during times of high heat stress. A lot of modern buildings use a mix of tube exhaust fans and Poultry Floor-Raised Fan Bases to get rid of dead zones and improve air flow. The best arrangement relies on the size of the barn, the weather, and the features of the production system.

Material Quality and Durability Specifications

The building materials have a direct effect on how long equipment lasts and how much it costs to maintain. For sites that keep ammonia levels below 20ppm and follow regular cleaning procedures, standard hot-dip galvanized steel is a good rust resistant material. Powder-coated aluminum or stainless steel changes are worth the extra money if your business is exposed to a lot of ammonia or uses harsh chemical cleaning methods. Another important factor is the quality of the bearings. High-end automotive-grade bearings with advanced sealing technology are more expensive, but they last longer and fail less often, so they are worth it. Specifications for buying things should include minimum zinc covering weights, bearing load ratings, and IP protection ratings that are right for a chicken barn.

Evaluating Automated Systems and Return on Investment

When compared to single-speed fans, variable-speed fans with weather sensors save a lot of energy. They can cut annual electricity use by 30 to 45 percent by precisely matching airflow. For businesses that can handle more than 20,000 birds, the extra money spent on automatic controls usually pays for itself in 18 to 24 months. For smaller farms, manual methods combined with customizable timers may be enough to control the environment while costing less. Electricity prices, the size of the facility, the management expertise that is available to help optimize the system, and the need to connect to current automation platforms should all be taken into account when making a decision.

Careful design matching to operational needs stops both poor performance and wasteful spending, which supports the best possible financial outcomes.

Procurement Insights: How to Source and Purchase Poultry Floor-Raised Fan Bases?

To buy equipment successfully, you need to know what the suppliers can do, how much they charge, and how to get the equipment to you. These things can affect project timelines and the total cost of landing.

Identifying Reputable Manufacturers and Suppliers

Manufacturers of poultry machinery that have been around for a while and have a track record with ventilation systems can offer technical help, consistent quality, and good warranty coverage. Shipping costs are lower and local service is easier to get from regional wholesalers, but you should check their product depth and technical knowledge before choosing one. Direct ties with manufacturers are good for big businesses that need to customize products or buy a lot of them at once because they let them change specifications and negotiate prices for large orders. Online business-to-business (B2B) platforms give you more ways to find suppliers, but you need to carefully check their qualifications, product certifications, and customer references before making a promise.

Understanding Pricing Variables and Volume Opportunities

The price of a Poultry Floor-Raised Fan Base depends on a number of things, such as how well it works with different fan diameters, the quality of the bearings, and its ability to integrate with automation systems. Standard zinc bases with a 48-inch capacity cost between $280 and $420 each, while high-end stainless steel bases with sealed bearing systems cost between $520 and $680. When you buy more than 20 units, you can often get a 12–18% discount, and for bigger jobs, you can negotiate custom price models. When you buy something internationally, you have to think about more things, like import taxes, changes in currency exchange rates, and longer lead times that mean you have to plan ahead to make sure you can still meet your building deadlines.

Custom Manufacturing and Specification Support

Manufacturers that offer custom building services can help facilities that have specific needs for dimensions or weather conditions. Customized solutions could deal with fixing arrangements that aren't standard, better corrosion protection for seaside areas, or integration with control systems that aren't standard. By involving suppliers early on in the planning process, ventilation plans and equipment specs can be made as efficient as possible, which avoids having to make expensive changes during building. As part of technical support, airflow models, electrical load estimates, and installation advice should all be included. These are the kinds of value-added services that set premium providers apart from commodity vendors.

These methods for buying things make sure that the tools bought is exactly what the business needs, and they also make the most of the total project costs and the value of the supplier relationship.

Common Issues and Energy Efficiency Considerations

To keep fans running reliably while using as little energy as possible, you need to pay attention to mechanical upkeep, performance tracking, and planned system updates.

Diagnosing and Preventing Mechanical Problems

Most of the time, a Poultry Floor-Raised Fan Base problem is caused by too much shaking, which usually means that the dynamic balance has been lost because the blades are dirty or the fixing bolts have come loose. Systematic repair starts with cleaning the blades and checking the torque before moving on to inspecting the bearing case or replacing parts. Operational noise often means that a bearing or seal is wearing out or failing, so it needs to be fixed right away to avoid a catastrophic failure during bad weather. If the airflow decreases without any technical signs, it could be because of clogged inlets or a block further downstream. This means that the whole system, not just the Poultry Floor-Raised Fan Base, needs to be looked at.

Implementing Energy-Saving Technologies

When you pair external sensors with variable frequency drives, you can precisely change the flow of air. This way, ventilation rates can be adjusted to meet real cooling and air quality needs instead of running at full capacity all the time. Compared to regular on-off switching, this technology cuts electricity use by 35–50%, which saves a lot of money for businesses with long production cycles. Smart control interface lets you watch and make changes from afar, which helps management respond quickly to changing conditions. Solar panels are becoming more and more common in ventilation systems. However, their economic viability relies on the cost of energy in the area, any benefits that are available, and the building's orientation so that the panels are placed in the best way.

System Integration and Design Optimization

To keep the air quality consistent throughout the barn, exit fans, airflow fans, and inlet systems must all work together as a whole. Poultry Floor-Raised Fan Bases should work with tunnel ventilation exhaust, not against it. This way, the fans will mix the air evenly without changing the flow patterns in any one direction. Using computational fluid dynamics models during the planning process helps find possible dead zones and find the best places for fans to be placed for the best coverage. Before choosing equipment and installing it, retrofitting existing buildings requires a careful study of how air flows now and any structural limits.

If you pay attention to these practical issues, ventilation systems will give you the most value over the course of their service life through reliable performance and low running costs.

Conclusion

Modern ventilation systems for chickens depend on Poultry Floor-Raised Fan Bases, which have a direct effect on the health of the flock, the speed of production, and the costs of running the system. Choosing tools with the right material specs, precise engineering, and automation features is the only way to be sure of its reliable performance in harsh farming settings. Installing equipment correctly, keeping it in good shape, and integrating it with weather control systems in a smart way can make it last longer and use less energy. Livestock businesses can stay productive and profitable in competitive markets by making smart purchasing choices that take into account facility needs and long-term operational goals.

FAQ

Q1: What maintenance intervals apply to floor-raised fan bases?

A: Modern sealed-bearing systems usually don't need much upkeep other than being cleaned every six months when the barn is turned over. High-temperature lithium-based grease needs to be used every six months to lubricate units with grease joints. Once a year, the bolt tightness should be checked and the bearings should be inspected visually. If shaking or noise gets worse during operation, blade balance checks should be done on the Poultry Floor-Raised Fan Base.

Q2: How does material selection impact equipment lifespan?

A: Hot-dip galvanized steel lasts 8 to 10 years in well-kept settings where ammonia levels stay below 20ppm. Buildings made of stainless steel or powder-coated metal last longer and are better for places where rust is likely to happen. However, they cost more at first. The choice of materials should take into account the unique conditions and cleaning rules used at each location.

Q3: Can existing barns accommodate fan base retrofits?

A: Most regular chicken coops will let you put in a Poultry Floor-Raised Fan Base as long as the structure is checked to make sure the base is strong enough and the electricity capacity is enough. It is important for retrofit projects to include a full airflow study to make sure that the new equipment works well with the current ventilation system and doesn't cause any pressure imbalances or dead zones.

Partner with Shuilin Musen Aquaculture Equipment for Your Ventilation Needs

Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience in providing ventilation solutions for farms and animals, helping big chicken farms all over North America. Our engineering team creates unique Poultry Floor-Raised Fan Base systems using high-quality hot-dip galvanized steel and well-balanced rotary gears that work reliably in tough production settings. We know that Poultry Floor-Raised Fan Base suppliers need to offer more than just tools. Full expert support, fast shipping, and discounts for buying in bulk are just a few of the ways that they make sure your ventilation projects stay on schedule and stay within your budget. Please email our team at wangshuaislms@gmail.com to talk about your facility's unique needs and to learn more about our full range of ventilation solutions, which come with expert fitting advice and quick service after the sale.
