Quadruple-deck layer rearing cage solutions for maximizing space efficiency

Modern chicken farms have a constant problem: they need to produce more eggs in smaller spaces while still taking care of the birds and making money. In order to meet this need, the Four-layer Commercial Layer Cage System uses vertical stacking technology, which quadruples the living capacity of traditional single-tier configurations. This designed solution has a galvanized steel frame and computerized systems for feeding, watering, and getting rid of manure. It allows for high-volume egg production at a stocking density of 40KG/㎡. Large farms that take care of 10,000 to over 100,000 birds can use these multi-tier systems to turn limited room into a competitive edge by making better use of resources.

Understanding the Four-Layer Commercial Layer Cage System

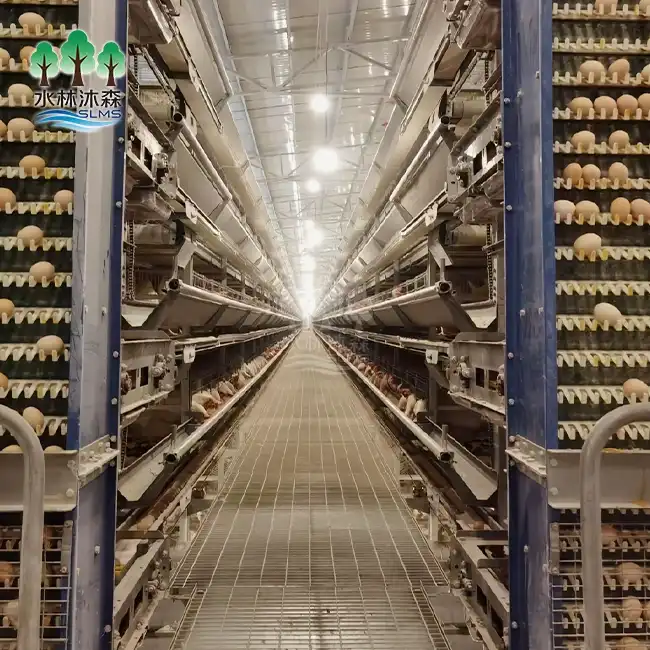

Vertical layer cage systems are a big change in the way business chicken farms are set up. Instead of spreading birds out over a large area of floor space, these arrangements stack living units on top of each other in four separate levels, making what experts call "high-density rearing environments." The physics behind this method strikes a balance between the need for structural stability and the needs of farming.

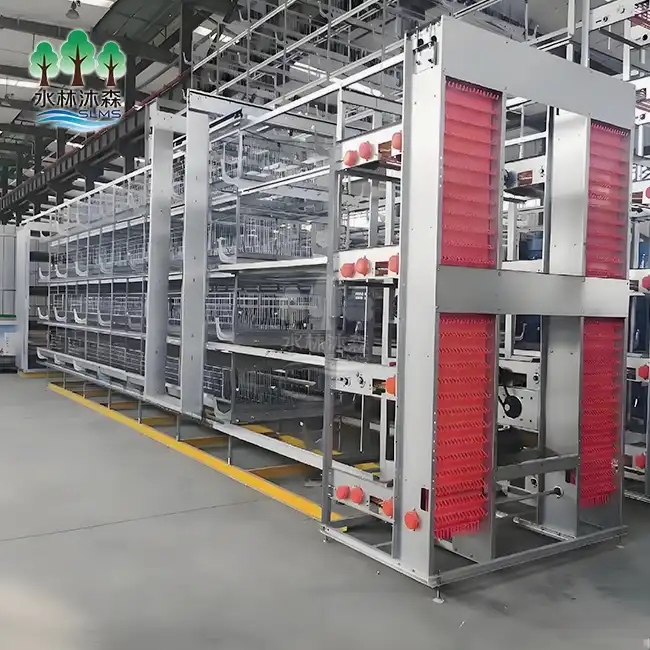

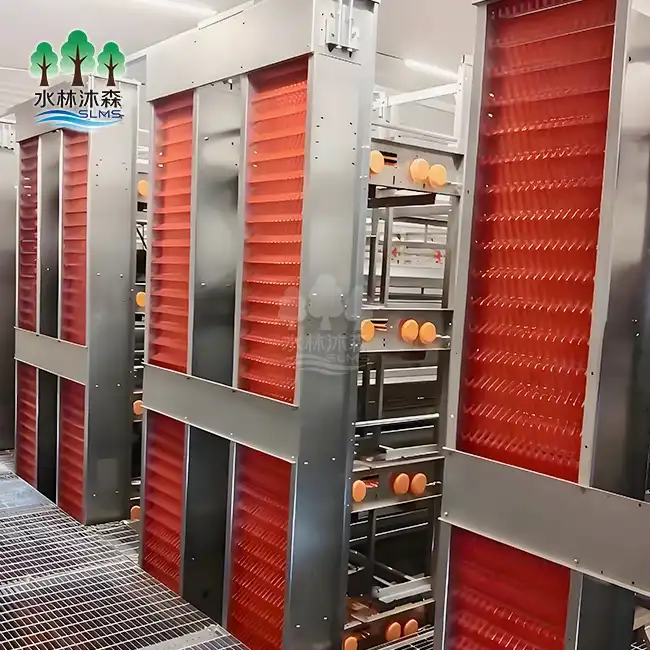

Core Structural Design and Materials

Any multi-tier cage system that works well depends on the materials it is made of and how it was put together. We at Shuilin Musen Aquaculture Equipment Co., Ltd. make cage frames out of high-quality coated steel and 304 stainless steel. The corrosion resistance of these materials was a big factor in their choice, which was especially important in chicken farms where ammonia is common. The hot-dip galvanization method uses a zinc coating that is thicker than 275g/m². This makes a barrier that protects the equipment and makes it last longer than 15 years of continued use. This metal cleaning is necessary when dealing with the corrosive climate created by a lot of chicken waste and water.

The cage mesh is made of Q235 international bridge steel wire, which was picked for its high tensile strength. Each weld point is tested for shear strength to make sure it can handle forces greater than 3,000N. This keeps the structure from breaking under the weight of fully grown laying hens, eggs, and feed distribution systems. To keep people from getting hurt and to let waste flow freely, the wire diameter and spacing must be exactly right.

Dimensional Specifications and Capacity Planning

Standard cage measurements for each cell are 1950 mm long, 350 mm wide, and 380 mm high. This set-up gives each bird 450 to 550 cm² of room, which meets market standards for bird welfare and makes the cage as dense as possible. When figuring out how many people your business can hold, keep in mind that a full four-tier unit takes up about the same amount of floor room as a single-tier system but can house four times as many people. This spatial economy is especially useful in places where the cost of buying land has a big effect on the economics of a project.

The vertical arrangement uses smart spacing between levels to make it easier for air to flow and for tools to be accessed. With enough space, repair workers can check the nipple drinkers, feed troughs, and egg collection bands without taking the whole system apart. Proper tier spacing also helps with airflow, which is a key part of keeping all levels of living at the right temperature and humidity.

Advantages of Quadruple-Deck Layer Cage Systems Over Traditional Methods

Moving from floor-rearing or single-tier cages to four-layer cages has measured practical benefits that have a direct effect on your bottom line. These benefits go beyond just multiplying room; they also include making work more efficient, preventing diseases, and making sure that output stays consistent.

Superior Space Utilization Economics

Land is one of the most expensive things that farms need to build on. A quadruple-deck layout successfully increases your building's ability to produce without making it bigger. Think about this real-life example: a building with standard floor plans that houses 20,000 birds might need 2,000 square meters. In a four-tier cage setup, the same population takes up about 500 square meters of floor room. In terms of costs, this 75% drop in space needs means lower building costs, lower heating and cooling loads, and lower property taxes over the life of the building.

The vertical form also makes the best use of land in places where there are limits on farming or not enough land. Farmers can reach their production goals without having to buy more land or build more facilities. This saves money that could be used for practical investments instead of buying property. The Four-layer Commercial Layer Cage System fits seamlessly into this approach, as it maximizes vertical space while maintaining efficient bird management and easy operation.

Labor Cost Reduction Through Automation Integration

In agricultural activities, manual work is a big cost that keeps going up. Our four-layer systems work perfectly with automatic tools for feeding, watering, and getting rid of manure. This cuts the need for labor by more than 40% compared to traditional methods. The automation starts with feeding systems that use chain or screw devices to give exact amounts of food to all four levels at the same time. Birds get the same food at regular times without having to be fed by hand, so there are no uneven feeding patterns that can affect the unity of the group.

Automated nipple drinking systems make sure that each level of the cage always has clean water available. This method reduces the amount of water that is wasted while still making sure that everyone stays hydrated. Unlike open trough systems, nipple drinkers cut down on spills that cause litter to get wet and ammonia levels to rise. The systems for getting rid of manure are set to work on predetermined times and use belt or scraper systems to move waste away from residential areas without any help from people. Regular automatic trash clearance cleans the air, lowers the risk of disease, and provides healthier conditions that support steady egg production.

All of these mechanical parts change how things are done every day. Tasks that used to need multiple workers throughout the day can now be done with little control, freeing up workers to do more important things like checking health and maintaining equipment.

Enhanced Biosecurity and Disease Management

Keeping birds away from waste by using hanging cage floors and automatic manure removal breaks the cycle of disease transfer from feces to mouth. Pathogens like Coccidiosis do better in systems that use litter, but they have fewer chances to spread when trash is taken away right away. The climate of the cage also makes it easier to clean and disinfect between groups. Surfaces can be treated specifically without the problems that come with deep waste systems, which makes cleaning more thorough.

Compared to busy floor systems, the rational cage design limits bird-to-bird touch, which lowers the risk of injuries and aggressive behaviors that can hurt the welfare of the group. When the number of injuries is low, you have fewer culls and more steady production from your kept population. When you improve cleanliness, lower the risk of disease, and lower the number of injuries, you indirectly increase the efficiency of egg production, which shortens the time it takes to get your money back.

How to Choose the Right Four-Layer Commercial Layer Cage System?

To choose the right multi-tier tools, you need to look at a number of things that affect its long-term performance. If you make the wrong choice, your business may have to deal with upkeep problems, not enough space, or problems connecting to other systems.

Material Quality Assessment and Durability Standards

Quality differences in making cages have a big effect on how long equipment lasts and how much it costs to maintain. When looking at sources, look at the certificates and testing methods they use for their materials. Hot-dip galvanization is used instead of electroplating in high-end systems because it creates a much stronger zinc covering that is better at resisting ammonia corrosion. Ask for the results of a salt spray test that shows the cage mesh can withstand being exposed to salt spray for 48 to 72 hours without turning red, which proves the quality of the galvanization.

Check the strength of the welds at the connection points when using the Four-layer Commercial Layer Cage System, because that's where the most stress occurs when the cages are full. Weak welds can become weak spots where the structure may break over time. At the joint points, the tensile strength should meet or exceed industry standards. Typically, it takes more than 3,000N of force to separate wires that are joined together.

Customization Capabilities and Farm-Specific Adaptations

Standard setups work well for many tasks, but they may need to be changed for specific output goals or building layouts. Leading makers offer customization services that let you change the size of the cage, the distance between the tiers, and the way technology is integrated to fit your needs. At Shuilin Musen, we make sure that the system fits your building's size and how it works by giving you custom product solutions based on different use cases.

Think about whether the supplier you've picked can work with your goals to grow in the future. As your business grows, modular solutions that let you add power in small steps give you more options. Being able to add new parts to current infrastructure without having to replace it all saves your initial investment and helps your business grow.

Supplier Evaluation: Warranty and Support Infrastructure

The quality of technical help often decides whether problems with equipment are minor annoyances or major operating crises. Look at possible sellers' promises of service after the sale to decide if they are a good fit. We offer full technical support, which includes installation vids and written instructions to help your team put things together. For businesses that want skilled deployment, on-site installation services are available to cut down on commissioning time and make sure everything is set up correctly.

Warranty coverage shows how confident the company making the product is in it. Our systems come with a free one-year guarantee that covers problems with the way they were made and parts that break too soon. This safety keeps your investment safe during the important first few months of business. Check the supplier's supply of parts and how quickly they can handle repair calls, in addition to the warranty terms. Quick access to new parts keeps work from stopping for long periods of time.

Installation, Maintenance, and Operational Best Practices

The performance and lifespan of a system are directly affected by how well it is installed and maintained over time. When used wrongly or not properly kept, even high-end equipment doesn't work as well as it should.

Strategic Installation Planning and Execution

Installation starts long before the equipment gets to your building. Prepare the inside of the building by making sure that the floor load capacity can support four-tier systems that are full, taking into account the weight of the cages, birds, food, and robotic equipment. Make sure that the height of the ceiling allows for the stacked arrangement and gives air and lighting systems enough room to work. The electrical system needs to be able to handle motors for automatic feeding, lights, and air fans.

As soon as it arrives, follow the structured building instructions to make sure the structure is stable. A level placement is very important; if the cage is not placed correctly, it can cause problems with moving the eggs and uneven weight distribution, which puts stress on the frame's parts. Our expert team makes installation movies that show the right way to connect and put things together. These tools help your team avoid making common mistakes that hurt the stability of the system.

It's important to pay close attention to alignment and measurements when integrating with automatic systems. It is important that feed delivery chains move smoothly through all four levels, without getting stuck or having too much extra space. Nipple drinking pressure should stay the same at all levels, so changes in vertical height should be used to set the pressure regulator. Line up the manure belt perfectly to keep the material from spilling out and the belt edges from wearing down.

Routine Maintenance Protocols for Longevity

Scheduled maintenance makes equipment last longer and prevents unexpected breakdowns. For the Four-layer Commercial Layer Cage System, set up weekly inspection schedules that cover all critical components. Check the cage wire for breaks or excessive wear that could harm the birds or reduce egg quality. Examine the weld points for signs of stress or splitting, and repair any issues before they worsen and lead to structural problems. Follow the manufacturer's instructions and use lubricants rated for food production environments to grease moving parts in feed distribution and manure removal systems.

Feed troughs and nipple drinker lines should be cleaned thoroughly once a month as part of routine care to keep germs from building up. Check the electrical connections for corrosion or looseness. The vibrations from using the tools can slowly make the leads loose. Check that the sensors and controls of the automated system work properly by trying the emergency stop circuits and replacing the batteries in any remote sensors.

Comprehensive reviews done once a year give you a chance to look at wear trends and plan replacements of parts before they break. Instead of waiting for things to break, plan to repair high-wear items like drive chains, belts, and drinker parts over time based on how they look. This proactive method cuts down on unexpected downtime and keeps output steady.

Daily Operations Optimization

Aside from upkeep, operational methods also have a big effect on output. Improve the way air flows to keep the temperature and quality of the air the same on all four levels. It may be warmer for birds on higher levels because heat rises from lower levels and builds up in their bodies. Change how the air flows to even out these differences and make sure that the whole house system is cozy.

The vertical arrangement should be taken into account by lighting programs, making sure that enough light reaches all levels of the cage without casting too many shadows, which can affect how the birds behave and how many eggs they lay. Energy-efficient LED systems let you precisely control the range and strength of light while using less electricity.

When waste management happens changes both the air quality and the number of diseases. Set manure removal systems to run at times that keep too much from building up and avoid processes that happen too often and waste energy. Check the ammonia levels to see how well the air and trash removal are working. If the levels go above what is recommended, make changes to the way things are run.

Procurement Guide: Ordering and Financing Your Four-Layer Layer Cage System

Knowing how much the whole project will cost and the different ways you can buy it helps you make smart investment choices that fit your business's goals and your budget.

Comprehensive Cost Structure Analysis

The price of buying multi-tier cage systems is only one part of the total cost of owning them. List all of your costs, such as the base price of the equipment, any customization fees for changes that are unique to the farm, shipping costs based on distance and the difficulty of the logistics, and installation costs if you hire someone to do it. Instead of taking a single number that includes all of these factors, ask for detailed quotes that break them down separately. This openness makes it possible to compare providers accurately and finds any possible secret costs.

Figure out the ongoing costs of running the business, such as the amount of energy used by automated systems, the need for replacement parts, and the cost of materials for regular upkeep. To figure out how much you can save, compare these numbers to your current operating costs. The fact that technology cuts down on labor should be a big part of ROI estimates, since hiring people is one of the biggest ongoing costs of running a business.

Volume Purchasing Advantages and Negotiation Strategies

Unit price is greatly affected by the size of the purchase. Suppliers usually give savings for big orders or operations in more than one location. If you're hoping to grow to more than one site or coordinate purchases with partner businesses, use the combined order volume to your advantage when negotiating. We offer bulk prices and discounts for large orders, which give approved buyers more bargaining power and lower their per-unit costs.

Terms of payment and funding affect cash flow and the ability to complete a job. Talk about flexible payment plans that work with your available capital and the time it takes to start making things. Some providers let you pay in stages, with each payment tied to a different stage of delivery or installation. Looking into these choices can help you make big decisions that you can handle with the money you have.

Supplier Partnership and Long-Term Support

When you buy tools, think of it as the start of a long-term relationship, not just one transaction. How well the provider can help your operations in the years after the initial installation will depend on how well they can do this. At Shuilin Musen Aquaculture Equipment Co., Ltd., we keep up a full service system to help customers throughout the lifecycles of our products. Our expert team quickly answers questions and requests for troubleshooting, which helps us fix working problems quickly.

Email us at wangshuaislms@gmail.com to talk about your specific needs and get a plan that is tailored to your farm's particular situation. We've been working with farming and livestock equipment for eight years, so we can predict problems and suggest answers that have been shown to work in a variety of operational settings.

Conclusion

For business egg operations, the Four-layer Commercial Layer Cage System makes huge changes in how efficiently room is used. This vertical housing method boosts facility output while allowing automation integration that cuts down on the need for workers and running costs. Premium construction with coated steel and stainless steel materials makes it last longer than 15 years in harsh farm circumstances. Your investment will be successful in the long run if you choose a provider based on the quality of the materials, their ability to be customized, and their full range of support services. When you combine great engineering, efficient operations, and strong after-sales service, you get solutions that solve the main problems that modern chicken farmers face when they want to make production scalable and profitable.

FAQ

What is the expected lifespan of a four-tier cage system?

If you take care of them, good four-layer cage systems made of hot-dip galvanizing steel should work well for 15 to 20 years. The thickness of the galvanization and the grade of the material directly affect how long something lasts. Premium systems with zinc coatings topping 275g/m² offer better corrosion protection in settings with a lot of ammonia from chickens.

Can the system be customized for specific facility dimensions?

Customization is a normal service offered by well-known brands. The size of the cage, the distance between the tiers, and the way technology is integrated can all be changed to fit different building plans and production needs. By giving providers detailed information about your building during the consultation, you can get solutions that are made just for your business.

What maintenance support is available after installation?

Full-service makers offer technical information, how-to guides for installation, and helpful customer service that answers questions about how to use the product. The warranty usually lasts for one year and covers problems with the way the product was made. Long-term system performance is supported by ongoing access to parts and expert help throughout the system's operational lifetime.

Partner with a Trusted Four-Layer Commercial Layer Cage System Manufacturer

Shuilin Musen Aquaculture Equipment Co., Ltd. offers layer cage options that are both engineering-savvy and fully backed by service support to help you succeed. Our systems are made of high-quality galvanized steel, integrate technology smoothly, and can be customized to meet a wide range of working needs. We understand the problems that modern chicken farms face because we have worked with farm equipment for eight years and have a skilled research and development team. You can find full product specs and installation guides on our website, slms-equipment.com. Find out how our Four-layer Commercial Layer Cage System supplier relationship can increase your farm's productivity and profitability by getting in touch with our team at wangshuaislms@gmail.com for a personal conversation.

References

1. Bell, D.D., & Weaver, W.D. (2002). Commercial Chicken Meat and Egg Production. Springer Science & Business Media.

2. Appleby, M.C., Mench, J.A., & Hughes, B.O. (2004). Poultry Behaviour and Welfare. CABI Publishing.

3. North, M.O., & Bell, D.D. (1990). Commercial Chicken Production Manual. Van Nostrand Reinhold.

4. Sainsbury, D. (2000). Poultry Health and Management: Chickens, Turkeys, Ducks, Geese and Quail. Blackwell Science.

5. Havenstein, G.B., Ferket, P.R., & Qureshi, M.A. (2003). Growth, Livability, and Feed Conversion of Commercial Laying Hens. Poultry Science Journal.

6. Xiong, Y., & Green, A.R. (2019). Layer Housing System Impacts on Production Economics and Animal Welfare. Agricultural Engineering Research Quarterly.
