What are the benefits of a three-tier layer cage system?

By making better use of vertical space while maintaining practical standards for bird care, the Three-tier Layer Cage offers clear advantages for large poultry businesses. Compared with conventional floor systems, this stacked design can significantly increase usable capacity per square meter without expanding the building footprint. It also integrates automatic feeding, watering, and manure removal, helping reduce labor requirements by more than 40% and improve hygiene by keeping birds separated from waste. Galvanized steel construction can provide a service life of 15 to 20 years, while the designed egg-collection slope helps reduce breakage. Together, these features can improve production efficiency and shorten the payback period for commercial layer farms.

Introduction

Modern egg farms face growing pressure to increase production while managing land costs, labor shortages, and environmental requirements. Through vertical space utilization, the Three-tier Layer Cage system addresses several of these challenges. Unlike conventional floor housing or single-tier cage systems, this configuration provides three cage levels within the same building area, allowing farms to increase bird capacity without expanding the land footprint.

We work with procurement managers, farm engineers, equipment dealers, and agricultural project contractors who need reliable and scalable layer housing infrastructure. With eight years of experience at Shuilin Musen Aquaculture Equipment Co., Ltd., we understand that successful farm upgrades require both reliable equipment and practical installation planning. This guide explains the system structure, operating benefits, maintenance considerations, and procurement factors to help commercial egg producers make informed purchasing decisions.

Understanding the Three-Tier Layer Cage System

Core Structural Components

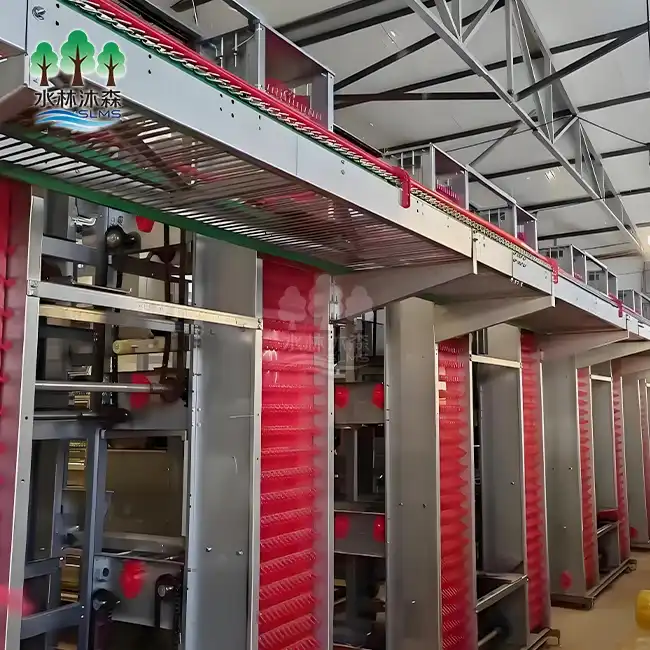

A Three-tier Layer Cage framework consists of vertically stacked housing units made from Q235 steel with hot-dip galvanization and more than 275g/m² of zinc coating. Each level contains cage sections designed for three to four birds per cell, depending on breed and operating requirements. A complete set can typically accommodate 90 to 96 laying hens, while the overall system height generally ranges from 1.6 to 2.0 meters to suit standard poultry house structures.

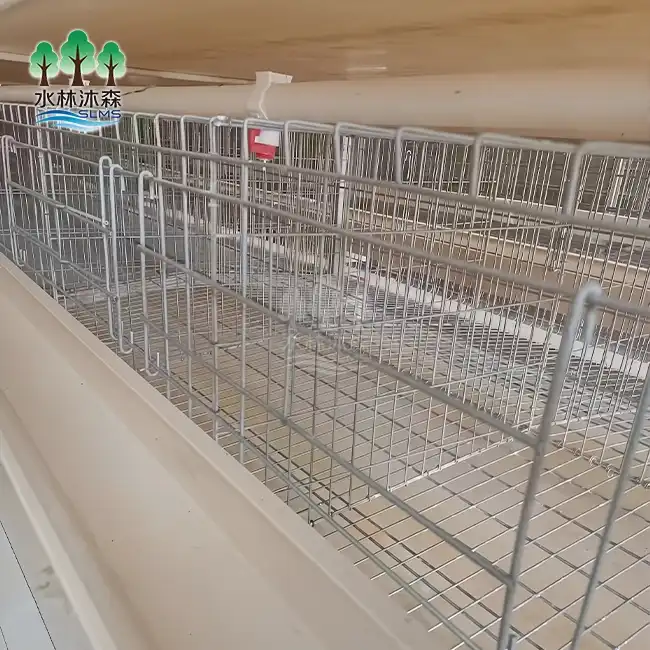

The 10-degree floor slope helps eggs roll toward the collection area automatically. This reduces egg accumulation inside the cage and allows gentler transfer, helping keep breakage losses below the 2% industry benchmark. Wire diameter and spacing are designed to balance airflow, structural strength, and bird safety while maintaining effective drainage between levels.

Integrated Automation Capabilities

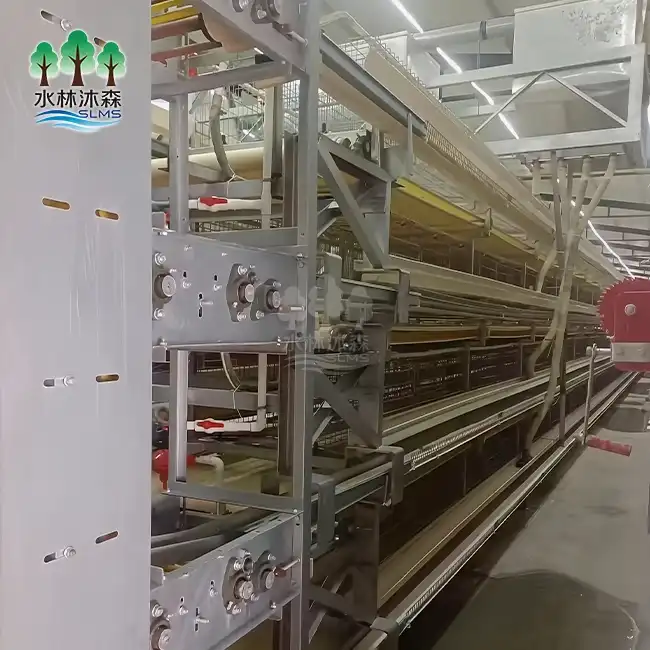

Modern three-tier designs can integrate automatic feed chains, nipple drinking lines, and manure belt elevators. The feeding system distributes feed evenly across each level, reducing the need for manual feeding while providing consistent access to feed. Nipple drinkers installed at each cage section provide continuous access to fresh water with minimal waste, helping maintain hydration without unnecessarily wetting the manure area.

Under each tier, manure removal systems use belt conveyors or scraper devices to move waste away from the cages. Removing manure regularly helps limit ammonia buildup and improves overall barn hygiene compared with floor systems where birds have more direct contact with waste.

Core Benefits of Using a Three-Tier Layer Cage System

Maximizing Land Productivity

Land is one of the major capital costs when developing a poultry farm, particularly where agricultural land is limited. Three-tier Layer Cage systems address this constraint by using vertical space and can reach stocking densities of up to 40KG/㎡ under the specified configuration. A properly planned house can accommodate 30,000 to 36,000 layers, while a comparable single-tier setup may accommodate only 10,000 to 12,000.

This increased vertical capacity is useful for businesses that want to expand production without constructing additional buildings. Farms can increase capacity in stages as demand grows, helping reduce the immediate cost and disruption associated with new construction. The modular design also supports phased investment, allowing capital spending to follow production plans.

Enhancing Production Consistency

Because birds are housed in defined areas with controlled feeding, watering, ventilation, and lighting conditions, production can be managed more consistently than in less controlled housing environments. The H-type frame design also leaves space for airflow between tiers, helping maintain more stable conditions throughout the house.

Eggs move from the sloped cage floor toward the collection system, reducing contact with manure and limiting unnecessary handling. Better separation between birds and waste also supports hygiene management and helps maintain consistent egg quality.

Here are the business benefits that can directly affect operating costs:

Labor Cost Reduction: Automatic feeding and watering systems reduce routine manual work that can otherwise require two to three full-time workers for every 10,000 birds. Our clients report labor savings of 40–50% during the first production cycle. Depending on local wage rates, payback periods can range from 18 to 24 months. Automation allows workers to spend more time monitoring flock health and managing the facility.

Disease Prevention: Keeping birds separated from manure helps reduce direct exposure to waste and supports better hygiene control. Well-managed cage systems can reduce some common disease risks associated with contaminated litter and waste. Mortality rates in well-managed operations may remain around 3–5 percent per year, although actual results depend on management, ventilation, genetics, and biosecurity practices.

In the Three-tier Layer Cage system, controlled movement and more precise feeding can also improve feed utilization. Birds use less energy for unnecessary movement, which can contribute to improved feed conversion efficiency. Properly designed feeding troughs further reduce feed spillage and contamination, helping more purchased feed contribute to saleable egg production.

When these benefits are considered across several production cycles, the savings can help offset the initial equipment investment. Farms moving from traditional systems to automated cage housing can potentially recover equipment costs within several production cycles, depending on capacity, labor rates, egg prices, and operating conditions.

Design and Maintenance Advantages

Customization Flexibility

Procurement managers can use Three-tier Layer Cage systems across different building sizes and management models. Standard configurations are designed for buildings with ceiling heights of 3.0 to 3.5 meters, while customized engineering can adapt the framework to older buildings or specific ventilation layouts. Our R&D team of five specialized engineers develops custom solutions for site-specific requirements, including existing equipment and non-standard building dimensions.

The modular structure also allows installation in stages according to available capital. Farms can add capacity during periods of lower demand and complete expansion when market conditions support additional production. This flexibility is useful for family farms, cooperatives, and commercial operations managing phased investment plans.

Simplified Maintenance Protocols

The galvanized finish provides corrosion resistance in poultry houses, where ammonia and moisture can accelerate metal deterioration. Hot-dip galvanization can provide a service life of 15–20 years under suitable conditions, while less durable surface treatments may require earlier maintenance or replacement. Longer service life helps make operating costs more predictable and reduces unexpected repair expenses.

Compared with floor systems that require complete litter removal, daily cleaning can be simplified. Manure belts transport waste to central collection points, where it can be composted or processed for other uses. For deep cleaning, equipment can be disassembled according to straightforward procedures using basic tools, reducing dependence on specialist maintenance.

Before shipment, our quality control system checks key components for resistance to high temperatures, humidity, and corrosion. Every cage system leaving our factory in Qingzhou City is inspected against established performance requirements. For installation teams, we provide installation videos and detailed documentation. For complete project support, on-site installation services are also available.

Comparing Three-Tier Layer Cages with Other Systems

Capacity Versus Two-Tier Configurations

For stocking rates between 25 and 30 kg/m³, two-tier systems can provide a compromise between floor housing and three-tier density. Although they may require 25–30% less initial investment, their lower capacity can limit long-term production potential. Where land costs are high and production per square meter is a priority, Three-tier Layer Cage systems can provide a stronger capacity advantage.

The additional height of a third tier also requires sufficient building clearance and appropriate ventilation planning. If the roof is less than 3 meters high, airflow around the upper levels may become more difficult to manage. Procurement teams should therefore evaluate building dimensions, ventilation capacity, and equipment requirements together before selecting a configuration.

Performance Against Floor Systems

Floor housing allows birds more freedom of movement and may suit production models with specific welfare requirements. However, the same number of birds generally requires more floor area, while litter management, nest egg collection, and flock monitoring can require additional labor.

Cage systems provide controlled feeding, watering, manure management, and egg collection. When properly designed and managed, these features can improve operational consistency and reduce routine labor. The controlled environment also makes it easier to manage production conditions throughout long laying cycles.

Welfare and Sustainability Considerations

Animal welfare requirements continue to develop, and regulations differ by market. Cage dimensions, stocking density, ventilation, access to feed and water, and manure management should therefore be checked against the requirements of the target market. Our cage designs can be configured according to applicable project requirements, with approximately 450 to 500 cm² of space per bird depending on the configuration.

Environmental benefits can come from using less building space for the same production capacity and improving manure collection efficiency. Concentrated housing can also reduce the amount of building area that needs to be heated or cooled, while organized waste handling can reduce the risk of uncontrolled nutrient runoff. These factors are increasingly relevant to commercial procurement decisions.

Procurement Considerations for B2B Clients

Supplier Evaluation Criteria

When selecting an equipment supplier, procurement teams should evaluate more than the initial quotation. Manufacturing experience, quality control, engineering capability, and after-sales support all affect long-term equipment performance. With eight years of experience in agricultural equipment manufacturing, we understand the practical challenges involved in commercial poultry projects.

Certification and quality-control procedures provide additional evidence of manufacturing consistency. Buyers should check applicable quality certifications and request information about material selection, structural testing, and production inspection. We inspect our cage frames throughout the production process, from raw material selection to final delivery, to maintain consistent product quality.

Long-term supplier value also depends on technical support after delivery. Installation, adjustment, troubleshooting, and replacement parts may all require professional assistance. We provide a one-year warranty, technical documentation, and responsive communication channels to support customers throughout the project.

Budget Optimization Strategies

Procurement teams should evaluate total cost of ownership rather than comparing purchase prices alone. Request detailed quotations covering equipment, shipping, installation, warranty terms, and any customization costs. Understanding the complete project cost makes budget planning and ROI calculations more accurate.

Customization affects the final price, while standard configurations can reduce costs through economies of scale. Our production capabilities cover both standard catalog products and customized solutions for specific site requirements. Discussing building dimensions and operating goals with our technical team helps ensure that the selected configuration meets actual needs without unnecessary features.

Payment terms and delivery schedules should also match the project timeline. We can support staged transportation and installation to reduce on-site storage requirements and coordinate equipment arrival with construction progress. Flexible shipping arrangements can also help control logistics costs for full-container and less-than-container-load exports.

Conclusion

The Three-tier Layer Cage system helps commercial egg farms use building space more efficiently, reduce routine labor, and maintain more consistent production conditions. By adding three cage levels within the same building area and integrating automated management systems, the configuration can address several cost and capacity challenges faced by modern layer farms. Corrosion-resistant construction, organized manure removal, and practical maintenance procedures further support long-term operation.

Successful implementation requires matching the equipment to building conditions, production goals, ventilation capacity, and applicable welfare requirements. At Shuilin Musen Aquaculture Equipment Co., Ltd., we believe informed procurement decisions should consider initial investment together with service life, operating efficiency, customization, and supplier support. The right supplier relationship can provide value beyond the initial equipment purchase and support future farm expansion.

FAQ

What is the typical bird capacity per three-tier cage unit?

Standard three-tier designs can hold 90 to 96 laying hens per complete set, with each cage section designed for three to four birds depending on breed size and operating requirements. A stocking density of up to 40KG/㎡ can support high-capacity commercial production when the overall system is properly designed. Custom configurations can adjust capacity according to project requirements and local regulations.

How do three-tier cages improve egg production efficiency compared to conventional systems?

Controlled feeding, watering, ventilation, manure removal, and egg collection can reduce operational factors that interfere with production. Automatic egg collection also helps reduce unnecessary handling and contamination. Improved feed management and reduced routine labor can contribute to better overall production efficiency compared with less automated systems.

Are three-tier systems suitable for smaller farm operations?

The modular design can support operations ranging from around 5,000 birds to 100,000 birds, depending on the project configuration. Smaller farms can use phased installation to match available capital with production growth, while larger operations can deploy multiple systems across commercial buildings. Lower routine labor requirements and simplified management can also benefit farms with limited staffing.

Partner with Shuilin Musen for Reliable Layer Cage Solutions

The performance of your farm over the next 15 to 20 years depends partly on selecting the right Three-tier Layer Cage supplier. Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of manufacturing experience and provides support from initial consultation through installation and ongoing technical service. Our focus on product development and quality control helps ensure that equipment is prepared for demanding poultry production environments.

We understand that poultry housing is a major capital investment that requires careful planning. Our team can evaluate your building conditions, production targets, and budget requirements to recommend a suitable configuration. Our five-engineer R&D team and flexible manufacturing capabilities support both standard systems for faster deployment and customized solutions for site-specific requirements. Contact our technical specialists at wangshuaislms@gmail.com to discuss your layer housing project, configuration requirements, and customization needs.
