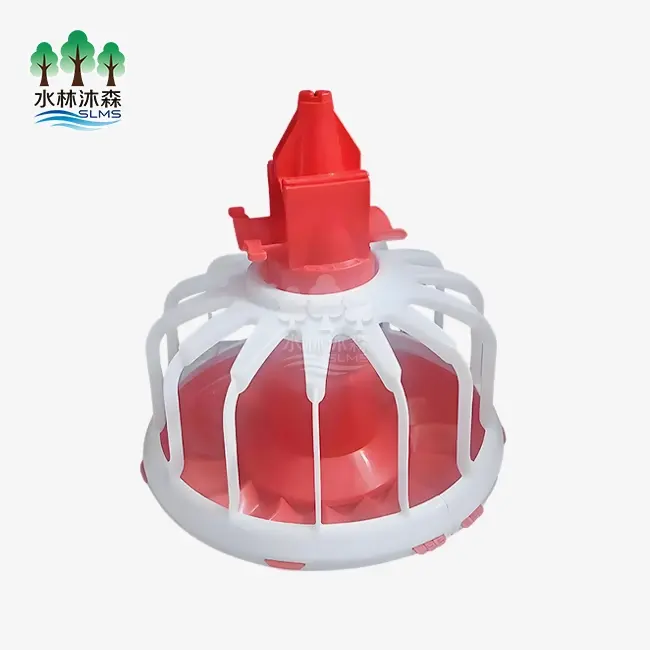

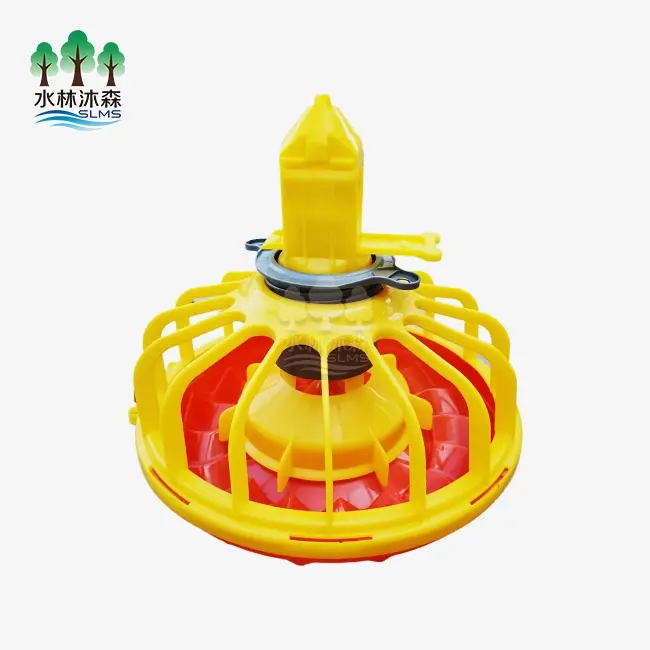

Best broiler feed pan designs for efficient poultry feeding

In large poultry farms, picking the right broiler feed pan makes a real difference. These special feeding receptacles link directly to automatic auger systems. This way, your whole flock will always have access to feed, and you'll waste a lot less food and time. Modern designs have safe grilles that stop birds from dropping food on the floor, feed level controls that can be changed as your broilers get bigger, and clean materials that can stand up to strict cleaning rules between groups. The best broiler feed pans are long-lasting and useful at the same time, making sure that every bird gets enough food without spilling.

Understanding Broiler Feed Pan Designs and Their Role in Poultry Feeding

Broiler feed pans are the most important part of the connection between your automated food device and the birds. Unlike traditional tube or bowl feeders, these circle containers let birds eat from all sides, so multiple birds can eat at the same time without fighting. The basic design takes into account a number of practical issues that come up in large-scale chicken farming.

Core Design Elements That Drive Performance

How well birds eat food depends on its shape and how easy it is for them to get to. Round shapes encourage birds to eat naturally, but the depth and width must be able to adapt to the bird's size as it grows. Choosing the right material affects both how long something lasts and how clean it is. High-grade polypropylene (PP) and polyethylene (PE) don't break down when exposed to ammonia and keep their shape even after years of use.

When matching pan density to group size, capacity is important. An 8-compartment design works well for smaller houses or specialized feeding programs. On the other hand, 14- and 16-compartment designs can handle more birds in large-scale operations. Each section makes a marked feeding place, which lowers the stress of being crowded.

The center feed tube connects to your auger line and lets out measured amounts. It acts as the distribution hub. Protective grilles placed above the feed surface are likely the most important new idea. These walls stop birds from standing in the pan or moving feed outward, which directly reduces waste that can account for 5–8% of total feed costs in systems that aren't handled well.

Automatic Versus Manual Systems

Automated broiler feed pans work with powered auger lines to fill on set times without any help from a person. The fixing latches keep the pans attached to the support wires, so the right height is maintained as the birds get bigger. Manual pans need to be filled by hand, but they are easy to use in smaller tasks or as backups. Both types have a removable base that makes it easy to clean thoroughly between groups, which is important for hygiene.

Commercial farms that raise 20,000 to 100,000 or more broilers per house know that buying food tools isn't just buying anything. Higher feed conversion rates, odd bird weights, and more deaths from competition injuries are all effects of making the wrong choice. When buying teams know these basic design rules, they can make decisions that help meet production goals.

Optimizing Feed Efficiency Through Broiler Feed Pan Design

Feed usually makes up between 65% and 70% of the total cost of production in broiler farms. For every percentage point increase in the feed exchange ratio, there is a direct increase in profits. A big part of getting those gains lies in the design of the equipment.

Addressing Feed Wastage at the Source

When birds naturally scratch or when violent birds take over food areas, spillage happens. Traditional open systems can lose two to three grams of food per bird every day, which may not seem like a big deal until you think about how many birds are affected over the course of 42 days. This waste is stopped before it gets to the floor by the safe grille design.

Our multi-compartment broiler feed pans have grilles that are spread out so that the head can get in but the body can't. Birds can't stand in the food or spread it around with their feet. Field data from business setups shows that newer designs of equipment produce 30–40% less trash than older designs. This could save 150 to 200 pounds of food every day, which adds up to several tons per flock.

Promoting Uniform Consumption Across the Flock

Uneven access to feed causes differences in size, which makes handling harder and lowers the value of the body. When strong birds take over all the food stations, the birds below them fall behind in their growth. The answer is to add more places for simultaneous feeds.

A 16-compartment pan lets sixteen birds eat at the same time without touching. This setup makes competition a lot less stressful. The outcome can be seen in measures for flock uniformity: the standard deviation of body weights goes down, which means that more birds reach their goal processing weights at the same time. Processors pay more for regular lots, so this design trait is important for the economy in more ways than just saving feed.

Material Choices That Enhance Hygiene

Pathogens that are bad for flock health are introduced when feed systems are contaminated with bacteria, such as on a broiler feed pan. Biofilm can form on rough or open surfaces even after they have been cleaned. Virgin PP and PE materials have smooth, non-porous surfaces that microbes can't stick to. These materials can also stand up to the harsh disinfectants used at terminals.

The base that can be taken off is a useful improvement in cleanliness. Workers don't try to clean completed pans while they're still in place; instead, they take off the base and wash it completely. Because it is easy to get to, the feed door, center channel, and all section surfaces can be cleaned thoroughly. Disease pressure goes down, which helps birds convert their food better because they put more energy into growing instead of fighting off sickness.

The main goal of implementation methods is to match pan specs to house layout and flock density. Depending on how far apart the maker suggests they be, a 40,000-bird house might use 400 to 500 broiler feed pans. Changing the height of the pan during the grow-out cycle makes sure that birds can still get food easily as they get bigger. This simple management technique keeps birds from having to stretch or bend, which can make them less likely to eat.

Comparing Different Broiler Feed Pan Designs and Materials

In order to make a procurement choice, you have to weigh the operational goals of different design possibilities. The selection method takes into account cost, speed, and compatibility with current infrastructure.

Plastic Versus Metal Construction

Modern tools for feeding chickens is mostly made of polypropylene and plastic because they have good properties. These plastics don't rust or corrode when exposed to ammonia and water, which is a big plus compared to metal options. During installation and upkeep, weight is important. Plastic pans are much lighter than metal ones, which makes them easier for techs working above to handle.

Metal pans, usually made of stainless steel or aluminum, are better at resisting pressure and may be appealing to businesses that want their products to last as long as possible. They do, however, conduct heat, which could make feed too hot or too cold based on the temperature outside. The difference in price usually favors plastic, especially when you consider that metal needs to be replaced more often to explain its higher original cost.

Compartment Configuration Trade-offs

The 8-compartment model works well for businesses with fewer birds or for those who are giving breeder stock only a certain amount of food. Each station can hold more birds at once when there are fewer sections, which is useful when the total number of birds doesn't warrant more pans. This arrangement also lowers the starting spending costs for new businesses or smaller homes.

Moving to 14- and 16-compartment designs raises the amount of food that can be fed at the same time by the same amount. In dense floor systems with bird densities of 0.6 to 0.8 square feet per bird, these types with more compartments are necessary. The extra feeding stations spread the birds out more widely, which lowers signs of stress and raises welfare scores that customers and inspectors care about.

Evaluating System Compatibility

Broiler feed pans need to work perfectly with the auger lines and support systems that are already in place. If the width of the center feed channel doesn't match the diameter of the auger tube, the feed will bridge or spill out at the connection point. Fixing latches must firmly grip your specific type of wire or rail, so they don't slip as the pans gain weight during fill cycles.

Automation systems are also compatible. Modern controls decide when and how long to fill, but they rely on sensors and switches that are built into the broiler feed pan assembly. Make sure that any new or expansion pans will work with the control systems you already have, or plan to spend money on changes that are needed. This extra work keeps construction delays and business interruptions from becoming expensive.

For big farms, the cost-benefit study should look at costs over the course of 10 to 15 years, which is how long the equipment will last. This is usually the case with new plastic pans that have the right UV protectors and reinforcements. Cheaper choices made from recycled materials may break after 3 to 5 years. When you divide the total cost of ownership by the number of years of service, you get the true value offer, which usually favors higher-quality options even though they cost more.

Maintenance, Cleaning, and Longevity Tips for Broiler Feed Pans

How well you maintain your equipment has a big impact on how long it lasts. The right care can make something last longer and keep it clean, which is good for the health of the group.

Establishing Effective Cleaning Protocols

The most important upkeep task is the cleaning that happens between flocks. Full cleaning of the feed system stops the spread of pathogens and gets rid of dust and fines that lower the quality of the feed. The removable base lets you clean all the inside surfaces thoroughly. Just take off the bases and use pressure washers to clean the center channel, sections, and protection grilles.

Some approved disinfectants are peroxides and quaternary ammonium compounds, which kill a wide range of microbes without hurting plastic parts. High amounts of chlorine bleach can break down some plastics over time, so stay away from them. To avoid problems caused by wetness, let everything dry completely before putting it back together and placing the flock.

Routine Inspection and Preventive Maintenance

During production stages, problems are found every week before they get worse. Make sure that all of the locking latches are still in place and that the broiler feed pans are hanging level. If the pans are tilted, the food won't be distributed evenly, and birds will prefer to eat from the lower side. Check the protected grilles for breaks or cracks that could make them less effective at keeping trash out.

Food-grade items need to be used to lubricate the feed door device on a regular basis. This easy step makes sure that the opening goes smoothly during fill rounds. Check the center feed channel for wear where the auger goes. If there is too much wear, the machine is not aligned correctly and needs to be fixed to keep the pan from getting damaged and feed from spilling out.

Troubleshooting Common Operational Issues

Feed bridging in the center channel is usually caused by moisture getting in or particles being very small. Not only fix the symptoms, but also the cause. Fix any leaks in the feed line and talk to your doctor if the problem is caused by the thickness of the feed. Bridged feed stops broiler feed pans from filling properly, leaving empty stations that make birds angry and make them eat less.

Uneven feed distribution between compartments is generally a sign of a broiler feed pan that is tilted or a feed door that is partly blocked. Most of the time, releveling the pan fixes the problem right away. If the problems keep happening, you might need to check the suspension system for old wires or broken connection points. Systems work at their best all year long thanks to preventative maintenance plans that take care of these things every three months.

Sourcing the Best Broiler Feed Pans: Brands, Suppliers, and Procurement Considerations

Finding dependable sources will help you get equipment that meets high standards and gets to you on time. There are a lot of different companies that make poultry tools, and their services and skills range.

Evaluating Supplier Credibility and Capabilities

Well-known companies show their dedication by offering full expert help and clearly laying out their quality control procedures. Find providers that offer installation videos and full setup instructions. These will cut down on the time it takes to set up the equipment and help your team get the most out of it from the start.

Warranty coverage shows that the company that made the product trusts it will last. A free guarantee for one year protects you against defects and gives you time to test how well it works in real production situations. Ask technical questions during the sourcing process to see how quick the customer service team is. Suppliers who give detailed, knowledgeable answers before the sale usually provide the same level of help after the sale.

When your business has specific needs, being able to customize things is important. Some farms need different numbers of compartments, special materials for harsh environments, or the ability to connect to their own robotic systems. Customization usually adds time to the wait time and costs more, but manufacturers with in-house engineering teams and flexible production methods can meet these needs.

Bulk Ordering and Logistical Planning

To keep building plans, hundreds of broiler feed pans must be supplied at the same time for large installations. Early on in the sourcing process, talk about minimum order quantities, price tiers for large orders, and production wait times. When installing a whole house, sending containers from foreign providers is usually the most cost-effective option. On the other hand, local distribution works better for smaller replacement orders.

Plan transport times around building milestones to avoid problems with storing and weather damage to equipment that is left on-site. Phased supply plans can make sure that the coming of equipment matches the readiness of the installation site. This will keep your project on track without wasting money on inventory that isn't being used.

Sustainability and Environmental Considerations

Environmental duty is becoming more and more important in purchasing decisions. Some companies now make broiler feed pans with recycled materials that don't lower the performance standards. These choices are good for businesses that care about the environment or for people who want companies to be responsible for the environment.

Material that can be recycled at the end of its life should also be thought about. PP and PE plastics can be recycled in many places, but it depends on how much recycling equipment is available in that area. Suppliers that take part in equipment take-back programs show leadership in the cycle economy, which could help your business stand out to customers who care about the environment.

Conclusion

The choice of broiler feed pan has a direct effect on profits because it changes how much feed is used, how much work is needed, and how regular the group is. There are clear benefits to modern designs that include protected grilles, multiple sections, and clean materials compared to older systems. Procurement teams can make choices that are in line with practical goals when they understand design principles, material properties, and upkeep needs.

Working with makers that offer full technical help and the ability to customize makes sure that your feeding system meets both your current needs and your plans for growth in the future. Feeding infrastructure goes from being a simple commodity to a strategic competitive edge when it is backed up by good tools and quick service.

FAQ

What pan size works best for different growth stages?

During the growth stage, broiler farms usually use a single broiler feed pan design and change only the lift height instead of the equipment. Both the 14- and 16-compartment types can hold birds from day-old chicks up to market weight. As the birds get bigger, raise the pans, but keep the rim height at about back level so that you can get to everything without having to bend over or reach too far.

How often should feed pans be cleaned during production?

During busy production, a daily visual check is enough, and any wet or contaminated feed should be thrown away right away. During the sanitation period, there is thorough cleaning between groups. The shape of the portable base makes it easy to clean thoroughly with high-pressure water and approved disinfectants, which stops pathogens from spreading to the next flock.

Can automatic feed pans integrate with existing manual systems?

Adding automation to systems that are currently operated by hand requires installing auger lines and support equipment, which costs a lot of money. But the saves in work and consistent feeding usually make the conversion costs worth it for businesses with more than 20,000 birds. Talk to experts in the field to find out if it will work with the way your house is set up and how much electricity it has.

Partner With Shuilin Musen for Superior Broiler Feeding Solutions

The Shuilin Musen Aquaculture Equipment Co., Ltd. has been designing and making chicken food systems for eight years. Our engineering team comes up with solutions for broiler feed pans that help you deal with the real problems you face every day, like cutting down on waste, making things more regular, and saving money on work. We make 8-compartment, 14-compartment, and 16-compartment containers out of high-quality PP and PE materials.

All of them have safe grille designs that have been shown to reduce spillage. We offer full support for all of our products, including installation videos, expert help, and a one-year guarantee. Because we only make broiler feed pans, we can make them exactly the way you need them for your business. You can email us at wangshuaislms@gmail.com or visit slms-equipment.com to talk about how our food solutions can help your business be more productive and make more money.
