Best negative pressure fan units for farm ventilation systems

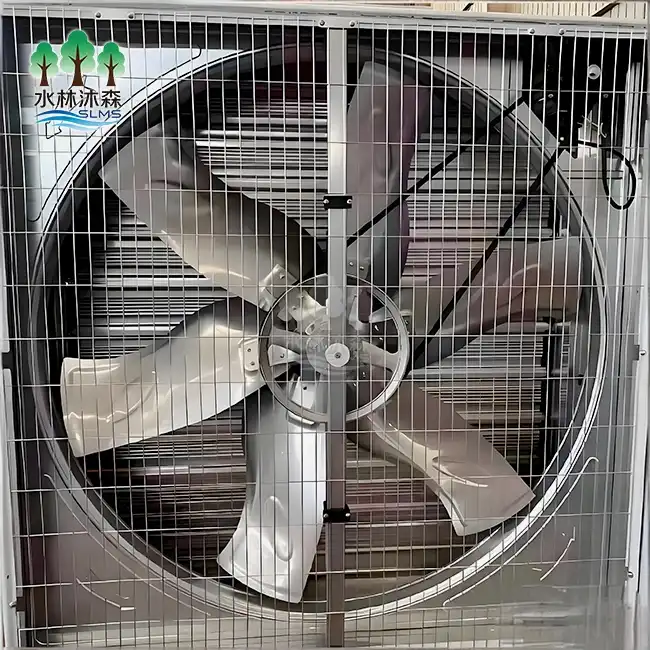

When looking at the best negative pressure fan units for farm ventilation systems, our 50-inch Farm Ventilation Negative Pressure Fan Unit is the best choice for bigger chicken farms. This industrial-grade vent fan has a 1.1 kW motor and can move air at a rate of 28,000 to 38,000 m³/h. Each unit can effectively cover 150 to 200 m². The unit is made with blades made of corrosion-resistant coated steel or 304 stainless steel.

It controls the air pressure steadily, runs silently, and keeps the environment in good shape. This ventilation solution solves important problems in intensive cattle farming, where air quality affects both animal health and production efficiency. It has a service life of more than 40,000 hours and comes with full expert support, including on-site installation.

Understanding Negative Pressure Fans in Farm Ventilation

Working Principles and Air Movement Dynamics

By automatically pulling air out of farm buildings that are closed off, negative pressure ventilation systems create a controlled difference in pressure. When vent fans pull air out of a room, pressure from the outside pushes new air in through certain openings or evaporative cooling pads. This planned pattern of airflow is very different from positive pressure systems that force air into buildings. These systems often make the airflow uneven and leave dead spots where dirty air builds up.

There are clear benefits to the science behind negative pressure airflow. By putting exhaust fans at one end of a structure and air intakes at the other, operators can keep the wind speed the same along the whole length of the structure, which is usually between 2.5 and 3 meters per second. This tube effect keeps air moving at the same rate no matter what the wind is doing outside, so every animal has the same temperature and air quality. According to research from poultry science departments, even spread of air greatly lowers the number of cases of heat stress in the summer and keeps ammonia levels below the 25 ppm levels that cause inflammation in the lungs.

Tangible Benefits for Modern Livestock Operations

Improving the quality of the air directly leads to measured gains in production. After installing the right-sized negative pressure systems, our clients who run chicken farms say that deaths during heat waves dropped by 15 to 20 percent. The managed airflow gets rid of metabolic heat, water vapor from breathing, and harmful gases like hydrogen sulfide and ammonia that build up as manure breaks down. Instead of being affected by changing natural wind patterns, temperature control becomes predictable. This lets managers keep exact setpoints that are best for each stage of growth.

The ability to save energy is another important benefit. Even though negative pressure fans use energy, the regular flow of air means that you don't need as much extra cooling equipment. Animals' body temperatures drop because of the wind chill effect, which is caused by fast moving air. This means that expensive evaporative cooling is often not needed when the weather is mild. Our 1.1 kW motor setup moves a lot of air while using a fair amount of power. This is especially true when combined with variable frequency drives that change the fan speed based on temperature sensors that are constantly monitoring the room.

Saving energy isn't the only way that operational costs can be cut. Better airflow lowers medical costs directly by keeping animals from getting respiratory diseases that are linked to dirty air. Wet litter issues are less of a problem when wetness is removed. This keeps the relative humidity in a healthy range, which stops ammonia from escaping and stops coccidiosis breakouts. Animals that use less biological energy to control their body temperature grow faster or lay more eggs per kilogram of feed they eat, which improves feed conversion ratios.

How to Choose the Best Negative Pressure Fan for Your Farm

Evaluating Size and Airflow Capacity

To choose the right fan size, you need to figure out how much air you need based on the type of animal, its mass, and the weather. Our 50-inch diameter unit is the standard for medium to large chicken houses. It can move enough air to keep tunnels ventilated in buildings that hold 20,000 to 40,000 birds, based on the size of the building. The range of 28,000 to 38,000 m³/h can handle changing static pressure conditions. Higher outputs are possible when resistance is kept to a minimum through proper inlet size and servicing.

When talking about airflow capacity, specs should always include the standing pressure that was used for testing. In real life, where air has to push through cooling pads, inlet doors, and the length of the building, equipment that is set at zero static pressure will not work nearly as well. Even when working with 20 Pa of pressure, which is normal in well-designed tunnel systems, professional-grade ventilation fans keep their good performance curves, and this is especially true for a Farm Ventilation Negative Pressure Fan Unit, which is designed to maintain efficiency under real static loads.

When figuring out how many units are needed, take into account that each fan needs to cover an area of 150–200 m². Then, use the formula: Total Capacity Needed means building cross-sectional area times desired air velocity to double-check your answer.

Durability and Material Construction Standards

In the harsh climate of livestock farms, the choice of material has a big impact on how long equipment lasts. The ammonia gas that comes from pig and chicken dung damages normal steel parts, breaking them down too soon through pitting and weakening the structure. Our fan blades are made of high-strength galvanized steel or 304 stainless steel, which is specially designed to handle being exposed to ammonia all the time. Corrosion-resistant galvanizing steel or fiberglass-reinforced materials are used to make the covering, and the structure stays strong even after years of use.

The motor and gear units are also made of high-quality parts. The 1.1 kW motor has an IP55 grade for security and Class F insulation, which means it can work reliably even when dust builds up or when it's cleaned every so often. When standard industrial fans are adapted for farming use, sealed bearings stop moisture from getting in and breaking them down too soon. We only use parts that are guaranteed to last at least 40,000 hours because we know that equipment breakdowns during severe weather events directly threaten animal health and create emergency replacement costs that are much higher than the difference in the initial purchase price.

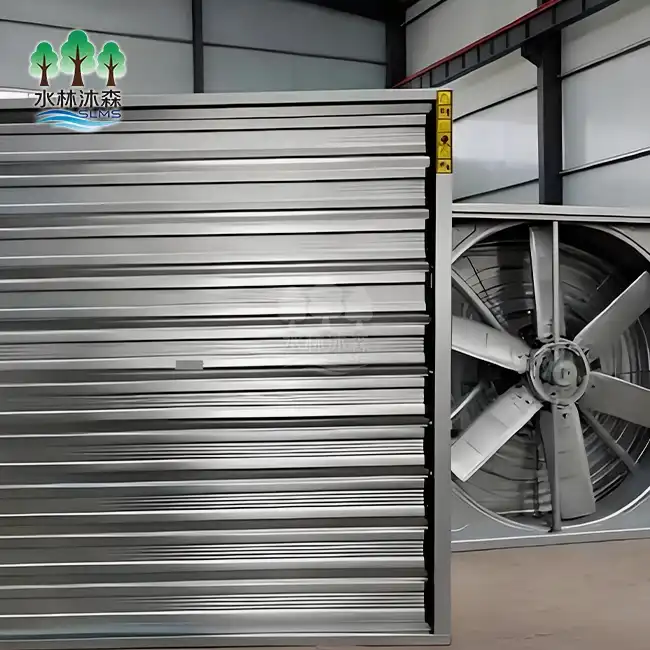

When evaluating the purchase, the shutter device should get extra attention. When wind pressure is high, gravity shutters must open all the way to 90 degrees and close tightly when the fans stop. This stops backdrafts and pests from getting in. Precision-balanced counterweights or centrifugal push-pull systems make sure that the machine works reliably for thousands of rounds. When shutters are partly closed because of dust buildup or mechanical wear, they lose a lot of performance. Within months of installation, the useful airflow capacity drops by 20 to 30 percent.

Comparing Performance Against Alternative Systems

Positive pressure ventilation systems use fans in the walls or ceilings to bring air into a building. Passive vents let air leave the building. Positive pressure makes it easier to install in some repair cases, but it also makes airflow patterns that are hard to predict because they depend on where the building leaks and the direction of the wind. Because the placement of the vent fan determines where the air leaves the system and the placement of the inlet determines where it comes in, negative pressure systems offer better control because they create planned airflow paths instead of random movement.

Natural airflow depends only on wind and heat buoyancy, so it doesn't use any energy. However, it doesn't let you control the surroundings. These days, raising a lot of animals at once requires exact control over air quality and weather, which natural systems can't always provide. For best results, use hybrid methods that combine natural airflow in mild weather with mechanical negative pressure in high temperatures. These are good compromises, but they need complex control systems to handle changes well.

Installation, Maintenance, and Troubleshooting Guide for Farm Negative Pressure Fans

Step-by-Step Installation Protocols

The right way to put something starts with checking the site to make sure the structure can hold it and that it is in the best place. Because the unit weighs 80 kg, the fixing surfaces need to be strong enough to handle both standing loads and vibration forces during operation. To keep movement as smooth as possible, exhaust fans should be placed away from the direction of the typical summer winds. The spacing between units should keep the spread even across the wall. Depending on the width of the building, fans are usually put 3–4 meters apart.

The 380V three-phase motor's electrical lines must follow local rules and have overcurrent safety that is the right size for the motor. We offer installation films that show the right way to wire, install mounting hardware, and follow the initial starting steps for a Farm Ventilation Negative Pressure Fan Unit. For projects that need professional approval, we offer on-site installation services. This is especially helpful for wholesalers and contractors who are in charge of multiple installations at the same time, as our technical team makes sure that the quality is the same everywhere.

The placement of the inlet has a direct effect on how well the system works, but it doesn't get enough attention in many setups. The static pressure and energy economy are both affected by the ratio of the inlet size to the fan capacity. When there isn't enough opening area, fans have to work against too much resistance, which slows down movement and uses more power. Our expert support team helps with figuring out the right size of the inlet and suggests the right spacing along the sidewalls or concentration at the end opposite the exhaust fans, based on whether a cross-ventilation or tunnel-ventilation design is used.

Routine Upkeep and Component Inspection

Scheduled repair stops equipment from losing its effectiveness and makes it last longer than the 40,000-hour planned life. Cleaning the fan blades and screens once a month gets rid of the dust that builds up on them and makes the wind less effective. The galvanized steel or stainless steel design makes it easier to clean with regular power cleaners. This is different from painted surfaces, which get worse after being washed many times. Belt-drive systems need to have their torque checked every three months, but our direct-drive design gets rid of this maintenance need completely.

When to lubricate a bearing depends on the specs of the motor. Sealed bearings don't need much maintenance other than being checked for noise or shaking that doesn't seem normal on a regular basis. Once a year, a full checkup should be done to make sure the shutter works, check the state of the blades for edge damage or imbalance, and measure the motor's current draw to find problems before they break. For big systems, we offer preventive maintenance contracts where our techs check on a regular basis and keep thorough service records that can be used for warranty claims and asset management paperwork.

Measuring airflow to check for performance gives an objective picture of the system's state. Portable anemometers check the speed of air in different parts of the building to see if fans are still working at the right level or if they have lost some of their power due to problems with the motor, the blades wearing down, or the system becoming more resistant. By taking measurements right after installation and writing them down, you can use them as a guide for future checks. This way, you can find performance problems early, even if they aren't showing any obvious signs yet.

Energy Efficiency and Operational Performance Optimization

Power Consumption Analysis and Energy-Saving Technologies

Knowing the connection between power use and air output helps you choose the right tools and set up the right way to use it. Our 1.1 kW motor moves a lot of air while using a fair amount of energy. This is especially true when compared to older belt-drive designs that have less efficient motors. Figuring out the airflow per watt ratio gives you a standard way to compare different brands and types. It shows you which units provide the most airflow for each dollar you spend on electricity.

Variable frequency drives are the best way for negative pressure fans to save energy when they are used in places where temperatures change a lot from season to season. When a temperature monitor is plugged in, VFD systems change the speed of the motor based on that information. This lowers the fan speed and power use during warm weather while keeping the capacity for times of high demand.

Our 380V setup works with three-phase motor designs, which are needed for VFD integration. Energy audits done at client sites show that installing a VFD cuts energy use by 30–40% compared to using an on-off controller. The payback time is usually less than two years, even when the costs of the VFD hardware are taken into account.

Smart control integration includes more than just temperature response. It also includes sensors for humidity, ammonia tracking, and static pressure measuring. These control systems with multiple variables find the best airflow rates based on the quality of the air, not just the temperature, and they coordinate seamlessly with each Farm Ventilation Negative Pressure Fan Unit to ensure precise performance under varying load conditions. In cold weather, when minimum ventilation rates are needed, exact fan speed control keeps the flow of air at the right level while stopping too much heat loss, which drives up heating costs.

When we combine our fans with modern environmental controllers that are provided by experts in farm automation, we get complete climate management systems that balance the different goals of controlling temperature, improving air quality, and saving energy.

Procurement Insights: Buying and Sourcing Negative Pressure Fans for Farms

Manufacturer Selection and Supplier Evaluation Criteria

Successful buying means looking at more than just the original purchase price when considering makers. You need to think about the total cost of ownership, which includes things like stability, service support, and the ability to customize the product. Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. is a great example of the all-around method that agricultural equipment suppliers need to take.

They have eight years of experience making products and their own engineering team can come up with unique solutions. Our experienced research and development team of five engineers comes up with changes that are specific to each application and take into account things like building size, temperature, or the need to work with other control systems.

Quality control methods have a direct effect on how reliable equipment is and how often guarantee claims are made. As part of our production process, we use strict testing procedures, such as dynamic blade balancing to Grade G6.3 standards, which keeps tremor levels below 1 mm/s. 96 hours of salt spray testing mimics years of ammonia exposure to check for corrosion resistance.

This makes sure that material specifications match real performance requirements. These quality assurance steps lower the number of failures that happen in the field and the costs of replacing things right away. This is especially important for wholesalers who want to keep their good name with end-user customers.

Warranty terms and service after the sale are what set professional providers of farm equipment apart from general manufacturers of industrial fans. Our free one-year guarantee covers problems with the way the product was made and broken parts. You can also get quick technology help by emailing wangshuaislms@gmail.com.

A stock of replacement parts and fair wait times make sure that repairs can be done quickly when problems happen. For equipment wholesalers and farm contractors, the dependability of their suppliers has a direct effect on the image of their business. This makes choosing a manufacturer more of a strategic choice than just a matter of comparing prices.

Bulk Purchasing Options and Installation Service Coordination

Large projects with many buildings or stages of construction can benefit from bulk buying agreements that lower unit costs and make sure that all installations follow the same specs. We can handle large orders and offer price models that take economies of scale into account. This is especially helpful for integrators and distributors who sell full ventilation packages. When you place your order, you can ask for customization choices like different motor voltages, blade materials that are better for corrosive conditions, or mounting hardware that works with different types of buildings.

Coordination of the installation service is very important for projects with short deadlines or places where there isn't a lot of professional knowledge in the area. Our on-site installation service makes sure that the system is properly set up and trains the customer's support staff on how to use it and fix problems. Installation films for reference and hands-on help are available to meet the needs of a wide range of customers, from farm workers who can do everything themselves to turnkey project contractors who need full service delivery. This adaptability makes relationships stronger with distributors who work with a wide range of clients who have different technology needs and service standards.

There are thorough specs, performance curves at different static pressures, and dimensional drawings for accurate project planning in the technical paperwork that backs up purchase choices. We give engineers this information during the quote process so they can make sure it works with their building plans and get an accurate idea of how well the air system will work before they commit to buying it.

This professional method lowers the risks of the project and encourages teamwork, which is a key trait of successful business-to-business partnerships in the agricultural equipment industry. If farm owners, equipment distributors, or agricultural contractors are looking for a reliable supplier of Farm Ventilation Negative Pressure Fan Units, they can find detailed specifications and ordering information at slms-equipment.com.

Conclusion

Finding the best negative pressure ventilation equipment means finding a balance between technical specs, longevity, energy economy, and the supplier's abilities. Our 50-inch Farm Ventilation Negative Pressure Fan Unit moves 28,000 to 38,000 m³ of air per hour, and its high-quality build means it will last for 40,000 hours or more in harsh agricultural settings.

With materials that don't rust, low noise, stable pressure control, and full support that includes installation services and detailed paperwork, this product meets all the needs of modern livestock facilities. Instead of just focused on how much the equipment costs at first, procurement experts would be better off working with makers that offer technical knowledge, the ability to customize products, and a history of reliability.

FAQ

How many negative pressure fans does my poultry house require?

To find out how much ventilation is needed, multiply the building's cross-sectional area by the air speed you want for the tunnels, which should be between 2.5 and 3.0 m/s. Divide the answer by the capacity of each fan at the normal working standing pressure of 20 Pa. Our 50-inch unit, which covers 150–200 m², is a good size estimate, but for more accurate figures, you should take into account extreme weather and scenarios with the highest bird density.

What maintenance intervals ensure optimal fan performance?

Cleaning once a month gets rid of the dust that builds up and gets in the way of movement. Every three months, the shutter is checked to make sure it works and for any strange noises or vibrations. An yearly full service check includes checking the bearings, measuring the motor power, and trying the performance with an anemometer to make sure it works right. Compared to normal industrial fans, our sealed bearing design and corrosion-resistant construction mean that they need less upkeep.

Can negative pressure ventilation reduce disease incidence in my flock?

Controlled airflow keeps ammonia levels below 25 ppm, which hurts lung tissue and greatly lowers respiratory diseases. Getting rid of moisture stops litter from getting wet, which helps coccidiosis and bugs grow. Pathogens in the air are diluted by regular air exchange, which lowers the rate at which diseases spread. Several research studies show that properly ventilated facilities have 15-20% lower death rates than facilities without proper airflow.

Partner with a Trusted Farm Ventilation Negative Pressure Fan Unit Manufacturer

Weifang Shuilin Musen Aquaculture machinery Co., Ltd. offers complete ventilation options and has been making farming machinery for eight years. Our 50-inch Farm Ventilation Negative Pressure Fan Unit has a capacity of 28,000 to 38,000 m³/h, a service life of 40,000 hours or more, and is made to prevent corrosion. It also comes with full professional support, such as installation videos and on-site commissioning services. The one-year warranty, customization choices for specific application needs, and helpful expert team that can be reached at wangshuaislms@gmail.com all make sure that projects are completed successfully.

If farm owners, equipment distributors, or agricultural contractors are looking for a reliable supplier of Farm Ventilation Negative Pressure Fan Units, they can find detailed specifications and purchasing information at slms-equipment.com, where our commitment to quality and customer service supports long-term partnerships focused on improving livestock production efficiency through superior environmental control.

References

1. Lacy, M.P. & Czarick, M. (2021). Tunnel Ventilation of Broiler Houses: Design and Management Principles for Optimal Performance. Poultry Science Department, University of Georgia Extension Publication.

2. Mitchell, M.A. & Kettlewell, P.J. (2019). Engineering and Design of Ventilation Systems for Intensive Poultry Production. British Poultry Science, 60(6), 633-642.

3. National Chicken Council. (2022). Animal Welfare Guidelines and Audit Checklist for Broiler Chickens: Ventilation System Standards. Washington, D.C.: National Chicken Council.

4. Ritz, C.W., Fairchild, B.D., & Lacy, M.P. (2020). Assessing Negative Pressure Ventilation System Performance in Commercial Poultry Houses. Journal of Applied Poultry Research, 29(4), 815-825.

5. Seedorf, J. & Hartung, J. (2018). Airborne Particulates and Gaseous Emissions from Livestock Facilities: Ventilation Control Strategies. Agricultural Engineering International: CIGR Journal, 20(3), 112-128.

6. Xin, H., Berry, I.L., & Tabler, G.T. (2017). Modern Ventilation and Heating Systems for Poultry Production: Energy Efficiency and Environmental Control. American Society of Agricultural and Biological Engineers Technical Paper Series.
