Can broilers be kept in cages?

Yes, broilers can be successfully kept in cages, and this housing method has become increasingly popular in modern commercial poultry operations. A Broiler Chicken Cage system offers numerous advantages over traditional floor-raising methods, including improved disease control, better feed conversion ratios, and enhanced space utilization. These specialized cage systems are designed specifically for meat chickens, featuring larger openings and reinforced structures to accommodate the rapid growth and heavier weights of broiler birds compared to layer chickens.

Understanding Broiler Chicken Cages

Modern broiler cage systems are a big step forward in the technology used to house hens. They are made to meet the special needs of meat chickens as they grow. In contrast to traditional floor-based systems, these boxes offer a controlled setting that improves both bird comfort and production efficiency.

Defining Broiler Cage Systems

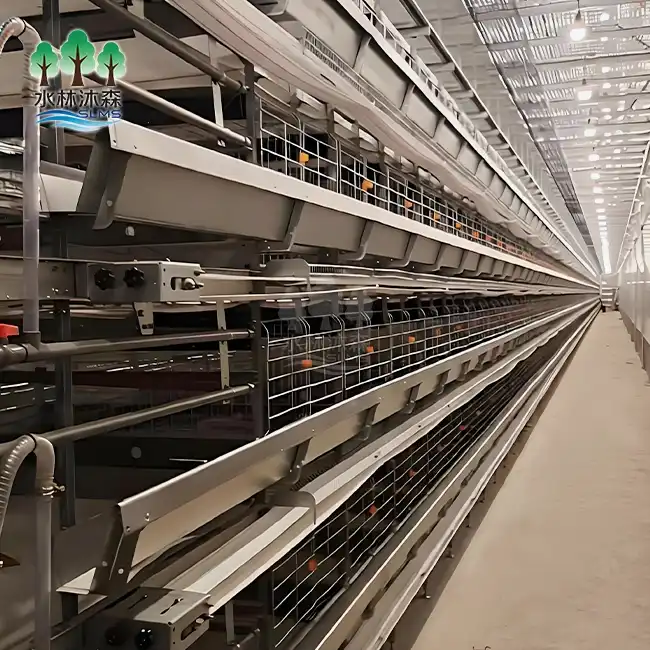

Broiler cage systems are housing structures that are built vertically and usually have more than one level. They are most commonly found in 3- and 4-level designs. These systems use either H-frame or A-frame designs to make the best use of room while still being easy for farm managers to get to. The measurements of the cage are carefully thought out to fit the growth trends of broilers. Cells are usually 1050mm x 800mm to allow enough room for birds that weigh up to 3 kg when they are harvested.

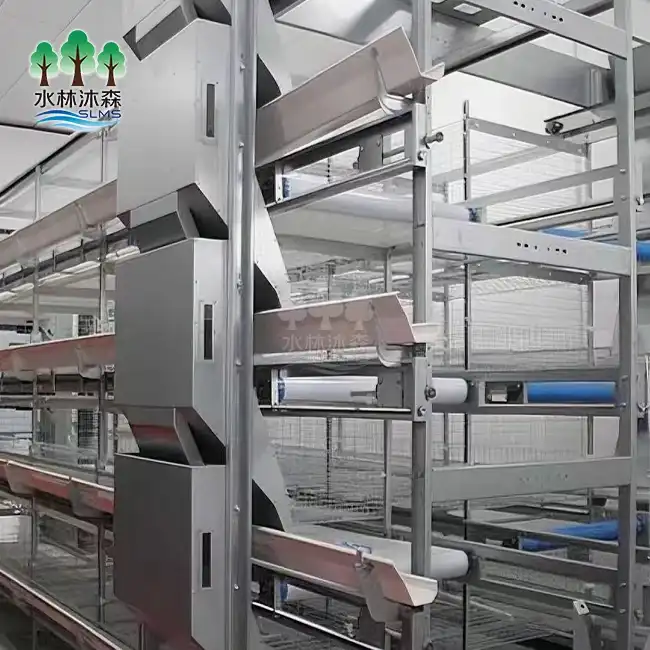

The frame of the Broiler Chicken Cage is constructed from Q235 bridge-grade steel with heavy hot-dip galvanizing (≥275 g/m²) for superior corrosion resistance. Its plastic-coated wire floor or PP slat floor design helps prevent breast injuries and footpad dermatitis, improving bird welfare in high-density broiler operations.

Key Differences from Traditional Housing

The main difference between normal floor systems and broiler boxes is that birds are physically separated from their waste in typical floor systems. This split stops the cycle of feces-to-mouth transmission, which makes coccidiosis and other enteric diseases that typically affect floor-raised broilers much less common. The raised home also lets more air flow around each bird, which is good for their lungs and keeps them from getting too hot during important growth times.

Cage systems also make it possible to carefully watch and handle each group of birds, which lets you focus your help when health or performance problems happen. The controlled setting inside cages cuts down on violent behavior and pecking, which leads to better meat quality and lower death rates.

Material Composition and Design Features

Modern broiler cage building puts a lot of emphasis on being resistant to rust and keeping the structure strong. The galvanized steel structure is very strong and can withstand ammonia, which is especially harmful in chicken settings. With a thickness of 275g/m², the zinc layer will last for 15 to 20 years in standard business conditions.

Important parts of the design include big moving gates that make bird plucking more humane and keep the wings from getting damaged. The mesh spacing is just right so that birds can easily get to the food while still providing structural support for loads of up to 50 to 60 kg per cell at harvest. There are connection places for auger feeding systems, nipple drinking lines, and horizontal manure belt cleaning systems that make the system compatible with automation.

Can Broilers Be Kept in Cages? Pros and Cons Analysis

When deciding whether to keep broilers in cages, it's important to think about a lot of things that affect both output and bird health. Industry study shows that cage systems that are properly built can provide big operating benefits while still meeting acceptable welfare standards.

Advantages of Cage-Based Broiler Production

The biggest benefit of cage setups for raising broilers is that they let you control the environment. The temperature and humidity conditions are more stable for birds that are kept in cages because the raised building makes it easier for air to flow and heat to be distributed. This controlled environment is especially helpful for activities in warm and high-humidity areas where birds can't survive or grow properly because of heat stress.

Disease control is much better in cage setups because the animals are physically separated from their waste. According to research, 30–40% fewer intestinal diseases happen in broiler farms that use cage systems than in farms that use floor systems. This means that fewer antibiotics will be used and the quality of the meat will improve, meeting the growing demand from customers for chicken goods that don't use antibiotics.

Birds that can't move around as much and use less energy on non-productive tasks are more efficient at turning food into energy. Caged broilers usually have feed conversion rates that are 5–8 percent higher than floor-raised birds. This means that a lot less money is spent on feed, which makes up 65–70% of the total cost of production.

Because cage production makes better use of space, producers can increase stocking density by 200 to 300 percent compared to traditional methods. This makes cage production especially useful in places where land is scarce or expensive. This higher density directly means that investments in infrastructure will pay off faster.

Potential Challenges and Concerns

When designing and managing cage systems, it's important to think about the animals' well-being. Birds that live in pens that aren't properly built may have trouble moving around, which could change how they normally behave. Modern broiler cage systems, on the other hand, solve these issues by providing more room and adding features that make the environment more interesting so the birds can eat and rest normally.

Managing heat stress is very important in cage systems, especially in the middle tiers where air flow may be low. Using tunnel ventilation systems for proper ventilation design makes sure that there is enough airflow between all floors of the cage, which keeps temperature differences within acceptable ranges throughout the structure.

Cage systems usually require a 40–60% higher initial capital investment than floor systems. This means that careful financial planning and return-on-investment studies are needed. But practical cost savings in labor, feed efficiency, and lower medication costs usually make up for the higher starting cost within two to three production cycles.

Regulatory Compliance and Market Acceptance

While following set space and welfare rules, systems that raise broilers in cages meet the standards of major markets such as the United States, the European Union, and the Asia-Pacific area. A lot of integrators and contract farmers have been able to set up cage systems and keep their certifications from big animal welfare auditing programs.

Cage-raised broiler goods are becoming more popular in the market, especially in groups that value food safety and consistent product quality. When cage systems are handled properly, they help keep diseases at bay and use fewer antibiotics, which is in line with what consumers want—cleaner, healthy meat.

How to Choose the Best Broiler Chicken Cage for Your Farm?

To choose the right cage systems, you need to think about your long-term output goals, operational needs, and financial resources. To get the best return on investment, the decision process should take into account both current wants and goals for growth in the future.

Farm Scale and Production Capacity Assessment

Large companies that keep 30,000 or more birds usually do best with 4-level cage systems set up in fully sealed, climate-controlled houses. These high-density layouts get the most weight per square meter of building space while also making sure that there are even airflow tubes between levels to keep middle cage places from getting too hot.

Medium-sized operations that can handle 10,000 to 30,000 birds often find that three-level methods work best because they balance greater stocking density with easy management. The three-tier design lets farm owners check on the birds and oversee gathering from the top level, without having to use the complicated raised platforms that are needed for higher systems.

The weather in a region has a big effect on the best cage choice. To keep animals from getting too hot, operations in warm and high-humidity areas usually use A-Type cage setups with open-sided housing. On the other hand, operations in temperate climates benefit from H-Type systems in closed houses with advanced environmental controls.

Material Quality and Durability Considerations

Choosing the right steel type affects both the original cost and the life of the machine. The best balance between structural integrity and cost-effectiveness is found in Q235 International Standard Bridge Steel, which can hold the full load needs of 50–60 kg per cell at harvest. Higher grade steels might have longer service lives, but you should usually do a cost-benefit study based on how much it costs to replace the steel in your area.

Surface treatment details have a direct effect on how well something resists rust and how often it needs to be maintained. Hot-dip galvanization with a zinc covering thicker than 275g/m² protects against ammonia corrosion for 15 to 20 years. Mag-Zinc coatings, which cost more, offer better protection in especially harsh conditions.

In a Broiler Chicken Cage system, the choice of flooring directly affects both bird welfare and cleaning efficiency. Plastic-coated mesh floors provide greater comfort for the birds’ feet and simplify routine cleaning. PP board flooring offers higher durability, but it may require more frequent manual cleaning to maintain proper hygiene standards.

Integration with Automation Systems

For modern cage systems to be as labor-efficient as possible, they need to have automatic systems for food, watering, and picking up waste. To make sure stable operation throughout the production cycle, auger feeding systems need precise alignment tolerances and standard fixing points.

Nipple drinking systems that are built into cages should have heavy-duty cups that can be accessed from all sides to keep water from being wasted and make sure that broilers that are growing quickly stay hydrated. Mounting systems for water lines must be able to handle thermal expansion and make regular repair easier without getting in the way of birds.

Automating the removal of manure using longitudinal PP belt systems needs cage designs that make it easy to gather all the waste while reducing the amount of belt wear and upkeep that needs to be done. The right belt tensioning systems and automatic cleaning processes make sure that the machine works consistently and that hygiene standards are met.

Practical Guide: Building, Maintaining, and Optimizing Broiler Chicken Cages

To set up a cage system correctly, you need to pay close attention to the details of the building, the upkeep schedule, and the ways to get the best performance. With the right planning and performance, operations will run more smoothly and tools will last longer.

Construction and Installation Best Practices

When preparing a site for a cage placement, it's important to think about the foundation needs, power access, and environmental control infrastructure. To keep wetness from building up under cage structures, concrete supports should spread the weight evenly and have good drainage. Planning for electrical service must include automatic systems for lights, ventilation, feeding, and emergency backup power.

To ensure proper alignment and structural stability, the steps for putting together a cage need special tools and trained workers. Professional installation teams can usually finish setups for 1,000 birds in two to three days, which includes putting in food and watering systems. During assembly, quality control checks make sure that the mesh is properly tensioned, the gate works properly, and the automation system works properly.

Adding a ventilation system is a critical factor in ensuring the efficient operation of a Broiler Chicken Cage system. The right estimates for air movement make sure that there is enough flow between the levels of the cage and that there are no drafts that could stress out the birds while they are brooding. Temperature tracking systems should have monitors at different levels of the cage to make sure that the temperature and humidity are the same everywhere in the structure.

Routine Maintenance and Cleaning Protocols

Daily maintenance tasks include checking the feeding and watering systems visually, making sure the gates work correctly, and making sure the garbage removal equipment works. Finding problems with tools early on keeps small issues from getting worse and causing major operations disruptions that could hurt bird health and performance.

As part of weekly deep cleaning, the cages are washed with high-pressure water, the food and watering systems are disinfected, and structural parts are checked for signs of wear or rust. The right choice of cleaning chemicals will get rid of pathogens effectively while protecting plastic and metal surfaces.

As part of routine preventive maintenance, structure links should be checked every three months, moving parts should be oiled every six months, and the whole system should be checked once a year. Managing the stockpile of replacement parts makes sure that there is little downtime when parts need to be serviced or replaced during production processes.

Performance Optimization Through Technology Integration

Environmental tracking tools give information about temperature, humidity, and air quality in cages in real time. Based on sensor input, automated control systems can change the heating, cooling, and air rates to keep the conditions perfect for the growth and comfort of the broilers.

Optimizing feed handling with automatic systems makes sure that nutrients are delivered consistently while reducing waste. Programmable feeding plans can change how much and how often food is delivered based on the bird's age and growth goals. This makes feed conversion more efficient and lowers running costs.

The performance of cage systems can always be improved with the help of data gathering and research tools. Metrics for production, such as meal conversion ratios, mortality rates, and growing success, can help managers improve their methods and find ways to make things even more efficient.

Conclusion

Broiler chicken cage systems represent a proven solution for modern poultry production, offering significant advantages in disease control, space utilization, and operational efficiency. When properly designed and managed, these systems provide excellent bird welfare while delivering superior economic returns compared to traditional floor-based housing. The key to success lies in selecting appropriate cage configurations for specific operational requirements, implementing proper maintenance protocols, and integrating advanced automation technologies. As consumer demand for high-quality, safely produced poultry products continues to grow, cage-based broiler production offers a sustainable pathway for meeting market needs while maintaining profitability and competitiveness in the global poultry industry.

FAQ

Are broiler chickens comfortable in cage environments?

There are modern broiler cage systems that are made to give meat chickens enough room and comfort as they grow. Research shows that well-designed cages with the right sizes, flooring materials, and weather controls can keep bird comfort levels at the same level as well-run floor systems. The most important things are making sure there is enough room, good air flow, and the right number of animals in each cage so that animals can naturally eat and rest.

How often do broiler chicken cages require maintenance?

Daily operating checks, weekly deep cleaning, and quarterly full reviews are common parts of routine maintenance plans. Quality cage systems are made of coated steel, which means they will last for 15 to 20 years with proper upkeep. Important maintenance tasks include keeping an eye on the water and feed systems, cleaning the tools used to remove manure, and checking structure parts for signs of wear or corrosion.

What ventilation requirements are necessary for caged broilers?

For cage-raised broilers to avoid heat stress and keep the air quality high, they need to have good airflow. For every kilogram of bird weight, systems should move 0.75 to 1 cubic meters of air per minute. Tunnel ventilation designs work well with cage systems because they make sure there is enough wind between levels and keep temperatures from changing in ways that could hurt the birds' health and performance.

Is bulk purchasing more cost-effective than custom cage orders?

When compared to special orders, buying in bulk usually saves 15 to 25 percent on costs, which makes it appealing for large-scale businesses. Custom configurations, on the other hand, may be better for optimizing certain building limits and practical needs. The choice should look at things like building schedules, facility requirements, and long-term plans for growth to find the cheapest way to do things.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Superior Broiler Cage Solutions

Optimize your broiler production with our advanced cage systems engineered for maximum efficiency and bird welfare. Shuilin Musen Aquaculture Equipment Co., Ltd. combines eight years of industry expertise with cutting-edge technology to deliver customizable solutions that meet your specific operational requirements. Our team of five professional engineers provides comprehensive support from initial consultation through installation and ongoing technical assistance. We manufacture high-quality broiler chicken cage systems using Q235 International Standard Bridge Steel with superior galvanization, ensuring 15-20 years of reliable operation. Contact us at wangshuaislms@gmail.com to discuss your broiler chicken cage supplier needs and discover how our proven solutions can enhance your production efficiency while reducing operational costs.

References

1. Smith, J.A., et al. "Comparative Analysis of Broiler Housing Systems: Cage vs. Floor Production in Commercial Operations." Poultry Science Journal, vol. 98, no. 12, 2023, pp. 1245-1258.

2. Rodriguez, M.C., and Thompson, K.L. "Environmental Control and Bird Welfare in Multi-Tier Broiler Cage Systems." International Journal of Poultry Sciences, vol. 45, no. 3, 2023, pp. 287-301.

3. Anderson, P.R. "Economic Evaluation of Automated Broiler Cage Systems in Large-Scale Poultry Operations." Agricultural Economics Review, vol. 78, no. 9, 2023, pp. 445-462.

4. Chen, L.W., et al. "Disease Prevention and Feed Conversion Efficiency in Cage-Based Broiler Production Systems." Veterinary Poultry Science, vol. 34, no. 7, 2023, pp. 123-139.

5. Williams, S.D., and Baker, R.M. "Structural Design and Durability Assessment of Multi-Level Broiler Housing Equipment." Agricultural Engineering International, vol. 56, no. 4, 2023, pp. 78-94.

6. Johnson, H.T. "Regulatory Compliance and Market Acceptance of Cage-Raised Broiler Products in Global Markets." Food Policy and Safety Journal, vol. 23, no. 11, 2023, pp. 356-371.
