How do negative pressure fan units improve air quality in farm buildings?

Farm Ventilation Negative Pressure Fan Unit technology has changed how we control the surroundings in modern farms with animals. By carefully removing old air from protected buildings, these special fans create a difference in pressure that lets fresh air from outside in through certain openings. This constant air exchange quickly gets rid of dangerous gases like ammonia, hydrogen sulfide, extra water, and airborne pathogens that build up in places where farming is done a lot. As a result, the air is healthier, which lowers the risk of lung diseases, lowers the number of deaths from heat stress in the summer, and keeps humidity levels at the right level to avoid wet trash conditions. Using the right negative pressure ventilation in big poultry and cattle farms will directly improve animal comfort and lead to measured production gains.

Understanding Negative Pressure Fan Units in Farm Ventilation

The Science Behind Pressure Differential Systems

The basic idea behind negative pressure ventilation comes from the study of how fluids move. When strong vent fans take air out of a building that is sealed or mostly sealed, they leave a partial vacuum inside. Because nature hates this empty space, the pressure of the air outside forces fresh air inside through controlled holes. Negative pressure systems let workers precisely choose where air comes in, usually through evaporative cooling pads or filtered inlets, as opposed to positive pressure systems that blow air into buildings.

This controlled pattern of movement keeps stale air from building up in dead zones. In a well-designed system, every cubic meter of building space has regular air exchange. During warm weather, there is a full exchange every few minutes, but during cold weather, the rates slow down. The path that fresh air takes is very important. Sending new air across animal areas makes sure that the temperature is even and that pollutants are removed consistently throughout the building.

Why Poultry and Livestock Facilities Require Specialized Ventilation?

When it comes to the environment, commercial farming has problems that are different from normal industrial air uses. A lot of animals living in a small space create a lot of biological heat, respiratory wetness, and gases from waste. A healthy laying hen breathes out and pees out about 10 to 15 grams of water every hour. Imagine how much water tens of thousands of birds in modern houses make every day. If there isn't enough air flow, the relative humidity quickly rises above 70%, making it easy for bacteria and fungus that are dangerous to grow.

Another very important issue is the concentration of ammonia. When amounts go above 25 parts per million, this smelly gas from decaying dung irritates respiratory tissues, hurts lung cilia that filter pathogens, and lowers the efficiency of feed conversion. Negative pressure systems are great at keeping ammonia levels below what is considered safe because they make sure that air is constantly moving through the system, which dilutes and gets rid of these gases before they build up and become dangerous.

Key Components of Effective Negative Pressure Systems

There are more parts to a full ventilation system than just the Farm Ventilation Negative Pressure Fan Unit. The equipment works as a single network, with air intakes, fans, controls, and often cooling pads that evaporate water. Air intakes must have the right amount of opening area, which is estimated by the fan's capacity. If the inlet area is too small, it causes too much negative pressure, which stops airflow and loses energy. Modern systems have automatic inlet controls that change the width of the hole based on static pressure monitors. This keeps the ideal pressure between 12.5 and 25 Pascals.

Controllers are like the brains of the system. They check the amounts of temperature, humidity, and sometimes ammonia to decide how to run the fans. Staged control turns on more fans as the temperature rises, going from no ventilation at all on cold days to full ventilation on hot days. This technology reacts faster than management by hand, and it uses less energy because it only runs the capacity that is needed at the moment.

Core Benefits of Negative Pressure Fan Units for Farm Air Quality

Enhanced Contaminant Removal and Respiratory Health

The best thing about negative pressure venting is that it can get rid of floating pollutants right where they start. Because gases like ammonia and hydrogen sulfide are lighter than air, they naturally rise to vent fans in the roof and are quickly sucked out. Animal action also stirs up dust particles that are carried away by the airflow before they settle or are breathed in.

Researchers from different commercial chicken farms have found that ammonia levels stay below 15 parts per million (ppm) in buildings that are properly ventilated, but levels often go above 40 ppm in barns that aren't properly ventilated. This big difference directly affects the health of the group; when birds aren't constantly exposed to irritating gases, the number of lung diseases they get drops by a lot. Less sickness means lower prices for medicines, better weight gain, better feed conversion ratios, and lower death rates, all of which increase profits.

Besides controlling gases, another important benefit is lowering the number of pathogens in the air. Aerosol droplets in still air are a common way for viruses and bacteria to spread. Continuous air exchange lowers the number of pathogens and the relative humidity below the point where many disease-causing organisms can multiply.

Energy Efficiency and Operational Cost Savings

When compared to older air methods, modern negative pressure fans use a lot less energy. A good 50-inch diameter unit with a 1.1 kW motor moves 28,000 to 38,000 cubic meters of air an hour while covering 150 to 200 square meters of floor space. The aerodynamic shape of the blades cut down on resistance, which let motors move the most air per kilowatt. Staged fan action and variable frequency drives work together to save even more energy. In warm weather, the minimum ventilation needs might only call for 10-15% of the total fan capacity, which means that only one or two units need to be going at a slower speed. As the temperature rises, more fans turn on one after the other. This progressive reaction stops the waste that comes with single-fan systems that are too big and don't work well at partial load.

Long-term cost analysis shows that quality fans made from corrosion-resistant materials like coated steel or stainless steel are worth the extra money because they last longer and can be used for more than 40,000 hours. In ammonia-rich farm settings, cheaper options made with lower-quality materials rust quickly, needing to be replaced every few years and costing more over the life of a facility.

Temperature Regulation and Heat Stress Prevention

Heat stress is a big factor that reduces the output of animal farms. This is especially true for poultry, which don't have sweat glands and rely on breathing and air flow to stay cool. When temperatures rise above a bird's comfort zone, it eats less and doesn't gain weight. During heat waves, death rates can rise greatly. A Farm Ventilation Negative Pressure Fan Unit can solve this problem with negative pressure tunnel ventilation, which moves fast-moving air across the animals. The wind-chill effect makes it feel much cooler for birds when the air speed is between 2.5 and 3.0 meters per second. When the air moves well, 35°C feels like 28–30°C, which keeps birds in the temperature range where they can be active.

Adding liquid cooling pads makes this impact stronger. As air comes into the building, it goes through pads that are saturated with water. Evaporation takes heat energy, lowering the temperature of the air by 5 to 10°C before it enters the building. With this mix of liquid cooling and high air velocity, you can control the temperature without having to buy expensive air conditioning that cools with cool air.

Installation, Maintenance, and Troubleshooting of Negative Pressure Fan Units

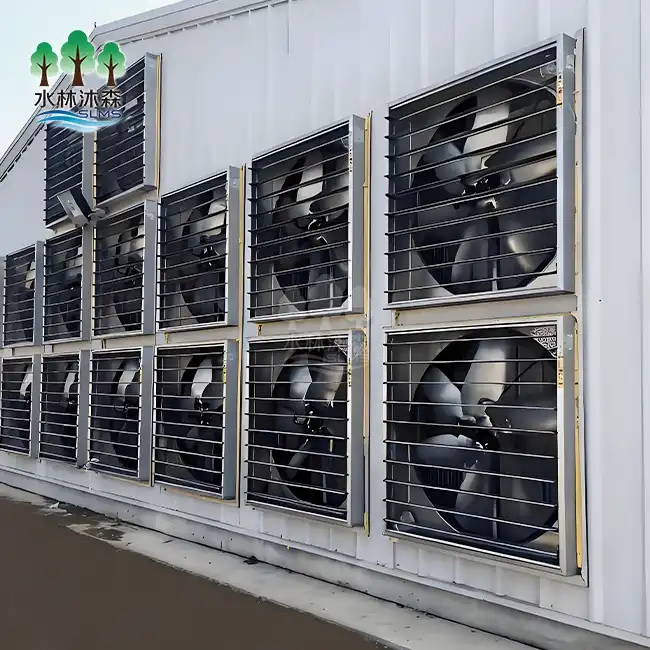

Site Preparation and Optimal Fan Placement

A good fitting starts long before the fans get there. Engineers have to figure out how much air is needed based on the number of animals, the size of the building, and the weather in the area. With this math, you can figure out how many fans you need and where to put them. Most big chicken coops use tunnel ventilation, which has fans focused on one endwall. These fans pull air along the length of the building from openings or cooling pads on the other end.

Structures are very important to think about. Exhaust fans need to be mounted in holes that are strong enough to hold their weight. Our 50-inch units weigh about 80 kg and make a lot of sound when they're working. When mounted correctly, damage to the structure is avoided and noise is lowered. Also, the electrical infrastructure needs care. The 380V three-phase power sources need to be the right size for the motor loads and wired according to the rules in your area.

The Shuilin Musen Aquaculture Equipment Co., Ltd. offers full installation help, including clear video guides that show customers how to do everything. Our technical team offers on-site service to make sure systems are set up properly from the start for businesses that would rather have a professional do the work. Performance problems that happen with systems that were not installed correctly can be avoided with proper starting setup.

Routine Maintenance Requirements and Seasonal Adjustments

Even the strongest fans need to be serviced regularly to keep working at their best. We suggest that you check it every three to six months, or more often during times of heavy use. Cleaning the dust off of the blades and shutters, checking the tension and wear on belt-driven types, lubricating the bearings according to the manufacturer's instructions, and making sure the shutters work are all maintenance jobs.

Cleaning the blades needs extra attention. When dust builds up on fan blades, it throws off the aerodynamic balance, which lowers the flow of air and raises the vibrations. Just 3 to 5 millimeters of growth can make something 20 to 30 percent less efficient. Cleaning the bearings regularly with water and a gentle detergent improves their performance and extends their life by reducing wear caused by vibration. Changing seasons means paying attention to the settings on the controls. As the seasons change from cold to warm, workers have to change the minimum air rates, the parameters for opening the inlets, and the order of the fans. These days, controllers store many program settings that can be triggered by simple menu choices. This takes away the need to guess when the seasons change.

Common Issues and Troubleshooting Solutions

Even though building is reliable, operating problems do happen from time to time. Most complaints are about low airflow, which can be caused by dirty blades, doors that won't open or close, loose drive belts, or air inlets that are blocked. The first step in systematic troubleshooting is to make sure that the inlets are working properly. If the inlets are blocked, there is too much negative pressure, which stops airflow even when the fans are going at full speed.

Noises or vibrations that don't make sense in a Farm Ventilation Negative Pressure Fan Unit are often a sign of worn bearings or blade unbalance. If you notice these signs early, you can avoid a catastrophic loss. If a bearing sounds rough or feels hot to the touch, it needs to be replaced right away. Even though our fans use high-quality protected bearings made for farming settings, even the best parts wear out over time. By replacing parts before they break during routine upkeep, you can avoid problems that come up out of the blue during hot weather, when air systems need to work the hardest.

Another common problem is that the shutters don't work right. This is especially true for gravity-operated models that depend on wind to open the shutters. When dust builds up on the hinges or they rust, they stop fully opening, which cuts off airflow. This problem goes away when you switch to models with centrifugal push-pull mechanisms—positive mechanical action makes sure screens open all the way, even if there is dust or light rust.

How to Choose the Right Negative Pressure Fan Unit for Your Farm?

Comparing Fan Technologies and Performance Characteristics

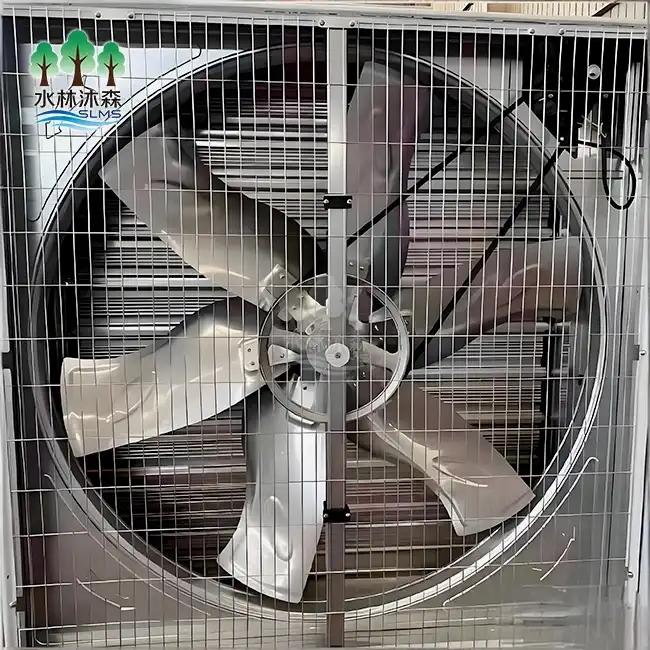

Understanding the different methods available is the first step in choosing the right ventilation tools. Axial fans, which are the most common type used in agriculture, have blades that are parallel to the direction of wind and pull air straight through. These units are great for moving large amounts of air with mild static pressure, which makes them perfect for tube ventilation.

Within each type of axial fan, the choice of drive system affects how well it works and how often it needs to be serviced. Belt-driven designs let you change the speed of the blades more easily and usually get better maximum airflow in bigger sizes. Direct-drive types don't have any belts at all, which means they don't need as much upkeep but can sometimes let a little less air through. For most businesses, the choice comes down to weighing the original cost against the level of long-term upkeep needed.

The choice of blade material has a big impact on how long it lasts and how well it works. Our high-strength galvanizing steel blades don't rust and are still very precise in terms of aerodynamics. Facilities that are in areas that are very acidic might ask for construction made of 304 stainless steel to last the longest. You should also think about the material of the case. Fiberglass cases never rust and are lighter than metal ones, but stainless steel frames are more structurally strong.

Sizing Calculations and Capacity Requirements

The right size stops both inadequate airflow and useless over-capacity. The amount of heat animals produce, the desired air exchange rates, and the target internal air movement are used by engineers to figure out what is needed. During hot weather, as a general rule, chicken farms need 4-6 cubic meters per hour of air capacity per kilogram of live bird weight. A house with 20,000 birds that weigh an average of 2 kg each needs a total capacity of about 160,000 to 240,000 m³/h.

Our 50-inch fans can move 28,000 to 38,000 m³/h, which means that this building needs 5 to 7 units to meet its highest summer demand. But when building a system, there should be some extra space for it to handle—designing for just the estimated minimum doesn't leave any room for error in case of extreme weather. The system can handle heat waves without overheating by adding a 10-15% capacity cushion. Coverage area specs are another way to figure out the right size. Each of our 50-inch units can successfully cool and air out 150 to 200 square meters of floor space. So, eight to ten fans are needed to completely cover a 1,500-square-meter chicken coop. By comparing this calculation based on capacity to the calculation based on airflow, you can be sure that the sizes you choose are correct.

Evaluating Suppliers and After-Sales Support

The standard of Farm Ventilation Negative Pressure Fan Unit equipment made by different companies changes a lot, so choosing the right supplier is very important. Professionals in procurement should look into a number of important factors besides the original buy price. Manufacturing knowledge is important. Our eight years of experience focusing in agricultural tools shows that we fully understand the needs of this business. Companies that don't know much about farming often make fans that break down too soon in the harsh, dusty conditions of farming.

Having technical help available for the whole span of an item saves money and time. Shuilin Musen offers detailed installation videos, quick email support at wangshuaislms@gmail.com, and on-site installation services for people who need help with the process in person. This full help continues after installation through our free one-year guarantee that covers problems with functionality and defects.

The freedom to customize is another thing that sets it apart. Standard products work well for many uses, but providers who can adjust motor power, voltage, or material upgrades are helpful for farms with unusual building layouts or special needs. Instead of making processes fit around rigid standard goods, our engineering team works directly with customers to design equipment that meets their exact needs.

Case Studies: Successful Implementation of Negative Pressure Fan Units in Farms

Poultry Operation Achieves Measurable Productivity Gains

A large broiler farm in the southeast of the United States had trouble with its older buildings' uneven climate control. During the summer, heat stress often led to higher mortality and bad feed conversion. During the winter, when ventilation was limited, ammonia levels often passed 30 ppm. A full negative pressure system with eight 50-inch exhaust fans and liquid cooling pads was put in by the business.

Results were seen right away and could be measured. Death rates dropped from 6% to less than 2% in the summer, which means that for every 20,000 birds in a group, 800 more birds could be sold. Feed conversion went up by 0.08 points, which is a big jump that saved each group about $3,200 in feed costs. Levels of ammonia stayed below 20 ppm all year, and lung problems at processing went down by 40%. Within 18 months, these changes to how things worked were enough to pay for the system. The happiness of the employees also went up a lot. During barn checks, workers no longer had to deal with eye-watering amounts of ammonia or suffocating heat. Better working conditions helped keep employees longer, which cut down on training costs and kept the level of flock care steady.

Dairy Facility Cuts Energy Costs While Improving Air Quality

A 500-head dairy farm in California's Central Valley put in negative pressure ventilation in its freestall barn to deal with heat stress that made it hard for the cows to make milk in the summer. The system had variable frequency drives that let the fan speed be precisely controlled based on the temperature. Monitoring how much energy was used showed amazing economy. Even though it ran all the time during the warm months, ventilation only used an average of $280 a month in electricity, which is a lot less than earlier positive pressure systems. The VFD feature let the fans run at slower speeds when the weather was warm, using as little as 30% of their full-load power while still moving enough air.

Metrics on milk output showed that things were going well. From June to September, the average daily production per cow went up by 1.2 liters compared to the previous year. This was directly due to less heat stress. During the five-month warm season, this change brought in an extra $14,000. This money went straight to the business's bottom line.

Integration with Smart Control Systems

Progressive farms are combining air systems with building automation systems that keep an eye on a number of natural factors and change how the equipment works based on what they find. One big egg maker set up a system like this across three layer houses. Each house had staged negative pressure fans that were managed by a computer in the main building. The system checks the temperature, humidity, and ammonia levels in different parts of the building and turns on more fans when any of the parameters go above certain levels that have been set. Historical data logging showed trends that helped management make decisions. For example, they found that exhaust fans near places where manure was stored gathered dust more quickly, so those units had to be cleaned more often.

The power to watch from a distance proved to be very useful. Managers get notifications on their smartphones when conditions go beyond what is allowed or when equipment breaks down. This lets them act right away, before small problems turn into emergencies that could threaten the flock. This combination of technologies is where farm weather control systems are going in the future.

Conclusion

Negative pressure ventilation greatly enhances the air quality in farm buildings by continuously removing pollutants, precisely controlling temperature, and managing wetness levels. The Farm Ventilation Negative Pressure Fan Unit technology works because it uses designed breathing patterns to get rid of areas where air doesn't move and keep the atmosphere at the right level even when there are a lot of animals around. Investing in good tools pays off in the form of lower death rates, higher output levels, lower costs for treating diseases, and better working conditions for employees. As farms continue to grow, strong air systems go from being nice-to-have extras to being necessary infrastructure that determines how successful a farm can be in today's agriculture.

FAQ

Q1: What maintenance schedule keeps negative pressure fans operating reliably?

A: A full check every three to six months keeps things running at their best and stops them from breaking down without warning. Maintenance chores include cleaning the blades and shutters thoroughly to get rid of dust buildup, checking the tension of the belt on models that use a belt, lubricating the bearings with greases recommended by the maker, and checking the electrical connections. In places with a lot of dust, operations may need to clean the blades once a month during busy times. Changing seasons mean that control settings need to be changed to fit the new weather. This is done all year to make sure that the right air rates are always met.

Q2: Can negative pressure ventilation reduce respiratory disease in poultry flocks?

A: Of course. Pathogens, ammonia, and dust particles in the air that irritate lung cells and weaken the immune system are constantly removed by continuous air exchange. Keeping the relative humidity between 50 and 70% and the ammonia level below 20 parts per million makes it hard for respiratory disease germs to live and spread from birds to birds. Commercial facilities that use the right negative pressure systems regularly report 30 to 50 percent lower lung condemnation rates during processing. This directly proves that good air is good for your health.

Q3: How much electricity do negative pressure fan systems consume?

A: How much energy is used varies on the size of the fan, how efficient the motor is, how long it runs, and what kind of controls are used. A standard 50-inch unit with a 1.1 kW motor that runs all the time uses about 26 kilowatt-hours of electricity every day. But stepped control and variable frequency drives cut actual consumption by a huge amount by only running fans at the speeds they need to work in the present situation. In mild conditions, well-designed systems might run at 40 to 60 percent of their full capacity for a whole year, which is about 15 to 20 kWh per fan per day. Meeting IE2 or IE3 standards for energy-efficient motors lowers running costs even more while maintaining the same airflow.

Partner with a Trusted Farm Ventilation Negative Pressure Fan Unit Manufacturer

Shuilin Musen Aquaculture Equipment Co., Ltd. brings eight years of experience in designing air systems for farms that raise a lot of animals is what Shuilin Musen Aquaculture Equipment Co., Ltd. brings to the table. Our engineering team has made strong 50-inch fans that can move 28,000 to 38,000 m³/h of air, are very resistant to rust, and can be used for more than 40,000 hours. We know how hard it is for big operations and distributors of farm equipment to find suppliers that offer not only goods but also full solutions and quick expert help.

Our full service includes the ability to change the motor's specs and materials, clear installation instructions, on-site setup help, and a guarantee that lasts for a full year. If you're a farm operator planning facility upgrades or an equipment distributor looking for a reliable Farm Ventilation Negative Pressure Fan Unit supplier, please get in touch with our team at wangshuaislms@gmail.com to talk about how our solutions can meet your ventilation needs.

References

1. Donald, J. (2018). Poultry Production Systems: Ventilation Design and Management. Agricultural Engineering Press.

2. Midwest Plan Service. (2019). Structures and Environment Handbook: Ventilation Systems for Livestock Housing. Iowa State University Extension.

3. Xin, H., Berry, I. L., & Tabler, G. T. (2017). Feed and Water Consumption, Growth, and Mortality of Male Broilers Under Different Ventilation Systems. Journal of Applied Poultry Research, 26(4), 487-501.

4. Gates, R. S., Casey, K. D., & Wheeler, E. F. (2016). Ammonia Emissions from Poultry Houses: Measurement Methods and Mitigation Strategies. American Society of Agricultural and Biological Engineers.

5. Purswell, J. L., Dozier, W. A., & Branton, S. L. (2020). Temperature and Ventilation Management in Modern Broiler Production. Poultry Science Association Annual Review.

6. Banhazi, T. M., Seedorf, J., & Rutley, D. L. (2018). Identification of Risk Factors for Sub-Optimal Air Quality in Livestock Buildings. Biosystems Engineering, 173, 49-64.
