How Negative Pressure Fan Improves Poultry House Airflow

Managing airflow well is essential for running a successful poultry business because it has a direct effect on the health of your birds, their output, and, in the end, your bottom line. A Livestock Ventilation System Negative Pressure Fan works by manually removing old, humid, and ammonia-filled air from your chicken coop. This creates a difference in pressure that naturally pulls in fresh, oxygen-rich air through well-placed openings.

This controlled air exchange gets rid of toxic gases, keeps the temperature stable, and keeps the humidity at the right level. These are all important things that keep lung diseases and heat stress from happening in high-density broiler and layer operations. Procurement managers and farm workers can make better decisions for animal care and operational efficiency when they understand how these systems work.

Understanding Negative Pressure Fans in Poultry Ventilation

Today, raising chickens requires careful control over the environment. Livestock Ventilation System Negative Pressure Fan ventilation meets this need with a well-designed system of parts that work together without any problems. Basically, the idea is to lower the air pressure inside the barn compared to the outside. This makes controlled paths for fresh air to enter instead of random cracks or holes.

Core Components and Operating Principles

The system has air intakes along the sides or the opposite end of the barn, exhaust fans on one end of the barn, and automatic controls that change fan speeds based on temperature sensors. When the fans turn on, they pull air out of the room, which lowers the pressure inside by about 0.05 to 0.12 inches of water column. Because of this difference in pressure, air from outside rushes through the openings, which can be moved to direct wind exactly where it's needed. The new air mixes with the air inside, slowly changing the dirty air with clean supply.

Airflow Mechanics in Large-Scale Operations

Tunnel ventilation systems are popular in broiler houses with more than 40,000 birds. They use banks of Livestock Ventilation System Negative Pressure Fans to pull air along the whole building, making wind speeds of 600 to 700 feet per minute during the height of summer. This fast-moving air creates evaporative cooling effects that can lower the temperature that birds feel by 10 to 15°F, keeping them cool even when it's very hot outside. Cross-ventilation systems work differently. Fans are put along one sidewall and pull air horizontally across the width of the building. This type of ventilation is best for layer processes or places that don't need to be very cool.

Humidity and Gas Management Capabilities

Building up ammonia is very bad for the health of both birds and humans. Levels above 25 ppm can irritate the lungs and lower the rate at which feed is converted. Livestock Ventilation System Negative Pressure Fans constantly dilute and get rid of ammonia by keeping air rates low, even when it's cold outside. During the winter, the whole barn volume is exchanged every 8–10 minutes, and during the summer, it's done every 60–90 seconds. Controlling moisture is still very important, because humidity levels above 70% encourage the growth of germs and wet trash conditions that cause damage to the footpad and make it easier for diseases to spread.

Benefits of Using Negative Pressure Fans in Poultry Houses

A well-designed Livestock Ventilation System Negative Pressure Fan has many benefits beyond just moving air. These benefits affect every part of the cost and well-being of birds used for poultry production.

Enhanced Air Quality and Bird Health

Pathogens, dust particles, and toxic gases in the air that make it hard for birds to breathe are greatly reduced by controlled airflow in small chicken areas. Each of our 50-inch industrial-grade fans can move between 28,000 and 38,000 cubic meters of air per hour, and they can successfully ventilate areas that are 150 to 200 square meters. This ability makes sure that full air swaps happen often enough to keep oxygen levels above 19.6% and carbon dioxide levels below 3,000 ppm, which are amounts needed for metabolism to work well and for birds to grow quickly.

Energy Efficiency and Cost Reduction

Modern Livestock Ventilation System Negative Pressure Fans with variable frequency drives and smart controls use less electricity than old ventilation methods because they change fan speeds to match real cooling needs instead of always running at full capacity. Our machines have 1.1 kW motors that run on 380V three-phase power and are designed to move the most air per watt of power used. Businesses that use our systems say that their labour costs have gone down by more than 40% because the climate is managed automatically, so staff can focus on things like watching birds and checking on their health instead of operating machines.

Durability and Low Maintenance Requirements

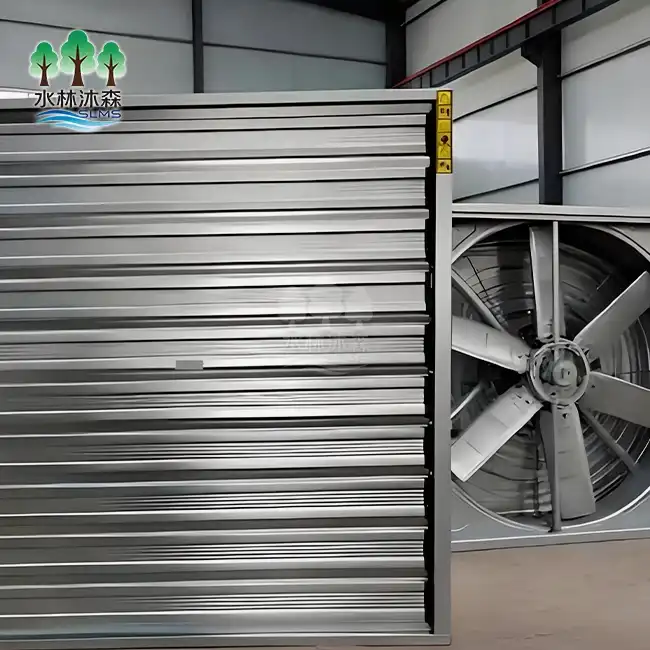

These fans are made of high-strength galvanised steel or 304 stainless steel, so they can handle the acidic conditions inside chicken barns, where ammonia and water are always attacking metal surfaces. The materials don't rust or break down easily, which helps them last for more than 40,000 hours of constant use. Operating noise levels below 70 decibels keep birds from getting stressed, which, according to study, makes them eat more and be less violent in flock dynamics. Changes in air pressure that can scare birds and mess up their laying schedules in egg production facilities can be avoided with stable air pressure control.

Comparison: Negative Pressure Fans vs Positive Pressure Fans for Livestock

Before you can choose between air methods, you need to know how well each one works in real-world production settings and within your budget. Livestock Ventilation System Negative Pressure Fans work best in long buildings like modern broiler houses that are 500 feet or longer, because they make sure that air flows evenly from the intake end to the exit end through controlled extraction.

Airflow Efficiency and Building Suitability

The method stops dead air pockets and changes in temperature that make the flock's growth rates uneven. Positive pressure systems, which push air into a building, work well for smaller spaces (less than 5,000 square feet), but they have trouble keeping conditions even in bigger businesses because hot air naturally rises and forms layers, which makes the conditions for birds on the floor less than ideal.

Installation and Maintenance Considerations

When there is negative pressure, it is important to make sure that the building is as tight as possible because air can leak through structure gaps and get around intake controls, causing airflow patterns that are hard to predict. For installation, holes must be sealed and all air must enter through specific openings with movable baffles.

We offer full professional help, including installation videos and on-site installation services, to make sure that your system works at its best from the start. Maintenance includes cleaning the fan blades, lubricating the motor bearings once a year, and checking the shutter mechanisms once a month to make sure dust doesn't build up and block airflow.

Economic Analysis for Procurement Decisions

Livestock Ventilation System Negative Pressure Fans usually cost 15 to 20 percent more to set up at first than simple positive pressure systems. This is because they need high-quality filters, input controls, and fans that are the right size. But practical savings show up quickly because less energy is used and bird performance measures get better. Our equipment comes with a one-year guarantee that covers problems with the way it was made, which gives procurement managers faith in its dependability. Distributors and farm building contractors can make competitive bids on projects with the help of bulk order prices and technical advice.

Practical Guidelines for Selecting and Maintaining Negative Pressure Fans

Ventilation systems will give you the returns on your investment you expect over the course of their working life if you choose the right tools and follow the maintenance schedules. Calculating required capacity for a Livestock Ventilation System Negative Pressure Fan begins with determining maximum heat load.

Capacity Matching and Specification Selection

To figure out how much of a fan you need, you must first figure out the highest heat load, which is based on the number of birds, their average weight, and the predicted temperature in your area. In the summer in Georgia, a building that houses 25,000 broilers at market weight needs between 200,000 and 250,000 CFM of exhaust capacity to keep tunnel speeds high enough for evaporative cooling. Our 50-inch fans can move up to 38,000 cubic meters per hour, which is about 22,400 CFM. This means that big operations usually put in 10 to 12 units in a tunnel configuration.

Installation Best Practices

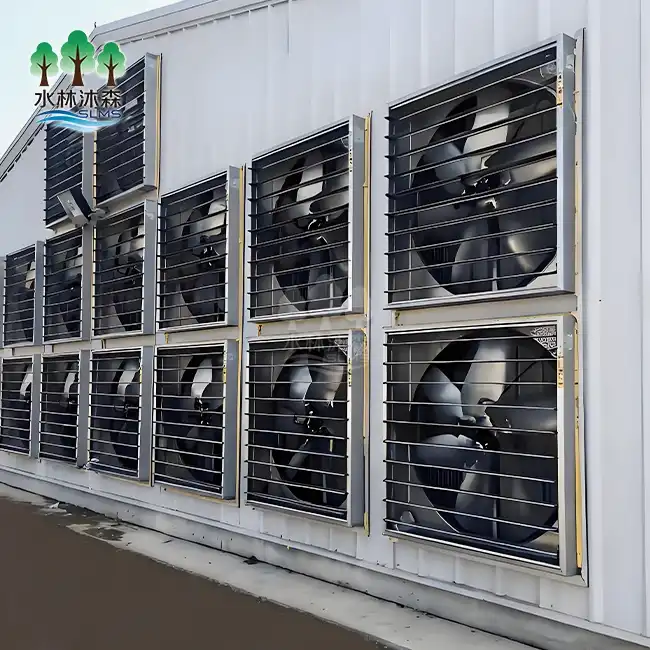

Where you put the fans has a direct effect on how well the system works. For example, you can put fans on one roof end to ventilate a tunnel or along the walls to create cross-ventilation patterns. Depending on the mounting height, fan centers are usually 3–4 feet above the floor to reach the area where birds rest and breathe. Enough space around the outside of the fan blades keeps plants and tools from blocking the flow of air. Electrical links need circuit protection that is the right size for the motor.

Preventive Maintenance Protocols

Every 30 days, the fan blades should be checked for balance, vibrations that could mean the bearings are wearing out should be looked for, and the shutters should be checked to make sure they open and close all the way without sticking. Models that are driven by belts need to have their tightness and alignment checked, but models that are driven directly don't need this upkeep. Cleaning plans rely on how much dust is in the air, but usually, the insides of the housing and blades are cleaned every three months. With proper care, equipment lasts much longer than its rated 40,000-hour service life.

Case Studies and Supplier Insights for Livestock Ventilation Systems

For B2B procurement workers looking at ventilation options, real-world application data is the most convincing proof of system success and return on investment for a Livestock Ventilation System Negative Pressure Fan. A 60,000-bird broiler farm in Arkansas changed old circulation fans with our tunnel system.

Regional Performance Documentation

During the summer, the feed conversion ratio went up by 12% because the birds were less stressed from the heat and the air quality got better. The operation saw ammonia levels drop from highs that were a problem (35 ppm) to steady levels below 15 ppm. This meant that there were fewer lung problems during processing. After adding cross-ventilation with automatic inlet controls synchronised to fan staging, an egg farm in Pennsylvania with 80,000 hens reported more stable egg production, with fewer daily changes due to temperature changes.

Supplier Qualifications and Support Infrastructure

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has been making agricultural and livestock equipment for eight years and has a five-engineer research and development team that comes out with more than three new products every year to keep up with changing market needs. Our thorough quality control system checks every part, from the inspection of the raw materials to the final check of the assembly. We make ventilation equipment that is made to work in tough chicken barn conditions. Our materials don't rust, and the motor housings are sealed so they can survive years of being exposed to water and gases that rust.

Procurement Advantages for Volume Buyers

We can change the materials, motor specs, and control packages to fit the needs of each job, which is good for equipment distributors and farm contractors. Changes can be made to meet the needs of your market, whether you need fans set up for single-phase 220V farm power or three-phase industrial supply. Volume price models make bids for big projects more competitive, and our technical staff can help you with system design and sizing calculations. If you email our engineering team at wangshuaislms@gmail.com, you can be sure that technical questions will be answered quickly and in detail.

Conclusion

Good airflow is essential for making chicken farming profitable because it affects the health of the birds, their ability to grow, and the costs of running the business. A Livestock Ventilation System Negative Pressure Fan allows for controlled, even air flow that isn't possible with traditional methods. They get rid of dangerous gases while keeping the temperature and humidity at the right levels.

Our industrial-grade fans are built to last with a corrosion-resistant body, an efficient motor, and tested airflow performance that makes them reliable for operations with 10,000 to 100,000 or more birds. Because the specifications can be changed, there is full expert support, and field performance has been recorded, these systems are the best choice for procurement managers who care about long-term value rather than just starting cost.

FAQ

What static pressure should negative pressure poultry fans operate at?

During normal function, most Livestock Ventilation System Negative Pressure Fan devices keep the water level between 0.05 and 0.10 inches. Readings above 0.15 inches mean that the doors are dirty or the inlets are blocked, which lowers their efficiency. Our fans keep at least 75% of their maximum airflow at 0.10-inch static pressure, so they can do their job even when screens get dirty between cleanings.

How many fans does a tunnel house that's 400 feet long need?

For summer cooling, tunnel houses need about 8 to 10 CFM per square foot of floor space. A 400-foot-by-40-foot house, which is 16,000 square feet, needs between 128,000 and 160,000 CFM. With our 50-inch units giving 22,400 CFM each, the system would need 6-7 fans set up correctly, with temperature controllers controlling the activation steps as the need for cooling rises.

Can negative pressure systems integrate with evaporative cooling pads?

Without a doubt, the best way to keep chickens from getting too hot is to use evaporative cooling pads along with tunnel airflow. At the intake end, fans push air through pads that are wet with water. This cools the air coming in by 10 to 20°F through evaporation. Our systems work perfectly with pad settings, moving fans around gradually as temperatures rise to keep goal speeds.

Partner with a Trusted Livestock Ventilation System Negative Pressure Fan Manufacturer

You can get help with your chicken ventilation projects from Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. They have tested equipment, technical know-how, and quick service. Our 50-inch Livestock Ventilation System Negative Pressure Fan gives your operations the airflow capacity, sturdiness, and energy efficiency they need, plus it can be customised to fit your needs.

We know that procurement managers need providers they can rely on to provide regular quality, reasonable price on large orders, and technical help after the sale. You can find all of our product specs at slms-equipment.com, or you can email our team at wangshuaislms@gmail.com to talk about your project needs and get personalised suggestions. Let us show you how eight years of manufacturing knowledge and a dedication to new ideas can make you more competitive in the market for poultry tools.
