How Poultry Air Inlets Improve Ventilation Efficiency in Broiler Houses

Good airflow is important for raising broilers, and the Poultry House Air Inlet is a key part of making sure the air quality is just right and keeping the group healthy. These carefully designed parts control the speed and direction of entering fresh air to keep birds from getting too cold, keep oxygen levels high, and get rid of dangerous gases like ammonia and carbon dioxide. When placed and handled correctly, quality Poultry House Air Inlet systems improve feed conversion rates, lower mortality, and lower heating costs during the winter by spreading air evenly and getting rid of gaps and areas where air isn't moving.

Understanding Poultry House Air Inlets: Design and Functionality

These days, raising broilers requires more than just holes in the walls of the barn. Advanced airflow principles are used by effective Poultry House Air Inlet systems to control the environment exactly across thousands of square feet of production space.

Core Components and Materials

A good Poultry House Air Inlet system has a number of important parts that work together. The frame, which is usually made of high-strength ABS or composite materials, keeps the structure together and stops rusting from air that is high in ammonia.

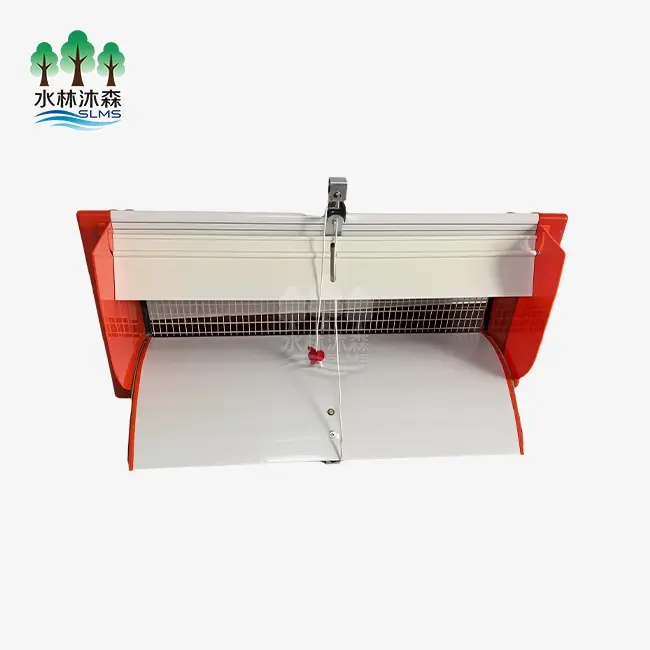

Our 560mm × 270mm Poultry House Air Inlet design is made of a strong but lightweight material that weighs only 1.5 kg. This makes fitting easy and guarantees long-term dependability. The material can work in temperatures ranging from -30°C to 60°C, so it can adapt to the wide range of climates that exist in different production regions.

The internal wind blocker is a very important new feature. The barrier keeps cold air from falling directly on the birds below. Instead, it moves the air up along the roof. This method uses the Coandă effect, which is when moving air sticks to nearby objects, causing horizontal air movement that mixes with warmer house air before slowly falling. This lets fresh air flow through without shocking the group with sudden changes in temperature.

Adjustability and Control Mechanisms

For inlets to work well, they need to be able to adapt to changing air needs as the production process goes on. Stainless steel spring systems keep their stiffness even after years of use, so they can open and close correctly without deforming.

The regulation system is linked to environmental controls that change the Poultry House Air Inlet aperture based on static pressure readings. This keeps the water level between 0.08 and 0.12 inches. This range of pressures creates air speeds between 700 and 1,000 feet per minute, which are fast enough to throw air toward the center of the house for proper mixing.

The effective circulation area of 0.11-0.13 m² per unit makes it easy to figure out how many Poultry House Air Inlets are needed based on the size and capacity of the fans. When you undersize, you get too much noise and negative pressure, and when you oversize, you slow down the air flow too much, which makes mixing less efficient.

Strategic Placement Considerations

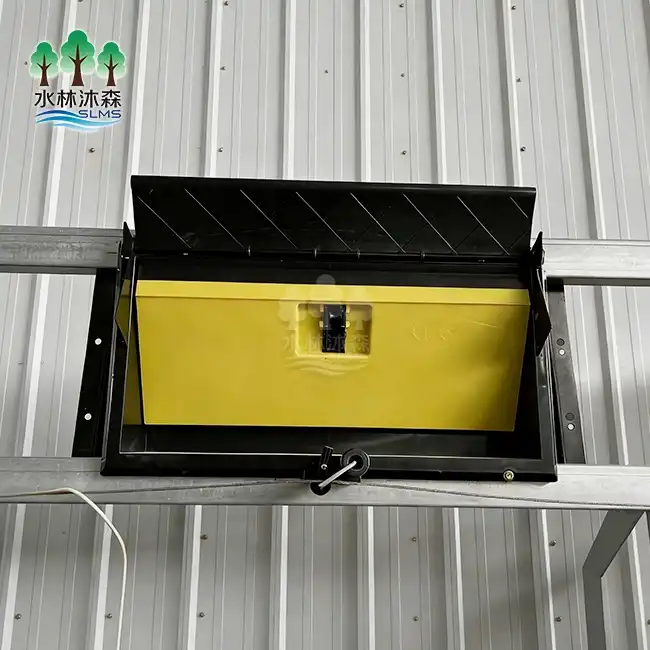

The placement of the Poultry House Air Inlet has a direct effect on how well airflow works. For transitional and minimum ventilation settings, sidewall installations work well. For certain uses, some businesses offer ceiling-mounted choices. When you space things out correctly, you avoid dead zones where stale air builds up. When a production facility has 50,000 broilers, the amount of fresh air that comes in and how it's distributed needs to be carefully calculated to make sure that every square foot gets enough air flow without making sitting areas uncomfortable.

Common Challenges in Broiler House Ventilation and How Air Inlets Solve Them

Most of the time, traditional air methods make things worse instead of better. This is especially true in high-density broiler farms where accurate environmental control directly impacts profits.

Addressing Uneven Air Distribution

A lot of older buildings depend on exhaust fans and don't pay enough attention to how they handle air entry. This mismatch makes the wind rough and hard to predict. Birds are stressed in cold spots near holes, while places farther away don't get enough fresh air. Modern Poultry House Air Inlet systems have a redirector that moves air horizontally instead of vertically to solve this problem. This lets the temperature even out slowly before it reaches bird level.

When businesses switched from basic blinds to designed Poultry House Air Inlet systems, temperature changes across the length of the house dropped from 8 to 10°F to just 2 to 3°F. This uniformity directly leads to better flock performance, since all the birds in the building are in the same amount of comfort and growth conditions.

Eliminating Cold Air Drops and Draft Stress

Ventilation is especially hard in the winter. Birds need fresh air to keep their lungs healthy and get rid of wetness, but if they aren't careful, cold air can cause a lot of stress. Draft stress causes animals to use more energy to keep their bodies at the right temperature, use less feed efficiently, and become more likely to get lung diseases.

When warm air inside the machine comes in touch with cold surfaces at the intake, condensation can form. A good Poultry House Air Inlet design includes an insulation layer that keeps this from happening as little as possible. Dripping condensation falls on birds and beds, making the litter wet, which leads to the production of ammonia and footpad rashes. Better sealing technology stops extra air from getting in around the edges of the frame, so air can only come in through the right hole.

Reducing Energy Costs While Maintaining Air Quality

Heating is one of the most expensive parts of running a business when it's cold outside. Ventilation systems that don't work well either lose warm air by exchanging air too quickly or don't get the benefits of mixing that lower the need for heating.

When the Poultry House Air Inlets work right and the static pressure is just right, the birds can breathe at rates as low as 0.5 cubic feet per minute while still breathing clean air. This accuracy cuts the amount of propane or natural gas used by 30 to 40 percent compared to methods that don't control airflow. After adding properly designed Poultry House Air Inlet systems with automatic controls, a business operation in the Midwest saw their yearly heating costs drop by more than $12,000. This showed a clear return on investment within the first production year.

Comparing Poultry Air Inlet Systems: Making Informed Procurement Decisions

To choose the right air parts, you need to know both what you need right now and what you want to achieve in the long run. There are many choices on the market, and each one has its own unique qualities that affect performance and cost.

Adjustable Versus Fixed Inlet Designs

System that can be adjusted can work in a variety of seasons and with birds of different sizes. When these Poultry House Air Inlets are connected to cable systems or individual motors, they change the size of the opening based on signals from weather controllers. This flexibility is good for businesses that have to take care of multiple groups a year in a wide range of weather conditions. For the mechanical complexity to work reliably, high-quality parts are needed, especially in the hard environment of the chicken house.

Fixed-position Poultry House Air Inlets are easy to use and cost less at first, but they limit your operating options. Some manufacturers use these along with adjustable units, putting fixed inlets in key spots for basic air flow while the movable units handle changing demand. This combination method strikes a good mix between cost and usefulness.

Material Durability Considerations

The ABS material is very strong and doesn't react badly with chemicals, which are very important in places where ammonia levels regularly hit 20 to 25 parts per million. The material stays strong even when exposed to ammonia every day, which would corrode metal options that don't have protected layers. With proper upkeep, ultraviolet protectors keep Poultry House Air Inlets that are exposed to direct sunlight from breaking down. This means that the service life can last longer than ten years.

Premium goods use different materials, like fiberglass composites and specialty plastics, that offer better insulation or less weight for ceiling installs. The choice relies on the needs of the program and the available budget.

Evaluating Supplier Reliability and Support

The quality of the equipment doesn't mean much if you don't have good expert support. Installation mistakes hurt the performance of the system, no matter how good the parts are. Suppliers who offer full installation instructions, whether through detailed video lessons or expert help at the customer's location, are very valuable. At Shuilin Musen Aquaculture Equipment Co., Ltd., we offer full installation videos that cover typical situations. We are also ready for on-site help when projects need it.

Warranty terms show how confident the company is in the product's durability. A free guarantee for one year gives you peace of mind, but quality parts still don't need much upkeep. There is no end to the rust resistance of stainless steel springs, and ABS frames can last for decades with normal use.

Maintenance Best Practices to Ensure Long-Term Efficiency of Poultry House Air Inlets

Even the best air parts need regular maintenance to keep working at their best for as long as they're supposed to. Setting up regular upkeep plans keeps small problems from getting worse and costing a lot to fix.

Routine Inspection Protocols

During cleanout times, do thorough checks of the Poultry House Air Inlets between flocks. Use compressed air or soft brushes to get rid of the dust and feathers that have built up on the shield surfaces and frame edges. When dust builds up, the effective opening area shrinks. This changes the measured airflow rates and static pressure relationships. If you keep the mesh guards clean, insects can't get in and air can flow freely.

Check the covering areas for damage or wear. When closed, the top edge and frame contact make a weatherproof shield that keeps heat in during cold weather. When seals get worn out, they let air in without being controlled. This changes the carefully controlled static pressure and wastes heating fuel. To keep the system working properly, replace any broken parts right away.

Mechanical Component Care

Check stainless steel springs for distortion or loss of force. When controllers signal closing, the springs should move the Poultry House Air Inlets back to a fully closed state. If the springs are weak or broken, they can only open partially, which lets air leak out and throws off the weather control systems. Every year, grease pulleys and wire systems with products that are made for dusty areas so that they don't attract more dirt.

Check the reaction of the opening over the whole range of motion. Binding or delay are signs of mechanical issues that need to be fixed before new groups can be started. Make sure that the wire tension stays the same across all of the Poultry House Air Inlets that are linked to the same control system. This will keep the openings from being uneven, which would throw off the flow of air.

Troubleshooting Common Performance Issues

If there is too much noise during operation, it means that the static pressure is higher than what was intended. This usually means that the entry area is too small for the working fan capacity. Recalculate the needed input amount or make sure that the settings on the controller match how the house is actually set up. Whistling sounds mean that air is leaking around the edges of the frame and needs to be fixed or replaced.

Condensation means that either the insulation isn't good enough or there is too much damp in the house. Check that the necessary air rates meet the guidelines for flock size and age, making sure that enough moisture is removed. Check the insulation layers at the Poultry House Air Inlet entrance for damage or compression that could lower the heat resistance.

Future Trends and Innovations in Poultry Ventilation Systems

Because of economic pressures and concerns about animal care, the poultry business keeps moving toward more automation and environmental accuracy. As a result, ventilation technology also gets better.

Integration with Smart Controls

IoT-enabled environmental tracking systems that give real-time information on amounts of temperature, humidity, carbon dioxide, and ammonia are being used by more and more modern businesses. Position sensors in next-generation Poultry House Air Inlet designs send data to central controls, which lets exact airflow management based on real conditions instead of assumed parameters. This closed-loop control makes the air quality better while using the least amount of energy possible. It can quickly adjust to changes in the weather or unplanned machine problems.

Predictive algorithms look at past performance data to guess how much air is needed and change the positions of the Poultry House Air Inlets before they are needed. This method keeps the surroundings more stable, which lowers stress levels that hurt flock performance.

Sustainable Materials and Energy Efficiency

Concerns about protecting the environment have led to the creation of Poultry House Air Inlet systems made from recycled materials or bio-based plastics that leave smaller carbon footprints. Improvements to energy economy focus on lowering pressure drops through better aerodynamics. This lets air work just as well with slower fan speeds and less electricity use.

Advanced insulation materials and multi-chamber designs that reduce heat movement are examples of ways to improve thermal performance. This is especially important for operations that take place in harsh climates. These new ideas lower the need for heating and cooling while still managing the indoor environment precisely.

Customization and Scalability

These days, labor needs are very different for businesses with 10,000 birds or more than 100,000 birds. Modular Poultry House Air Inlet systems can be set up in a way that meets specific needs without having to be designed from scratch for each job. Standardized parts can be put together in a number of different ways, so they can be used for both new building and retrofitting. We can change the sizes and materials to fit the needs of each customer, making sure that the product works best in their building or location.

Scalable solutions let businesses grow by letting operations increase their capacity using tools and management methods they already know how to use. This consistency cuts down on the need for training and makes it easier to handle repair inventory across various production sites.

Conclusion

Quality Poultry House Air Inlet systems that control the flow of fresh air while protecting the comfort and health of the flock are essential for proper ventilation in broiler houses. Traditional ventilation problems like cold drafts, uneven distribution, and high energy costs can be fixed with modern Poultry House Air Inlet designs that use deflecting technology, long-lasting materials, and responsive control mechanisms.

To make the right choice, you need to think about operational needs, climate conditions, and the provision of long-term help. Regular repair keeps things running smoothly even after years of hard use. As the industry moves toward more automation and sustainability, Poultry House Air Inlet technology keeps changing to keep up. It does this while also improving bird behavior and making the business more profitable.

FAQ

What determines the optimal number of inlets for my broiler house?

To find out how many Poultry House Air Inlets you need, divide the capacity of your transitional ventilation fan (in cubic feet per minute) by the rated CFM of each outlet at your goal static pressure, which is usually between 0.10 and 0.12 inches of water column. The size of the house and the number of birds in the area also affect this estimate. Undersizing leads to too much noise and pressure, while oversizing slows down the flow of air below the levels needed for effective mixing.

How frequently should inlet maintenance occur?

During the cleanout of the building, do thorough checks and cleaning between each production run. This twice or three times a year plan keeps dust from building up and finds motor wear before it affects performance. Extra checks done during production processes help find problems early on.

Can inlets reduce my heating costs?

Good Poultry House Air Inlet systems lower heating costs by 30 to 40 percent by mixing the air better, which keeps the temperature comfortable with lower airflow rates. When the door is closed properly, it stops air from leaking in, and buffer designs make sure that cold air from outside mixes with warm air inside before it gets to bird level.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Superior Ventilation Solutions

Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience in manufacturing tools for farming and raising animals. They offer complete air solutions that are specifically designed for tough broiler production conditions. Our engineering team creates dependable, energy-efficient Poultry House Air Inlet systems with tried-and-true deflector technology, corrosion-resistant ABS construction, and stainless steel parts that are made to last for ten years.

We back up our Poultry House Air Inlet goods with one-year warranties, full installation videos, and on-site expert help. This way, you can be sure that your investment in ventilation will pay off right away with better performance. Email our team at wangshuaislms@gmail.com to talk about your unique needs, look into customization choices, or ask for more information. You can see our full line of products at slms-equipment.com and learn why top poultry farmers choose us as their go-to provider for large-scale ventilation equipment.
