8-Level Egg Chicken Cage
2. Technical Support: Provides installation videos and other supporting technical support.
3. Core Specifications: Stocking density 40KG/㎡, corrosion-resistant galvanized iron wire and frame, automatic manure removal, automatic feeding, and automatic watering for modern farms.
4. Product Advantages: Reduces labor costs and improves farming efficiency; the rational design reduces egg breakage rate and flock injury and disease rate, indirectly improving egg production efficiency and shortening the payback period.
5. Customization available according to customer needs.
6. Installation Service: On-site installation service available.
7. After-sales Service: 1-year free warranty.
8-Level Egg Chicken Cage Facts
-
Application: Flagship high-density solution for large-scale, closed-house layer farms (10,000+ birds) requiring maximum vertical space utilization
-
Structure: H-type, 8-Level Egg Chicken Cage configuration, hot-dip galvanized Q235 steel
- Stocking density: 40 kg/㎡
- Automation: Integrated feeding, nipple drinking, and belt manure removal
- Support: Installation videos, on-site installation service, 1-year free warranty
- Customization: Tier spacing, feeding line layout, and drinker configuration can be adjusted to your house dimensions
Product Overview
The 8-Level Egg Chicken Cage is our highest-capacity layer cage system, built for operations that need to house the maximum number of birds per square meter of shed floor without compromising bird access for daily inspection and egg collection. It uses the same H-type frame logic as our 3, 4, and 6-tier cages, but the tier count and support structure are engineered specifically for 8-level loads — this is not a re-labeled version of a shorter cage.

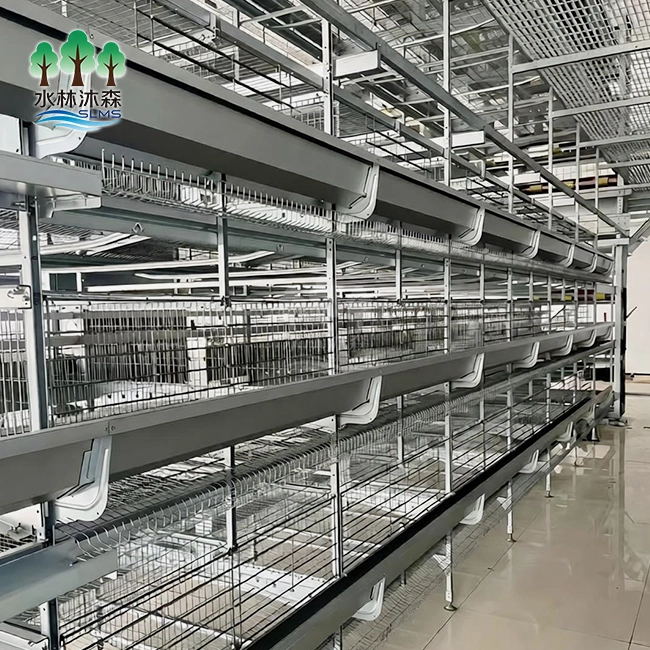

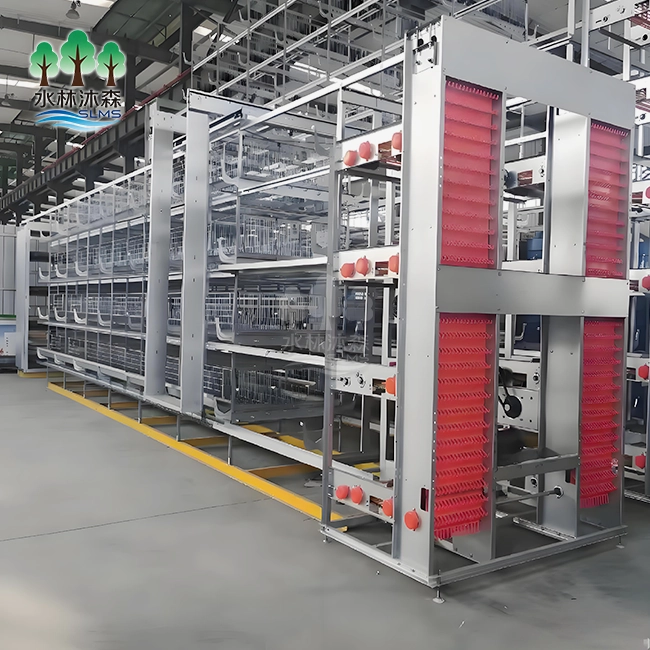

Because eight tiers concentrate significantly more static weight per column than lower-tier systems, the frame, welds, and manure belt tracking on this model go through additional load testing before shipment (details below). If your house height is under 4.5 meters, or you're running a smaller flock, our 4-Level Egg Chicken Cage or 3-tier layer cage may be a better structural and cost fit — we're happy to advise based on your shed dimensions and target flock size.
Technical Specifications
| Parameter | Details |
|---|---|
| Cage Dimensions | 45cm (L) × 45cm (W) × 450cm (H) |
| Bottom Slope | 10° for automatic egg rolling |
| Material | Q235 steel wire, hot-dip galvanized |
| Service Life | 15+ years |
| Stocking Density | 40kg/㎡ |
| Structure Type | H-type, eight-layer configuration |
| Components | Cage frame, mesh assembly, egg collection device, feeding trough, nipple drinker, water pipes |
| Integrated Systems | Automatic feeding, automatic watering, automatic manure removal |
Why This Model, Specifically
Maximum bird count per shed footprint. At 8 tiers, this system houses roughly double the birds per square meter compared to a 4-tier setup on the same floor area — the main reason large farms choose it over shorter cages, despite the higher house-height requirement.
Weight distribution engineered for 8 tiers. The H-type frame carries the combined static load of eight rows of birds, feed, and water down through reinforced C-shaped uprights. This isn't the same frame spec used on our lower-tier cages scaled up — the upright profile and cross-bracing are sized for this specific load case.

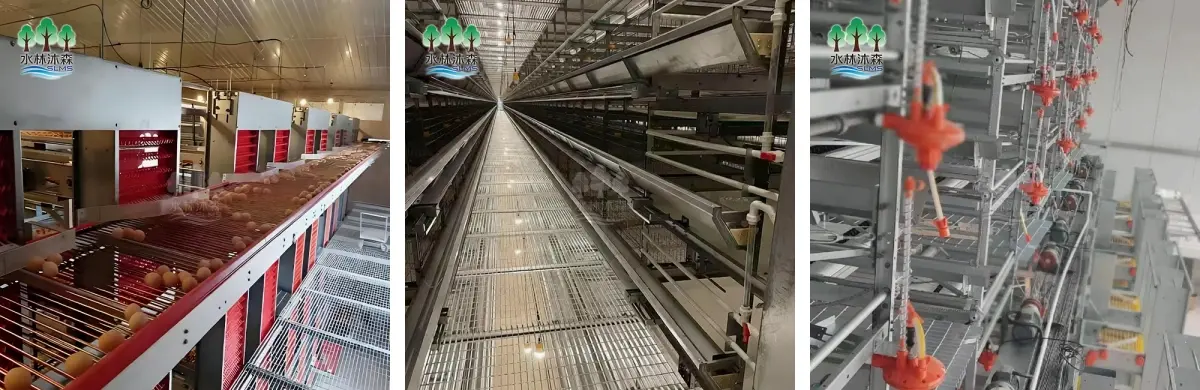

Elevator-style egg collection. Because eggs from the top tiers travel further to reach the packing area, this model uses a soft-drop elevator mechanism rather than a single flat conveyor, to keep breakage rates consistent across all eight levels rather than rising toward the top.
How the Automation Works
Feeding: A single feed line runs each tier, dispensing on a programmable schedule so birds on tier 1 and 8-Level Egg Chicken Cage receive feed at the same time — this matters more on an 8-tier system than shorter ones, since feed-line length and timing drift become more noticeable across more levels.
Drinking: Nipple drinkers on all eight tiers provide continuous access, reducing water wastage and competition at the line.
Manure removal: PP belts under each tier run on a set schedule, moving manure out of the house daily. Keeping manure separated from birds — rather than accumulating in a pit below — is the main lever for reducing ammonia buildup and interrupting coccidiosis/parasite cycles in high-density housing.
Egg collection: Eggs roll down the 10° slope onto padded belts, then move via the elevator mechanism to the packing station. Collection time for a full 8-tier house typically runs in minutes rather than the hours required for manual collection at this density.
Build Quality and Testing
Every unit goes through the following before it leaves the factory:
- Zinc coating verification — magnetic induction gauge check of the 275 g/m² hot-dip galvanized coating
- Weld tensile testing — joints tested for the combined static load of 8 tiers plus feed and water
- Bottom mesh inspection — checked for burrs that can cause pododermatitis or egg damage
- Belt tracking test under full load — manure belt alignment is checked specifically for 8-tier units, since misalignment at this scale is more likely to cause a jam than on shorter systems
8-Level Egg Chicken Cage Installation and Support
- Step-by-step installation videos covering assembly from frame to automation wiring
- Remote engineering support during setup
- On-site installation service available (ask for a quote based on your location and house size)
- Operational training for your farm staff, covering system operation, troubleshooting, and maintenance
- Customization of tier spacing, feeding line configuration, and drinker layout to match your house
- 1-year warranty on all components, with spare parts kept in stock for fast dispatch
Frequently Asked Questions
Q: What house height do I need for an 8-level system?
A: A minimum of 4.5–5 meters of clear ceiling height, plus adequate ventilation capacity for the higher bird density. We assess your shed dimensions before recommending installation — send us your house specs and we'll confirm fit.
Q: How is 8-Level Egg Chicken Cage different from your 4-level or 3-tier cages, beyond bird count?
A: The frame, weld points, and manure belt system are built to a different load spec to handle 8 tiers of static weight. It also uses an elevator-style egg collector instead of a flat conveyor, since eggs from upper tiers travel further to reach the packing line.
Q: What daily/routine maintenance does the automated system need?
A: About 15 minutes per day for visual checks of belts and water lines, plus quarterly full inspections and monthly lubrication of moving parts.
Q: What's a realistic payback period?
A: Most farms recover the investment in 18–24 months through labor savings, reduced egg breakage, and lower mortality, though this varies with local egg prices and operating costs — we can walk through the numbers for your specific flock size.
Q: Do you provide staff training?
A: Yes — every installation includes hands-on training covering operation, troubleshooting, maintenance, and emergency procedures.
