How to install a negative pressure fan unit in a poultry farm?

By installing a Farm Ventilation Negative Pressure Fan Unit the right way, you can keep the air quality, weather control, and health of your birds at their best. Careful site inspection, exact mechanical mounting, proper electrical integration, and thorough testing are all parts of the process. A properly placed 50-inch exhaust fan system with enough airflow can completely change the atmosphere in your barn, lowering heat stress and ammonia buildup while also making the flock perform better overall. This complete guide walks you through every important step you need to take to do a professional job that lasts.

Understanding Negative Pressure Fan Units in Poultry Farms

Negative pressure ventilation controls the flow of air by letting old air out of the building and letting fresh air in through cooling pads or inlets that are put in the right places. Positive pressure systems, which push air inside, are very different from this method. You have complete control over where fresh air comes in and how it moves through the building, which is the main benefit.

Core Components and Operating Principles

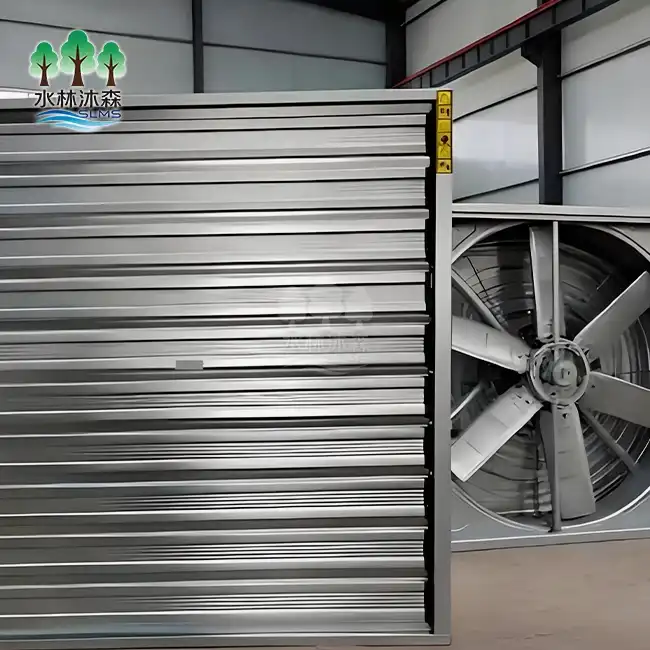

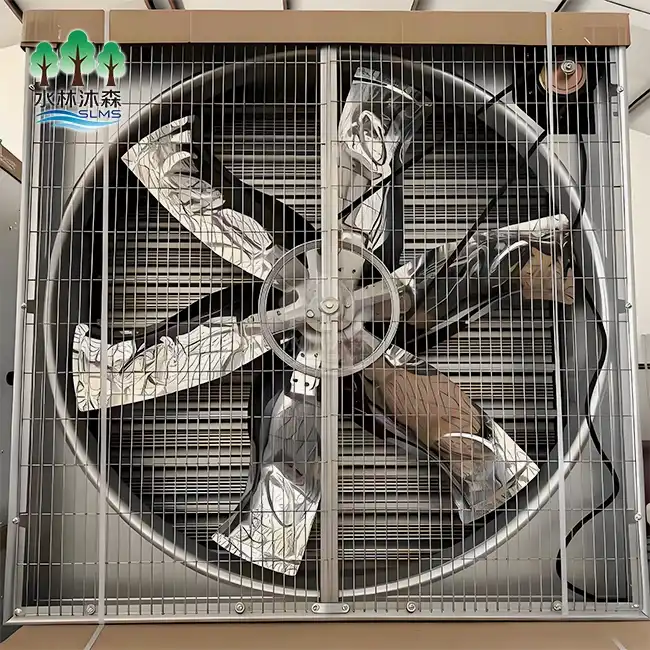

The exhaust fan assembly, protected casing, automatic shutters, motor assembly, and control panel are all common parts of a farm ventilation system. As the fan blades turn, they push air outward. This lowers the pressure inside the fan, which naturally lets air from outside flow through the holes they've made. This difference in pressure is usually between 10 and 25 Pascals, which is just right to keep the air moving in the right way without putting too much stress on the equipment. Good units are made with materials that don't rust, like galvanized steel or stainless steel, so they can handle the tough environment of a chicken coop that is full of wetness and ammonia gases.

Benefits for Modern Poultry Operations

Managing air correctly has a direct effect on how well work goes. According to research, well-designed vent systems can cut deaths from heat by up to 30% during the hottest parts of the summer while keeping the temperature levels even across the barn. The constant flow of air gets rid of dangerous gases, especially high levels of ammonia that can make you sick and slow down feed conversion rates. Because negative pressure systems work with natural wind patterns instead of against them, barn owners say they save 15 to 25 percent on energy costs compared to ventilation systems that aren't set up properly. The stable setting also makes the birds more comfortable, which helps them gain weight and saves money on doctor bills.

Pre-Installation Considerations for Poultry Farm Ventilation

A good installation starts long before the first fan is put in place. Careful planning keeps you from making mistakes that cost a lot of money and makes sure that your ventilation investment gets the most out of it. The steps below set the stage for the best possible system function.

Calculating Airflow Requirements

To figure out the right air capacity for a Farm Ventilation Negative Pressure Fan Unit, you need to know what your business needs. The size of the barn, the number of birds, and the time of year all affect how much airflow is needed. A normal 50-inch fan that can move between 28,000 and 38,000 m³/h of air can usually cover 150 to 200 square meters. To find the needed air changes per hour, you increase the total floor area by that number. For poultry housing, the required air changes range from 1.5 to 3.0 per hour, based on the temperature and number of birds. This math problem tells you how many fan units your building needs. When demand is high, undersizing means there isn't enough air. When demand is low, oversizing wastes energy and makes drafts uncomfortable when it's cooler.

Site Preparation and Structural Reinforcement

Performance is greatly affected by where the device is placed. Put the vent fans on the side of the building that faces the leeward direction so they work with the wind instead of against it. The wall that the unit is mounted on must be able to hold its 80 kg weight and operating shaking forces without giving way. If you need to, reinforce the frame members around the hole. Also, make sure that the wall building can safely hold the mounting brackets. Seal up all gaps, cracks, and holes in the building shell that weren't meant to be there. Leaking air gets around the controlled inlet system and changes the pressure gradient. It's very important to do this step of sealing around doors, windows, and structure parts.

Selecting the Right Equipment Specifications

By matching the specs of your tools to your working needs, you can avoid problems in the future. The 1.1 kW motor that runs on 380V three-phase power works well for steady job cycles that are common in chicken barns. The materials used for blades are very important. Galvanized steel is good at resisting rust and doesn't cost too much. On the other hand, 304 stainless steel is more durable in high-ammonia settings but costs more at first. If any part of the case stays in the sun, it should be able to fight both corrosion and UV damage. Noise levels are also important to think about, especially if your business is near family areas or has more than one shift of workers. Even when they are fully loaded, high-quality units keep their low decibel levels.

When looking at suppliers, you should think about those that offer full expert help, such as installation videos and written instructions. Having access to professional help during installation greatly lowers the risk of mistakes, and having on-site installation services available protects against problems in complicated projects or operations that don't have enough experienced support staff.

Step-by-Step Installation Process of a Negative Pressure Fan Unit

Once all the preparations are done, the installation itself follows a set of steps. Each step builds on the one before it, so keeping things in the right order is important for making sure the structure stays strong and the system works well.

Inspection and Component Verification

As soon as the delivery arrives, check all of the parts carefully before starting to put them. Make sure the package comes with the fan assembly, mounting frame, shutter mechanism, hardware kit, and any other extras that were asked for. Check the fan housing for damage from shipping, turn the unit by hand to make sure the blades are aligned, and make sure the motor nameplate fits the specs you bought. Write down any problems right away to make insurance claims easier. This first check only takes 15 to 20 minutes, but it keeps you from finding missing parts in the middle of installation.

Mechanical Mounting and Structural Integration

First, mark the exact spot on the wall where the hole will go for the Farm Ventilation Negative Pressure Fan Unit, making sure there is enough space around corners, structure posts, and other things that might get in the way. Cut or frame the hole to the exact size of the fan case, making sure the corners stay level for proper sealing. It is important that the fixing surface is flat and level. Uneven surfaces cause the frame to warp, which lets air leak out and causes vibrations. Place the fan housing into the hole and secure it with the mounting pieces that came with it.

These are usually lag bolts that go into structural parts. Put waterproof caulk all the way around the outside where the housing meets the wall. This seal stops water from getting in and air from getting out. Install the shutter piece according to the instructions from the maker. Make sure it opens easily when the fan is running and closes all the way when the fan stops. When the shutters are working correctly, they stop backdrafts during quiet times and keep light out, which can mess up birds' rest cycles.

Electrical Connection and Control Integration

When doing electrical work, you have to follow the rules and codes in your area. Check that the voltage and phase requirements of your building's electrical service match those of the fan. For example, a normal 380V three-phase setup needs the right circuit protection and disconnects. Connect the electrical pipe from the control box to where the fan will go, making sure to keep it away from metal buildings to avoid ground faults. Connect the motors according to the wiring diagram, and check the phase rotation again to make sure the blades are turning in the right way.

If you don't rotate it right, airflow is greatly reduced and the unit may become damaged. You can use the controller to connect the fan to your climate control system and set up starting routines, temperature setpoints, and minimum ventilation cycles. Variable frequency drives need motors that are compatible with them, but they let you slowly increase the speed, which improves the life of the motor and lowers electricity demand spikes. Before moving on to practical testing, make sure that all of the safety interlocks and emergency stop circuits are working.

Post-Installation Testing and Optimization

When the installation is done, the testing step starts. Testing the system thoroughly makes sure it works as planned and shows what changes need to be made before the birds are placed.

Performance Verification and Pressure Measurement

With the fans going at full speed, use a manometer to find the difference in static pressure between the inside and outside of the barn. The reading should be in the range that was planned, which for tube ventilation is usually between 15 and 25 Pascals. Lower numbers mean that air is leaking out or that the entrance area is too small. On the other hand, high pressure means that the inlets are too small or that the exhaust capacity is too high compared to the intake capacity.

An anemometer can be used to measure the speed of wind at several places across the cross-section of the barn. Find the real rates of air movement and compare them to what was planned. With an airflow capacity of 28,000 to 38,000 m³/h, the building should have measurable air movement. Keep track of all numbers for future use; these "baseline" readings help show how performance changes over time.

Calibration and Fine-Tuning

Change the size of the entry openings to get the static pressure you want at different fan speeds when operating a Farm Ventilation Negative Pressure Fan Unit. Most operations use staging, which means that fans turn on one at a time as the temperature rises instead of all of them going all the time. Set up your controller so that the stage times are just right to keep things stable without cycling too much. Multiple monitors placed at bird level around the barn will help you keep an eye on how the temperature is spreading.

Even temperatures mean that the air is mixing well, while hot or cold spots show that airflow isn't working right and need to be fixed by adjusting the intake or adding more circulation fans. During this part of optimization, watch how birds behave. For example, chickens tend to move toward their safety zones, so their movement patterns give you real-time information about the weather.

The service life of more than 40,000 hours is equal to about 4.5 years of constant use, though regular maintenance makes the real lifespan much longer. Setting up baseline performance measures during commissioning lets you compare things in a useful way during regular inspections, which helps you spot slow degradation before it affects production.

Maintenance Tips to Ensure Long-Term Performance

Maintenance that is done on a regular basis protects your air investment and keeps it from breaking down at bad times. Setting up a regular service plan doesn't take long, but it pays off in the long run by keeping equipment running efficiently and extending its life.

Routine Cleaning and Component Inspection

More than most people know, dust and other debris that builds up slows things down. Fan blades should be cleaned every three months to get rid of the dust that builds up and makes them less efficient. Clean blades keep the airflow at the recommended level and lower motor stress. Check the shutter mechanism once a month and make sure it works smoothly by removing any obstructions and greasing the hinge points. Check the motor fixing bolts to make sure they are tight. Vibrations can slowly loosen screws. Check electrical connections for signs of rust, burning, or being loose. Bad connections raise resistance, which wastes energy and makes heat. Replace belts that are worn out before they break. For direct-drive units that need them, keep extra belts on hand.

Predictive Monitoring and Early Problem Detection

Know how your technology usually works by getting to know it. Strange noises are often a sign that something is about to break. For example, grinding sounds come from worn bearings, and humming or buzzing sounds come from motor problems. More shaking means there are issues with balance, fixing that isn't tight, or bearings that are wearing out. Even though the fan is working normally, less movement means that the blades are broken, the motor is weak, or there are too many restrictions.

Watching how much electricity is being drawn can help you spot problems with motors early on, since broken motors tend to draw more current. Temperature monitors on the motor housings find problems with burning before they get too bad. If you take care of these warning signs right away with small fixes, you can avoid major breaks during busy production times, when flocks could die from lack of ventilation. Manufacturers like Shuilin Musen Aquaculture Equipment Co., Ltd. offer professional service contracts that include regular repair visits, faster access to parts, and technical knowledge that many farms don't have on staff. The small contract fee is worth it when you compare it to the cost of emergency repairs and lost production due to broken equipment.

Conclusion

Installing and taking care of a Farm Ventilation Negative Pressure Fan Unit correctly has a direct effect on the health of the flock, the ease of production, and the revenue of the business. Following organized installation steps, such as figuring out the correct airflow, fitting the parts carefully, and trying their performance thoroughly, sets the stage for long-lasting reliability. The 50-inch units can handle 28,000 to 38,000 m³/h and have a service life of more than 40,000 hours. They are tried-and-true technology that can be used in current chicken farms. This investment will last longer and cost less if it is maintained regularly. By following the tips in this guide, buying managers and farm workers can be sure that the air solutions they use will improve bird performance and the quality of the surroundings throughout the production cycle.

FAQ

Q1: How do I determine the correct number of fans needed for my poultry house?

A: Find the total volume of your barn in cubic meters, then multiply that number by the number of air changes per hour that are needed based on the number of birds and the weather. Divide this number by the amount of air that the fan unit you chose can move. A 50-inch fan that moves 28,000 to 38,000 m³/h can cover 150 to 200 m². Take weather changes into account by planning for high demand in the summer and then using staging controls to lower operations when it gets cooler. Talking to suppliers with a lot of knowledge can help you make sure that your numbers are correct for your situation.

Q2: What distinguishes negative pressure systems from positive pressure ventilation?

A: Negative pressure devices push air out of a building, which lowers the pressure inside and lets fresh air in through limited openings. This method gives you better control over how the air moves and mixes. Positive pressure devices bring air into a building, which raises the pressure inside and causes air to escape through openings. When it comes to big commercial chicken farms, negative pressure is better because it keeps airflow patterns constant, which is important for keeping the environment similar.

Q3: Can I integrate new fans with my existing automation system?

A: Through relay outputs or modulating signals, most current fans are easy to connect to standard farm controls. Before you buy, make sure the power and control signal types are compatible. The 380V standard needs the right electrical equipment. Manufacturers with a good reputation offer full integration documentation and expert help. When planning, you might want to talk to the equipment provider to make sure that it will work with your current system design and any future needs for growth.
