How to install floor-raised fans for poultry barns effectively？

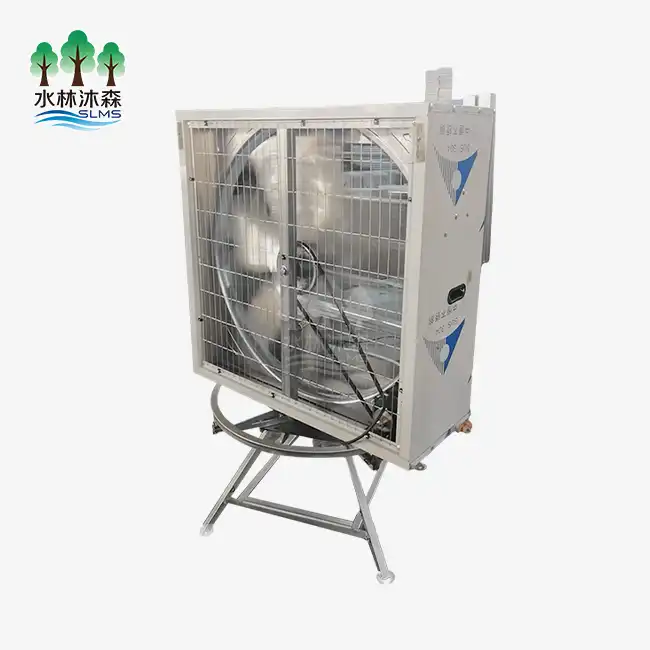

To properly install a Poultry Floor-Raised Fan Base, you must first carefully evaluate the spot and make sure the mounting is straight. To get the most cross-ventilation, put the rotating fan base on a stable, level base near the corner or in the middle of the barn. Put the galvanized steel base in place with corrosion-resistant fasteners, connect the motor wires to a separate circuit breaker, and check the direction of wind and the balance of the blades. When floor-raised housing systems are installed correctly, they improve air flow, stop ammonia from building up, and create the best wind chill effects, all of which directly improve flock health and growth performance.

Understanding Floor-Raised Fans for Poultry Barns

Floor-raised air systems are a major improvement in the way chicken coops are built today. Floor-level circulation fans direct airflow directly to where birds spend their entire grow-out time, unlike traditional wall-mounted exhaust fans that pull air from higher up. This placement is important because ammonia, carbon dioxide, and water tend to settle to the top of the litter. By putting fans at floor level, we deal with these problems where they start instead of waiting for the trash to rise.

What Makes Floor-Raised Ventilation Different

Airflow design is what makes the main difference. When systems are installed on the wall, they make vertical air shafts that often leave dead spots at bird level. Floor-mounted fans move air horizontally through the flock, breaking up thermal stratification and making sure that the temperature is spread evenly. In our experience dealing with large-scale broiler operations in a variety of climate zones, we always see an increase of 15 to 20 percent in temperature uniformity when clients switch from wall-only systems to systems that include floor-level airflow. This consistency directly affects how well birds convert food into energy, since they don't have to use as much energy to adjust to changes in temperature.

Key Advantages in Modern Poultry Operations

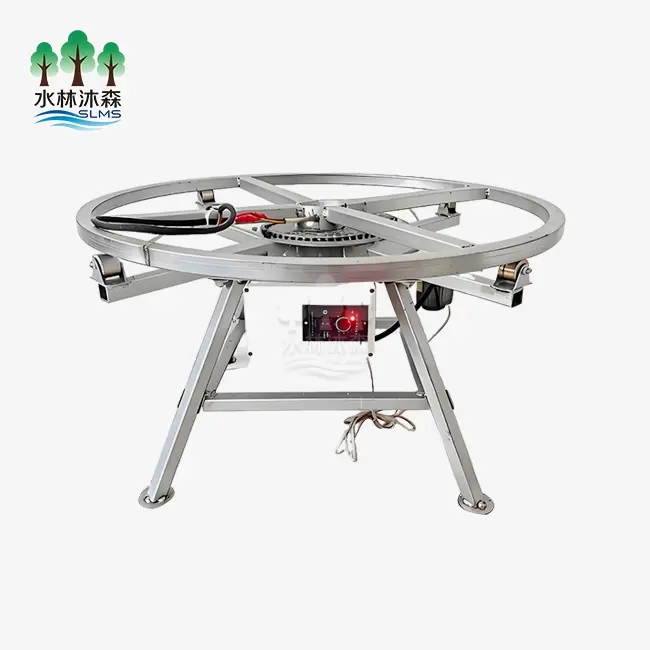

The technical benefits go beyond just moving air. A correctly chosen rotating fan base uses dynamic balance engineering to keep tools and animals from being stressed by vibrations as little as possible. High-quality bases made of hot-dip galvanized steel with a zinc covering of more than 275g/m² can stand up to the corrosive ammonia climate that makes regular equipment break down faster.

For clients who work in coastal areas with a lot of humidity, where even premium galvanization can't stop rust, we make our bases out of the die-cast aluminum alloy ADC12. The total cost of ownership is affected by the choice of materials because repair processes go from 3 to 5 years for less-than-ideal materials to 8 to 10 years for engineered solutions.

Another important benefit is that better air quality keeps people from getting sick. Pathogens that affect the respiratory system do well in still, wet places. Floor-level airflow changes the environment that helps pathogens survive, which lowers the disease pressure without the need for extra drugs. Several university studies have shown that increasing air flow at the bird level lowers the number of deaths and the use of antibiotics. This is in line with both business goals and regulatory trends to make animal production less reliant on drugs.

Step-by-Step Installation Guide for Floor-Raised Fans in Poultry Barns

For installation to go smoothly, it needs to be carefully planned, taking into account the shape of the barn, the number of flock, and the weather trends in the area. Every year, we walk hundreds of farm managers through this process, and the quality of the planning is always the key difference between good results and great ones.

Conducting a Comprehensive Site Assessment

Start by making a map of how air is moving through the barn building now. During a production cycle, walk the whole length and make note of places where condensation builds up or where birds gather, which means the temperature is too high. Accurately measure the barn's length, width, and height, taking into account any obstacles like support beams or feeding equipment.

Figure out how much air needs to be exchanged based on the number of birds that can fit. During peak heat periods, normal broiler operations usually need between 4 and 6 full air changes per hour. This calculation tells you how many fans you need and how much air they can move. We suggest that you look at the ASHRAE rules for farm ventilation. These give climate-adjusted figures for different types of chicken and housing arrangements.

Essential Tools and Safety Protocols

Putting together the right tools before starting keeps accidents and expensive delays from happening. For mounting on concrete pads, your installation team needs heavy-duty electric drills with masonry bits, torque wrenches that are set to the manufacturer's specifications for base mounting bolts, electrical testing tools like multimeters and circuit testers, Poultry Floor-Raised Fan Base, and dust-resistant respirators as part of their personal protective equipment.

Electrical dangers must be taken into account in safety rules by using lockout-tagout methods when wiring, fall protection when working on platforms that are higher than the ground, and the right way to lift fan assemblies that weigh more than 50 pounds. Our equipment comes with detailed installation guides that list the correct torque values for each bolt size. This way, you can make sure the structure stays strong without overtightening, which can damage mounting flanges.

Core Installation Steps

First, get the fixing area ready. To keep the base from rotating unevenly, which shortens the life of the bearings, the support must be level within 2 mm across the base area. If you're putting on dirt floors, pour a strengthened concrete pad and let it cure for 48 hours before mounting the equipment. Place the rotating fan base according to your site plan. For even coverage, units are usually spaced every 40 to 50 feet along the sides. Use the base flange as a guide to mark where the attachment holes should go, then drill test holes to the required depth. Put in pin bolts or expansion anchors that are strong enough to hold the fan's weight plus the loads it will be moving while it's running.

Electrical Integration

For electrical connectivity to work, local rules and maker specs must be followed to the letter. Connect each fan to its own specialized circuit from the main panel. Make sure the wire gauge is big enough to handle startup current spikes that can hit 200% of the running amperage. At each fan, put in a weatherproof junction box and make sure that all the connections are made with the right wire nuts and that the ground wires are firmly attached to the fan case. When a motor has more than one horsepower, we always suggest adding soft-start controllers or variable frequency drives. These devices lower mechanical stress during starting and allow precise airflow adjustments as flock ages and outdoor temps change.

Post-Installation Performance Verification

Once it is installed and hooked, it should be tested for proper operation before birds are introduced. Turn on each fan separately and make sure they are rotating in the right direction. The blades should pull air from inside the barn and send it outside. If you hear strange vibrations or bearing noises, that could mean there are problems with the fitting. Measure the speed of the airflow at several places on the fan face with an anemometer to make sure it is equal within a 10% range.

Compare the amp draw to the specs listed on the nameplate. Readings that are higher than the maximum amperage mean that there are mechanical or electrical problems that need to be fixed right away. When we install something, we include thorough commissioning instructions that record standard performance data. These serve as a point of reference for future maintenance assessments.

Maintenance Tips to Ensure Longevity and Performance

In poultry settings, proper repair directly affects how long equipment lasts. When ammonia levels usually go above 25 parts per million, corrosion speeds up. Also, dust buildup causes a dynamic imbalance that breaks bearings too soon. Using structured repair practices will protect your investment and keep your production from stopping when equipment breaks down.

Establishing Regular Inspection Schedules

During production cycles, we suggest visual checks once a month and full servicing between groups during barn clean-out times. Any changes in the amount of shaking, strange noises, or rust that can be seen on the base housing should be recorded every month. Check to see if the mounting bolts are loose, because operating shaking can cause screws to slowly come loose even if they were properly torqued at first. Check the fan blades for dust buildup, which throws off the flow of air. Dust that is caked on the tips of the blades for as little as 5 mm can throw off the dynamic balance enough to lower the CFM output by 15 to 20 percent while increasing the energy use.

Lubrication and Bearing Care

Modern sealed bearing designs require less upkeep, but the conditions in a chicken coop are worse than what most automotive-grade bearings have to deal with. Poultry Floor-Raised Fan Base bases with grease joints need to be oiled with high-temperature lithium-based grease every six months. The way you clear is more important than how often you do it. Pump new grease into the bearing seal until you see old, dirty grease coming out of it.

This makes sure that any wetness or dust that gets in, even if closing is done, is completely moved out. We ask for bearings with entry protection ratings of IP55 or higher, which include double-row angular contact ball bearings that keep working even if contamination gets through the primary seals.

Troubleshooting Common Performance Issues

The most common gripe we get is about too much shaking. In addition to checking for dust on the blades, see if the mounting surface has fallen or broken, which would cause the blades to be out of line. Use a precision level to make sure the base stays in the same place it was installed. If the shaking doesn't go away after cleaning and leveling, it means that the bearing races inside the rotary case are worn out. This means that the bearings need to be replaced before they fail completely. Strange noise patterns can often tell you what kind of failure it is. For example, regular clicking sounds can mean that the blade connection bolts are loose, and grinding sounds can mean that the bearings are wearing out.

Comparing Floor-Raised Fan Bases: Choosing the Right Model for Your Poultry Operation

When choosing the right equipment, you have to weigh the initial costs of acquisition against the ongoing costs of running the business and the equipment's dependability. The market has a range of specs, each of which is best for a certain set of operating conditions.

Material Selection and Durability Metrics

Galvanized steel is still the standard for rust protection that doesn't cost a lot of money. Make sure that any unit you're thinking about has a minimum zinc coating weight. Premium goods have more than 275g/m², while budget models with 180g/m² will rust in 36 months in places with a lot of ammonia. We can make bases with either hot-dip galvanization or powder-coating an aluminum metal.

Aluminum is better at resisting corrosion than stainless steel without being as heavy, but it costs about 30% more at first than luxury galvanized choices. Grades 304 or 316 stainless steel last the longest in the harshest conditions. Their higher cost is worth it in situations where replacing equipment takes a long time or where highly alkaline cleaners are used in chemical washdown processes that damage zinc coatings.

Energy Efficiency and Airflow Performance

The running cost over the life of the equipment is based on the link between the CFM output and the wattage used. Good rotating bases keep the blades perfectly centered in the shroud, which reduces the tip space that causes turbulent backflow and lowers efficiency. A 3 mm misalignment can cut airflow by 8 to 12 % and make energy use 5 to 7 % higher. When comparing goods, you should ask for test results from a third party that show the CFM per watt at different static pressures. The best designs keep working efficiently across the whole range of situations, not just when they're working at their best. We make sure that our bases can support dynamic balance grade G6.3 according to ISO 1940 standards. This keeps the eccentric spin below levels that hurt performance.

Noise Considerations for Flock Welfare

Research shows that noise levels that last longer than 65 dB(A) make chickens' stress hormones rise, which hurts their ability to digest food and fight off illness. Precision production that stops vibrations from being transmitted and aerodynamic blade shapes that reduce turbulence are two ways that rotary fan bases cut down on noise. When you compare goods, make sure that the noise testing data is taken at places that are relevant to where birds live, not just at the fan housing. It has been our experience that units that aren't perfectly balanced (58 dB at one meter) can make the whole barn sound 68 dB because of structure reverberation, while equipment that is perfectly balanced stays at 62 dB even in buildings with metal walls that make sound worse.

Procurement Best Practices: Finding Trusted Suppliers and Making Bulk Purchases

Strategic buying is more than just finding the cheapest price per unit. To figure out the total cost of ownership, you have to look at the supplier's skills, the system for support, and the possibility of a long-term relationship.

Verifying Manufacturer Credentials and Track Record

Suppliers that are trustworthy keep clear records of their technical and quality systems. For products like the Poultry Floor-Raised Fan Base, ask for proof of technical capabilities, like how many R&D teams they have and how many new products they make each year. Suppliers who put money into constant innovation show that they want to move technology forward instead of just selling the same old goods.

Our five-person engineering team at Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. releases at least three new products every year. These products are directly in response to changing industry needs that we learn about by working with customers on a regular basis. Check to see if possible suppliers have the right certifications for the way they make things and can show you test reports from a third party that back up their performance promises.

Negotiating Volume Purchase Agreements

Bulk procurement methods are very helpful for large-scale activities. When buying ventilation systems for multiple barns or organizing the needs of tools on multiple farm sites, use the size of your order to get better prices and terms. Talk about more than just lower unit costs. You should also talk about longer guarantee coverage, faster access to technical support, and custom payment plans that work with your capital planning cycles. We often make deals with farm cooperatives and regional distributors that give us volume discounts and allow us to deliver in stages as building plans change. This method avoids the costs of keeping supplies and the chance that equipment specs will become out-of-date before they are installed.

Ensuring Reliable After-Sales Support

The level of help after the sale has a big impact on how well the equipment works. Check to see if sellers keep enough spare parts on hand to fix problems quickly and without causing long periods of downtime. Ask for detailed promises about how long it will take to answer technical questions and whether help will be available on-site.

When customers need it, our company offers full help, including remote troubleshooting, thorough technical documentation, and on-site installation advice. We keep common wear parts like bearings, seals, and mounting tools in stock so that new parts can be sent out the same day. We put just as much emphasis on support infrastructure as we do on product building because we know that broken equipment has a direct effect on the health of animals and the income of farms.

Conclusion

For floor-raised ventilation systems to be installed correctly, technical accuracy and operating knowledge must be balanced. The process includes carefully evaluating the site, following exact mounting steps for the Poultry Floor-Raised Fan Base, integrating electricity systems in a planned way, and performing regular maintenance. Choosing the right tools means looking at how long the materials will last, how well they deal with noise, how much energy they use, and what other services the seller can offer besides the initial purchase price.

We've helped hundreds of poultry farms through this process, and each time we've seen that investing in good equipment and making sure it's set up correctly pays off in the form of better group health, lower mortality, better feed conversion, and longer equipment life. The ventilation systems you put in place today will have an effect on your output and running costs for ten years.

FAQ

What factors determine optimal fan spacing in my barn layout?

It depends on how wide the barn is, how high the roof is, and how fast the air needs to move at bird level. For barns up to 50 feet wide, standard estimates say that there should be one fan for every 40 to 50 feet of floor length. For buildings that are wider, center-mounted circulation fans may be needed in addition to corner units. For complicated barn shapes or processes with more than 100,000 birds, we suggest computational fluid dynamics modeling to make sure there are no dead spots and proper coverage.

How does ammonia exposure affect equipment lifespan?

When the amount of ammonia in the air is higher than 25 ppm, it speeds up rusting on metal surfaces. This means that coated parts will only last 3 to 5 years instead of 8 to 10 years. Aluminum that has been powder-coated or made of stainless steel is better at resisting ammonia attack. Aside from choosing the right material, keeping the right air rates and managing the litter box also help lower the production of ammonia, which is good for both the health of the tools and the health of the flock.

Can I retrofit floor-raised fans into existing wall-vent barns?

Retrofitting is possible and often a good idea, but the current electrical capacity needs to be looked at and panels may need to be upgraded to handle more motor loads. When wall exhaust fans are combined with floor-level airflow, the air is mixed better than in systems that only use wall fans. We've successfully added floor fans to buildings that are decades old, getting ventilation performance that's close to that of new construction at a fraction of the cost of a full makeover.

Partner with Shuilin Musen Aquaculture Equipment Co., Ltd. for Complete Ventilation Solutions

Every project we work on at Weifang Shuilin Musen Aquaculture Equipment Co., Ltd. benefits from our eight years of experience in farming and animal equipment. Our engineering team creates unique air solutions that work with the way your barn is set up, the type of animals you have, and the weather conditions in your area. We make Poultry Floor-Raised Fan Base units out of high-quality materials like high-grade galvanized steel and die-cast aluminum metal. These units are designed to last 8 to 10 years in tough poultry settings.

As a full-service Poultry Floor-Raised Fan Base provider, we help with everything, from designing the system in the first place to installing it and providing ongoing expert support. Email us at wangshuaislms@gmail.com to talk about your air needs and find out how our tried-and-true equipment options can help you save money and improve the performance of your flock. You can see all of our products and get detailed information by going to slms-equipment.com.
