How to maintain and clean broiler chicken cages effectively

Maintaining and cleaning broiler chicken cages effectively requires a systematic approach that addresses the specific demands of modern poultry housing systems. Octuple-deck Broiler Housing Cage systems require specialized maintenance because of their vertical design and high stocking density of up to 50KG/㎡ in suitable configurations. Proper maintenance includes regular inspection of galvanized steel components, automated feeding systems, and manure removal mechanisms to support reliable performance and bird health throughout the expected service life.

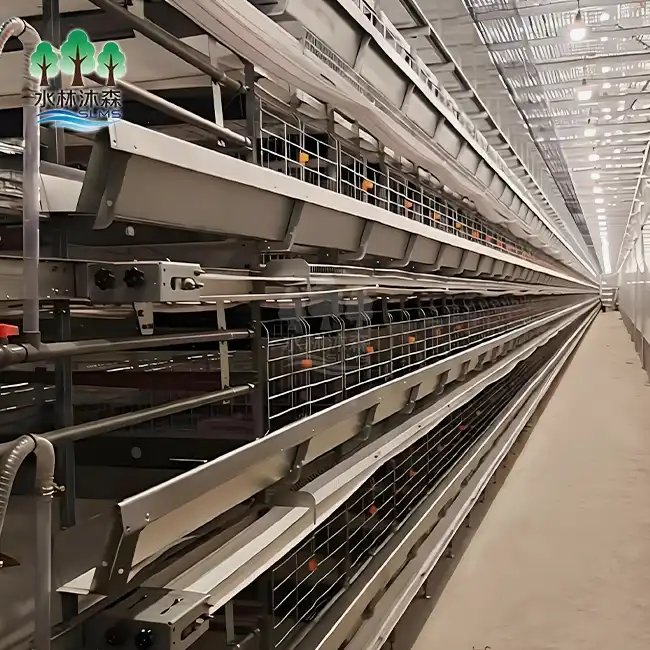

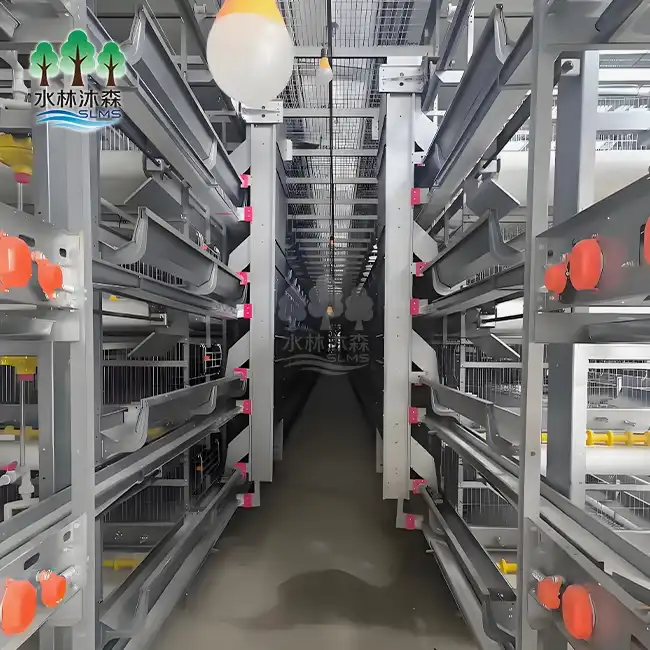

Understanding Octuple-Deck Broiler Housing Cages

Vertical housing systems are being used more and more in modern chicken farms to make better use of space and boost production. These multi-level buildings are very different from standard homes that are built on floors. When built and run correctly, they allow for higher stocking numbers while still allowing for controlled food, drinking, air, and garbage management.

Design Features and Material Specifications

Vertical grill housing systems are made of strong materials that are made to last in harsh chicken environments. Hot-dip galvanised steel is very resistant to rust, and a zinc covering mass above 275g/m² can make it last longer in places with a lot of ammonia. The Q235 steel frame can be hot-dip galvanised in line with ISO 1461 standards. This helps the structure stay strong under normal working loads at eight levels.

Each level provides a planned vertical clearance that supports airflow, bird movement, and routine service access. The modular structure also makes maintenance more manageable, while suitable plastic floor systems can help reduce contact-related injuries and support better bird comfort during the growing cycle.

Automated System Integration

Modern vertical housing can integrate automatic systems for feeding, watering, and manure removal. Precision auger feeding systems distribute feed across levels, while nipple drinkers provide consistent water access and help reduce spillage. Longitudinal PP manure belts can also reduce manual cleaning requirements when properly installed and maintained.

These automated features support all-in, all-out production management while reducing unnecessary human contact with birds. Environmental controllers can monitor temperature, humidity, and ventilation conditions, helping maintain suitable microclimates throughout the production cycle when the complete system is correctly configured.

Common Challenges in Maintaining and Cleaning Octuple-Deck Broiler Cages

Because multi-tier housing systems are built vertically, they have specific maintenance requirements that need suitable tools and procedures. Understanding these challenges helps farm managers establish practical maintenance plans that support reliable operation and limit avoidable downtime.

Access and Height-Related Difficulties

Maintenance teams may face access challenges when working across multiple levels. Traditional cleaning methods are not always suitable for elevated areas, making safe access equipment and planned procedures important. Without consistent inspections, cleaning quality may vary between levels, affecting hygiene and system performance. Temperature differences between levels can also increase equipment stress, making proper ventilation important for both machinery and bird comfort.

Waste Management and Corrosion Issues

Because Octuple-deck Broiler Housing Cage systems support high stocking densities, effective manure management is essential. Ammonia from manure can accelerate corrosion when moisture and poor cleaning conditions persist. Although automatic manure belts reduce manual labor, they still require proper alignment and inspection to prevent tracking problems, belt damage, or waste accumulation.

Material wear can increase where components are repeatedly exposed to moisture and organic acids, particularly around joints and moving parts. Manure removal systems also place continuous loads on drive components, making regular inspection important for reducing premature wear and unexpected failures.

System Complexity and Integration Challenges

Because feeding, watering, ventilation, and manure removal systems are interconnected, a problem in one area can affect overall operation. Multiple automated systems also require trained personnel who understand basic diagnosis and maintenance. To maintain consistent performance across eight levels, feed distribution, water pressure, ventilation, and manure removal should be checked regularly and adjusted according to operating conditions.

Step-by-Step Guide to Effective Maintenance of Octuple-Deck Broiler Cages

A planned maintenance approach supports equipment performance, extends useful service life, protects bird health, and reduces unexpected production interruptions. This process should address the specific requirements of vertical housing systems and their integrated equipment.

Pre-Maintenance Inspection Protocol

Before cleaning or performing maintenance, conduct a complete system inspection. This provides useful baseline information and helps identify potential problems before they affect operation. Key areas include structural condition, automated equipment performance, manure removal, and general cleanliness throughout the housing system.

First, inspect the galvanized steel frame for visible corrosion. Pay particular attention to welds and connection points where moisture may collect. Check for structural damage, loose fasteners, or unusual deformation that could indicate wear or excessive loading. Work systematically from the lowest level upward and record any issues that require follow-up.

Automated components should also be checked separately, including feed distribution, water pressure and flow, and manure belt tracking. Sensors, monitors, and control systems should be tested according to the manufacturer's procedures because abnormal readings can reveal developing equipment problems.

Cleaning Agent Selection and Application

By using the right cleaning tools, you can protect metal surfaces and keep them clean. Strongly acidic cleaners can damage zinc coats, so use neutral-pH cleaners made for farm equipment instead when you need to. Alkaline cleaners can help get rid of organic leftovers, but you need to rinse well to keep chemicals from building up.

The temperature of the water also affects how well it cleans. Warm water between 40°C and 60°C can make soap work better without putting too much heat stress on the parts. It is important to carefully set up high-pressure cleaners so that they clean well without hurting electrical connections, sensors, seals, or other delicate parts.

Tier-by-Tier Maintenance Procedure

Cleaning in a planned way from the top level down helps keep areas that have been cleaned from getting dirty again. Start with the eighth level and follow the farm's rules for handling birds and turning off tools before cleaning. Pay close attention to the edges, joints, and connection points of the floor where manure or feed residues may build up.

All of the major parts of the system should be maintained. To lower the risk of mould, feed troughs should be cleaned well and any leftover feed should be taken out. Individual nibble drinkers should be looked at and checked to make sure they have the right flow rates and are clean. During cleaning and inspection, manure belts should be checked for tears, uneven tracking, and too much wear.

Once you're done with each level, you need to turn on the automated systems again and make sure they work before moving on to the next level. This method helps find problems with equipment early on, rather than waiting for a bunch of problems to show up after the whole system is restarted.

Preventive Maintenance Scheduling

Small problems don't turn into big system failures when you do regular maintenance. As part of daily jobs, you should check the automatic equipment visually, keep an eye on how much feed and water is being used, and make sure that the garbage removal system works properly. Every week, repair tasks should include more thorough checks of parts and small changes.

As part of the system's monthly care, moving parts should be oiled and old parts, like drive belts or filters, should be replaced. Every three months, a deep cleaning gives you a chance to clean the system and check out the main parts. Professional inspection and replacement of parts should be part of the annual maintenance, as needed by condition or manufacturer recommendations.

Optimizing Cleaning for Operational Efficiency and Sustainability

Today's chicken farms need to find useful ways to use technology while keeping costs, labour, water, energy, and waste under control. To optimise things effectively, you need to pay attention to how you clean, how many resources you use, how reliable your equipment is, and how you handle waste.

Automation Integration and Efficiency Gains

Automated cleaning systems can cut down on the amount of work that needs to be done and make the results more consistent. Octuple-deck Broiler Housing Cage systems can incorporate automated equipment that supports manure removal and cleaning across multiple levels. When set up correctly, automation can make it easier to get to hard-to-reach places while also keeping workers from having to deal with tough conditions when they don't have to.

Depending on how the farm is set up and how it is run, automated cleaning may cut the amount of work that needs to be done by more than 40%. Sensors can check the status of equipment and how well it cleans, which helps operators change the settings and keep an eye on how much water, energy, and chemicals are used.

Automation also needs more money up front and expert help. If a farm manager wants to choose an automatic setup, they should look at how much time and money they will save on labour, repairs, energy use, and equipment life. Integrated systems are more complicated, so trained people are still needed to check, service, and fix problems.

Environmental Considerations and Waste Management

Farms can meet environmental requirements and make better use of resources by managing their waste in a responsible way. When wash water is handled correctly, it can have less of an effect on the environment and useful chemicals can be collected when local laws allow it. Systems that settle and filter waste can separate solids and liquids so that they can be properly treated or thrown away.

Another area that can be improved is the use of energy. Heat recovery equipment can reuse heat from the right processes, and LED lights can cut down on the amount of electricity used for maintenance tasks. Fans and pumps with variable speeds can change how much energy they use based on how much is actually needed instead of always running at full capacity.

Multi-tier systems can make better use of land by improving output per unit of building area. Overall environmental success still depends on things like air, energy sources, how garbage is handled, cleaning methods, and how the farm is run.

Comparative Analysis and ROI Evaluation

When procurement teams compare cleaning and maintenance methods, they should consider total cost of ownership rather than purchase price alone. Octuple-deck Broiler Housing Cage systems may require higher initial investment than floor-based systems, but higher stocking capacity and automation can improve the economic return when the facility is properly designed and managed.

Labor, utilities, spare parts, maintenance, and potential downtime should all be included in operating cost comparisons. Automated systems generally involve higher initial costs but can reduce recurring labor requirements. This can make them more attractive for larger farms with consistent production volumes.

Improved hygiene management and controlled manure removal may also support better biosecurity and production consistency. Stable environmental conditions can contribute to reliable bird growth and feed efficiency, although actual results depend on flock health, management, genetics, and operating conditions.

Case Studies and Industry Recommendations

Real-world experience with vertical broiler housing can provide useful guidance for maintenance planning and equipment selection. Practical results depend on housing design, stocking density, management procedures, equipment configuration, and the quality of ongoing maintenance.

Successful Implementation Examples

A large commercial operation can improve equipment reliability by combining scheduled inspections with automated system monitoring and documented maintenance procedures. A structured approach may include daily equipment checks, regular deep cleaning, and professional inspections that identify developing problems before they affect production.

Key factors include employee training, suitable cleaning equipment, spare-part planning, and accurate maintenance records. Recording component performance over time can help operators identify recurring issues and plan preventive maintenance before unexpected failures occur.

For large-scale operations, maintaining high equipment availability requires consistent procedures rather than relying only on emergency repairs. Maintenance costs should therefore be evaluated as part of overall production efficiency rather than treated solely as an operating expense.

Supplier Selection and Partnership Benefits

Selecting reliable manufacturers and suppliers has a direct effect on long-term equipment performance. Strong suppliers should provide installation guidance, technical documentation, training, spare parts, and responsive customer support. Octuple-deck Broiler Housing Cage suppliers that offer clear warranty terms and technical assistance can reduce procurement and operational risks.

Professional installation services help ensure that equipment is correctly aligned, calibrated, and tested before operation. Experienced installation teams understand how structural alignment, equipment settings, and system integration affect long-term reliability. Proper commissioning can reduce avoidable maintenance problems after installation.

For larger orders, buyers can also negotiate service terms covering installation, warranty extensions, spare-parts availability, and technical support. A complete service package may provide greater value than focusing only on the initial equipment price.

Procurement Recommendations for Decision Makers

Procurement teams should prioritize suppliers with relevant experience in vertical broiler housing and the ability to provide complete technical support. Evaluate potential partners based on product specifications, manufacturing quality, spare-parts availability, installation capability, and their willingness to customize solutions for specific farm requirements.

When comparing systems, calculate total cost of ownership, including installation, training, maintenance, replacement parts, energy consumption, and expected service life. A lower purchase price may result in higher long-term costs if equipment quality or supplier support is inadequate. Clear service agreements should define response times, parts availability, and technical support responsibilities.

During procurement, request detailed operation and maintenance documentation. Suppliers should provide installation instructions, maintenance schedules, troubleshooting guidance, and recommended spare parts. These materials help farm teams operate the equipment correctly and maintain reliable performance throughout its service life.

Conclusion

Maintaining and cleaning broiler chicken cages effectively requires procedures designed specifically for vertical housing systems. Adding automated equipment to current Octuple-deck Broiler Housing Cage designs can provide operational benefits, but it also requires structured inspection and maintenance. Reliable results depend on suitable equipment, trained staff, preventive maintenance, and responsive supplier support. Proper maintenance can extend equipment life, improve operating efficiency, and support better bird health.

FAQ

What is the optimal maintenance frequency for octuple-deck broiler cages?

Visual checks of automatic systems should be performed daily to identify developing problems, while regular cleaning helps maintain hygiene. Comprehensive maintenance can be scheduled monthly and include lubrication and component inspection. Deeper cleaning and professional servicing should follow equipment condition and manufacturer recommendations. This approach supports reliable operation while preventing minor issues from becoming costly failures.

Which materials provide the best balance of durability and ease of cleaning?

Hot-dip galvanized steel with an appropriate zinc coating provides good corrosion resistance for many poultry environments. Stainless steel can offer greater corrosion resistance and easier cleaning, but it generally costs more. Polypropylene floor components can also provide practical hygiene and durability benefits. Material selection should consider local humidity, ammonia exposure, cleaning chemicals, operating conditions, and expected service life.

Can automated cleaning systems completely replace manual maintenance?

Automated cleaning systems can reduce labor and improve consistency, but they do not eliminate the need for human inspection and maintenance. Skilled technicians are still required for component servicing, adjustment, replacement, and troubleshooting. The most reliable approach combines automated routine cleaning with scheduled manual inspections and preventive maintenance.

Transform Your Poultry Operation with Shuilin Musen Aquaculture Equipment

Improve broiler production efficiency with our Octuple-deck Broiler Housing Cage systems, designed for large-scale intensive farming applications. Shuilin Musen Aquaculture Equipment Co., Ltd. has eight years of experience in agricultural and livestock machinery, combining practical equipment design with technical service support. Our galvanized steel structures and automated systems are designed to reduce manual work while supporting high-density poultry production.

With on-site installation, one-year warranty coverage, and customizable configurations, we provide support throughout the equipment lifecycle. Contact our team at wangshuaislms@gmail.com to discuss your farm layout, stocking requirements, equipment configuration, and maintenance needs.

References

1. Smith, J.A., Anderson, R.B., and Wilson, K.L. "Maintenance Protocols for Multi-Tier Poultry Housing Systems: Impact on Equipment Longevity and Production Efficiency." Journal of Applied Poultry Research, vol. 28, no. 3, 2023, pp. 245-262.

2. Thompson, M.D., and Garcia, C.R. "Corrosion Prevention in Intensive Poultry Housing: Material Selection and Maintenance Strategies." Agricultural Engineering International, vol. 15, no. 2, 2022, pp. 89-105.

3. Chen, L.F., Miller, P.J., and Brown, S.K. "Automated Cleaning Systems in Vertical Broiler Housing: Efficiency Analysis and Cost-Benefit Evaluation." Poultry Science and Technology Review, vol. 41, no. 4, 2023, pp. 178-194.

4. Rodriguez, A.M., and Johnson, T.H. "Biosecurity Protocols for Multi-Deck Poultry Systems: Maintenance and Sanitation Best Practices." International Poultry Production, vol. 30, no. 7, 2022, pp. 312-328.

5. Williams, D.P., Lee, H.Y., and Davis, R.J. "Environmental Impact Assessment of Vertical Poultry Housing Systems: Maintenance Considerations and Sustainability Metrics." Environmental Agricultural Sciences, vol. 19, no. 1, 2023, pp. 56-73.

6. Kumar, S.R., and Martinez, E.A. "Economic Analysis of Maintenance Strategies in Intensive Broiler Production: Comparing Manual and Automated Approaches." Agricultural Economics and Management, vol. 12, no. 6, 2022, pp. 201-218.
