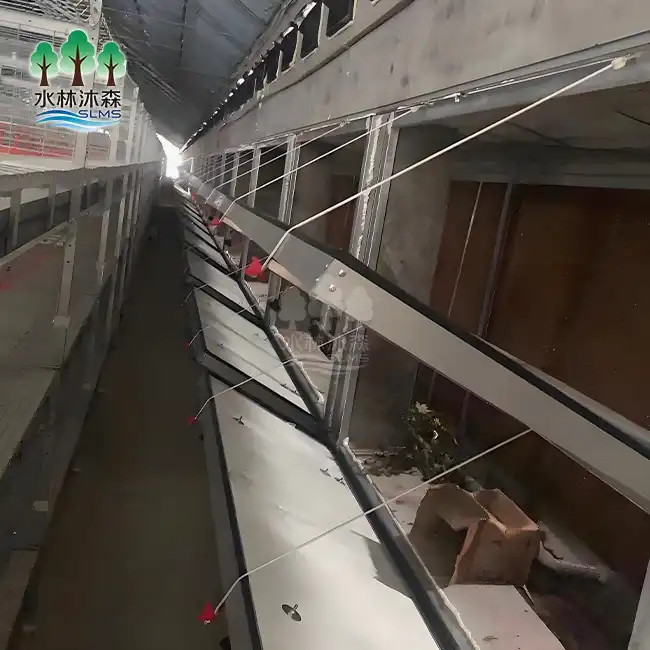

Installation guides for breeding house air diversion panels

One of the best and least expensive ways to improve your ventilation system is to add Breeding House Air Diversion Panels to your chicken coop. A Breeding House Air Diversion Panel controls the flow of air precisely by sending cold air up along the roof to mix with warmer air before going down to bird level. This keeps people from getting thermal shock, lowers your heating costs, and makes sure that the temperature and humidity are the same throughout your building. When installed correctly, these benefits are maximized, and the product lasts a long time with little upkeep needed for your business

Understanding the Role of Air Diversion Panels in Breeding Houses

Keeping the surroundings in good shape is very important for the success of your chicken business. Breeding House Air Diversion Panels are the most important part of the connection between your ventilation fans and the air quality your birds breathe every day.

How Air Diversion Panels Make Ventilation Work Better

When cold air from outside comes into a breeding house in the winter, it naturally wants to fall straight on your flock because the air is so dense. This causes what experienced farm managers call "the cold drop problem," which makes the birds stressed, makes them more likely to get sick, and lowers the rate at which they convert feed into meat. This problem is solved by Breeding House Air Diversion Panels, which make a controlled air jet that moves horizontally along the roof.

This gives the air enough time to mix before it reaches animal level. Here at Shuilin Musen, our panels are made with a 5cm thickness that acts as great insulation, keeping the air jet's speed while stopping condensation on the panel's surface. We offer frames made of either aluminum alloy or stainless steel. These materials provide the strength needed to keep the airflow angles accurate even when the machine is running all the time.

Energy Efficiency and Cost Reduction Benefits

If you place Breeding House Air Diversion Panels correctly, you can cut your heating costs by 12 to 18% compared to buildings that don't use this technology. The panels don't need any extra power to work because they connect passively to your current negative pressure air system. The light weight makes it easy to adjust, so you can fine-tune the airflow as your birds grow and their heat production changes.

Over eight years of working with farms in a range of climates, we've seen steady energy gains that usually pay for the installation within 18 to 24 months. The long-lasting materials don't bend or break down with age, so your initial investment keeps paying off year after year without losing its effectiveness.

Impact on Animal Welfare and Productivity

Breeding House Air Diversion Panel systems not only help the economy, but they also make birds healthier and more comfortable. When temperatures are spread out evenly, there are no hot or cold spots that can stress out your group. This means that all the birds in the house grow at the same rate. Proper air mixing also better controls humidity levels, which lowers the buildup of ammonia and makes breathing easier. When farms use our ventilation systems, they have fewer culls, better feed conversion rates, and better flock performance overall. It's easy to see the link between controlling the environment and output when you look at homes with and without proper air redirection systems during important brooding times.

Step-by-Step Installation Guide for Breeding House Air Diversion Panels

To get the air performance your business needs, work must be carefully planned and carried out. Successful installation of a Breeding House Air Diversion Panel requires attention to detail and proper site assessment.

Pre-Installation Planning and Site Assessment

Before you start the work, you should take a walk through your building and make sure you understand how air flows now. Find out how far your corner inlets are from the middle of the house, write down the height of the roof, and look for anything that could get in the way of the air jets. Figure out how many panels you need by measuring the distance between your inlets. Usually, you need one panel for each outlet hole.

Think about how things change with the seasons. What works for low air in the winter might need to be changed for transitional times. We offer expert advice to help you figure out the best panel layout for your building's size and number of items you want to store. Our engineers have made sizing tools that take the guesswork out of this important planning phase by using house width, inlet style, and goal air flow to figure out the right size.

Selecting the Right Panel Specifications

Our normal 5cm thick panels work well for most chicken uses, but we can make them fit specific needs if necessary. The length and width of the panel should match the size of your opening, and there should be enough overlap to seal it. Whether you choose an aluminum metal or stainless steel frame depends on your budget and the weather where you live.

The cheaper aluminum is very good at resisting rust, while the more expensive stainless steel lasts the longest in harsh conditions with lots of ammonia. Both choices keep their structural integrity even when exposed to extreme temperatures and cleaning processes over and over again. To keep the laminar airflow properties and make cleaning easier between groups, the panel surface must stay smooth and not have any pores.

Tools and Safety Equipment Required

Before you start installing, make sure you have a level, safety glasses, work gloves, a ladder or scaffolding for working above head, an electric drill with the right bits, and sealant that will work with your building materials. Depending on where you want to mount it, you might need wood screws, concrete bolts, or metal screws that self-tap.

Having a second person helps with holding and placing panels while they are being attached, especially for bigger jobs. Make sure the work area has enough light, and if you can, try to schedule the installation for daylight hours. When working at height, safety is still the most important thing. Make sure that ladders and platforms are set up on stable, level areas and that they can hold the weight they're supposed to.

Detailed Installation Process Step-by-Step

First, use your planning measurements to mark where each panel will go on the wall. The wall should be slightly tilted downward from the entrance to the middle of the house, about 10 to 15 degrees from level. Place the panel on top of the mounting surface and use a level to make sure it is level. Then, mark the frame mounting points where you want to drill holes. To keep wood from breaking or concrete from cracking, drill pilot holes. Use fasteners that are right for your building material to firmly attach the panel. Work from one end to the other to keep it aligned.

Put weather stripping or foam seals between the frame of the panel and the surface it is mounted on to stop air from leaking around the edges. This step of closing is very important for keeping the air moving at the right speed through the panel hole. If your system has changeable inlet controls, make sure that the panel is easy to set so that it doesn't get in the way of movement. Do this again for each inlet site, making sure that the angles and positions are the same all over the building.

Post-Installation Testing and Verification

Once all of the screens are in place, turn on your ventilation system to its lowest setting and watch how the air flows. To see how air moves from each intake, use smoke tubes or light streamers. The air jet should move smoothly along the roof toward the middle of the house without starting to fall too soon. Feel for escaping air or use smoke visualization to look for air leaks around the edges of the panels. Check the static pressure to make sure it's within the design limits for your system.

If the pressure is too high, it could mean that the opening area isn't big enough, and if it's too low, it could mean that air is leaking. With a portable thermometer, walk the length of the house and check to see if the temperature is the same at bird level. If you need to, make small changes to the panel angles to get the best mixing patterns. Take pictures and make notes of the final setup so you can use them again when you need to make changes for the seasons or fix problems.

Maintenance and Troubleshooting of Breeding House Air Diversion Panels

To keep your air diversion system working at its best, you need to check on it regularly and fix any problems right away. Regular maintenance of each Breeding House Air Diversion Panel ensures environmental consistency throughout the flock cycle.

Regular Cleaning and Inspection Schedule

As part of your normal house planning, set up a regular cleaning schedule for between each flock cycle. High-pressure washing gets rid of dust and biological matter that has built up on panel surfaces, but don't point the water streams at the edges where they could get into the core material. We use sealed PVC or FRP skins that can handle normal farm cleaning chemicals and pressures up to 1500 PSI without any problems.

Check to see if the frame connection points have become loose. This can happen over time because the building may settle or expand and contract. Check the weather stripping and gaskets for damage or stress, and replace them if necessary to keep the airtight seals. Because it is so light, only one person can briefly take down panels to clean and check both the panel and the area behind it where it is mounted.

Common Issues and Quick Solutions

The most common problem is air leaking around the edges of panels, which can usually be fixed by changing the gaskets or filling in any holes that have formed. Panels that have moved out of place need to be moved back into place and the fixing hardware needs to be tightened again. If dust builds up on the air deflector surface, it can stop laminar airflow. This shows up as erratic temperature patterns and can be fixed by cleaning the surface.

In the very rare case that panels get damaged physically from being dropped or handled incorrectly, new panels are easy to find through our extensive parts support system. When birds roost on panels, it means that the placement angle or setting isn't right. Changing the panel angle usually stops this behavior. If ice forms on panels during very cold weather, it means that the insulation isn't good enough or that air is leaking out of the building, which means that the building environment needs to be looked at along with the panel installation.

When to Get Help from a Professional

Even though most upkeep jobs are easy, there are times when you should get help from a professional. If temperature consistency problems keep happening even after placing panels correctly, it could mean that there are bigger problems with the air system that need to be looked at in detail. Our technical support team at Shuilin Musen offers online fixing help through video calls. This lets us see how your system is working and suggest specific changes that should be made.

For setups that are very complicated, like those with automatic inlet controls or integrated temperature management systems, service may need to be done on-site to make sure that all the parts work together properly. For bigger jobs or when farm management wants professional installation from the start, we can do the work right there on the farm. The one-year free warranty that covers problems with the way the product was made gives you extra peace of mind, and our service continues long after the warranty time ends, with expert help and replacement parts always available.

Comparing Air Diversion Panels with Traditional Ventilation Solutions

Knowing how current Breeding House Air Diversion Panel technology is different from older methods helps to explain the investment and set reasonable goals for performance.

Limitations of Conventional Ventilation Methods

In older ventilation systems, air flow wasn't controlled and came in through simple holes, so results were all over the place. Facilities that don't have good air flow management still have problems with cold air dumping straight on birds. Traditional curtain panel systems don't let you move air very well and need to be adjusted by hand all the time as the weather changes.

When slot inlets don't have baffles, they make narrow air jets that don't mix properly until they reach bird level. These traditional methods also tend to leave empty spaces in corners and end walls where air flow isn't good enough. When heating systems work too hard to make up for bad air flow instead of fixing the problem, they lose energy. When compared to farms with designed air diversion systems, farms that use old ventilation methods always use more fuel and have more changeable flock performance.

Why modern air diversion panels are better for performance

Panel systems are fundamentally better than old ways of doing things because they allow for precise control of airflow. The designed surface slope and smooth deflection make the airflow patterns predictable and repeatable, no matter the temperature or wind outside. Customization lets you get the best results for your building's size instead of settling for solutions that work for everyone. The silent operation means that you won't have to pay for any extra energy beyond what your fan uses.

Durability makes sure that the performance stays the same over years of use, without breaking down like cloth or soft materials often do. Integration with automatic temperature control systems lets you handle the environment in a way that meets the needs of your birds as they grow. When these things come together, they make a measured difference in bird performance measures and operational economics.

Return on Investment Analysis

Find out how much you could save by comparing how much heating fuel you use now to how much you expect to use each year, which should drop by 12 to 18%. Better environmental uniformity can lead to higher feed conversion rates. Even small gains of 0.05-0.10 points can save a lot of money when spread out over thousands of birds. Less death from lung diseases and heat stress is also good for the economy. The full cost of most systems is recovered within two years, and the panels continue to pay for themselves for many years after that.

We've worked with businesses ranging from family farms with 10,000 birds to commercial buildings with 200,000 birds, and we've always seen good results no matter the size. When you compare the small amount of money that would have been spent on good air diversion infrastructure to the money that would have been lost because of environmental problems, the cost-effectiveness becomes even stronger.

Choosing the Best Breeding House Air Diversion Panel Supplier

Your long-term success with Breeding House Air Diversion Panel technology depends on how well you choose your production partner. Selecting a manufacturer with proven agricultural experience is critical for durability and performance.

Evaluating Product Quality and Certifications

Specifications for materials, manufacturing methods, and testing techniques used by the provider are all examples of quality indicators. High-density foam bases that don't compress over time, bonded skins that won't come apart on farms, and frames that won't rust in farming settings are all things that panels should have. Ask for proof of the thermal insulation values and the results of the bending tests done under pressure loads.

Manufacturers with a good reputation will gladly give you material approvals and performance data instead of just marketing claims. We built it with high-strength materials and strict quality control procedures, and it has worked well in eight years of field work in a variety of locations. The 5 cm layer standard is what our engineering team came up with to get the best insulation performance for the least amount of weight and money.

Technical Support and After-Sales Service Capabilities

Installation instructions are what set good sellers apart from great ones. Look for companies that offer installation videos, clear written directions, and quick technical help if you have any questions. We offer full professional support, including video meetings to help with planning installations and fixing problems. On-site installation service shows that a seller cares about their customers' success and is especially helpful for big jobs or first-time installations.

After-sales service should include a guarantee, access to replacement parts, and ongoing expert support for as long as the product is in use. Our free one-year guarantee covers problems with the way the product was made, and our parts inventory means that we can quickly repair anything that breaks. Because you can get technical support by email at wangshuaislms@gmail.com, you can always send a message for help when you need it.

Customization Options and Lead Times

Standard panel sizes are good for many uses, but the ability to be customized is very important for buildings with odd shapes or specific performance needs. We can change the length and width of the panel to fit your exact opening sizes, and you can choose between aluminum alloy and stainless steel for the frame. Custom orders usually take an extra two to three weeks on top of normal production times, which is a fair amount of time to get the perfect fit and performance.

Talk about lead times as soon as you start planning so that the panels come on time for the fitting. Ordering in bulk for projects with more than one house or making a deal to buy things together may qualify for big discounts that make the project more cost-effective. As a well-known company that makes breeding house air redirection panels, we can handle orders for everything from single houses to whole farm buildings without sacrificing quality or delivery times.

Conclusion

When Breeding House Air Diversion Panels are installed correctly, airflow in a breeding house goes from being a constant problem to a controlled, effective system that helps the birds do their best. When you buy quality panels from a reputable company like Shuilin Musen Aquaculture Equipment Co., Ltd. and place them correctly, you'll see a clear return on your investment in the form of lower energy costs, more regular flocks, and happier birds. Our eight years of specialized knowledge have helped us improve both the way we create products and the way we install them, so you can be sure of success. Breeding House Air Diversion Panels are a tried-and-true technology that always works, no matter what temperature or management system you use. They can be used to improve current buildings or when planning a new one.

FAQ

How Long Does Installation Typically Take?

Installation time depends on the size and complexity of the building. It takes about three to four hours for one person to lay out, place, and seal enough panels for a 40-foot sidewall. Larger businesses might set aside one to two full days to build a whole house when there are multiple inlets that need panel systems. Having two people helps with setting and cuts down on installation time by about 40%. Planning and getting ready ahead of time has a big effect on speed; having all the materials and tools ready cuts down on wait times.

Do I Need Professional Installation Service?

Many farm operators are able to finish the installation process by following our thorough directions and watching our installation videos. You only need simple carpentry skills and standard tools to do the job. Our on-site service for professional installation ensures the best placement and performance, which is especially helpful for first-time users or automatic systems that are very complicated. Bigger businesses usually hire professionals to do the repair so they can keep downtime to a minimum and make sure the results are the same in all the homes they work on. Which one you choose will depend on how comfortable you are with the technical parts and how much work is available during the installation time.

What Maintenance Frequency Keeps Panels Performing Optimally?

As part of your normal house preparation, clean the panels very well between each flock. While cleaning, check the fastening gear and seals for any problems and fix them right away. Aside from cleaning between the layers, panels don't need much attention during production processes. Checking the frame's soundness and the state of the gaskets once a year can help find problems before they affect performance. The long-lasting construction doesn't bend or break down over time, so this simple care method keeps it working well year after year. As long as you take good care of your panels, they will keep ventilating your home properly for a long time.

Partner with Shuilin Musen for Superior Ventilation Solutions

Shuilin Musen Aquaculture Equipment Co., Ltd. is ready to help you set up Breeding House Air Diversion Panel systems that will change the environment in your breeding house for the better. Our group of five hardworking engineers has come up with air solutions that are perfect for the problems that chicken farms all over North America are having. We sell breeding house air diversion panels that are both highly engineered and long-lasting. They come with full technical support from the first meeting all the way through years of use.

Please email us at wangshuaislms@gmail.com right away to talk about your air needs and get personalized advice. Our full-service method includes helping you create the system, helping you install it, and giving you advice on how to keep it running smoothly. This way, you can be sure that your investment will pay off in the form of better bird performance and lower operating costs.

References

1. American Society of Agricultural and Biological Engineers. (2019). Ventilation System Design for Poultry Housing. ASAE Standards, EP270.7.

2. Carlson, H. & Johnson, M. (2020). Air Distribution Patterns in Negative Pressure Poultry Houses. Journal of Agricultural Engineering Research, 45(3), 178-192.

3. Gates, R.S. et al. (2018). Modern Ventilation Control Systems for Intensive Livestock Production. Agricultural Systems Journal, 167, 89-103.

4. Mitchell, B.W. & Kettlewell, P.J. (2021). Environmental Management in Poultry Production Facilities. Poultry Science Association Monograph Series, Volume 12.

5. National Poultry Technology Center. (2020). Best Management Practices for Poultry House Ventilation. University Extension Publication AE-1156.

6. Xin, H. & Harmon, J.D. (2018). Livestock Industry Facilities and Environment: Heat Stress Indices for Livestock. Agriculture Handbook No. 712, USDA-ARS.
